BU142R-TKMMSQ3 (1995)
Toyota Dyna200
(9505- )15BF ; (9505- )15BFT..BU212,222..LHD..GEN ; (9902- )15BFT..BU222..

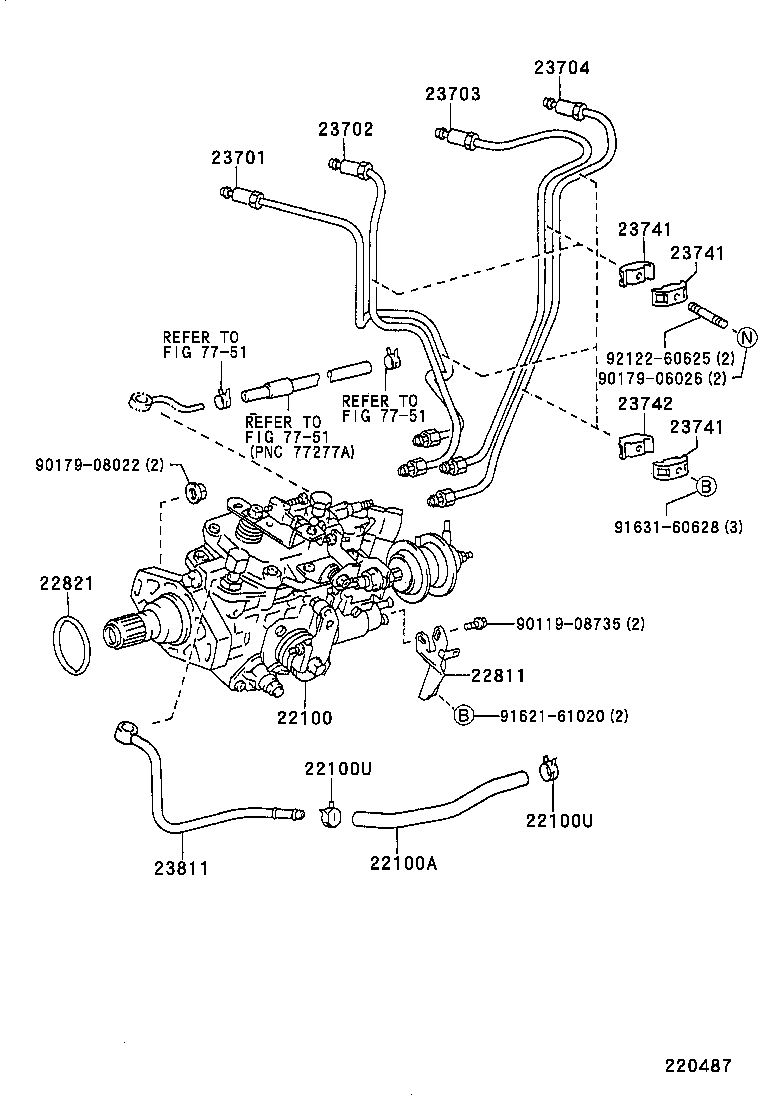

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C120 |
15BF..BU142,212,222..RHD..(ARL,GEN) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-58030 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22811-58031 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF,15BFTE..BU101,111,14#,21#,22# |
1 | ||
| 90301-49003 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
3 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-58010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 23811-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| Common parts | ||||
| 90119-08735 | ||||
| 90179-06026 | ||||
| 90179-08022 | ||||
| 91621-61020 | ||||
| 91631-60628 | ||||
| 92122-60625 | ||||
| Linked diagrams | ||||
| 7751 | ||||
(9605- )15BFT..BU102,142 ; (9703- )15BFT..BU212,222..RHD..GEN ; (9808- )15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C120 |
15BF..BU142,212,222..RHD..(ARL,GEN) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-58030 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22811-58031 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
7 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
3 | ||
| Common parts | ||||
| 90116-06158 | ||||
| 90116-10037 | ||||
| 90179-06026 | ||||
| 90179-10087 | ||||
| 91631-60628 | ||||
| 91641-80822 | ||||
| 96132-41100 | ||||
