BU142R-TKMMSQ3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 15BF
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,15B#,3B

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9703- )15BFT..BU212,222..RHD..GEN ; (9808-)15BFT..BU212..LHD..40T ; (9902-

Click highlighted areas on diagram

diagram 17650E 17650H 25706 25760 25760 25780 25861 9041205003 9041304008 9041304008 9046400074 9046400082 9046400082 9046400220 9046400295 9046400411 9046400498 9046400667 9046400711 9046400711 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9046706115 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9099992003 9162160816 9162160816 9162160816 9338315008
Part # Description Qty Price
Common parts
90412-05003
90413-04008
90464-00074
90464-00082
90464-00220
90464-00295
90464-00411
90464-00498
90464-00667
90464-00711
90467-06115
90999-92002
90999-92003
91621-60816
93383-15008

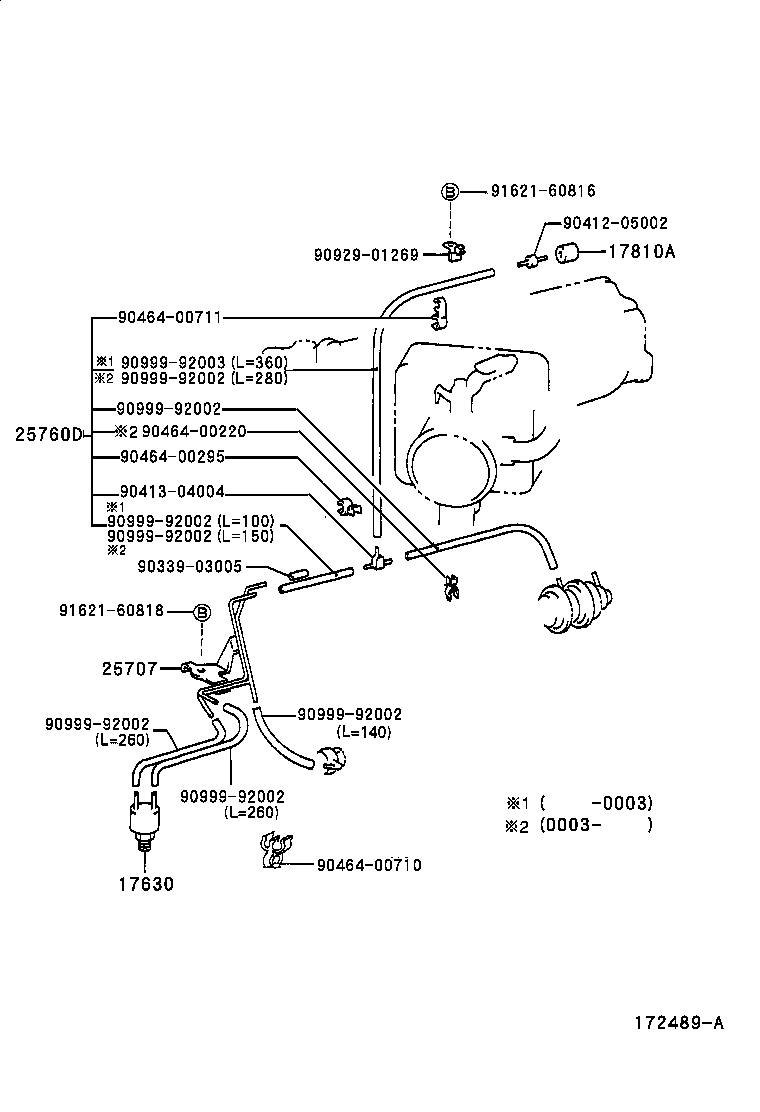

(9505- )15BF..BU142,212,222

Click highlighted areas on diagram

diagram 17630 17810A 25707 25760D 9033903005 9041205002 9041304004 9046400220 9046400295 9046400710 9046400711 9092901269 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 9162160816 9162160818
Part # Description Qty Price
17630 - VALVE ASSY, AIR CONTROL
17630-15010

15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222

 1
17810A - FILTER ASSY, AIR
90925-06007

15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-58050

15BF..BU112,142,212,222

 1
25760D - HOSE ASSY, VACUUM TRANSMITTING, NO.4
25760-58140

15BF..BU142,212,222

 1
25760-58330

15BF..BU142,212,222

 1
Common parts
90339-03005
90412-05002
90413-04004
90464-00220
90464-00295
90464-00710
90464-00711
90929-01269
90999-92002
90999-92003
91621-60816
91621-60818
