BU142R-TKMMSQ3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 15BF
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )15BF

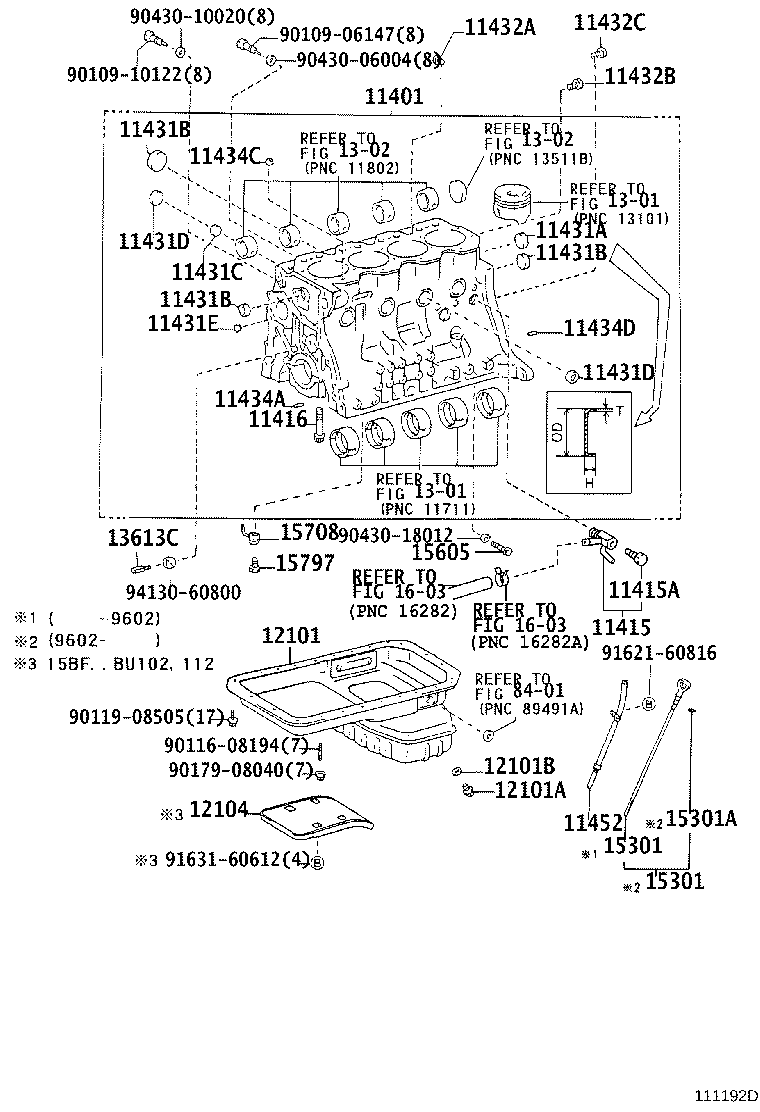

Click highlighted areas on diagram

diagram 11401 11415 11415A 11416 11431A 11431B 11431B 11431B 11431C 11431D 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 12101 12101A 12101B 12104 1301 1301 1302 1302 13613C 15301 15301 15301A 15605 15708 15797 1603 1603 8401 9010906147 9010910122 9011608194 9011908505 9017908040 9043006004 9043010020 9043018012 9162160816 9163160612 9413060800
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59575

15BF..BU102,112,142,212,222

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09078

15BFT..BU222..SA;14B,15BF..BU101,142..ARL;15BFT..BU212,222..LHD..GEN;15BF,15BFTE..BU102,112,212,213,222,223

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
90910-09087

14B,15B#..BU10#,111,14#,21#,22#

 1
90910-09087

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02083

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

*16-2.0PX129.5-32

 5
90910-02082

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

*16-2.0PX93.5-32

 5
90910-02082

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

*16-2.0PX93.5-32

 5
90910-02083

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

*16-2.0PX129.5-32

 5
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-14500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
96411-64500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
96411-64500

14B,15B#..BU10#,111,14#,21#,22#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=9

 1
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-65000

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-65000

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
90331-50003

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=9

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-65000

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 4
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
90331-50003

14B,15B#..BU10#,111,14#,21#,22#

OD=50,T=1.2,H=9

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63000

14B,15B#,3B..BU10#,11#,14#,21#,22#

 4
96411-63000

14B,15B#..BU10#,111,14#,21#,22#

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 5
96411-63500

14B,15B#..BU10#,111,14#,21#,22#

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 5
96411-63500

14B,15B#..BU10#,111,14#,21#,22#

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90331-14006

14B,15B#,3B..BU10#,11#,14#,21#,22#

 3
90331-14006

14B,15B#..BU10#,111,14#,21#,22#

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51007

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 4
90345-51007

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53004

14B,15B#..BU10#,111,14#,21#,22#

 1
90345-53004

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
90345-52001

14B,15B#..BU10#,111,14#,21#,22#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=18,OD=8

 4
90250-08120

14B,15B#..BU10#,111,14#,21#,22#

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15008

14B,15B#..BU10#,111,14#,21#,22#

L=9.0,OD=14.5

 2
90253-15008

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=9.0,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=18,OD=8

 2
90250-08120

14B,15B#..BU10#,111,14#,21#,22#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11409-58010

15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222

 1
12101 - PAN SUB-ASSY, OIL
12101-58102

15BFT..BU222;15BFT..BU212..30T;15BF,3B..BU100,110,140,142,212..ARL,EUR

 1
12101-58170

15BFT..BU222..EUR,GEN;15BFT..BU212..RHD..IV3;15BFT..BU212..30T..IV3;15BF..BU102,112,212..ARL,GEN;14B,15BF,3B..BU100,101,110,142,222..ARL

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
90341-12012

14B,15B#..BU10#,111,14#,21#,22#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
13613C - NOZZLE, OIL
90915-01015

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
90915-01015

14B,15B#..BU10#,111,14#,21#,22#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-58040

15B#..BU142,212

 1
15301-58060

15BF,15BFT..BU102,112,142,212,222

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-58040

15B#..BU142,212

 1
15301-58060

15BF,15BFT..BU102,112,142,212,222

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

15B#..BU102,112,142,212,213,222,223

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-56010

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
15605-56010

14B,15BF,15BFT..BU10#,111,14#,211,212,221,222

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-58040

15BF..BU102,112,142,212,222

 4
15797 - BOLT, OIL NOZZLE UNION
15797-58020

15BF,15BFT..BU102,112,142,212,222

 4
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08040
90430-06004
90430-10020
90430-18012
91621-60816
91631-60612
94130-60800
Linked diagrams
1301
1302
1603
8401
