BU140L-TKMNSW3 (1995)

Toyota Dyna200

Production May 1995 - Oct 1996
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )EUR

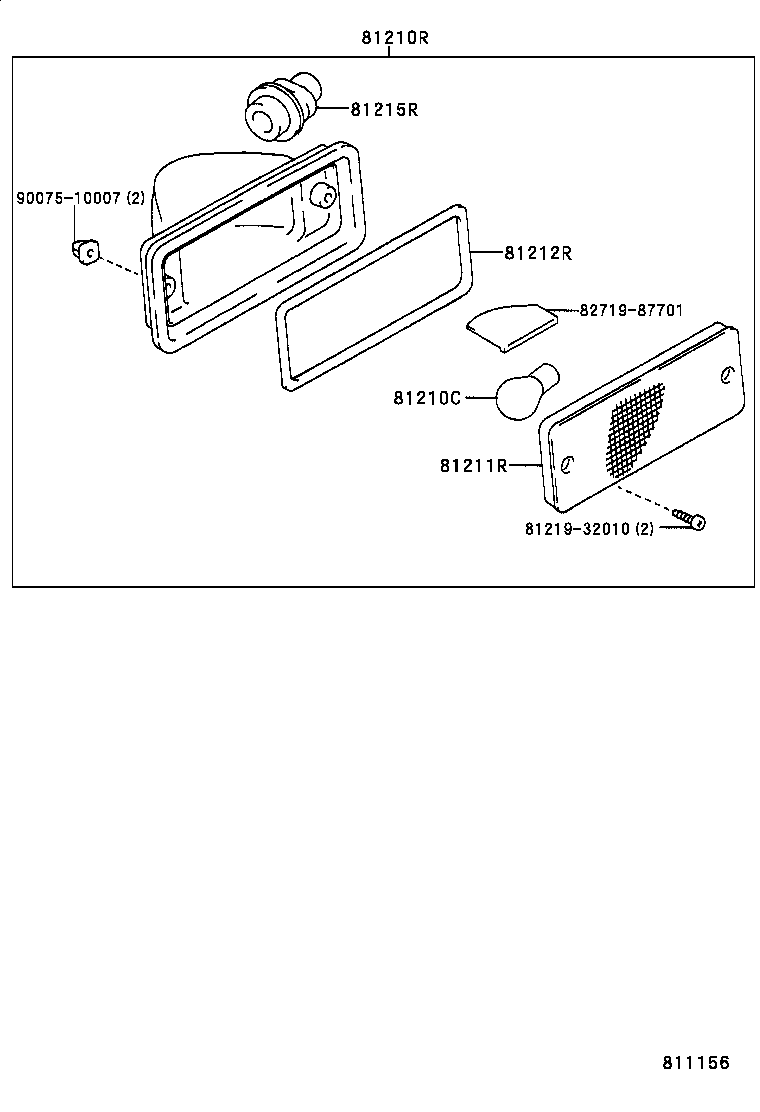

Click highlighted areas on diagram

diagram 81210C 81210R 81211R 81212R 81215R 8121932010 8271987701 9007510007
Part # Description Qty Price
81210C - BULB, REAR FOG LAMP
99132-11210

BU140,142,222..EUR

12V 21W

 1
81210R - LAMP ASSY, REAR FOG
81210-89109

BU140,142,222..EUR

 1
81211R - LENS, REAR FOG LAMP
81211-89109

BU140,142,222..EUR

 1
81212R - GASKET, REAR FOG LAMP, NO.1
81212-89109

BU140,142,222..EUR

 1
81215R - SOCKET & WIRE, REAR FOG LAMP
81615-87705

BU140,142,222..EUR

 1
Common parts
81219-32010
82719-87701
90075-10007
