BU140L-TKMNSW3 (1995)
Toyota Dyna200
ILLUST NO. 1 OF 3(9505- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46101 - HANDLE SUB-ASSY, PARKING BRAKE CONTROL | ||||
| 46101-36191 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 46103 - GUIDE SUB-ASSY, PARKING BRAKE PLUNGER | ||||
| 46103-36150 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 46105 - BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL | ||||
| 46105-37020 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-30010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46114A - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46117 - SLEEVE, PARKING BRAKE PLUNGER | ||||
| 46117-30020 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-36070 |
BU222..TD..SA;BU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW |
1 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 46301B - BUSH(FOR INTERMEDIATE LEVER) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-10004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 90240-08010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-35024 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 91112-81070 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46311 - PAWL, PARKING BRAKE | ||||
| 46311-26010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46311A - SPRING(FOR PARKING BRAKE PAWL) | ||||
| 90508-08041 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46311B - PIN, PARKING BRAKE PAWL PIVOT | ||||
| 90249-05010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46311D - WASHER, TYPE C(FOR PARKING BRAKE PAWL) | ||||
| 90213-03007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-36350 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08094 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37080 |
BU10#,14#,RZU100..LHD |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37030 |
BU101,14#..EUR,SA |
1 | ||
| Common parts | ||||
| 90105-06109 | ||||
| 90170-06004 | ||||
| 90179-08057 | ||||
| 90461-08225 | ||||
| 90468-08001 | ||||
| 91651-40814 | ||||
| 91651-40820 | ||||
| 94180-41000 | ||||
| 95381-02520 | ||||
ILLUST NO. 2 OF 3(9505- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37080 |
BU10#,14#,RZU100..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37080 |
BU10#,14#,RZU100..LHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37080 |
BU10#,14#,RZU100..LHD |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A01 |
BU10#,11#,14#,RZU100 |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A01 |
BU10#,11#,14#,RZU100 |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90461-12086 |
BU10#,11#,14#,RZU100 |
2 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90461-12086 |
BU10#,11#,14#,RZU100 |
2 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37030 |
BU101,14#..EUR,SA |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37030 |
BU101,14#..EUR,SA |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37030 |
BU101,14#..EUR,SA |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37020 |
BU10#,14#,RZU100 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37020 |
BU10#,14#,RZU100 |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37020 |
BU10#,14#,RZU100 |
1 | ||
| Common parts | ||||
| 83791-95400 | ||||
| 83791-95401 | ||||
| 83791-95403 | ||||
| 90119-08704 | ||||
| 90119-08A46 | ||||
| 91611-60816 | ||||
| 91651-60820 | ||||
| 94130-00802 | ||||

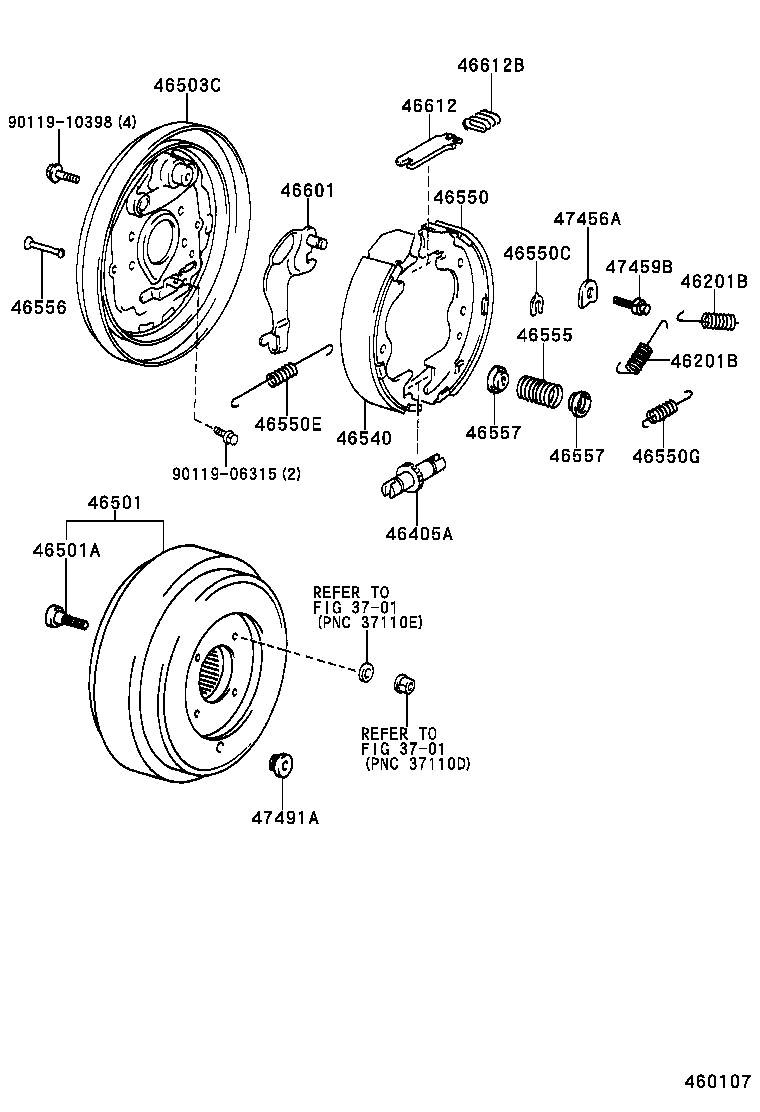

ILLUST NO. 3 OF 3(9505- )40T ; (9505- )20T,25T,30T..EUR,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) SECONDARY |
1 | ||
| 90507-20021 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) PRIMARY |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20020 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) SECONDARY |
1 | ||
| 90507-20021 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) PRIMARY |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-36200 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46501A - BOLT, SERRATION(FOR PARKING BRAKE DRUM) | ||||
| 90114-11124 |
BU101..RHD;BU101..LHD..WT;BU101..20T..GEN..TB;BU100,102,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-36060 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37030 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37030 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-06003 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14055 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
BU142..30T;BU101,14#..EUR,SA;BU11#,141..20T,30T;BU101,102,21#,22#,RZU100,YU210..(T3,TW1)..WT..TB |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
BU142..30T;BU101,14#..EUR,SA;BU11#,141..20T,30T;BU101,102,21#,22#,RZU100,YU210..(T3,TW1)..WT..TB |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-36051 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| 47491A - PLUG, SHOE ADJUSTING HOLE(FOR PARKING BRAKE SHOE) | ||||
| 47491-22020 |
BU21#,22#..40T;BU101,14#,211,YU210..(20T,25T,30T)..(EUR,SA) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-10398 | ||||
| Linked diagrams | ||||
| 3701 | ||||
