BU111L-TYMMS3 (1995)
Toyota Dyna200

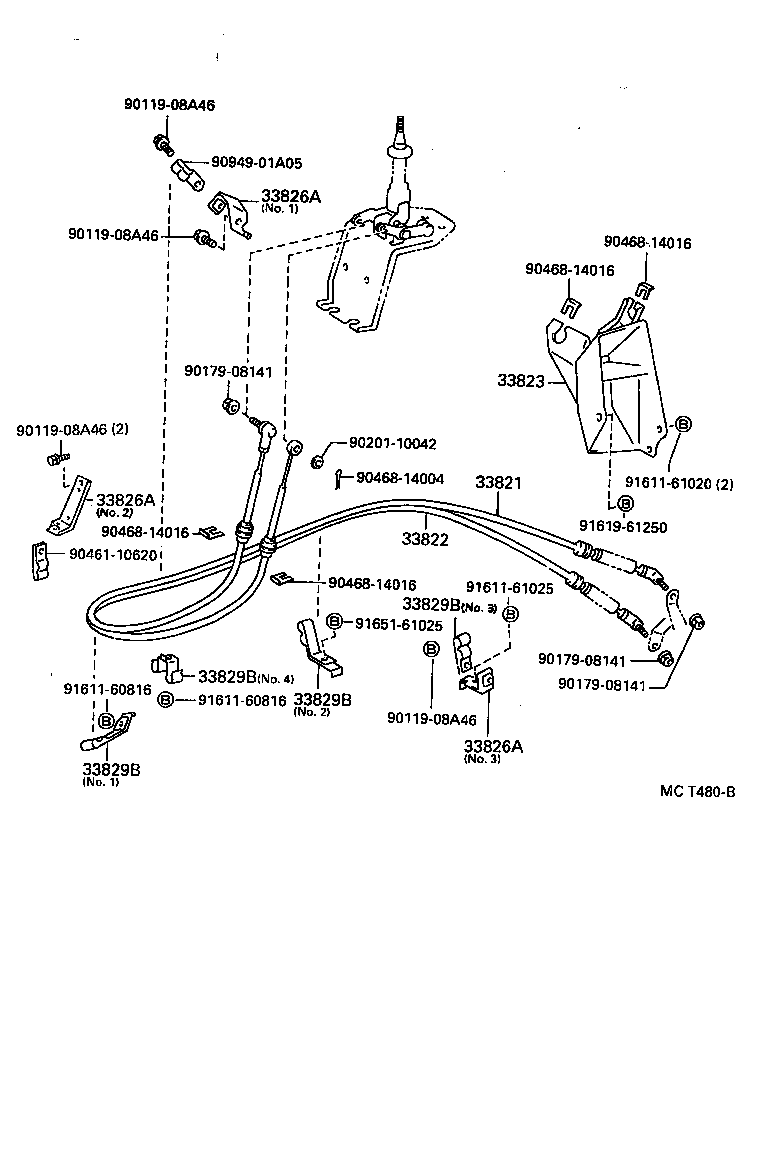

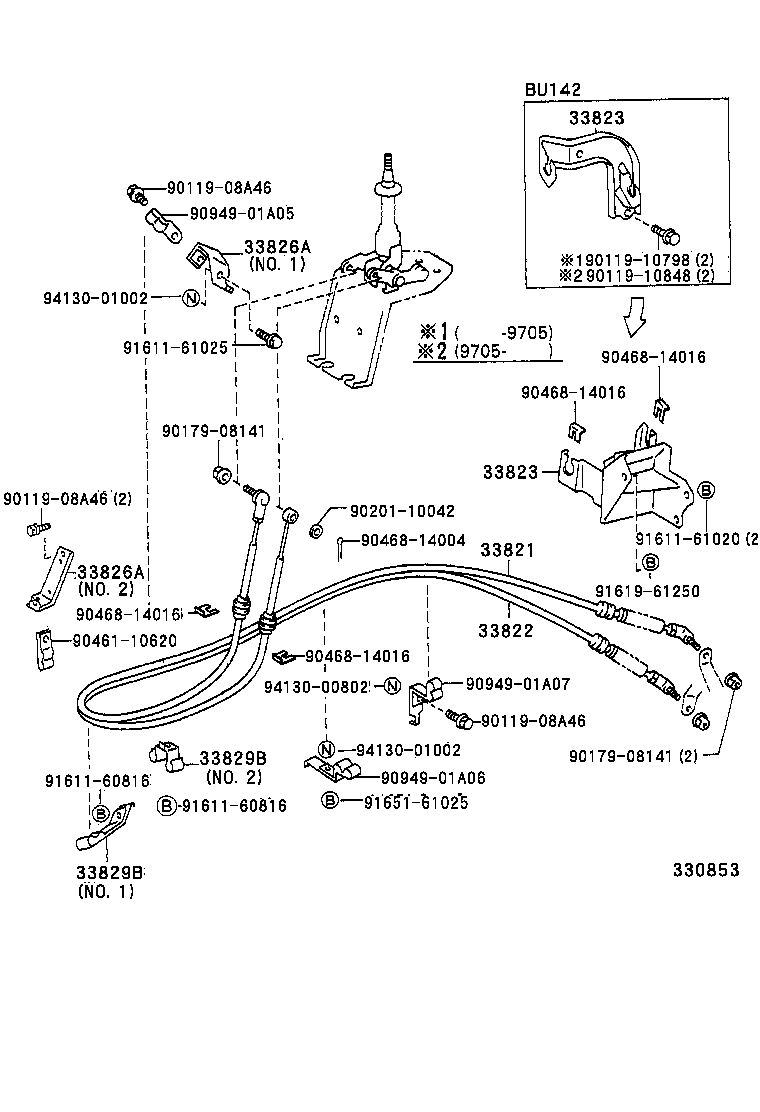

ILLUST NO. 2 OF 2(9505-9610)BU10#,14#..LHD ; (9610- )BU142..25T
W(REAR SNORKEL TNF PRECLEANER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37091 |
BU111,112..LHD..20T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37101 |
BU111,112..LHD..20T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37130 |
BU11#..20T |
1 | ||
| 33823-37080 |
BU10#,14#..DSL |
1 | ||
| 33823-37171 |
BU102..TAIW;BU100,101,14#..DSL;BU102..(15T,20T)..DSL..GEN |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37130 |
BU11#..20T |
1 | ||
| 33823-37080 |
BU10#,14#..DSL |
1 | ||
| 33823-37171 |
BU102..TAIW;BU100,101,14#..DSL;BU102..(15T,20T)..DSL..GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37100 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33826-37060 |
BU10#,111,112,14#,RZU100..LHD..(DM1,DM6,T3,T4,TW1) NO.2 |
1 | ||
| 33826-37020 |
BU102,11#..(DM1,DM6,T3,T4)..DSL;BU100,101,14#,RZU100..LHD..(T3,T4,TW1) NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37100 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33826-37060 |
BU10#,111,112,14#,RZU100..LHD..(DM1,DM6,T3,T4,TW1) NO.2 |
1 | ||
| 33826-37020 |
BU102,11#..(DM1,DM6,T3,T4)..DSL;BU100,101,14#,RZU100..LHD..(T3,T4,TW1) NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90119-10798 | ||||
| 90119-10848 | ||||
| 90179-08141 | ||||
| 90201-10042 | ||||
| 90461-10620 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01A05 | ||||
| 90949-01A06 | ||||
| 90949-01A07 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91619-61250 | ||||
| 91651-61025 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||
ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-37020 |
BU102..TD;BU102..15T;BU100,101,110,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33055-37020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-36051B0 |
BU10#,11#,14#,211,212,221,222,RZU100,YU210 GRAY,TRIM1# |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33506-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33506-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33506H - BUSH (FOR SHIFT LEVER RETAINER) | ||||
| 90386-12056 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90386-12056 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 33506Q - GROMMET, NO.1(FOR CONTROL SHIFT LEVER RETAINER) | ||||
| 90480-19008 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
4 | ||
| 90480-19008 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 33534 - BELLCRANK, SELECTING | ||||
| 33534-37030 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33534-37030 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 33534C - BUSH (FOR SELECTING BELLCRANK NO.1) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-12010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33539-12010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
BU10#,11#,14#,21#,22#,RZU100,YU210 NO.1 |
1 | ||
| 33548-12040 |
BU10#,111,14#,21#,22#,RZU100,YU210 NO.2 |
1 | ||
| 33548-12040 |
BU10#,11#,14#,21#,22#,RZU100,YU210 NO.2 |
1 | ||
| 33548-12021 |
BU10#,111,14#,21#,22#,RZU100,YU210 NO.1 |
1 | ||
| 33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33548-12021 |
BU10#,11#,14#,21#,22#,RZU100,YU210 NO.1 |
1 | ||
| 33548-12040 |
BU10#,111,14#,21#,22#,RZU100,YU210 NO.2 |
1 | ||
| 33548-12040 |
BU10#,11#,14#,21#,22#,RZU100,YU210 NO.2 |
1 | ||
| 33548-12021 |
BU10#,111,14#,21#,22#,RZU100,YU210 NO.1 |
1 | ||
| 33586A - STOPPER, CONTROL LEVER (FOR FLOOR SHIFT) | ||||
| 33586-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33586-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 33602B - BUSHING (FOR SELECT LEVER) | ||||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 33602D - COLLAR (FOR SELECT LEVER) | ||||
| 90387-08063 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90387-08063 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33602E - SPRING, TORSION (FOR SELECT LEVER) | ||||
| 90949-03034 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-03034 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33602F - LEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT) | ||||
| 33602-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 33602-37010 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 33529-37020 | ||||
| 90387-08130 | ||||
| 90389-11006 | ||||
| 91111-50840 | ||||
| 91611-60614 | ||||
| 91661-60825 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94613-10601 | ||||
| 96151-01700 | ||||
ILLUST NO. 2 OF 2(9505-9610)BU10#,14#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37091 |
BU111,112..LHD..20T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37101 |
BU111,112..LHD..20T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37130 |
BU11#..20T |
1 | ||
| 33823-37080 |
BU10#,14#..DSL |
1 | ||
| 33823-37171 |
BU102..TAIW;BU100,101,14#..DSL;BU102..(15T,20T)..DSL..GEN |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90201-10042 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01A06 | ||||
| 90949-01A07 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91619-61250 | ||||
| 91651-61025 | ||||
| 94130-00802 | ||||
| 94130-01002 | ||||

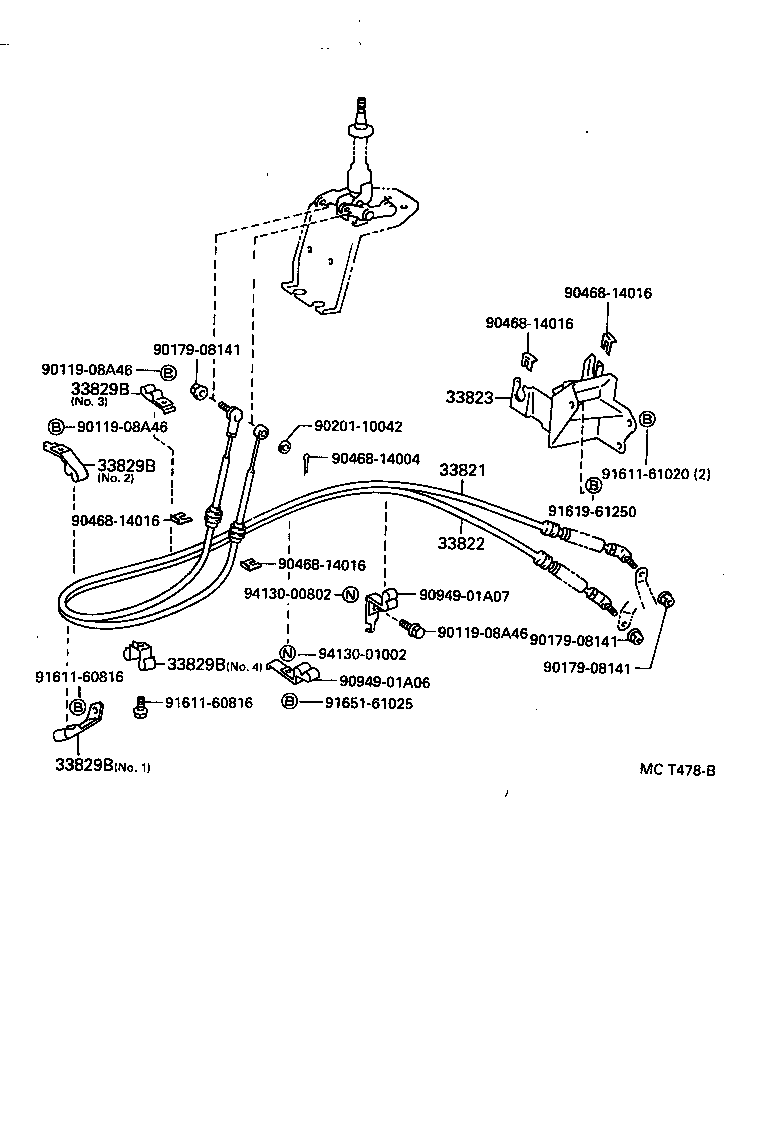

ILLUST NO. 2 OF 2(9505-9703)BU111,112..LHD ; (9703- )BU111..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33821 - CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33820-37091 |
BU111,112..LHD..20T |
1 | ||
| 33822 - CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT) | ||||
| 33820-37101 |
BU111,112..LHD..20T |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-37130 |
BU11#..20T |
1 | ||
| 33823-37080 |
BU10#,14#..DSL |
1 | ||
| 33823-37171 |
BU102..TAIW;BU100,101,14#..DSL;BU102..(15T,20T)..DSL..GEN |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37100 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33826-37060 |
BU10#,111,112,14#,RZU100..LHD..(DM1,DM6,T3,T4,TW1) NO.2 |
1 | ||
| 33826-37020 |
BU102,11#..(DM1,DM6,T3,T4)..DSL;BU100,101,14#,RZU100..LHD..(T3,T4,TW1) NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37100 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33826-37060 |
BU10#,111,112,14#,RZU100..LHD..(DM1,DM6,T3,T4,TW1) NO.2 |
1 | ||
| 33826-37020 |
BU102,11#..(DM1,DM6,T3,T4)..DSL;BU100,101,14#,RZU100..LHD..(T3,T4,TW1) NO.1 |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33826-37100 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33826-37060 |
BU10#,111,112,14#,RZU100..LHD..(DM1,DM6,T3,T4,TW1) NO.2 |
1 | ||
| 33826-37020 |
BU102,11#..(DM1,DM6,T3,T4)..DSL;BU100,101,14#,RZU100..LHD..(T3,T4,TW1) NO.1 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| 33829B - CLAMP, TRANSMISSION CONTROL CABLE | ||||
| 33829-37130 |
BU102..TAIW;BU102..(15T,20T)..DSL..GEN;BU100,101,111,112,140,141..LHD..(DM1,DM6,T3,TW2)..(GEN,TAIW) NO.4 |
1 | ||
| 33829-37071 |
BU10#,111,112,14#,RZU100..LHD NO.1 |
1 | ||
| 33829-37100 |
BU111,112..LHD..20T NO.2 |
1 | ||
| 33829-37120 |
BU111,112..LHD..20T NO.3 |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90201-10042 | ||||
| 90461-10620 | ||||
| 90468-14004 | ||||
| 90468-14016 | ||||
| 90949-01A05 | ||||
| 91611-60816 | ||||
| 91611-61020 | ||||
| 91611-61025 | ||||
| 91619-61250 | ||||
| 91651-61025 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
