BU111L-TYMMS3 (1995)
Toyota Dyna200

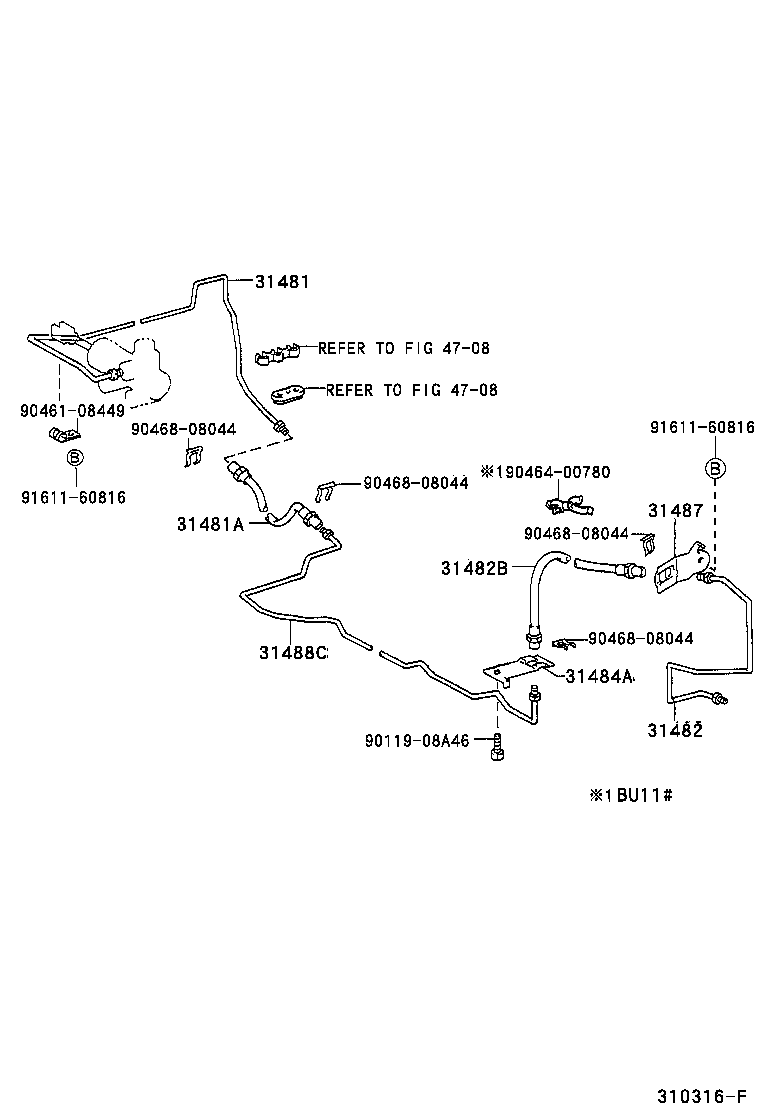

ILLUST NO. 2 OF 2(9505- )BU10#,111,112,14#..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-37100 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96932-33655 |
BU10#,11#,14# |
1 | ||
| 96932-33655 |
BU10#,111,112,14#..LHD |
1 | ||
| 96932-33657 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE | ||||
| 31482-37050 |
BU211..GEN;BU211..30T..SA;BU102,212,222..TAIW;BU102,221..(15T,20T,40T)..DSL..GEN;BU100,101,11#,14#..(DM1,DM6,T1,T2,T3,TW2)..DSL |
1 | ||
| 31482B - HOSE, CLUTCH, NO.2 | ||||
| 96818-50260 |
BU10#,14#..DSL |
1 | ||
| 90931-01115 |
BU11# |
1 | ||
| 31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH) | ||||
| 31484-37050 |
BU10#,14#..DSL |
1 | ||
| 31484-37071 |
BU11# |
1 | ||
| 31487 - PLATE, RELEASE TUBE SET | ||||
| 31487-36151 |
BU212,222;BU211,221..GEN;BU211..30T..SA;BU10#,11#,14#..DSL |
1 | ||
| 31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE | ||||
| 31488-37040 |
BU111,112..LHD |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-08449 | ||||
| 90464-00780 | ||||
| 90468-08044 | ||||
| 91611-60816 | ||||
| Linked diagrams | ||||
| 4708 | ||||

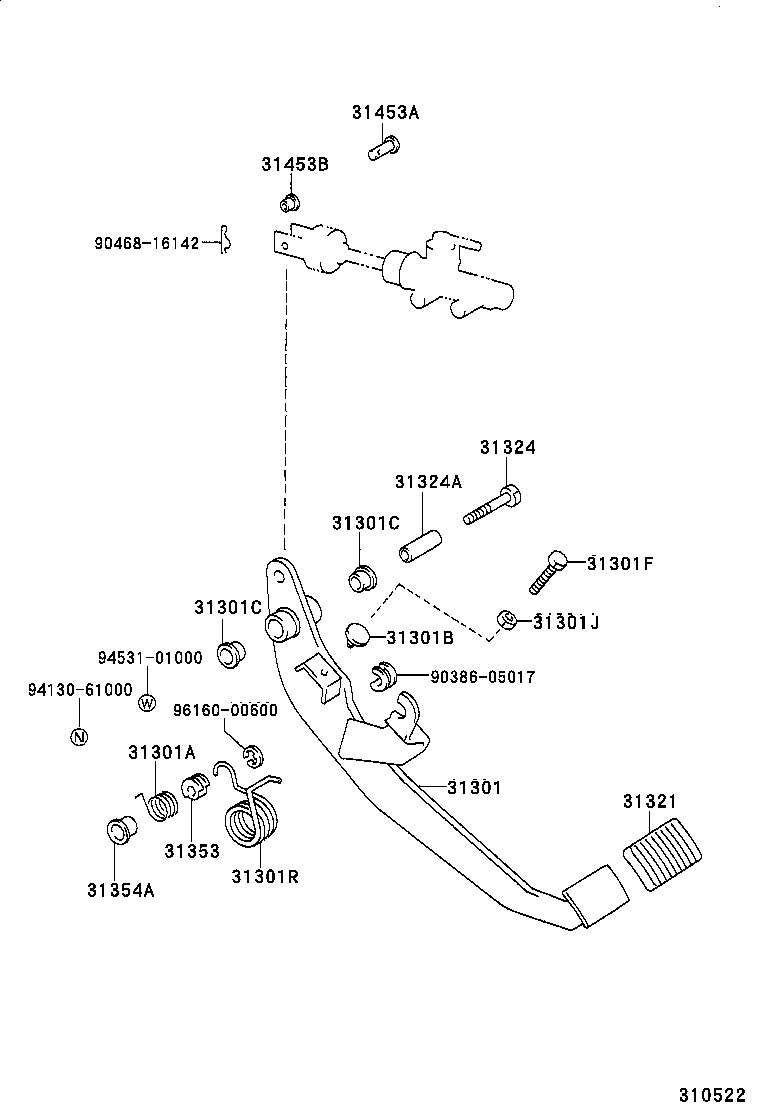

ILLUST NO. 1 OF 2(9505- )BU10#,11#,140,142,RZU100
TURN OVER TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37090 |
BU211,221..LHD;BU100,101,111,140,141..GEN,SA |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU101,111,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU100,101,111,140,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90541-06036 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31321-14020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 91121-51070 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90387-10004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 90240-08006 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90386-08002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90386-05017 | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||

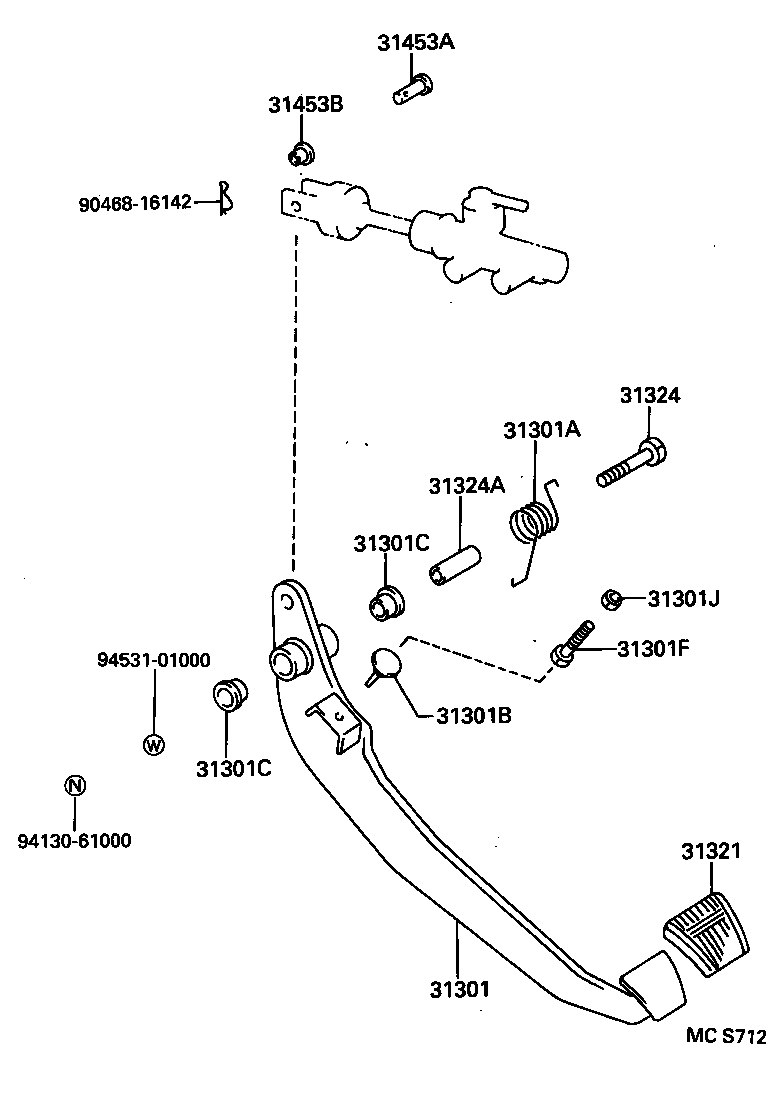

ILLUST NO. 1 OF 2(9505- )BU10#,11#,14#,21#,22#,YU210
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-37090 |
BU211,221..LHD;BU100,101,111,140,141..GEN,SA |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU101,111,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 90508-35004 |
BU212;BU142,222..20T,40T;BU100,101,111,140,141,211,213,221,223,YU210..GEN,SA |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90541-06036 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 90386-13007 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
2 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31321-14020 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51070 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 91121-51070 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90387-10004 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
BU10#,11#,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 90240-08006 |
BU10#,111,14#,21#,22#,RZU100,YU210 L=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90386-08002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| Common parts | ||||
| 90468-16142 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
