BU110R-TDMMSQ (1995)
Toyota Dyna200

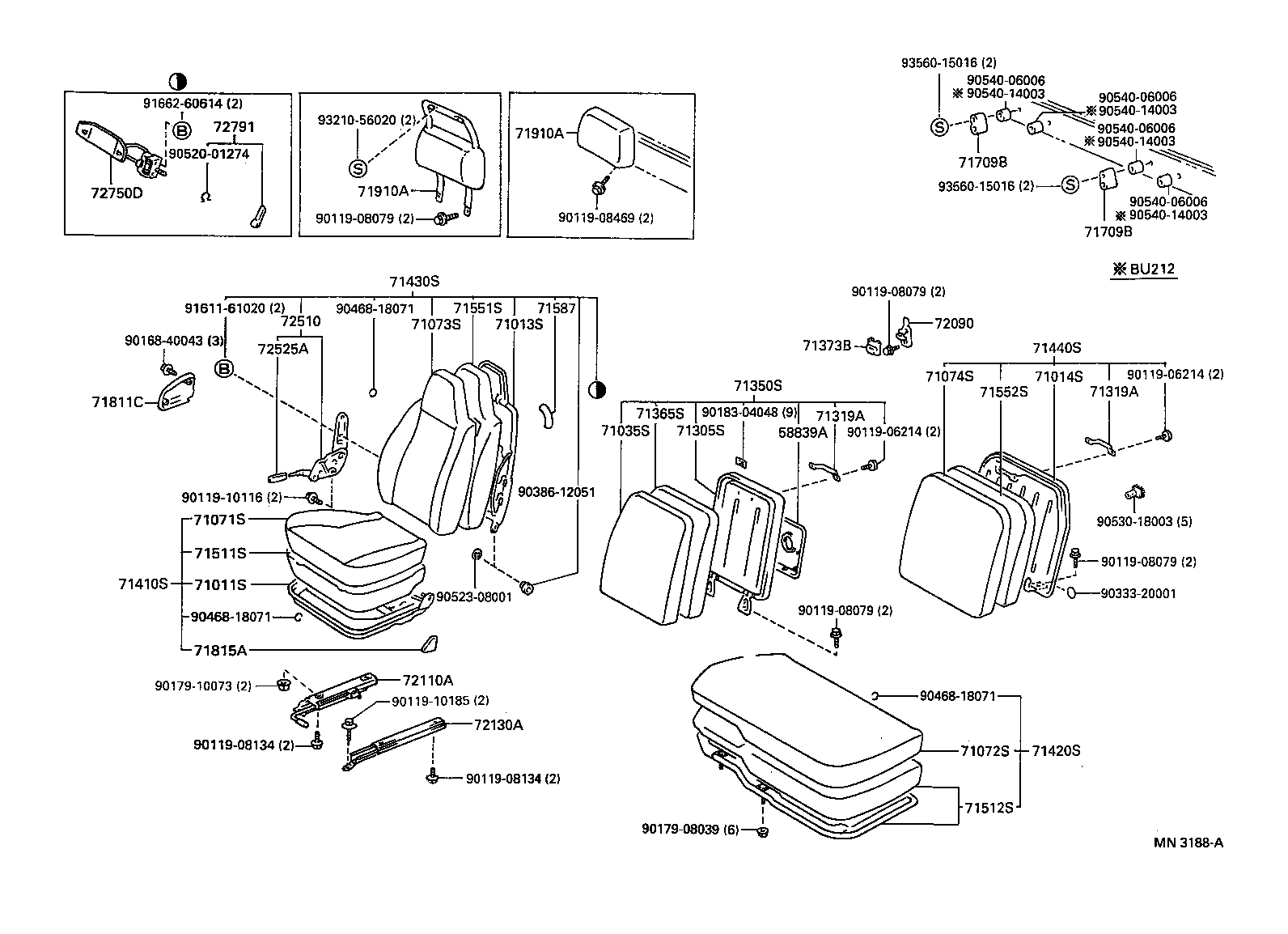

ILLUST NO. 1 OF 3(9505- )BU100,101,110,142..ARL ; (9505- )BU211,212,221,222..RHD..ARL,GEN..IV3
BU21#,22#..RHD(HONG KONG SPEC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-95400C0 |
BU100,110,142,212,222..(DM1,T2,T3)..ARL TYPE A:REFER TO ILLUSTRATION,BLACK,TRIM1# |
1 | ||
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-37020 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-37050 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 71035S - COVER, FRONT SEAT BACK, CENTER | ||||
| 71095-37090B0 |
BU100,101,110,142..20T..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-37290B0 |
BU100,101,110,142,212,222..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-37400B0 |
BU100,101,110,142..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-37280B0 |
BU100,101,110,142,212,222..(DM1,T2,T3)..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-37480B0 |
BU100,101,110,142..20T..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95402 |
BU100,101,110,142..20T..ARL |
1 | ||
| 71319A - STRIKER, FRONT SEAT BACK | ||||
| 71319-95402 |
BU100,101,110,142..20T..ARL |
1 | ||
| 71350S - BACK ASSY, FRONT SEAT, CENTER | ||||
| 71350-37090B0 |
BU100,101,110,142..20T..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71365S - PAD, CENTER SEAT BACK | ||||
| 71365-95400 |
BU100,101,110,142..20T..ARL |
1 | ||
| 71373B - COVER, FRONT SEAT BACK LOCK | ||||
| 71373-95400B0 |
BU100,101,110,142,212,222..(DM1,T2,T3)..ARL GRAY,TRIM1# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-37330B0 |
BU100,101,110,142,212,222..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-37400B0 |
BU100,101,110,142..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-37370B0 |
BU100,101,110,142,212,222..(DM1,T2,T3)..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-37540B0 |
BU100,101,110,142..20T..ARL BLUISH GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-37060 |
BU100,101,110,142,212,222..ARL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-37020 |
BU10#,110,111,14#,RZU100..RHD |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-37040 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-95407 |
BU100,101,110,142..20T..ARL |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95J00B0 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 71815A - COVER, FRONT SEAT CUSHION HINGE, RH | ||||
| 71815-95J00B0 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-37090B0 |
BU101,111,140,141..LHD..(DM1,T3);BU100,102,110,112,142..20T,25T,30T W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-37090B0 |
BU101,111,140,141..LHD..(DM1,T3);BU100,102,110,112,142..20T,25T,30T W(FABRIC SEAT)-*104,BLUISH GRAY,TRIM1# |
1 | ||
| 72090 - LOCK ASSY, FRONT SEAT BACK | ||||
| 72090-95400B0 |
BU100,101,110,142,212,222..(DM1,T2,T3)..ARL GRAY,TRIM1# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-37010B0 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD BLUISH GRAY,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95J01B0 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06214 | ||||
| 90119-08079 | ||||
| 90119-08134 | ||||
| 90119-08469 | ||||
| 90119-10116 | ||||
| 90119-10185 | ||||
| 90168-40043 | ||||
| 90179-08039 | ||||
| 90179-10073 | ||||
| 90183-04048 | ||||
| 90333-20001 | ||||
| 90386-12051 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 90523-08001 | ||||
| 90530-18003 | ||||
| 90540-06006 | ||||
| 90540-14003 | ||||
| 91611-61020 | ||||
| 91662-60614 | ||||
| 93210-56020 | ||||
| 93560-15016 | ||||
ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-37010 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-37010 |
BU10#,110,111,14#,211,212,221,222,RZU100,YU210..RHD |
1 | ||
| Common parts | ||||
| 90105-08075 | ||||
| 90119-08134 | ||||
| 90179-08039 | ||||
