BU102L-TKMLS3 (1997)
Toyota Dyna200

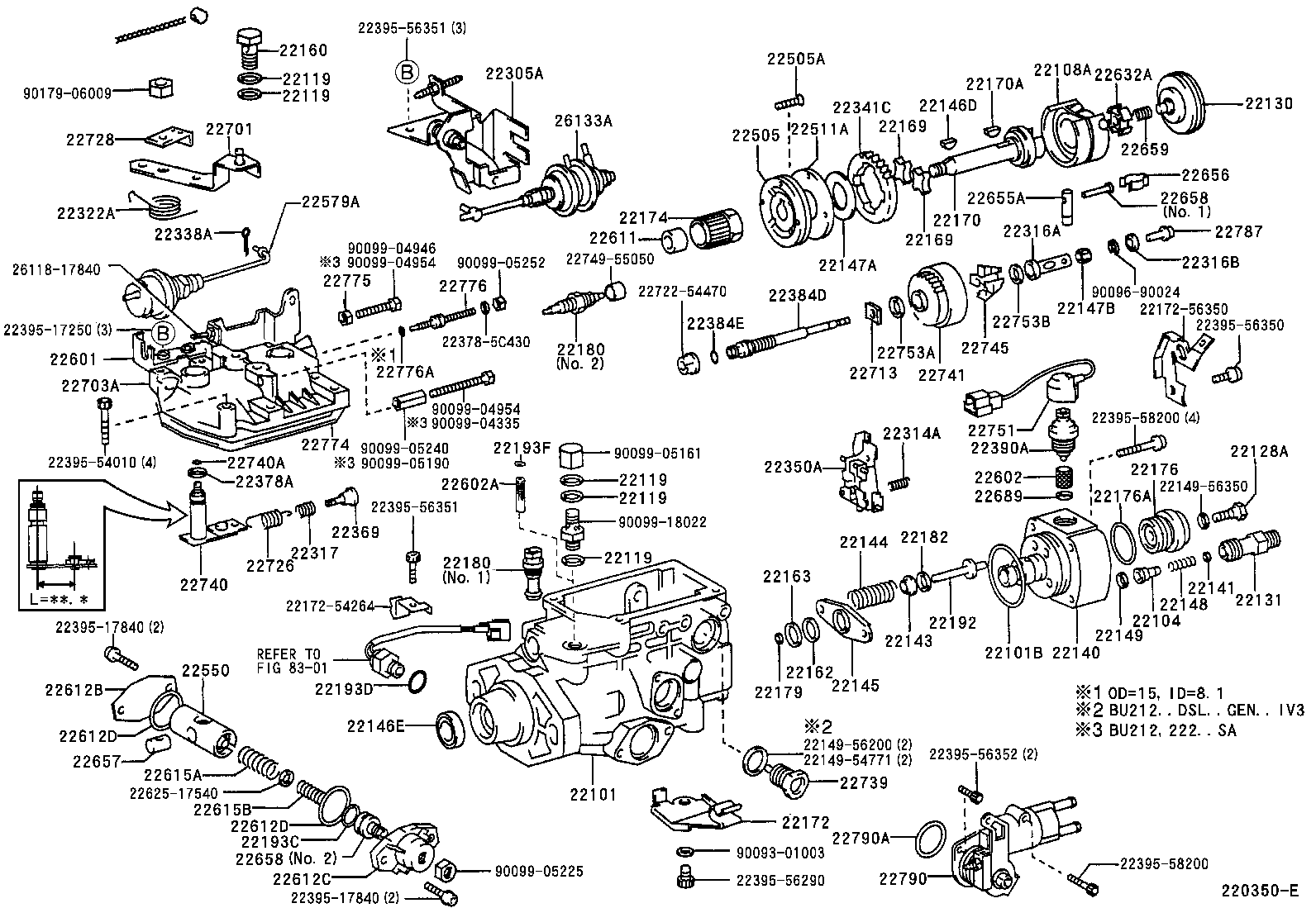

ILLUST NO. 1 OF 2(9505-0008)15BF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-5C120 |
15BF..BU102,112,142,212,222..ARL,GEN |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-56330 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22# |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-17420 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,102,110,112,140,142,212,222 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-17840 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212,222 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-5B250 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-5C090 |
14B,15B#..BU102,112,142,212,222 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B..BU111,141,211,221..RHD;14B,15BF..BU101,102,111,112,142,212..DM6,DM7,T1,T2,T3,TW1 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,221 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 22172-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
15BFT..BU222..SA;14B,15BFT..BU212,222..LHD..(GEN,TAIW);14B,15BF,3B..BU10#,11#,140,141,211,221;14B,15BF..BU212,222..(GEN,SA,TAIW)..IV3 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
15BFT..BU212;14B,15BF,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 22193-54772 |
14B,3B..BU100,111,141,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;14B,15BF,3B..BU101,102,110,112,140,142,212,221;14B,15BFT,3B..BU100,111,212,222..LHD..(DM6,T3)..WT |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54020 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=2.9 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.7 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 NO.2 |
1 | ||
| 22180-56351 |
15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-17011 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.1 |
2 | ||
| 22182-17012 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.3 |
2 | ||
| 22182-54010 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=0.5 |
2 | ||
| 22182-17010 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=0.9 |
2 | ||
| 22182-17013 |
15BFT..BU212,222..LHD;15BF..BU102,112,142,212 T=1.4 |
2 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
15BF..BU212,222;15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,221..ARL,GEN |
1 | ||
| 22193-64750 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 22193F - RING, O(FOR FUEL INJECTION PUMP FILTER) | ||||
| 22193-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-56441 |
15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,112,212,222..LHD ID=0.5 |
1 | ||
| 22316-55150 |
15BF..BU102,112,212..GEN..IV3 ID=0.70 |
1 | ||
| 22316-58782 |
15BF..BU102,112,212..GEN..IV3 ID=0.65 |
1 | ||
| 22316-55230 |
15BF..BU102,112,212..GEN..IV3 ID=0.75 |
1 | ||
| 22316-58781 |
15BF..BU102,112,212..GEN..IV3 ID=0.60 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222 K=0.1,L=8.2 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54020 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54410 |
15BF..BU102,112 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-5C430 |
15BF..BU102,112 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,112,212,222..LHD |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
15BFT..BU212..40T;14B,15BF,3B..BU10#,11#,14#,21#,22# 12V |
1 | ||
| 22390-56291 |
14B,15BFT..BU211,222..LHD..T3;14B,15B#..BU102,111,112,141,212..LHD..(DM1,DM7,T2,T3)..(20T,25T,30T) |
1 | ||
| 22390-56291 |
15BFT..BU212..30T..IV3;15BFT..BU222..LHD..GEN;14B,15BF..BU102,112,211,212..LHD..(DM7,T2,T3,T4) |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,142,212,222;14B,15BF,3B..BU100,102,111,112,140,141,211,212,221,222..GEN,SA,TAIW |
1 | ||
| 22550 - PISTON ASSY, TIMER | ||||
| 22550-5C130 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22579A - ACTUATOR SET, IDLE UP | ||||
| 26133-5C091 |
15BF..BU102,112 |
1 | ||
| 22601 - BRACKET SUB-ASSY, IDLE UP | ||||
| 22601-5C090 |
15BF..BU102,112 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22602A - FILTER SUB-ASSY, FUEL INJECTION PUMP, NO.2 | ||||
| 22602-5B320 |
15BFT..BU212,222..LHD;14B,15BF..BU101,102,111,112,141,142,21#,22#..DM1,DM7,T1,T2,T3,T4,TW1 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA |
1 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-17030 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA K=1.7,L=27.9 |
1 | ||
| 22615B - SPRING, TIMER INNER | ||||
| 22615-5C121 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.15,L=34.6 |
1 | ||
| 22615-5C122 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.16,L=34.6 |
1 | ||
| 22615-5C123 |
15BF..BU212..RHD;15BF..BU102,112,142,222 K=0.17,L=34.4 |
1 | ||
| 22615-5C154 |
15BF..BU212..RHD;15BFT..BU222..SA;15BF..BU102,112,142,222;15BFT..BU212,222..LHD..GEN K=0.14,L=35.0 |
1 | ||
| 22615-5C120 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;15BF..BU102,112,142,222 K=0.13,L=35.1 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
15BFT..BU212..LHD;15BF,3B..BU100,110,142,212,222..RHD;15B#..BU102,112,222..LHD..(20T,30T,40T)..GEN T=0.3 |
1 | ||
| 22656-17840 |
15BF..BU212..RHD;15BFT..BU212,222..LHD;15BF,3B..BU100,112..DM7,T2;15BF..BU102,142,222..20T,30T,40T T=0.3 |
1 | ||
| 22656-17840 |
15BFT..BU212,222..LHD..GEN;15BF..BU212..RHD..(ARL,GEN);15BF..BU102,112,142,222..(20T,30T,40T)..(ARL,GEN) T=0.3 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17020 |
15BFT..BU222..SA;15BF..BU102,112,212;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,110,140,142,222..ARL,EUR,SA NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-17840 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-17011 |
14B,15BF..BU102,112,142,212,222 MARK"384" |
1 | ||
| 22701-17010 |
14B,15BF..BU102,112,142,212,222 MARK"383" |
1 | ||
| 22701-5C430 |
15BF..BU102,112 MARK"652" |
1 | ||
| 22701-5C431 |
15BF..BU102,112 MARK"653" |
1 | ||
| 22701-5C432 |
15BF..BU102,112 MARK"654" |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-5C090 |
15BF..BU102,112 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.25 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.85 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.45 |
1 | ||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.65 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58470 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22728 - GUIDE, RETURN SPRING | ||||
| 22728-54010 |
14B,15BF..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58480 |
15BF..BU102,112,142,212 L=17.5 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-58880 |
14B,15B#,3B..BU100,102,110,112,140,142,212,222 W(TACHOMETER) |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-55030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,102,111,112,141,142,211,212,221,222..ARL,GEN,SA |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54035 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.5 |
1 | ||
| 22787-54027 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.4 |
1 | ||
| 22787-54033 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.0 |
1 | ||
| 22787-54034 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.3 |
1 | ||
| 22787-54030 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.7 |
1 | ||
| 22787-54032 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.9 |
1 | ||
| 22787-54028 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.5 |
1 | ||
| 22787-64640 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.1 |
1 | ||
| 22787-64680 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.2 |
1 | ||
| 22787-64642 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.1 |
1 | ||
| 22787-64643 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.2 |
1 | ||
| 22787-54029 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=3.6 |
1 | ||
| 22787-54026 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.3 |
1 | ||
| 22787-54036 |
14B,15B#..BU101,102,111,112,141,142,21#,22# L=4.7 |
1 | ||
| 22787-17845 |
15BF..BU102,112,212..GEN..IV3 L=3.3 |
1 | ||
| 22787-17847 |
15BF..BU102,112,212..GEN..IV3 L=4.1 |
1 | ||
| 22787-17843 |
15BF..BU102,112,212..GEN..IV3 L=2.5 |
1 | ||
| 22787-17849 |
15BF..BU102,112,212..GEN..IV3 L=4.9 |
1 | ||
| 22787-17848 |
15BF..BU102,112,212..GEN..IV3 L=4.5 |
1 | ||
| 22787-17844 |
15BF..BU102,112,212..GEN..IV3 L=2.9 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-5C130 |
15BFT..BU222..SA;15BF,15BFT..BU102,112,212,222..LHD..GEN |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
14B..BU101..ARL;15BF..BU212..RHD;14B..BU101..175T..GEN;15BF..BU102,112,142,222;14B,15BFT..BU211,212,222..LHD..T3..GEN |
1 | ||
| 22193-17840 |
15BF..BU142,212;14B,15B#..BU102,111,112,141,21#,222..LHD..(DM1,DM7,T2,T3) |
1 | ||
| 26133A - ACTUATOR SET, IDLE-UP | ||||
| 26133-5C090 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF..BU102,112,142,212,222 |
1 | ||
| Common parts | ||||
| 22149-54771 | ||||
| 22149-56200 | ||||
| 22149-56350 | ||||
| 22172-54264 | ||||
| 22172-56350 | ||||
| 22378-5C430 | ||||
| 22395-17250 | ||||
| 22395-17840 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-17540 | ||||
| 22722-54470 | ||||
| 22749-55050 | ||||
| 26118-17840 | ||||
| 90093-01003 | ||||
| 90096-90024 | ||||
| 90099-04335 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05161 | ||||
| 90099-05190 | ||||
| 90099-05225 | ||||
| 90099-05240 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 8301 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
