Toyota Dyna200 BU102 REAR SPRING & SHOCK ABSORBER

Manufacturers Home
Toyota
GR
DYNA200
BU102L-TGMMSU3 (1995)
4804 - REAR SPRING & SHOCK ABSORBER

BU102L-TGMMSU3 (1995)

Toyota Dyna200

Production May 1995 - Mar 1997

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

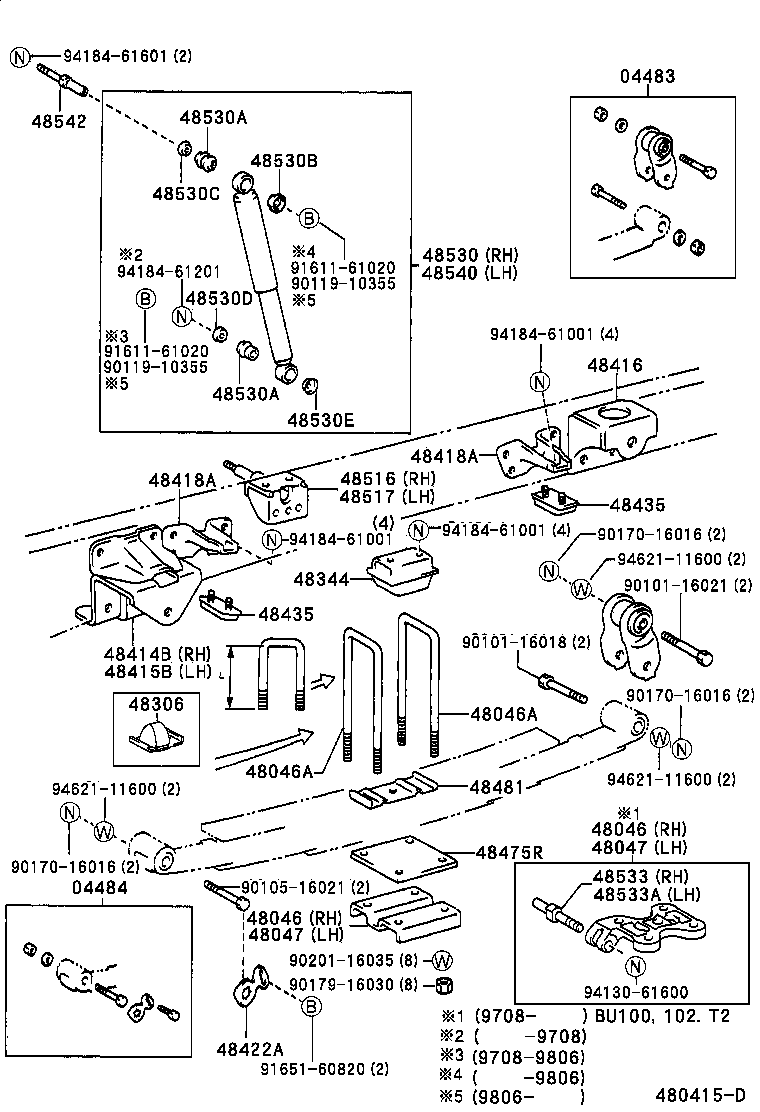

ILLUST NO. 1 OF 2(9505- )BU10#..DSL ; (9908- )15T

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-36100	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
04484 - PIN KIT, REAR SPRING
04484-36070	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014	BU102..WT..20T..TB L=225	05/1995 - 08/1997	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-23002	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	4
48344 - STOPPER, BUMPER, REAR
48344-36310	BU102..WT..(15T,20T)..TB	05/1995 - 08/1999	2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48416 - BRACKET, SPRING, NO.4
48416-36240	BU102,RZU100..WT..(15T,20T)..TB RH	05/1995 - 12/2999	1
48417-36120	BU102,RZU100..WT..(15T,20T)..TB LH	05/1995 - 12/2999	1
48422A - SUPPORT, REAR SPRING PIN
48422-36090	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003	BU212,222..LHD..40T;BU10#,140,142,221..WT;BU141,21#..(25T,40T)..DSL	05/1995 - 08/1997	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210..WT	05/1995 - 08/2000	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003	BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T	05/1995 - 06/1998	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
Common parts
90101-16021
90101-16025
90101-16026
90105-16021
90119-08276
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
94130-61600
94184-61001
94184-61201
94184-61601
94185-60800
94621-11600

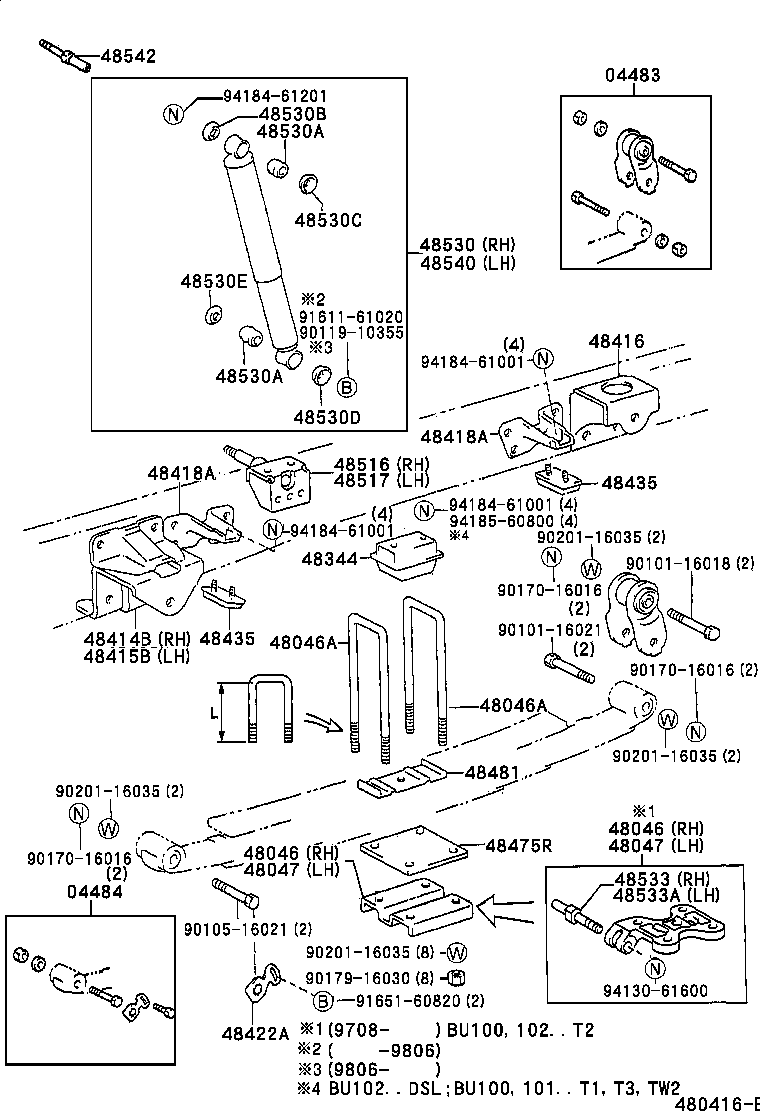

ILLUST NO. 1 OF 2(9505- )BU102,RZU100..LHD ; (9708- )BU100,101..ARL..TB

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-36100	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
04484 - PIN KIT, REAR SPRING
04484-36070	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014	BU102..WT..20T..TB L=225	05/1995 - 08/1997	4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014	BU102..WT..20T..TB L=225	05/1995 - 08/1997	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48306 - BUMPER SUB-ASSY, REAR SPRING
48306-36031	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	2
48344 - STOPPER, BUMPER, REAR
48344-36310	BU102..WT..(15T,20T)..TB	05/1995 - 08/1999	2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48416 - BRACKET, SPRING, NO.4
48416-36240	BU102,RZU100..WT..(15T,20T)..TB RH	05/1995 - 12/2999	1
48417-36120	BU102,RZU100..WT..(15T,20T)..TB LH	05/1995 - 12/2999	1
48422A - SUPPORT, REAR SPRING PIN
48422-36090	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003	BU212,222..LHD..40T;BU10#,140,142,221..WT;BU141,21#..(25T,40T)..DSL	05/1995 - 08/1997	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210..WT	05/1995 - 08/2000	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003	BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T	05/1995 - 06/1998	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
Common parts
90101-16018
90101-16021
90105-16021
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
91651-60820
94130-61600
94184-61001
94184-61201
94184-61601
94621-11600

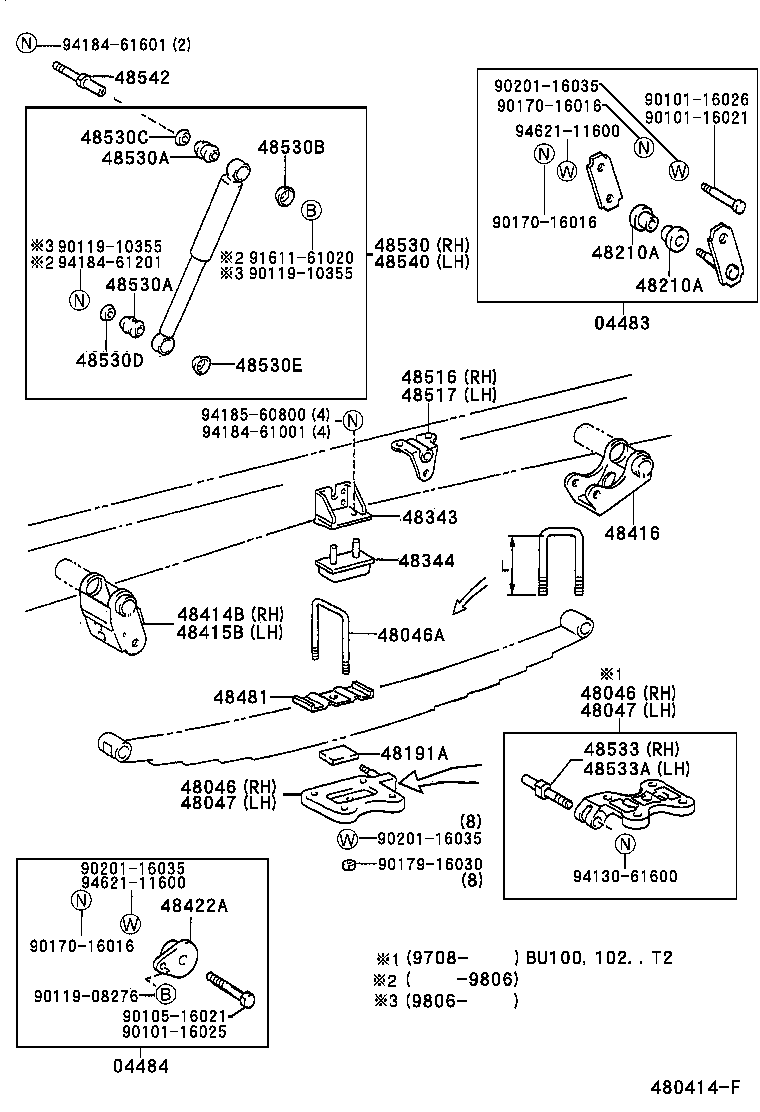

ILLUST NO. 1 OF 2(9505- )BU100,102 ; (9505- )BU101..T1,T3,TW2

Click highlighted areas on diagram

Part #	Description	Period	Qty
04483 - SHACKLE KIT, REAR SPRING
04483-36100	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
04484 - PIN KIT, REAR SPRING
04484-36070	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48046-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48046A - BOLT, U(FOR REAR SPRING)
90117-16014	BU102..WT..20T..TB L=225	05/1995 - 08/1997	4
48046A - BOLT, U(FOR REAR SPRING)
90117-16014	BU102..WT..20T..TB L=225	05/1995 - 08/1997	4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48047-36180	BU102..WT..20T..TB	05/1995 - 08/1997	1
48344 - STOPPER, BUMPER, REAR
48344-36310	BU102..WT..(15T,20T)..TB	05/1995 - 08/1999	2
48414B - BRACKET, SPRING, NO.3 RH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48415B - BRACKET, SPRING, NO.3 LH
48414-36250	BU102,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48416 - BRACKET, SPRING, NO.4
48416-36240	BU102,RZU100..WT..(15T,20T)..TB RH	05/1995 - 12/2999	1
48417-36120	BU102,RZU100..WT..(15T,20T)..TB LH	05/1995 - 12/2999	1
48422A - SUPPORT, REAR SPRING PIN
48422-36090	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-36040	BU212..25T,30T;BU102..WT..20T..TB;BU140,142,YU210..EUR,SA;BU141,142,211,213,223..30T	05/1995 - 12/2999	1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16011	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03003	BU212,222..LHD..40T;BU10#,140,142,221..WT;BU141,21#..(25T,40T)..DSL	05/1995 - 08/1997	2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210..WT	05/1995 - 08/2000	2
48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3
90948-03003	BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB;BU212,222..RHD..GEN..IV3;BU141,21#,RZU100,YU210..20T,30T	05/1995 - 06/1998	2
48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4
90948-03004	BU10#,11#,14#,21#,22#,RZU100,YU210	05/1995 - 08/2000	2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-80442	BU10#,RZU100..WT..(15T,20T)..TB	05/1995 - 12/2999	1
Common parts
90101-16018
90101-16021
90105-16021
90119-10355
90170-16016
90179-16030
90201-16035
91611-61020
91651-60820
94184-61001
94184-61201
94185-60800

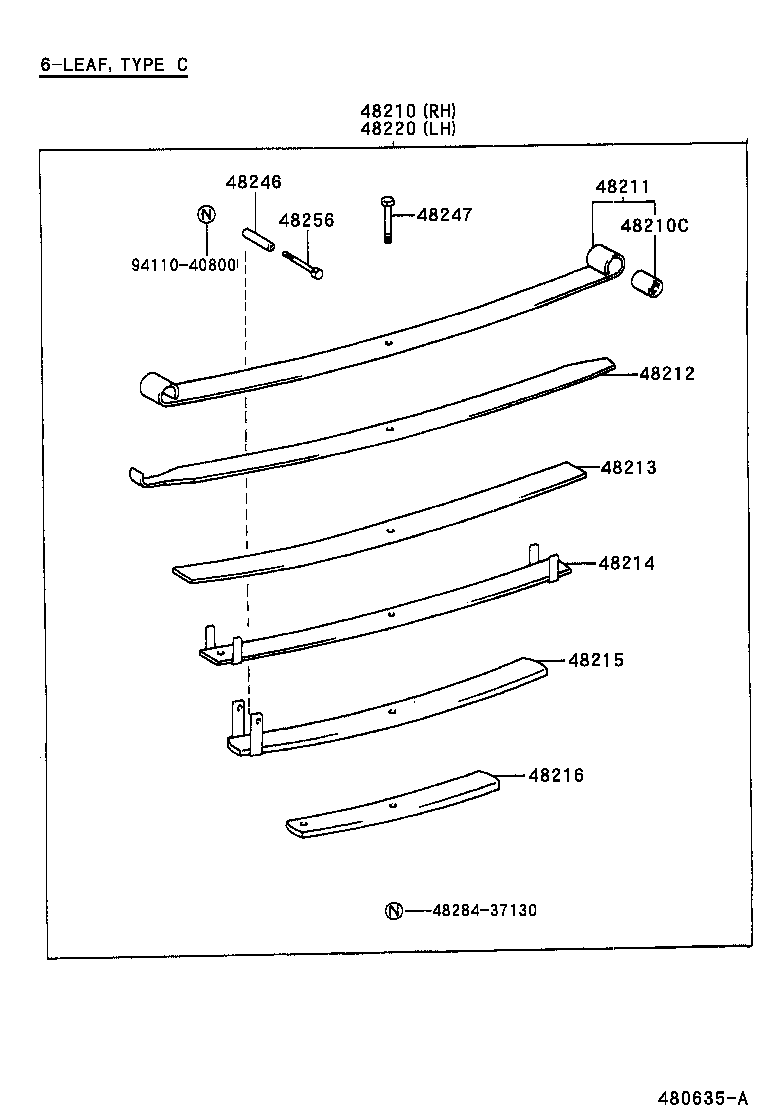

ILLUST NO. 2 OF 2(9505- )LHD..40T..TD..GEN ; (9505- )BU21#,223..40T..DSL,TDEFI ; (9505- )BU

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	8
48211 - LEAF, REAR SPRING, NO.1
48201-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48212 - LEAF, REAR SPRING, NO.2
48212-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48213 - LEAF, REAR SPRING, NO.3
48202-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48214 - LEAF, REAR SPRING, NO.4
48214-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48215 - LEAF, REAR SPRING, NO.5
48215-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48216 - LEAF, REAR SPRING, NO.6
48203-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48220 - SPRING ASSY, REAR LH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48247 - BOLT, REAR SPRING, CENTER
48247-60540	BU10#..WT..20T..TB	05/1995 - 12/2999	2
Common parts
48284-37130

ILLUST NO. 2 OF 2(9505- )BU10#..WT..20T..TB ; (9610- )BU101..RHD..WT..GEN..IV3

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	8
48211 - LEAF, REAR SPRING, NO.1
48201-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48212 - LEAF, REAR SPRING, NO.2
48212-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48213 - LEAF, REAR SPRING, NO.3
48202-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48214 - LEAF, REAR SPRING, NO.4
48214-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48215 - LEAF, REAR SPRING, NO.5
48215-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48216 - LEAF, REAR SPRING, NO.6
48203-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48220 - SPRING ASSY, REAR LH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60070	BU100,101..T3..ST;BU102..(15T,20T)..TB;BU100,101,RZU100..T1,T2,T4,TW2	05/1995 - 12/2999	2
48247 - BOLT, REAR SPRING, CENTER
48247-60540	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050	RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	2
Common parts
48284-37130
94110-40800

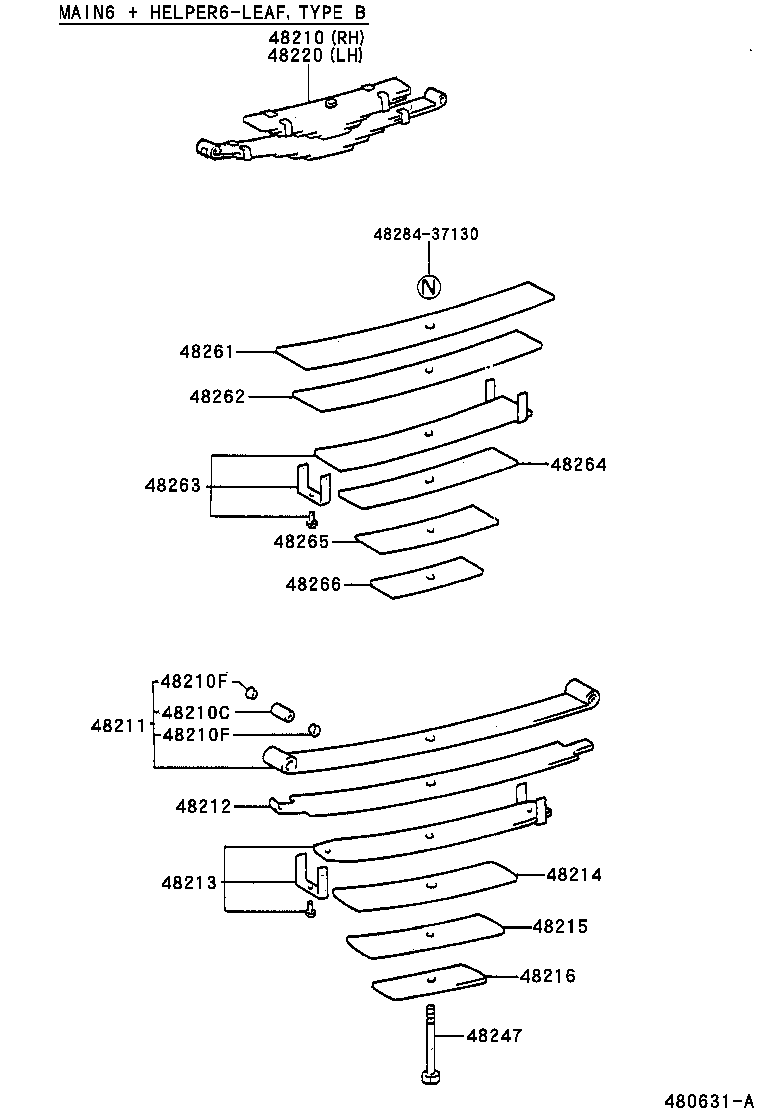

ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;

Click highlighted areas on diagram

Part #	Description	Period	Qty
48210 - SPRING ASSY, REAR RH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48210C - BUSH(FOR REAR SPRING LEAF)
90389-16013	BU11#,RZU100;BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(15T,20T)..TB	05/1995 - 12/2999	8
48211 - LEAF, REAR SPRING, NO.1
48201-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48212 - LEAF, REAR SPRING, NO.2
48212-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48213 - LEAF, REAR SPRING, NO.3
48202-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48214 - LEAF, REAR SPRING, NO.4
48214-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48215 - LEAF, REAR SPRING, NO.5
48215-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48216 - LEAF, REAR SPRING, NO.6
48203-3B220	BU10#..WT..20T..TB	05/1995 - 12/2999	2
48220 - SPRING ASSY, REAR LH
48210-3B220	BU10#..WT..20T..TB 6-LEAF,TYPE C:REFER TO ILLUSTRATION	05/1995 - 12/2999	1
48247 - BOLT, REAR SPRING, CENTER
48247-60540	BU10#..WT..20T..TB	05/1995 - 12/2999	2
Common parts
94110-51000

BU102L-TGMMSU3 (1995)

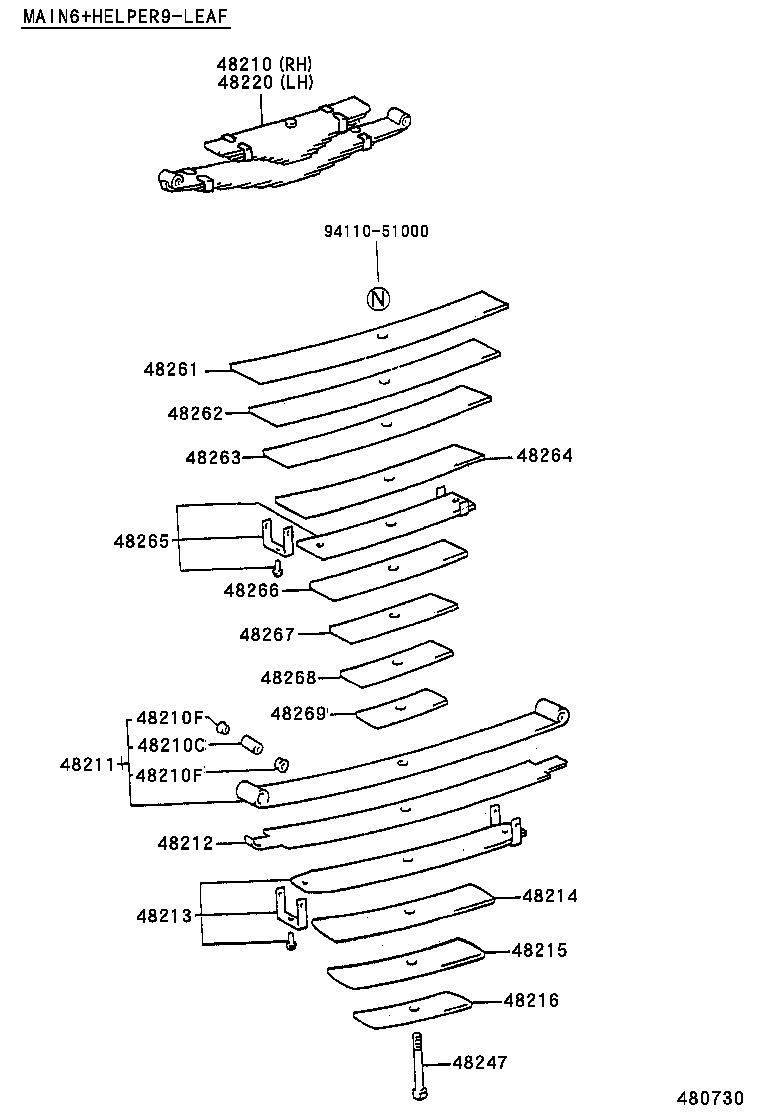

ILLUST NO. 1 OF 2(9505- )BU10#..DSL ; (9908- )15T

ILLUST NO. 1 OF 2(9505- )BU102,RZU100..LHD ; (9708- )BU100,101..ARL..TB

ILLUST NO. 1 OF 2(9505- )BU100,102 ; (9505- )BU101..T1,T3,TW2

ILLUST NO. 2 OF 2(9505- )LHD..40T..TD..GEN ; (9505- )BU21#,223..40T..DSL,TDEFI ; (9505- )BU

ILLUST NO. 2 OF 2(9505- )BU10#..WT..20T..TB ; (9610- )BU101..RHD..WT..GEN..IV3

ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;

Part Price Details
