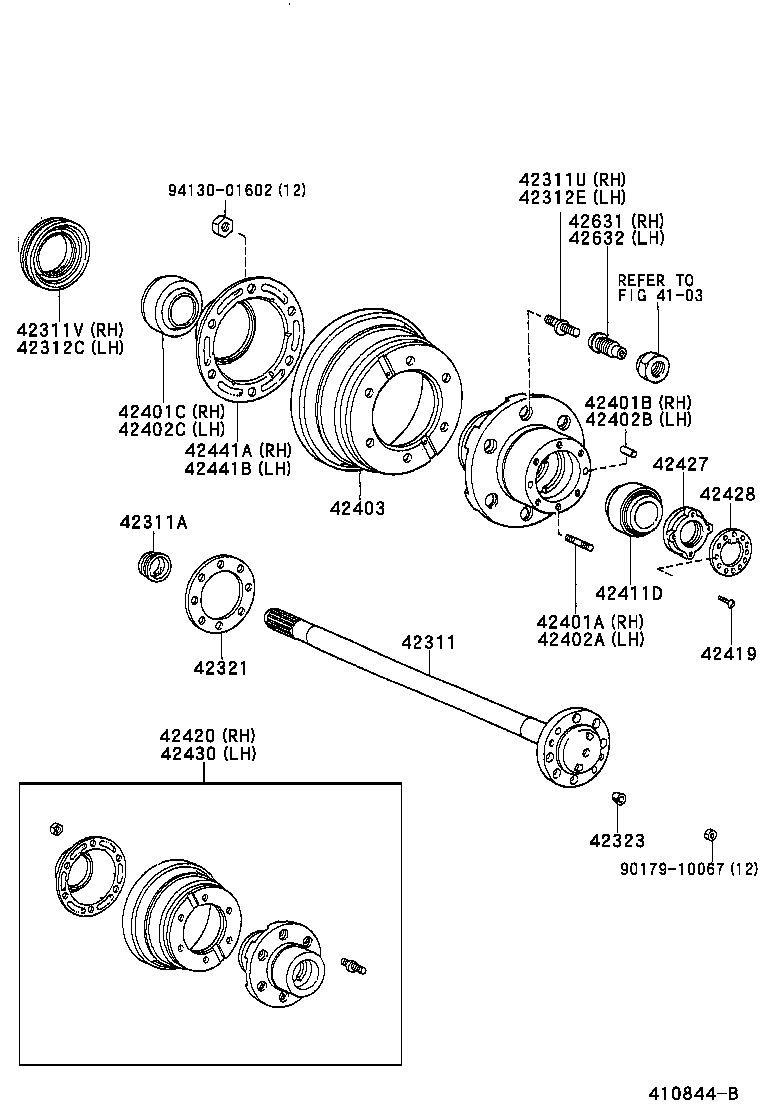

BU102L-TGMMSU3 (1995)
Toyota Dyna200
(9505- )BU10#,RZU100..WT..15T,20T..TB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-36151 |
BU102,RZU100..WT..(15T,20T)..TB |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90310-38033 |
BU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS) |
2 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02050 |
BU10#,RZU100..WT..(15T,20T)..TB |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90311-75003 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90311-75003 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02051 |
BU10#,RZU100..WT..(15T,20T)..TB |
6 | ||
| 42321 - GASKET, REAR AXLE SHAFT | ||||
| 42321-36050 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42323 - WASHER, CONE (FOR REAR AXLE SHAFT) | ||||
| 42323-36010 |
BU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS) |
12 | ||
| 42401A - BOLT, STUD (FOR REAR AXLE HUB RH) | ||||
| 90116-10191 |
BU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS) |
6 | ||
| 42401B - PIN, STRAIGHT (FOR REAR AXLE HUB RH) | ||||
| 90250-10055 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42401C - BEARING (FOR REAR AXLE HUB INNER RH) | ||||
| 90368-57010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 42402A - BOLT, STUD (FOR REAR AXLE HUB LH) | ||||
| 90116-10191 |
BU10#,14#,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(ARL,GEN,SA,TAIW)..(TB,TS) |
6 | ||
| 42402B - PIN, STRAIGHT (FOR REAR AXLE HUB LH) | ||||
| 90250-10055 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42402C - BEARING (FOR REAR AXLE HUB INNER LH) | ||||
| 90368-57010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-36100 |
BU102,RZU100..WT..(15T,20T)..TB |
2 | ||
| 42411D - BEARING, TAPERED ROLLER (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-52043 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42419 - SCREW, REAR AXLE BEARING LOCK NUT | ||||
| 93311-16012 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
4 | ||
| 42420 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, RH | ||||
| 42420-36110 |
BU102,RZU100..WT..(15T,20T)..TB |
1 | ||
| 42427 - NUT, REAR AXLE BEARING LOCK | ||||
| 42427-36030 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42428 - PLATE, REAR AXLE LOCK NUT | ||||
| 42428-36020 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 42430 - HUB (OR SHAFT) & BRAKE DRUM REAR AXLE, LH | ||||
| 42430-36110 |
BU102,RZU100..WT..(15T,20T)..TB |
1 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-36050 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-36050 |
BU10#,RZU100..WT..(15T,20T)..TB |
1 | ||
| 42631 - BOLT, DOUBLE WHEEL STOP, RH | ||||
| 42631-36010 |
BU10#,RZU100..WT..(15T,20T)..TB |
6 | ||
| 42632 - BOLT, DOUBLE WHEEL STOP, LH | ||||
| 42632-36010 |
BU10#,RZU100..WT..(15T,20T)..TB |
6 | ||
| Common parts | ||||
| 90179-10067 | ||||
| 94130-01602 | ||||
| Linked diagrams | ||||
| 4103 | ||||
