BU102L-TGMMSU3 (1995)

Toyota Dyna200

Production May 1995 - Mar 1997
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,3B

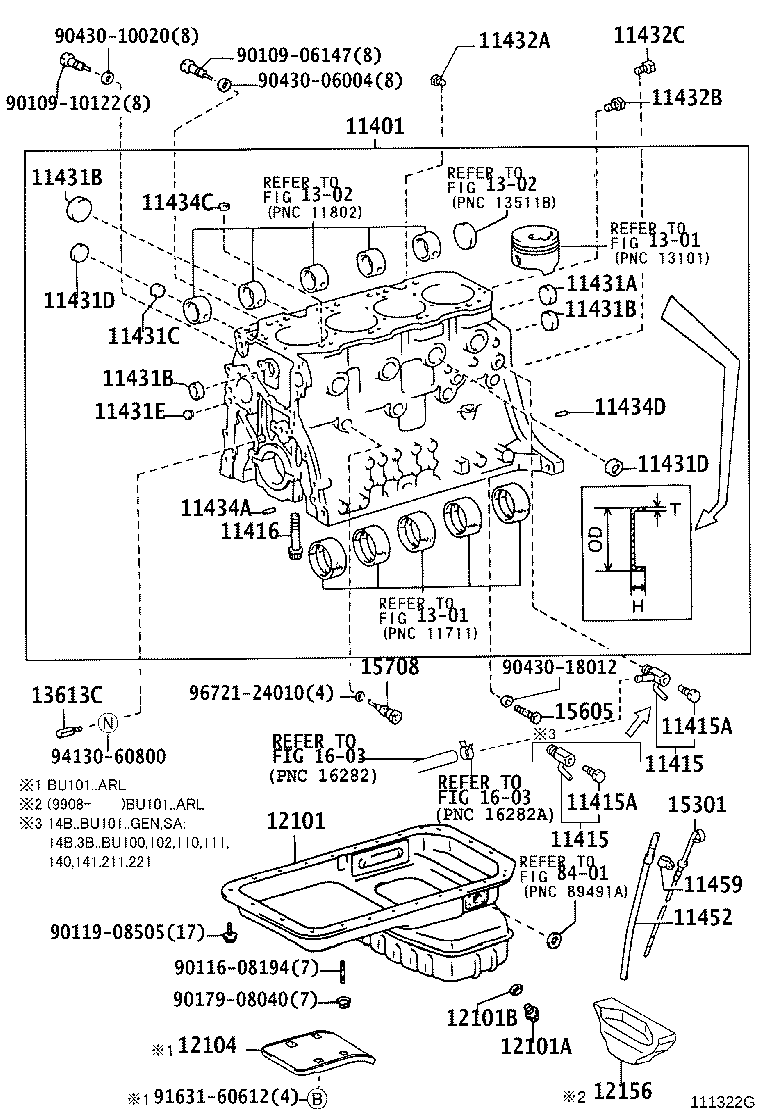

Click highlighted areas on diagram

diagram 11401 11415 11415 11415A 11415A 11416 11431A 11431B 11431B 11431B 11431C 11431D 11431D 11431E 11432A 11432B 11432C 11434A 11434C 11434D 11452 11459 12101 12101A 12101B 12104 12156 1301 1301 1302 1302 13613C 15301 15605 15708 1603 1603 8401 9010906147 9010910122 9011608194 9011908505 9017908040 9043006004 9043010020 9043018012 9163160612 9413060800 9672124010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59397

14B..BU101,102,111,112,141,211,212,221,222

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

15BFT..BU212,222..RHD..GEN;14B,15BFT..BU212,222..EUR,TAIW;14B,15BFT,3B..BU10#,11#,14#,211,221

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
96431-53828

15BFT..BU212,222..RHD..GEN;14B,15BFT..BU212,222..EUR,TAIW;14B,15BFT,3B..BU10#,11#,14#,211,221

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96432-23814

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02083

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

*16-2.0PX129.5-32

 5
90910-02082

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

*16-2.0PX93.5-32

 5
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-14500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
90331-50003

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=9

 1
96411-45000

14B,15B#,3B..BU10#,11#,14#,21#,22#

T=1.6,H=12

 3
96411-65000

14B,15B#,3B..BU10#,11#,14#,21#,22#

OD=50,T=1.2,H=12

 1
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-63000

14B,15B#,3B..BU10#,11#,14#,21#,22#

 4
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 5
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-63500

14B,15B#,3B..BU10#,11#,14#,21#,22#

 5
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
90331-14006

14B,15B#,3B..BU10#,11#,14#,21#,22#

 3
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-51007

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 4
11432B - PLUG, W/HEAD TAPER SCREW, NO.2
90345-53004

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11432C - PLUG, W/HEAD TAPER SCREW, NO.3
90345-52001

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=18,OD=8

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-15008

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=9.0,OD=14.5

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-08120

14B,15B#,3B..BU10#,11#,14#,21#,22#

L=18,OD=8

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-56050

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-56040

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
12101 - PAN SUB-ASSY, OIL
12101-58092

15BFT..BU212..LHD..40T;14B,3B..BU10#,111,112,140,141,21#,22#..GEN,SA,TAIW

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
13613C - NOZZLE, OIL
90915-01015

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-58011

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-56010

14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-56010

14B,3B..BU10#,11#,140,141,211,212,221,222

 4
Common parts
90109-06147
90109-10122
90116-08194
90119-08505
90179-08040
90430-06004
90430-10020
90430-18012
91631-60612
94130-60800
96721-24010
Linked diagrams
1301
1302
1603
8401
