Toyota Dyna200 BU101 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
GR
DYNA200
BU101R-TSMLS3 (1995)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

BU101R-TSMLS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002

Engine 14B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

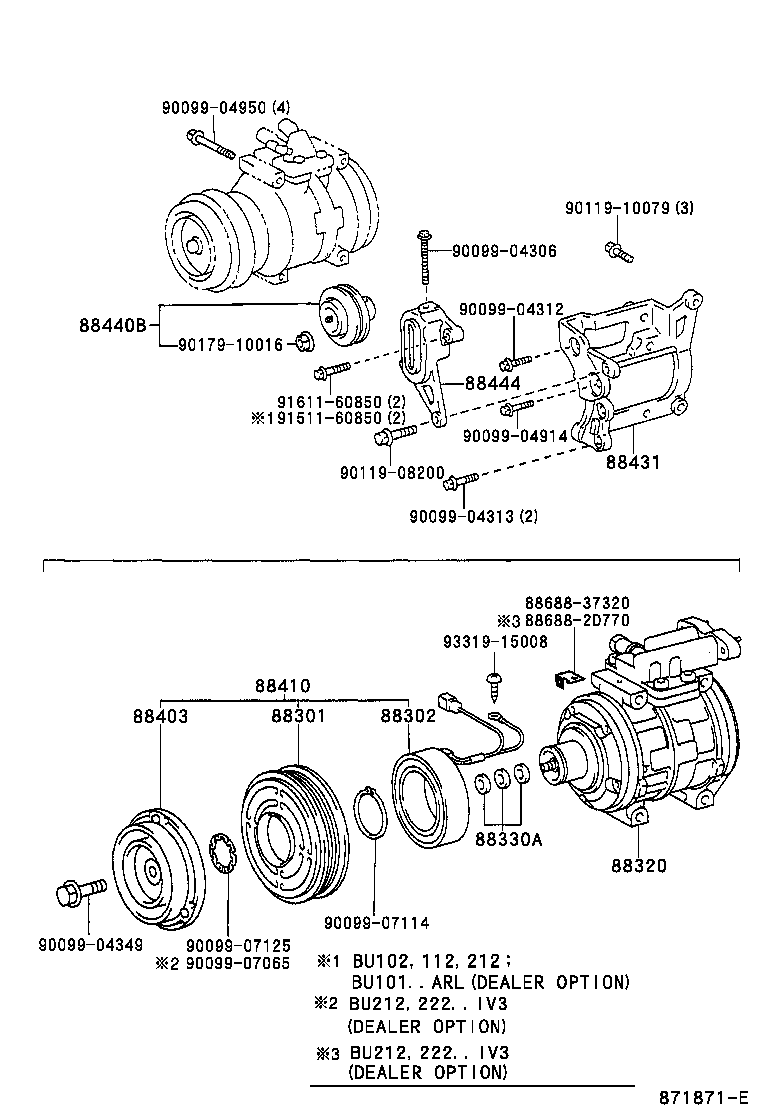

ILLUST NO. 1 OF 2(9505- )TD..SA ; (9505- )BU212..ARL,GEN,TAIW ; (9505- )BU10#,11#,140,141,2

Click highlighted areas on diagram

Part #	Description	Period	Qty
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-26030	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88412-26030	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-2A030	BU212..LHD..40T..TD;BU212,RZU100..RHD..(DSL,EFI)..IV3;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	08/1997 - 05/1999	1
88411-2A030	BU212..LHD..40T..TD;BU212,RZU100..RHD..(DSL,EFI)..IV3;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	08/1997 - 05/1999	1
88411-2A030	RZU100;BU212..ARL;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) DEALER OPTION	05/1999 - 12/2999	1
88411-2A030	RZU100;BU212..ARL;BU212..LHD..40T..TD;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) DEALER OPTION	05/1999 - 12/2999	1
88411-22310	RZU100;BU212..LHD..40T;BU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 08/1997	1
88411-22310	RZU100;BU212..LHD..40T;BU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 08/1997	1
88320 - COMPRESSOR ASSY, COOLER
88320-36380	BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 12/2999	1
88320-36380	BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	RZU100;BU212..ARL,TAIW;BU212..LHD..40T..TD;BU10#,11#,14#,211,213,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88335-14020	RZU100;BU212..ARL,TAIW;BU212..LHD..40T..TD;BU10#,11#,14#,211,213,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-30290	BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88403-30290	BU212,222,RZU100..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88403-30290	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI)..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88403-30290	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222,RZU100..(DM1,T1,T2,T3,T4,TW1,TW2)..(DSL,EFI)..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-35250	BU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 05/1999	1
88410-35250	BU102,212..ARL,TAIW;BU100,101,11#,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 05/1999	1
88410-35250	BU212..ARL;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) DEALER OPTION	05/1999 - 12/2999	1
88410-35250	BU212..ARL;BU100,101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) DEALER OPTION	05/1999 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36402	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88431-36402	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-12160	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88440-12160	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88440-12160	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88440-12160	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-36160	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
88444-36160	BU212..ARL,TAIW;BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 12/2999	1
Common parts
88688-2D770
88688-37320
90099-04306
90099-04312
90099-04313
90099-04349
90099-04914
90099-04950
90099-07065
90099-07114
90099-07125
90119-08200
90119-10079
90179-10016
91511-60850
91611-60850
93319-15008

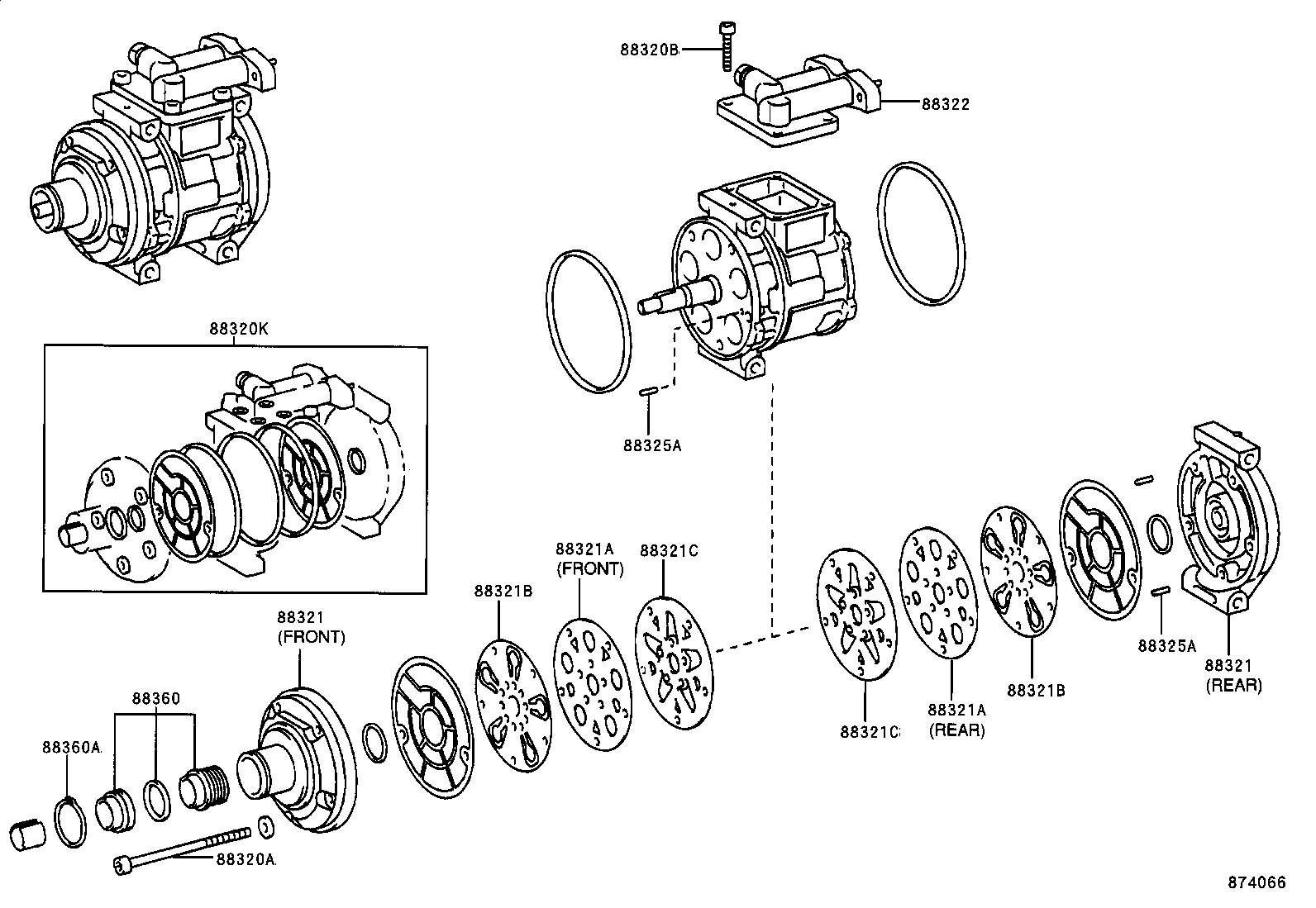

ILLUST NO. 2 OF 2(9505- )BU10#,11#,140,141,211,221,RZU100,YU210..CBR,DSL,EFI

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320A - BOLT, THROUGH
90099-04370	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	5
90099-04370	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	5
90099-04370	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	5
90099-04370	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	5
88320B - BOLT, SERVICE VALVE
90099-04924	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-04924	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-04924	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
90099-04924	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
88320K - GASKET KIT, COOLER COMPRESSOR OVERHAUL
88335-2B030	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88335-2B030	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
88335-2B030	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88335-2B030	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88321-32010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88322-32040	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88322-32040	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88321-32010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88321-32010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88322-32040	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88322-32040	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-32010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88321-32010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88322-32040	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88322-32040	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88321-32010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88321-32010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88322-32040	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88322-32040	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88342-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88342-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88342-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88341-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88341-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88341-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88341-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88321A - PLATE SUB-ASSY, VALVE
88342-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88342-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) REAR	10/2001 - 12/2999	1
88342-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88342-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) REAR	05/1995 - 10/2001	1
88341-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88341-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FRONT	10/2001 - 12/2999	1
88341-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88341-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3) FRONT	05/1995 - 10/2001	1
88321B - REED SUB-ASSY, VALVE
88344-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88344-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88344-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88344-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88321B - REED SUB-ASSY, VALVE
88344-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88344-22010	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88344-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88344-22010	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88321C - REED, SUCTION VALVE
88343-14020	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88343-14020	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88343-14020	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88343-14020	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88321C - REED, SUCTION VALVE
88343-14020	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88343-14020	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	2
88343-14020	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88343-14020	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-36240	BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 12/2999	1
88371-36240	BU10#,11#,14#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,EUR,GEN,TAIW)	05/1995 - 12/2999	1
88325A - PIN, CYLINDER BLOCK
90099-08058	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-08058	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-08058	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
90099-08058	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
88325A - PIN, CYLINDER BLOCK
90099-08058	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-08058	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	4
90099-08058	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
90099-08058	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	4
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-2B010	BU100,101,110,111,14#,21#,221..(DM1,T1,T3,TW1,TW2)..(ARL,GEN) NO.1	05/1995 - 10/1996	1
88360-2B010	BU100,101,110,111,14#,21#,221..(DM1,T1,T3,TW1,TW2)..(ARL,GEN) NO.1	05/1995 - 10/1996	1
88360-2B020	BU212..GEN;BU140,141..RHD;BU101..RHD..CBU;BU101..ST..IV3..TS MAKER OPTION	05/1995 - 10/1996	1
88360-2B020	BU212..GEN;BU140,141..RHD;BU101..RHD..CBU;BU101..ST..IV3..TS MAKER OPTION	05/1995 - 10/1996	1
88360-2B020	BU140,141..RHD;BU212..40T..GEN;BU101..ST..IV3..TS;BU101,211..RHD..CBU;BU211..RHD..30T..GEN..IV3 MAKER OPTION	10/1996 - 03/1997	1
88360-2B020	BU140,141..RHD;BU212..40T..GEN;BU101..ST..IV3..TS;BU101,211..RHD..CBU;BU211..RHD..30T..GEN..IV3 MAKER OPTION	10/1996 - 03/1997	1
88360-2B020	BU212..LHD..40T..TD;BU101,111,140,141,211,221..RHD..GEN..(CBU,IV3) MAKER OPTION	03/1997 - 12/2999	1
88360-2B020	BU212..LHD..40T..TD;BU101,111,140,141,211,221..RHD..GEN..(CBU,IV3) MAKER OPTION	03/1997 - 12/2999	1
88360-2B010	BU212..ARL;BU101..LHD..WT;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU101,211,221..RHD..GEN..(CBU,IV3);BU100,110,111,14#..(DM1,T3,TW2)..DSL..(ARL,GEN) NO.1	10/1996 - 12/2999	1
88360-2B010	BU212..ARL;BU101..LHD..WT;BU101..20T..GEN..TB;BU212..LHD..40T..TD;BU101,211,221..RHD..GEN..(CBU,IV3);BU100,110,111,14#..(DM1,T3,TW2)..DSL..(ARL,GEN) NO.1	10/1996 - 12/2999	1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
90096-90022	BU212..ARL;BU212..LHD;BU101,111,14#,211,221,222..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3)	10/2001 - 12/2999	1
90096-90022	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1
90096-90022	BU212,222..(ARL,GEN,TAIW)..IV3;BU10#,11#,14#,211,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)	05/1995 - 10/2001	1

BU101R-TSMLS3 (1995)

ILLUST NO. 1 OF 2(9505- )TD..SA ; (9505- )BU212..ARL,GEN,TAIW ; (9505- )BU10#,11#,140,141,2

ILLUST NO. 2 OF 2(9505- )BU10#,11#,140,141,211,221,RZU100,YU210..CBR,DSL,EFI
