BU101R-TSMLS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU100..175T ; (9505- )BU101..ST..TS

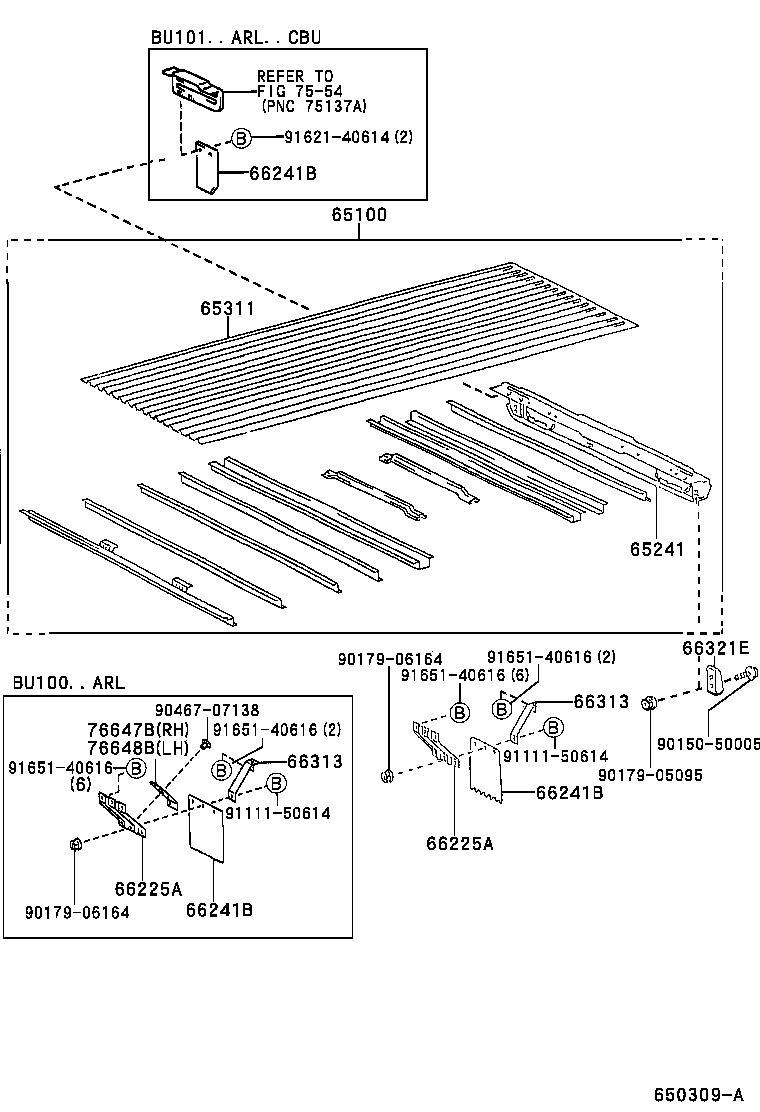

Click highlighted areas on diagram

diagram 65100 65241 65311 66225A 66225A 66241B 66241B 66241B 66241B 66313 66313 66321E 7554 76647B 76648B 9015050005 9017905095 9017906164 9017906164 9046707138 9111150614 9111150614 9162140614 9165140616 9165140616 9165140616 9165140616
Part # Description Qty Price
Common parts
90150-50005
90179-05095
90179-06164
90467-07138
91111-50614
91621-40614
91651-40616
Linked diagrams
7554
