BU101R-TSMLS3 (1995)
Toyota Dyna200
Production
May 1995
-
Dec 2002
Engine
14B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

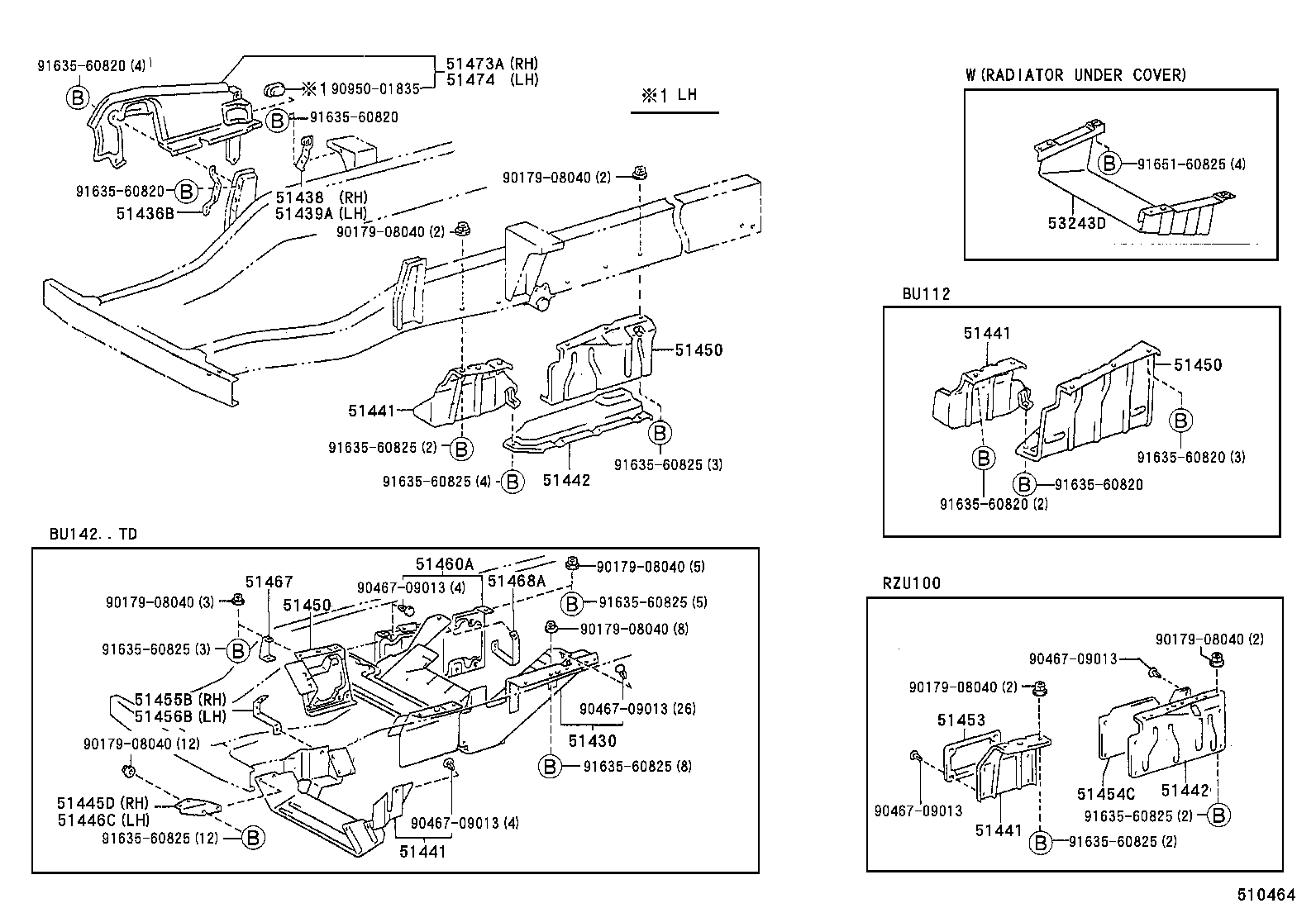

ILLUST NO. 1 OF 2(9505- )BU101..GEN,SA ; (9505- )BU100,102,11#,14#,RZU100
Click highlighted areas on diagram
SIDE,UNDER COVER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37010 |
BU10#,11#,14#,RZU100..DSL,EFI |
2 | ||
| 51438 - BRACKET, ENGINE SIDE COVER, NO.2 RH | ||||
| 51438-37010 |
BU10#,11#,14#,RZU100 |
1 | ||
| 51439A - BRACKET, ENGINE SIDE COVER, NO.2 LH | ||||
| 51439-37010 |
BU10#,11#,14#,RZU100 |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37010 |
BU100,101,111,140,141..GEN |
1 | ||
| 51473-37080 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51470-37050 |
BU101,102,111,14#..RHD..(GEN,SA) |
1 | ||
| 51470-37020 |
BU100,101,111,140,141..GEN |
1 | ||
| 53243D - GUIDE, LOWER WIND | ||||
| 53243-36070 |
BU102..ST;BU100,101,140,141..GEN |
1 | ||
| 53243-36070 |
BU102..T3..TB;BU101..ARL,GEN;BU100,140,141..GEN |
1 | ||
| Common parts | ||||
| 90179-08040 | ||||
| 90467-09013 | ||||
| 90950-01835 | ||||
| 91635-60820 | ||||
| 91635-60825 | ||||
| 91651-60825 | ||||

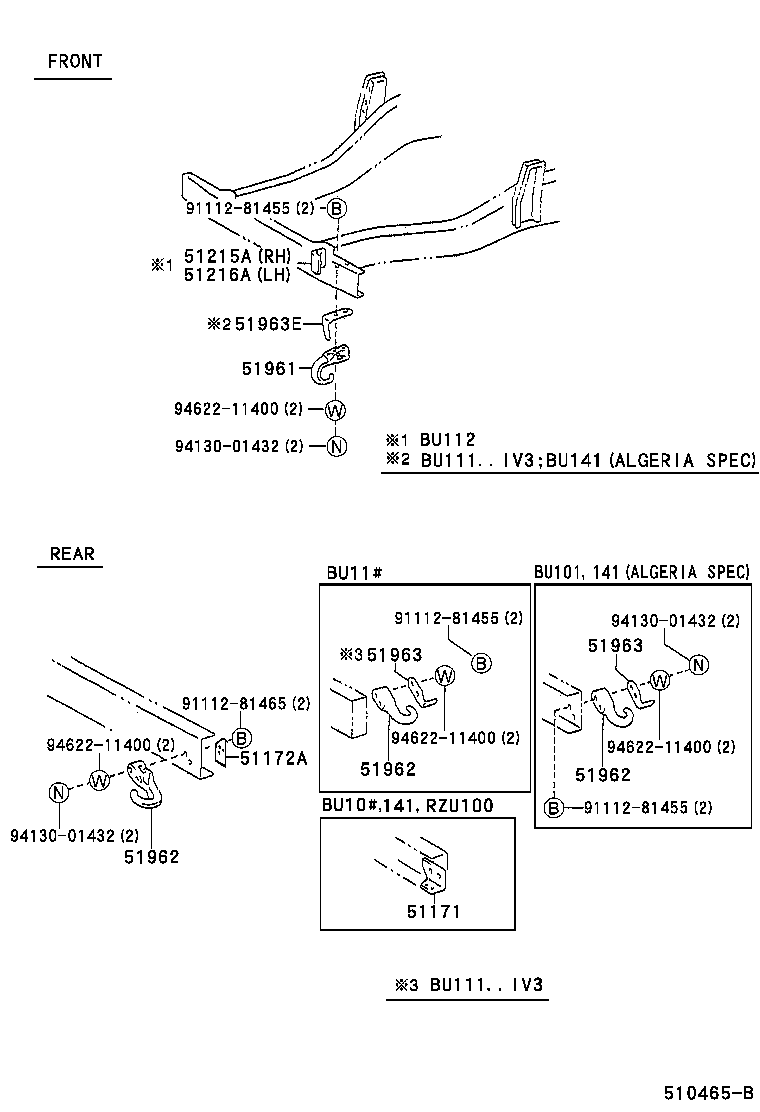

ILLUST NO. 2 OF 2(9505- )BU10#,11#,14#,RZU100
Click highlighted areas on diagram
HOOK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51171 - REINFORCEMENT, SIDE RAIL REAR HOOK | ||||
| 51171-36060 |
BU10#..ST |
1 | ||
| 51961 - HOOK, NO.1 | ||||
| 51961-36040 |
BU10#,11#,14#,RZU100 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BU10#,11#,RZU100 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BU10#,11#,RZU100 |
1 | ||
| 51962 - HOOK, NO.2 | ||||
| 51961-36040 |
BU10#,11#,RZU100 |
1 | ||
| Common parts | ||||
| 91112-81455 | ||||
| 91112-81465 | ||||
| 94130-01432 | ||||
| 94622-11400 | ||||
