BU101R-TBMMSN3 (1998)
Toyota Dyna200

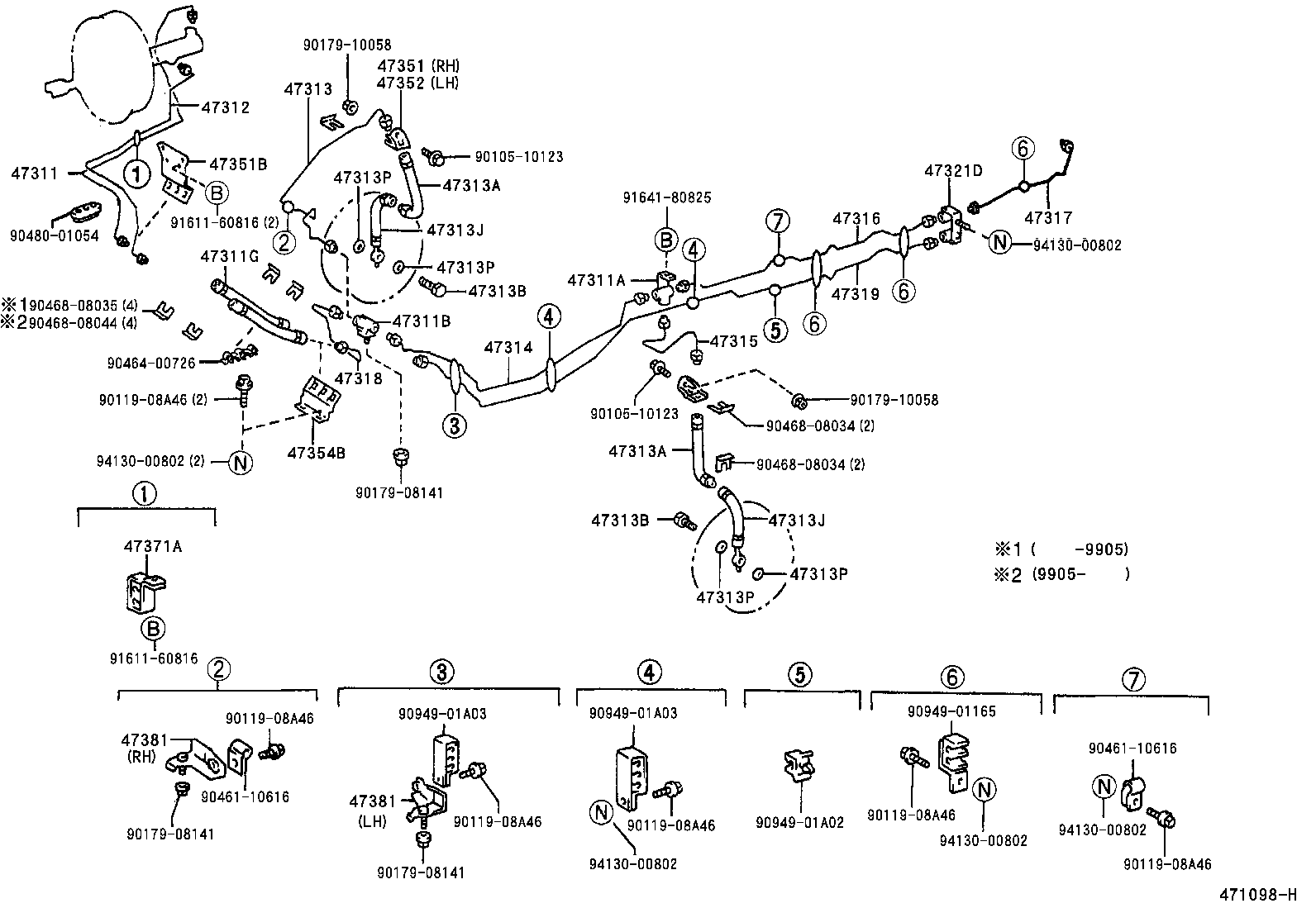

ILLUST NO. 1 OF 3(9802- )BU101..SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-37130 |
BU100,101..RHD..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 47311-37120 |
BU100,101..RHD |
1 | ||
| 47311-37130 |
BU110,111,14#..RHD..(20T,25T) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-12005 |
BU10#,11#,14#,RZU100 |
1 | ||
| 47311G - HOSE, FLEXIBLE(FOR BRAKE TUBE) | ||||
| 96932-33655 |
BU10#,11#,14# |
2 | ||
| 96932-33857 |
BU10#,110,111,14#,RZU100..RHD |
2 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47321-37130 |
BU110,111,14#..RHD..(20T,25T) |
1 | ||
| 47321-37120 |
BU100,101..RHD |
1 | ||
| 47321-37130 |
BU100,101..RHD..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-37080 |
RZU100..RHD;BU10#,14#..ARL,GEN,SA,TAIW |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
BU141..25T;BU142..ARL,EUR;BU100,101,110,140..(DM1,T3)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A60 |
BU142..ARL,EUR;BU141..25T..GEN;BU100,101,110,140..(DM1,T3)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02L60 |
BU141..25T;BU101..T3..WT;BU142..ARL,EUR W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02492 |
BU141..25T;BU142..ARL,EUR;BU100,101,110,140..(DM1,T3)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02A60 |
BU142..ARL,EUR;BU141..25T..GEN;BU100,101,110,140..(DM1,T3)..WT W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 90947-02L60 |
BU141..25T;BU101..T3..WT;BU142..ARL,EUR W(FR DISC BRAKE:RR AUTO ADJUSTER) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02521 |
BU101..T3..WT;BU211..30T..GEN;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10035 |
BU101..T3..WT;BU211..RHD..30T..GEN;BU211..LHD..30T..CBU;BU142,212..(20T,25T,30T)..(ARL,EUR);BU100,110,140,141..(DM1,T3)..WT..(20T,25T) |
4 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47324-37200 |
BU101..SA |
1 | ||
| 47324-37200 |
BU101,141..SA |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47312-37040 |
BU10#,110,111,14#,RZU100..RHD |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47322-37070 |
BU101,140,142..EUR,SA |
1 | ||
| 47322-37170 |
BU101,141..SA |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90904-12016 |
BU101,14#..EUR,SA |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-37050 |
BU10#,14#,RZU100 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-37030 |
BU21#,22#;BU100,101,110,111,14#,YU210..RHD |
1 | ||
| 47351-37120 |
BU101..RHD;BU100,102,111,14#,RZU100..RHD..(DM1,DM6,T3,TW2) |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-37020 |
BU10#,14#,RZU100 |
1 | ||
| 47354B - BRACKET, FLEXIBLE HOSE, NO.4 | ||||
| 47354-37020 |
BU10#,110,111,14#,RZU100..RHD |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-01188 |
BU10#,111,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU101,111,141,211,221..RHD;BU100,102,112,222,RZU100,YU210..ARL,GEN,SA |
1 | ||
| 90949-01188 |
BU212..DSL;BU142..ARL,EUR;BU212..RHD..TD;BU101..LHD..ST..TS;BU101,211..LHD..30T;BU212..30T..TD..IV3;BU102,112,222..ARL,GEN,SA;BU100,101,111,141,211,221,RZU100,YU210..RHD..(DM1,DM6,T1,T3,TW2) |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,14# LH |
1 | ||
| 47381-36110 |
BU101,140,142..EUR,SA RH |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-37020 |
BU10#,14# LH |
1 | ||
| 47381-36110 |
BU101,140,142..EUR,SA RH |
1 | ||
| Common parts | ||||
| 90105-10123 | ||||
| 90119-08A46 | ||||
| 90179-08141 | ||||
| 90179-10058 | ||||
| 90461-10616 | ||||
| 90464-00726 | ||||
| 90468-08034 | ||||
| 90468-08035 | ||||
| 90468-08044 | ||||
| 90480-01054 | ||||
| 90949-01165 | ||||
| 90949-01A02 | ||||
| 90949-01A03 | ||||
| 91611-60816 | ||||
| 91641-80825 | ||||
| 94130-00802 | ||||
