BU101R-TBMMS3 (1995)
Toyota Dyna200
(9505- )14B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-58861 |
14B..BU111,221..RHD..GEN;14B..BU101,211..RHD..WT..(20T,40T)..GEN..IV3 HONGKONG SPEC & W(TACHO METER) |
1 | ||
| 22100-58540 |
14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN *HAC |
1 | ||
| 22100-58630 |
14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN W(TACHO METER) |
1 | ||
| 22100-58640 |
14B..BU101,111,141,211,221..(DM1,T1,T3)..GEN *HAC & W(TACHO METER) |
1 | ||
| 22100-58550 |
14B..BU101,111,141,211,221..GEN |
1 | ||
| 22100-5C390 |
14B..BU101..ST..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..IV3 THAILAND SPEC |
1 | ||
| 22100-58551 |
14B..BU101,111,141,211,221..GEN |
1 | ||
| 22100-5C540 |
14B..BU101..T1..CBU;14B..BU211..RHD..40T..GEN..IV3;14B..BU101,141..RHD..(20T,30T)..GEN..IV3 THAILAND SPEC |
1 | ||
| 22100-58631 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B..BU111,141,211,221..(DM1,T3,TW1)..GEN..(CBU,IV3) W(TACHO METER) |
1 | ||
| 22100-58541 |
14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) *HAC |
1 | ||
| 22100-58551 |
14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) |
1 | ||
| 22100-58641 |
14B..BU101,111,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) *HAC & W(TACHO METER) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-58030 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22811-58031 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF,15BFTE..BU101,111,14#,21#,22# |
1 | ||
| 90301-49003 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-56080 |
14B..BU101,102,111,112,141,211,212,221,222 |
1 | ||
| 23701-56080 |
14B..BU101,111,141,211,221 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-56080 |
14B..BU101,111,141,211,221 |
1 | ||
| 23702-56080 |
14B..BU101,102,111,112,141,211,212,221,222 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-56080 |
14B..BU101,102,111,112,141,211,212,221,222 |
1 | ||
| 23703-56080 |
14B..BU101,111,141,211,221 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-56080 |
14B..BU101,111,141,211,221 |
1 | ||
| 23704-56080 |
14B..BU101,102,111,112,141,211,212,221,222 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741-58010 |
14B..BU101,111,141,211,221 |
6 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58010 |
14B..BU101,102,111,112,141,211,212,221,222 |
2 | ||
| 23742-58010 |
14B..BU101,111,141,211,221 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-58010 |
14B..BU101,102,111,112,141,211,212,221,222 |
2 | ||
| 23742-58010 |
14B..BU101,111,141,211,221 |
2 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-58010 |
15BFT..BU222..SA;15BFT..BU212..LHD;14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 23811-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90119-08735 | ||||
| 90170-08204 | ||||
| 90179-06026 | ||||
| 90179-08022 | ||||
| 90179-10089 | ||||
| 90461-10061 | ||||
| 90464-00234 | ||||
| 91611-60820 | ||||
| 91612-41025 | ||||
| 91621-61020 | ||||
| 91631-60628 | ||||
| 92122-60625 | ||||
| 96132-30800 | ||||

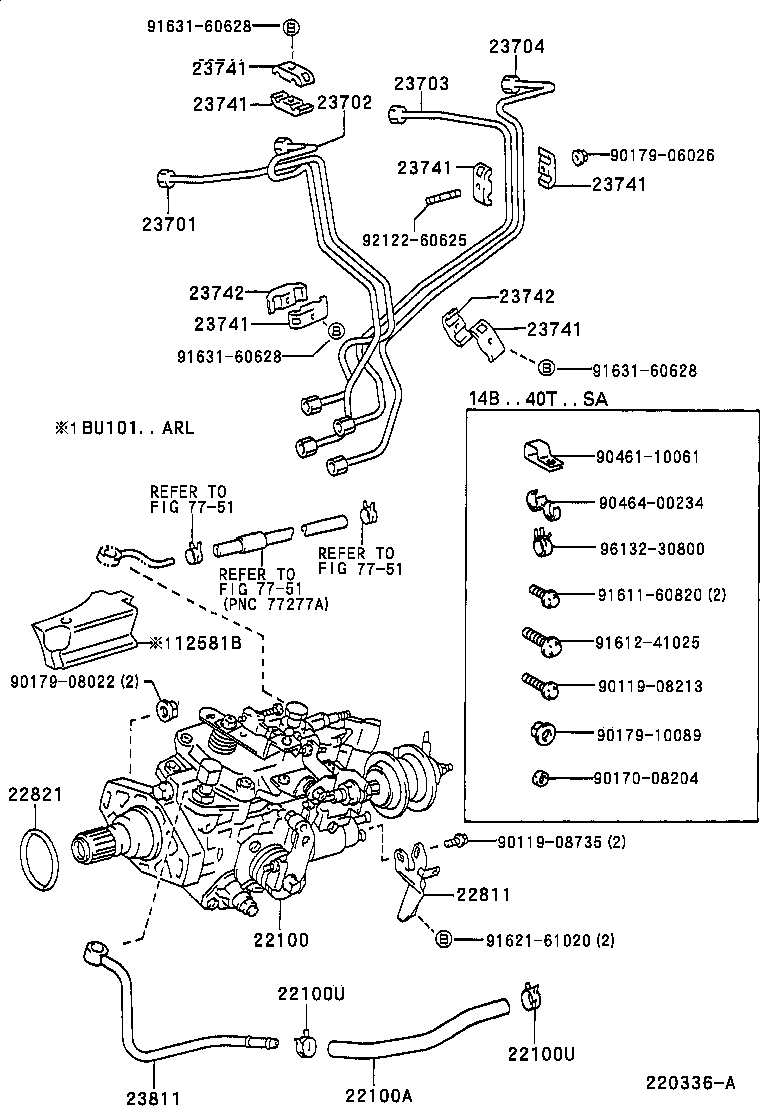

| Linked diagrams | ||||
| 7751 | ||||
