BU101L-TKMLS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

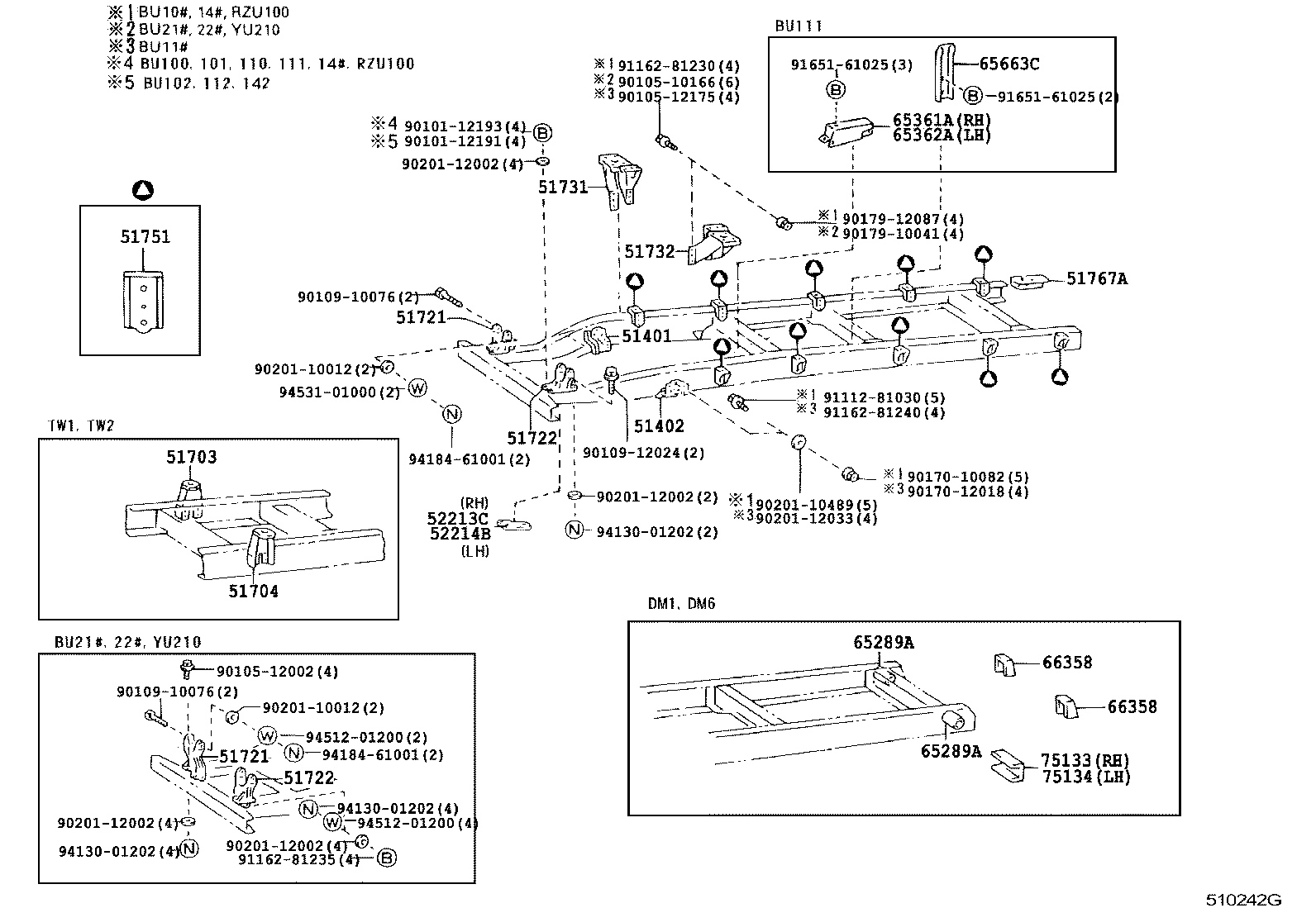

ILLUST NO. 3 OF 3(9505- )

Click highlighted areas on diagram

diagram 51401 51402 51703 51704 51721 51721 51722 51722 51731 51732 51751 51767A 52213C 52214B 65289A 65289A 65361A 65362A 65663C 66358 66358 75133 75134 9010112191 9010112193 9010510166 9010512002 9010512175 9010910076 9010910076 9010912024 9017010082 9017012018 9017910041 9017912087 9020110012 9020110012 9020110489 9020112002 9020112002 9020112002 9020112002 9020112033 9111281030 9116281230 9116281235 9116281240 9165161025 9165161025 9413001202 9413001202 9413001202 9418461001 9418461001 9451201200 9451201200 9453101000
Part # Description Qty Price
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-36140

BU10#,14#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-36100

BU10#,14#

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-37030

BU102..TAIW;BU100,101,11#,14#,RZU100..DM1,DM6,T1,T3,TW1,TW2

 1
51711-37110

BU10#,11#,14#,RZU100

 1
51721 - BRACKET, CAB FRONT MOUNTING, RH
51711-37030

BU102..TAIW;BU100,101,11#,14#,RZU100..DM1,DM6,T1,T3,TW1,TW2

 1
51711-37110

BU10#,11#,14#,RZU100

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU102..TAIW;BU100,101,11#,14#,RZU100..DM1,DM6,T1,T3,TW1,TW2

 1
51712-37090

BU10#,11#,14#,RZU100

 1
51722 - BRACKET, CAB FRONT MOUNTING, LH
51712-36020

BU102..TAIW;BU100,101,11#,14#,RZU100..DM1,DM6,T1,T3,TW1,TW2

 1
51712-37090

BU10#,11#,14#,RZU100

 1
51731 - BRACKET, CAB REAR MOUNTING, RH
51731-36100

BU10#,11#,14#,RZU100

 1
51732 - BRACKET, CAB REAR MOUNTING, LH
51731-36100

BU10#,11#,14#,RZU100

 1
Common parts
90101-12191
90101-12193
90105-10166
90105-12002
90105-12175
90109-10076
90109-12024
90170-10082
90170-12018
90179-10041
90179-12087
90201-10012
90201-10489
90201-12002
90201-12033
91112-81030
91162-81230
91162-81235
91162-81240
91651-61025
94130-01202
94184-61001
94512-01200
94531-01000

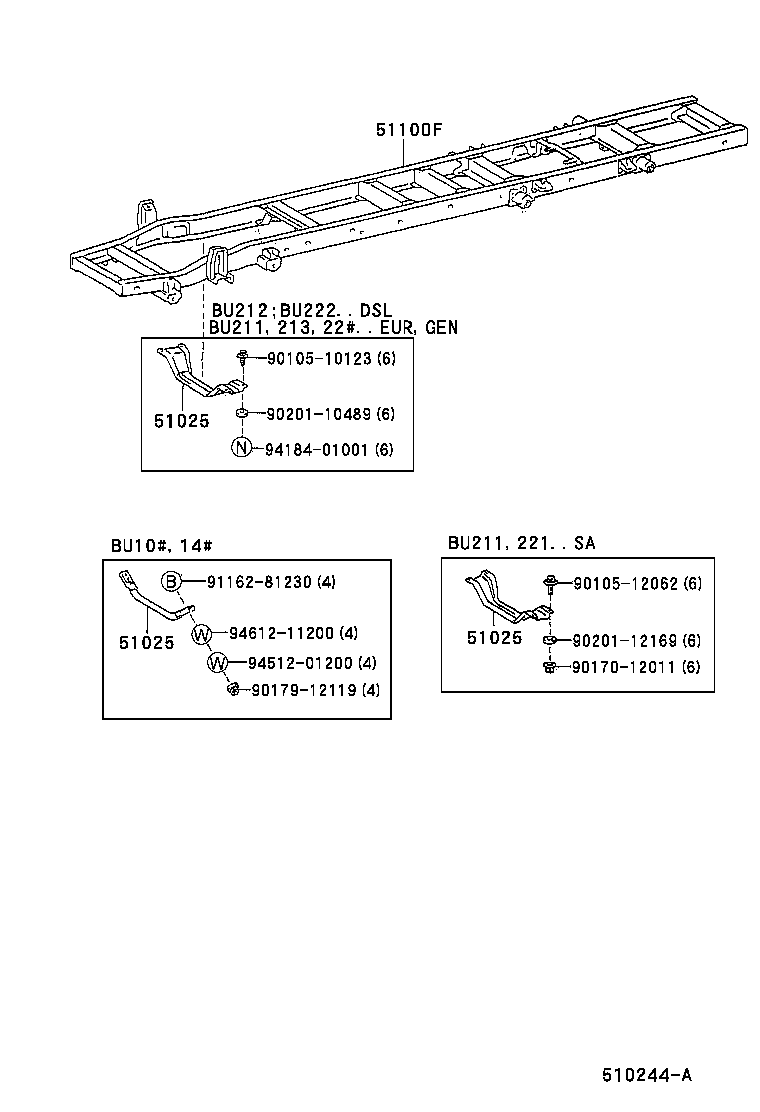

ILLUST NO. 1 OF 3(9505- )

Click highlighted areas on diagram

diagram 51025 51025 51025 51100F 9010510123 9010512062 9017012011 9017912119 9020110489 9020112169 9116281230 9418401001 9451201200 9461211200
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51100F - FRAME SUB-ASSY
51001-37600

BU10#..T3..ST

 1
Common parts
90105-10123
90105-12062
90170-12011
90179-12119
90201-10489
90201-12169
91162-81230
94184-01001
94512-01200
94612-11200

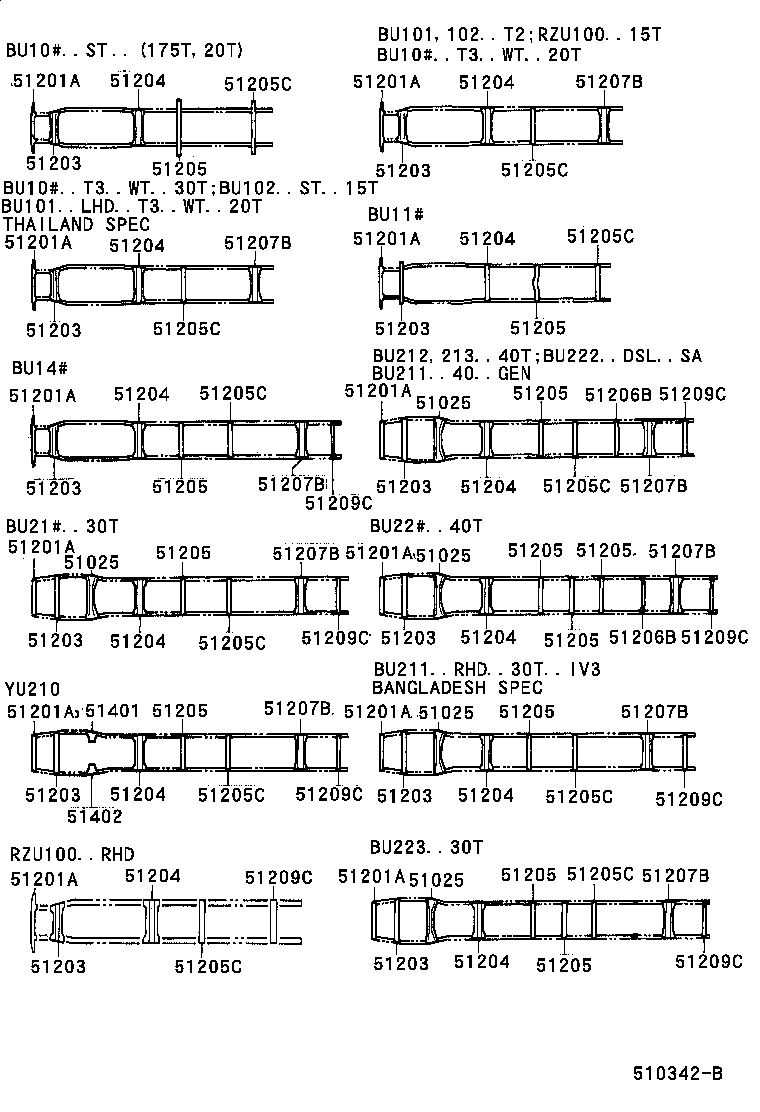

ILLUST NO. 2 OF 3(9505- )

Click highlighted areas on diagram

diagram 51025 51025 51025 51025 51025 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51201A 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51203 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51204 51205 51205 51205 51205 51205 51205 51205 51205 51205 51205 51205 51205 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51205C 51206B 51206B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51207B 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51209C 51401 51402
Part # Description Qty Price
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING
51025-36040

BU10#,14#

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37040

BU10#,11#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-36130

BU10#,14#,RZU100

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-36250

BU10#,14#..(175T,20T,25T)..(ARL,GEN,TAIW)

 1
51203-36251

BU142..(20T,25T)..(ARL,GEN);BU10#,140,141,RZU100..(15T,175T,20T,25T)..(DSL,EFI)..(TB,TS)

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51241-36170

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51251-36140

BU10#..ST

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-36140

BU10#,14#

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-36100

BU10#,14#

 1
