BU101L-TBMMS3 (1995)

Toyota Dyna200

Production May 1995 - Dec 2002
Engine 14B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

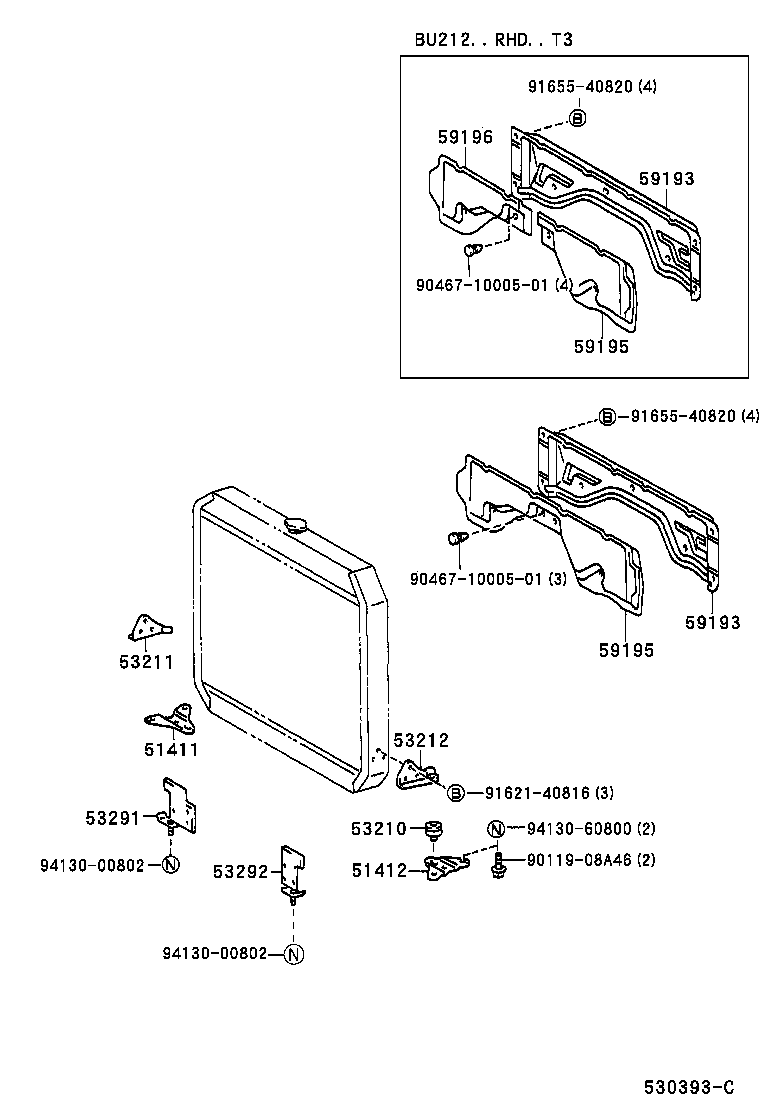

Click highlighted areas on diagram

diagram 51411 51412 53210 53211 53212 53291 53292 59193 59193 59195 59195 59196 9011908A46 904671000501 904671000501 9162140816 9165540820 9165540820 9413000802 9413000802 9413060800
Part # Description Qty Price
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-36090

BU10#,14#,RZU100

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51412-36090

BU10#,14#,RZU100

 1
53210 - SUPPORT ASSY, RADIATOR
53210-36010

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
53210-36010

BU10#,111,14#,21#,22#,RZU100,YU210

 2
53291 - SEAL, RADIATOR SUPPORT TO FRAME, RH
53291-36050

BU10#,14#

 1
53292 - SEAL, RADIATOR SUPPORT TO FRAME, LH
53292-36060

BU10#,14#

 1
53292-36061

BU10#,14#;BU212,222..RHD;BU212..LHD..40T

 1
53292-36061

BU10#,14#,212,213,222,223

 1
53292-36060

BU10#,14#;BU212..ARL,GEN

 1
Common parts
90119-08A46
90467-1000501
91621-40816
91655-40820
94130-00802
94130-60800
