BU101L-TBMMS (1995)
Toyota Dyna200
ILLUST NO. 3 OF 3(9505- )BU10#,11#,14# ; (9703- )RZU100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39305 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-18003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-39185 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-39135 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-18003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39235 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45461-25020 |
BU10#,11#,14#,RZU100 |
1 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BU10#,11#,14#,RZU100 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-36020 |
BU10#,11#,14#,RZU100 |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-39035 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU10#,11#,14#,211,212,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 45611D - NUT(FOR STEERING KNUCKLE ARM) | ||||
| 90179-22007 |
BU10#,11#,14#,211,212,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU10#,11#,14#,211,212,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 45611E - KEY, WOODRUFF(FOR STEERING IDLER ARM) | ||||
| 90280-07012 |
BU10#,11#,14#,211,212,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-39105 |
BU10#,111,112,14#,RZU100..LHD |
1 | ||
| Common parts | ||||
| 90252-04005 | ||||
| 91619-61250 | ||||
| 94130-61200 | ||||
ILLUST NO. 1 OF 3(9505- )BU10#,11#,14#,21#,22# ; (9703- )RZU100
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-36110 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 04445-36110 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 04445-36110 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 04445-36110 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-36060 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 04455-36060 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 04455-36060 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 04455-36060 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37060 |
BU142..EUR;BU10#,140,141,RZU100..LHD |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-37060 |
BU142..EUR;BU10#,140,141,RZU100..LHD |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=60 |
1 | ||
| 90101-14017 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=45 |
1 | ||
| 90101-14017 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=45 |
1 | ||
| 90101-14477 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=60 |
1 | ||
| 90101-14477 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=60 |
1 | ||
| 90101-14017 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=60 |
1 | ||
| 90101-14017 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=45 |
1 | ||
| 90101-14017 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=45 |
1 | ||
| 90101-14477 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=60 |
1 | ||
| 90101-14477 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=60 |
1 | ||
| 90101-14017 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=60 |
1 | ||
| 90101-14017 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=45 |
1 | ||
| 90101-14017 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=45 |
1 | ||
| 90101-14477 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=60 |
1 | ||
| 90101-14477 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=60 |
1 | ||
| 90101-14017 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=45 |
1 | ||
| 44110D - BOLT(FOR POWER STEERING GEAR) | ||||
| 90101-14477 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=60 |
1 | ||
| 90101-14017 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=45 |
1 | ||
| 90101-14017 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW L=45 |
1 | ||
| 90101-14477 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) L=60 |
1 | ||
| 90101-14477 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=60 |
1 | ||
| 90101-14017 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) L=45 |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90170-30001 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44251D - WASHER(FOR PITMAN ARM) | ||||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90204-30040 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37070 |
BU142..EUR;BU101..LHD..WT;BU100,102,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(POWER STEERING) |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU142..T3..EUR;BU102,11#,141,RZU100..LHD..(DM1,DM7,T2,T3,T4) W(POWER STEERING) |
1 | ||
| 45411-36521 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45411-37070 |
BU101..20T..GEN..TB HEAVY DUTY SPEC |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU111,141,RZU100..LHD W(POWER STEERING) |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37070 |
BU142..EUR;BU101..LHD..WT;BU100,102,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(POWER STEERING) |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU142..T3..EUR;BU102,11#,141,RZU100..LHD..(DM1,DM7,T2,T3,T4) W(POWER STEERING) |
1 | ||
| 45411-36521 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45411-37070 |
BU101..20T..GEN..TB HEAVY DUTY SPEC |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU111,141,RZU100..LHD W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||

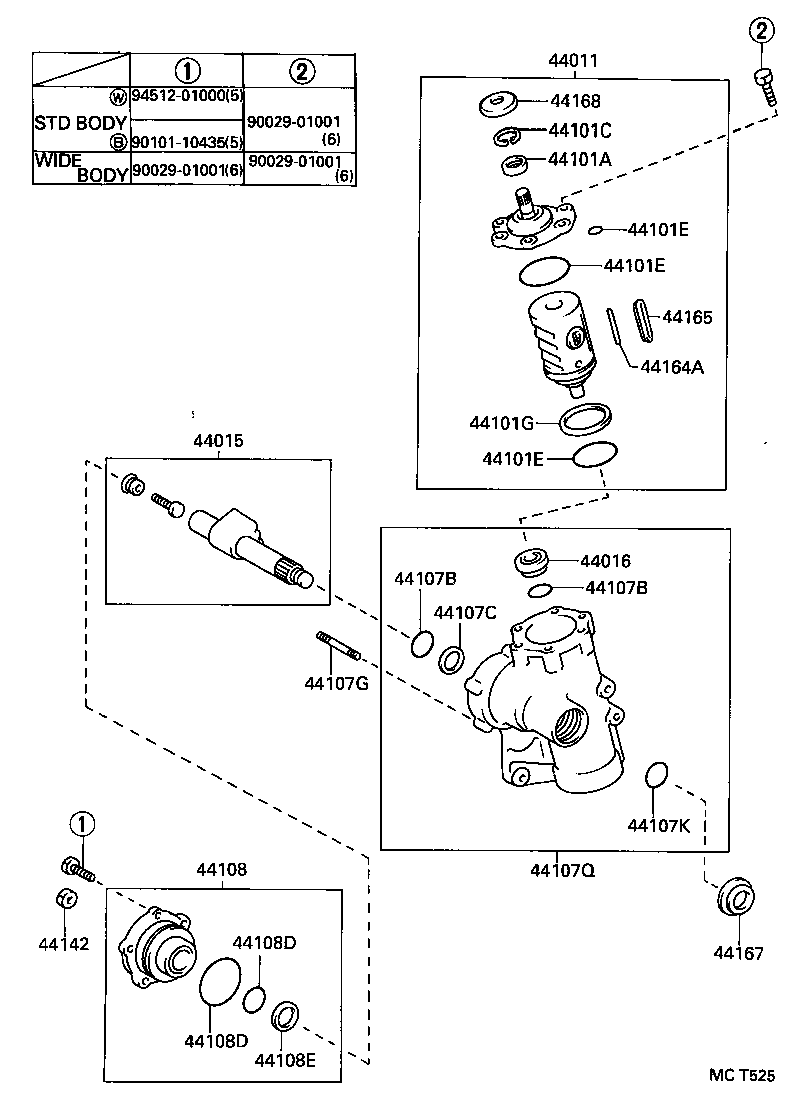

ILLUST NO. 2 OF 3(9505- )BU10#,11#,14#,21#,22# ; (9703- )RZU100
POWER STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44011 - PISTON SUB-ASSY, POWER | ||||
| 44011-37060 |
BU142..EUR;BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2) |
1 | ||
| 44011-37060 |
BU101,111,141,RZU100..LHD |
1 | ||
| 44015 - SHAFT SUB-ASSY, SECTOR | ||||
| 44015-36121 |
BU141,RZU100;BU142..ARL,EUR;BU10#,11#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN) |
1 | ||
| 44015-36121 |
RZU100;BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44015-36121 |
BU141;BU101,111,142,RZU100..(DSL,EFI)..(ARL,GEN) |
1 | ||
| 44015-36121 |
BU141;BU10#,111,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) |
1 | ||
| 44016 - CASE SUB-ASSY, WORM BEARING | ||||
| 44016-36030 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44016-36030 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44016-36030 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44016-36030 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44101A - SEAL, TYPE T OIL(FOR STEERING WORM) | ||||
| 90029-21010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90029-21010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-21010 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90029-21010 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44101C - RING, HOLE SNAP(FOR STEERING WORM OIL SEAL) | ||||
| 90029-52002 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90029-52002 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90029-52002 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-52002 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=74 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=8.8 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=79.4 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=74 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=8.8 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=79.4 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=79.4 |
1 | ||
| 44101E - RING, O(FOR STEERING WORM) | ||||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=74 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=8.8 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=79.4 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 96711-19009 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20005 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20006 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=74 |
1 | ||
| 90029-20005 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=74 |
1 | ||
| 96711-19009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=8.8 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=79.4 |
1 | ||
| 90029-20006 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=79.4 |
1 | ||
| 44101G - SEAL, DUST(FOR STEERING WORM) | ||||
| 90029-20700 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20700 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90029-20700 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20700 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=41 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=41 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=41 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=39.4 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=41 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=41 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=41 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=41 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=39.4 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20007 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=39.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=41 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=42 |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=42 |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=42 |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=42 |
1 | ||
| 44107G - BOLT, STUD(FOR POWER STEERING GEAR HOUSING) | ||||
| 90029-01502 |
BU142..ARL,EUR;BU10#,140,141,RZU100..ARL,EUR,GEN,TAIW |
2 | ||
| 90029-01502 |
BU141;BU142..ARL,EUR;BU10#,RZU100..(DSL,EFI)..(ARL,GEN) |
2 | ||
| 90029-01502 |
BU141;BU10#,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) |
2 | ||
| 44107K - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-35042 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 96711-35042 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 96711-35042 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 96711-35042 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44107Q - HOUSING SUB-ASSY, STEERING W/NAME PLATE | ||||
| 44107-36240 |
BU142..EUR;BU10#,111,112,140,141,RZU100..LHD..(DM1,DM7,T2,T3,T4,TW2) |
1 | ||
| 44107-36240 |
BU101,111,141,RZU100..LHD |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-36050 |
RZU100;BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44108-36050 |
BU141,RZU100;BU142..ARL,EUR;BU10#,11#..(DM1,DM7,T1,T2,T3,T4,TW2)..DSL..(ARL,GEN) |
1 | ||
| 44108-36050 |
BU141;BU101,111,142,RZU100..(DSL,EFI)..(ARL,GEN) |
1 | ||
| 44108-36050 |
BU141;BU10#,111,142,RZU100..(15T,175T,20T,30T)..(ARL,GEN) |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20008 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=84.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90029-20009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20008 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20008 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44108D - RING, O(FOR SECTOR COVER) | ||||
| 90029-20008 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20008 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) ID=84.4 |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20009 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU222,RZU100..ARL,GEN,TAIW;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 90029-20009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-20008 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20008 |
BU221..LHD;BU211..CBU;BU222..DSL;BU222..GEN;BU142..ARL,EUR;BU141,212,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) ID=84.4 |
1 | ||
| 90029-20009 |
BU141,212;BU221..LHD;BU222..DSL;BU211..CBU;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44108E - RING(FOR SECTOR COVER) | ||||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 90029-56602 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-37010 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44142-37010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44142-37010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44142-37010 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44164A - RING, POWER PISTON | ||||
| 44164-36040 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44164-36040 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44164-36040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44164-36040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44165 - RING, SEAL, NO.1 | ||||
| 44165-36040 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44165-36040 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44165-36040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44165-36040 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44167 - COVER, SECTOR SHAFT DUST | ||||
| 44167-37010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44167-37010 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| 44167-37010 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44167-37010 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44168 - COVER, WORM SHAFT DUST | ||||
| 44168-36020 |
BU221..LHD;BU211..CBU;BU222,RZU100;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44168-36020 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU101,111,142,213,223,RZU100..(DSL,EFI,TDEFI)..(ARL,GEN) |
1 | ||
| 44168-36020 |
BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU141,212,222,RZU100;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,11#,213,223..(DM1,DM7,T1,T2,T3,T4,TW2)..(DSL,TDEFI)..(ARL,GEN) |
1 | ||
| 44168-36020 |
BU221..LHD;BU211..CBU;BU141,212,222;BU211..RHD..30T..IV3;BU211..LHD..40T..IV3;BU10#,111,142,213,223,RZU100..(15T,175T,20T,30T,40T)..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90029-01001 | ||||
| 90101-10435 | ||||
| 94512-01000 | ||||

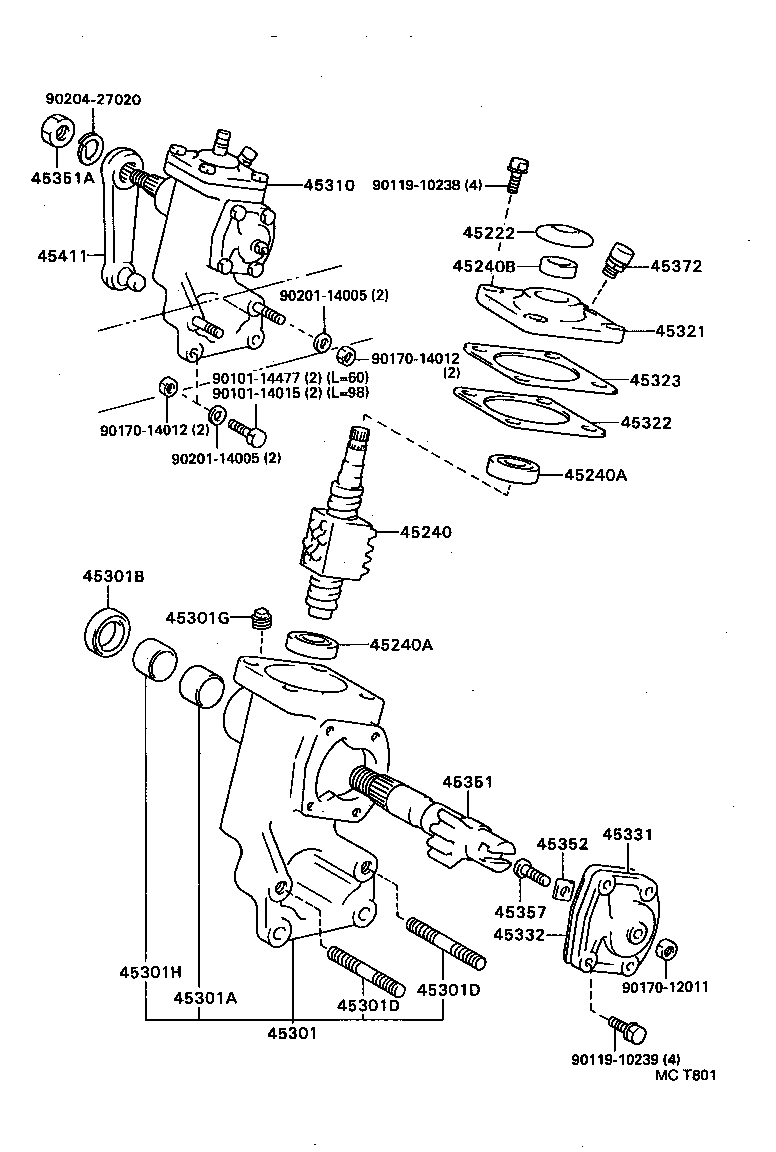

ILLUST NO. 1 OF 3(9505- )BU101..GEN,SA ; (9505- )BU100,102,11#,14#
MANUAL STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
BU100,101,111,14#,211,221,YU210..GEN,SA |
1 | ||
| 45222-26010 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 45222-26010 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA |
1 | ||
| 45222-26010 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 45222-26010 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-36150 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU100,101,111,14#,211,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU100,101,111,14#,211,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
2 | ||
| 90363-20024 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-19001 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 90311-19001 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 90311-19001 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45301 - HOUSING SUB-ASSY, STEERING GEAR | ||||
| 45301-36180 |
BU100,101,14#..LHD..GEN |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73060 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 90999-73060 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 90999-73060 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-36104 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 90311-36104 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 90311-36104 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU100,101,14#..GEN,SA |
2 | ||
| 90116-14004 |
BU102..TD;BU141..GEN;BU101,142..GEN,SA |
2 | ||
| 90116-14004 |
BU141..GEN;BU142..25T;BU101..GEN,SA |
2 | ||
| 45301D - BOLT, STUD(FOR STEERING GEAR HOUSING) | ||||
| 90116-14004 |
BU100,101,14#..GEN,SA |
2 | ||
| 90116-14004 |
BU102..TD;BU141..GEN;BU101,142..GEN,SA |
2 | ||
| 90116-14004 |
BU141..GEN;BU142..25T;BU101..GEN,SA |
2 | ||
| 45301G - PLUG, STEERING GEAR BOX OIL | ||||
| 90345-53005 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 90345-53005 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 90345-53005 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73060 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 90999-73060 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 90999-73060 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-36201 |
BU100,101,14#..LHD..GEN |
1 | ||
| 45321 - COVER, GEAR HOUSING END | ||||
| 45321-36050 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45321-36050 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45321-36050 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45322 - GASKET, GEAR HOUSING END COVER | ||||
| 45322-37010 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45322-37010 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45322-37010 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45323 - SHIM, GEAR HOUSING END COVER | ||||
| 45323-37020 |
BU100,101,111,14#..GEN,SA T=0.06 |
1 | ||
| 45323-37040 |
BU100,101,111,14#..GEN,SA T=0.10 |
1 | ||
| 45323-37030 |
BU100,101,111,14#..GEN,SA T=0.07 |
1 | ||
| 45323-37050 |
BU100,101,111,14#..GEN,SA T=0.20 |
1 | ||
| 45323-37020 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.06 |
1 | ||
| 45323-37010 |
BU100,101,111,14#..GEN,SA T=0.05 |
1 | ||
| 45323-37030 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.07 |
1 | ||
| 45323-37060 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.50 |
1 | ||
| 45323-37040 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.10 |
1 | ||
| 45323-37030 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.07 |
1 | ||
| 45323-37010 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.05 |
1 | ||
| 45323-37040 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.10 |
1 | ||
| 45323-37050 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.20 |
1 | ||
| 45323-37020 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.06 |
1 | ||
| 45323-37060 |
BU100,101,111,14#..GEN,SA T=0.50 |
1 | ||
| 45323-37050 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA T=0.20 |
1 | ||
| 45323-37010 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.05 |
1 | ||
| 45323-37060 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA T=0.50 |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-36050 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45304-36050 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45304-36050 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-37010 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45332-37010 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45332-37010 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-36031 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 45351-36031 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 45351-36031 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-27033 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA |
1 | ||
| 90170-27033 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 90170-27033 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 90170-27033 |
BU100,101,111,14#,211,221,YU210..GEN,SA |
1 | ||
| 90170-27033 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45353-37010 |
BU100,101,111,14#,211,221,YU210..GEN,SA T=2.00 |
1 | ||
| 45354-37010 |
BU100,101,111,14#,211,221,YU210..GEN,SA T=2.05 |
1 | ||
| 45352-37010 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=1.95 |
1 | ||
| 45352-37010 |
BU100,101,111,14#,211,221,YU210..GEN,SA T=1.95 |
1 | ||
| 45354-37010 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=2.05 |
1 | ||
| 45352-37010 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA T=1.95 |
1 | ||
| 45353-37010 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA T=2.00 |
1 | ||
| 45354-37010 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=2.05 |
1 | ||
| 45353-37010 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=2.00 |
1 | ||
| 45353-37010 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=2.00 |
1 | ||
| 45353-37010 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA T=2.00 |
1 | ||
| 45354-37010 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA T=2.05 |
1 | ||
| 45354-37010 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA T=2.05 |
1 | ||
| 45352-37010 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA T=1.95 |
1 | ||
| 45352-37010 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
BU100,101,111,14#,211,221,YU210..GEN,SA |
1 | ||
| 45357-36010 |
BU141,211..GEN;BU211..40T..SA;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 45357-36010 |
BU141,211..GEN;BU212..RHD..GEN..IV3;BU10#,111,142,221,YU210..GEN,SA |
1 | ||
| 45357-36010 |
BU142..25T;BU141,211..GEN;BU101,111,221,YU210..GEN,SA |
1 | ||
| 45357-36010 |
BU141,211..GEN;BU211..40T..SA;BU101,111,142,221,YU210..GEN,SA |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03095 |
BU141..GEN;BU142..25T;BU101,111..GEN,SA |
1 | ||
| 90930-03095 |
BU100,101,111,14#..GEN,SA |
1 | ||
| 90930-03095 |
BU102..TD;BU141..GEN;BU101,111,142..GEN,SA |
1 | ||
| 45411 - ARM, PITMAN | ||||
| 45411-37070 |
BU142..EUR;BU101..LHD..WT;BU100,102,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) W(POWER STEERING) |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU142..T3..EUR;BU102,11#,141,RZU100..LHD..(DM1,DM7,T2,T3,T4) W(POWER STEERING) |
1 | ||
| 45411-36521 |
BU100,101,111,14#..LHD..GEN |
1 | ||
| 45411-37070 |
BU101..20T..GEN..TB HEAVY DUTY SPEC |
1 | ||
| 45411-37070 |
BU101..30T;BU101..LHD..TS;BU111,141,RZU100..LHD W(POWER STEERING) |
1 | ||
| Common parts | ||||
| 90101-14015 | ||||
| 90101-14477 | ||||
| 90119-10238 | ||||
| 90119-10239 | ||||
| 90170-12011 | ||||
| 90170-14012 | ||||
| 90201-14005 | ||||
| 90204-27020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
