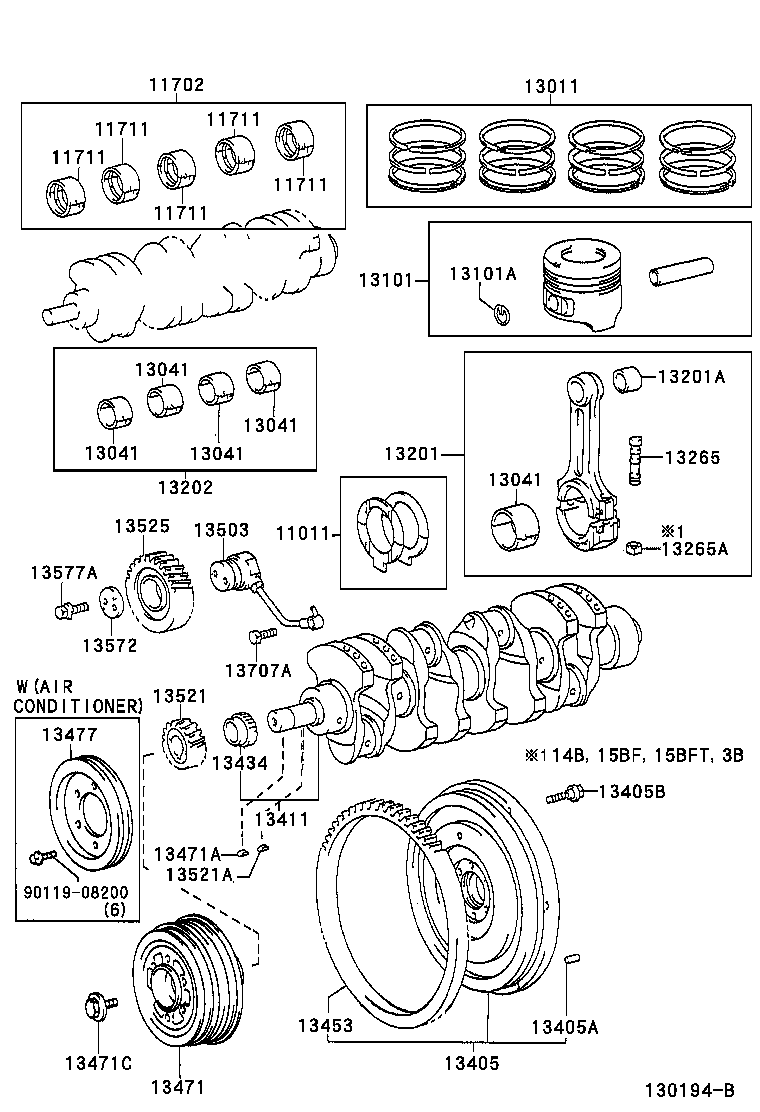

BU101L-TBMMS (1995)
Toyota Dyna200
(9505- )14B,15B#,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-56020 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 STD |
1 | ||
| 11013-56020 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 O/S 0.250 |
1 | ||
| 11012-56020 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 O/S 0.125 |
1 | ||
| 11011-56020 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 STD |
1 | ||
| 11012-56020 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 O/S 0.125 |
1 | ||
| 11013-56020 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-56030 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.25 |
1 | ||
| 11705-56031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.50 |
1 | ||
| 11705-56030 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.50 |
1 | ||
| 11705-56032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 0.50 |
1 | ||
| 11707-56031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 1.00 |
1 | ||
| 11704-56032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 0.25 |
1 | ||
| 11707-56030 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 1.00 |
1 | ||
| 11704-56031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.25 |
1 | ||
| 11707-56032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 1.00 |
1 | ||
| 11707-56032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 1.00 |
1 | ||
| 11705-56032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 0.50 |
1 | ||
| 11704-56032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5602002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
5 | ||
| 11701-5602102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
5 | ||
| 11701-5602201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-58070 |
14B..BU101,102,111,112,141,21#,22# STD |
1 | ||
| 13011-58072 |
14B..BU101,111,141,211,221 STD |
1 | ||
| 13014-58072 |
14B..BU101,111,141,211,221 O/S 0.75 |
1 | ||
| 13013-58072 |
14B..BU101,111,141,211,221 O/S 0.50 |
1 | ||
| 13015-58070 |
14B..BU101,102,111,112,141,21#,22# O/S 1.00 |
1 | ||
| 13013-58070 |
14B..BU101,102,111,112,141,21#,22# O/S 0.50 |
1 | ||
| 13014-58070 |
14B..BU101,102,111,112,141,21#,22# O/S 0.75 |
1 | ||
| 13015-58072 |
14B..BU101,111,141,211,221 O/S 1.00 |
1 | ||
| 13015-58072 |
14B..BU101,111,141,211,221 O/S 1.00 |
1 | ||
| 13011-58072 |
14B..BU101,111,141,211,221 STD |
1 | ||
| 13013-58072 |
14B..BU101,111,141,211,221 O/S 0.50 |
1 | ||
| 13014-58072 |
14B..BU101,111,141,211,221 O/S 0.75 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5803102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5802001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5802002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5803102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5802001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5802002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5803102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5802001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5802002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5803102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5802001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5802002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5803102 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5802001 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803101 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13041-5802002 |
14B,15B#,3B..BU10#,11#,14#,21#,22# MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803202 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13041-5803201 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5804003 |
14B..BU101,102,111,112,141,21#,22# STD,MARK3,REFER REPAIR MANUAL |
4 | ||
| 13103-58040 |
14B..BU101,102,111,112,141,21#,22# O/S 0.50 |
4 | ||
| 13104-58040 |
14B..BU101,102,111,112,141,21#,22# O/S 0.75 |
4 | ||
| 13105-58040 |
14B..BU101,102,111,112,141,21#,22# O/S 1.00 |
4 | ||
| 13101-5804002 |
14B..BU101,102,111,112,141,21#,22# STD,MARK2,REFER REPAIR MANUAL |
4 | ||
| 13101-5804001 |
14B..BU101,102,111,112,141,21#,22# STD,MARK1,REFER REPAIR MANUAL |
4 | ||
| 13101-5804103 |
14B..BU101,102,111,112,141,211,221 STD,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13105-58041 |
14B..BU101,102,111,112,141,211,221 O/S 1.00 |
4 | ||
| 13103-58041 |
14B..BU101,102,111,112,141,211,221 O/S 0.50 |
4 | ||
| 13101-5804102 |
14B..BU101,102,111,112,141,211,221 STD,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13104-58041 |
14B..BU101,102,111,112,141,211,221 O/S 0.75 |
4 | ||
| 13101-5804101 |
14B..BU101,102,111,112,141,211,221 STD,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13105-58041 |
14B..BU101,111,141,211,221 O/S 1.00 |
4 | ||
| 13101-5804101 |
14B..BU101,111,141,211,221 STD,MARK 1,REFER REPAIR MANUAL |
4 | ||
| 13101-5804102 |
14B..BU101,111,141,211,221 STD,MARK 2,REFER REPAIR MANUAL |
4 | ||
| 13104-58041 |
14B..BU101,111,141,211,221 O/S 0.75 |
4 | ||
| 13101-5804103 |
14B..BU101,111,141,211,221 STD,MARK 3,REFER REPAIR MANUAL |
4 | ||
| 13103-58041 |
14B..BU101,111,141,211,221 O/S 0.50 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-34002 |
14B..BU101,111,141,211,221 |
8 | ||
| 90521-34002 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59146 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
4 | ||
| 13201-59146 |
14B..BU101,111,141,211,221 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73124 |
14B..BU101,111,141,211,221 |
4 | ||
| 90999-73124 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13207-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 1.00 |
1 | ||
| 13204-58031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.25 |
1 | ||
| 13205-58031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.50 |
1 | ||
| 13207-58031 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 1.00 |
1 | ||
| 13205-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.50 |
1 | ||
| 13204-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22# U/S 0.25 |
1 | ||
| 13207-58032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 1.00 |
1 | ||
| 13204-58032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 0.25 |
1 | ||
| 13207-58032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 1.00 |
1 | ||
| 13205-58032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 U/S 0.50 |
1 | ||
| 13204-58032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 0.25 |
1 | ||
| 13205-58032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 U/S 0.50 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-58020 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
8 | ||
| 13265-58020 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 13266-58010 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
8 | ||
| 13266-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-56040 |
15BF..BU102,142..15T,20T;14B,3B..BU10#,11#,140,141,211,212,221,222 |
1 | ||
| 13405-56040 |
14B,15BF..BU101,111,14#,211,221 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-10192 |
15BF..BU102,142..15T,20T;14B,15BFTE,3B..BU10#,11#,140,141,21#,22# L=22,OD=10 |
3 | ||
| 90250-10192 |
14B,15BF,15BFTE..BU101,111,14#,211,213,221,223 L=22,OD=10 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90913-01015 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
8 | ||
| 90913-01015 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-58050 |
14B,15B#..BU101,102,111,112,141,142,21#,22# |
1 | ||
| 13401-58051 |
14B,15BF,15BFT..BU101,102,111,112,141,142,211,212,221,222 |
1 | ||
| 13434 - SPLINE, OIL PUMP DRIVE | ||||
| 13519-56011 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 13519-56011 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 13519-56010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-56020 |
15BF..BU102,142..15T,20T;14B,3B..BU10#,11#,140,141,211,212,221,222 |
1 | ||
| 13453-56020 |
14B,15BF..BU101,111,14#,211,221 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13470-58060 |
14B,15BF..BU101,111,14#,211,212,221,222 |
1 | ||
| 13470-58060 |
14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30416 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 95161-30416 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90901-19032 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 90901-19032 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 13477 - PULLEY, CRANKSHAFT, NO.2 | ||||
| 88451-25020 |
14B,15BF..BU212..ARL,TAIW;14B,15BF,3B..BU10#,11#,14#,211,221,222..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(AIR CONDITIONER) |
1 | ||
| 13503 - SHAFT SUB-ASSY, IDLE GEAR | ||||
| 13504-58010 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 13504-58010 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-56030 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 13521-56030 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30519 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 95161-30519 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-56010 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 13508-56010 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-56020 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
1 | ||
| 13572-56020 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 90105-10194 |
14B,15BF,15BFT..BU10#,111,14#,211,212,221,222 |
2 | ||
| 90105-10194 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 13707A - UNION(FOR OIL PIPE, NO.1) | ||||
| 90401-10026 |
14B,15B#..BU10#,111,14#,21#,22# |
1 | ||
| 90401-10026 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| Common parts | ||||
| 90119-08200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
