BU100R-PSMJSQ (1995)

Toyota Dyna200

Production May 1995 - Aug 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

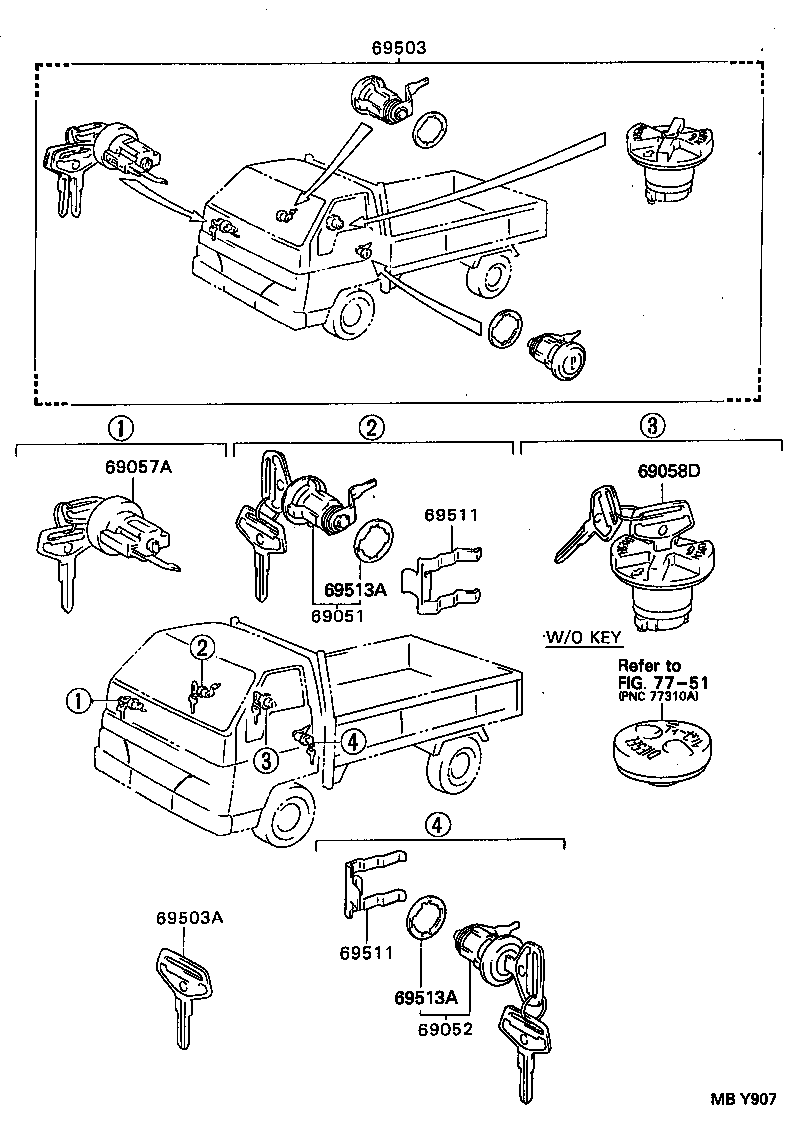

Click highlighted areas on diagram

diagram 69051 69052 69057A 69058D 69503 69503A 69511 69511 69513A 69513A 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-37040

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-37070

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-37040

BU100,110,140

 1
69058D - CYLINDER & KEY SET, FUEL TANK FILLER
69058-37050

BU222..TD..SA;BU212..ARL,GEN,TAIW;BU10#,11#,140,141,211,213,221,223..DSL,TDEFI;BU142,222..(20T,25T,40T)..(ARL,EUR,GEN,TAIW)

W(FUEL TANK CAP W/KEY)

 1
69503 - CYLINDER SET, LOCK
69503-37100

BU100,110,140..ARL,EUR

 1
69503A - KEY, BLANK
90999-00185

BU10#,11#,14#,21#,22#,RZU100,YU210

MASTER KEY,W(*68)

 1
90999-00186

BU10#,11#,14#,21#,22#,RZU100,YU210

MASTER KEY

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
69513A - PAD, DOOR CYLINDER
69513-32010

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
69513A - PAD, DOOR CYLINDER
69513-32010

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
Linked diagrams
7751
