BU100R-PSMJSQ (1995)
Toyota Dyna200

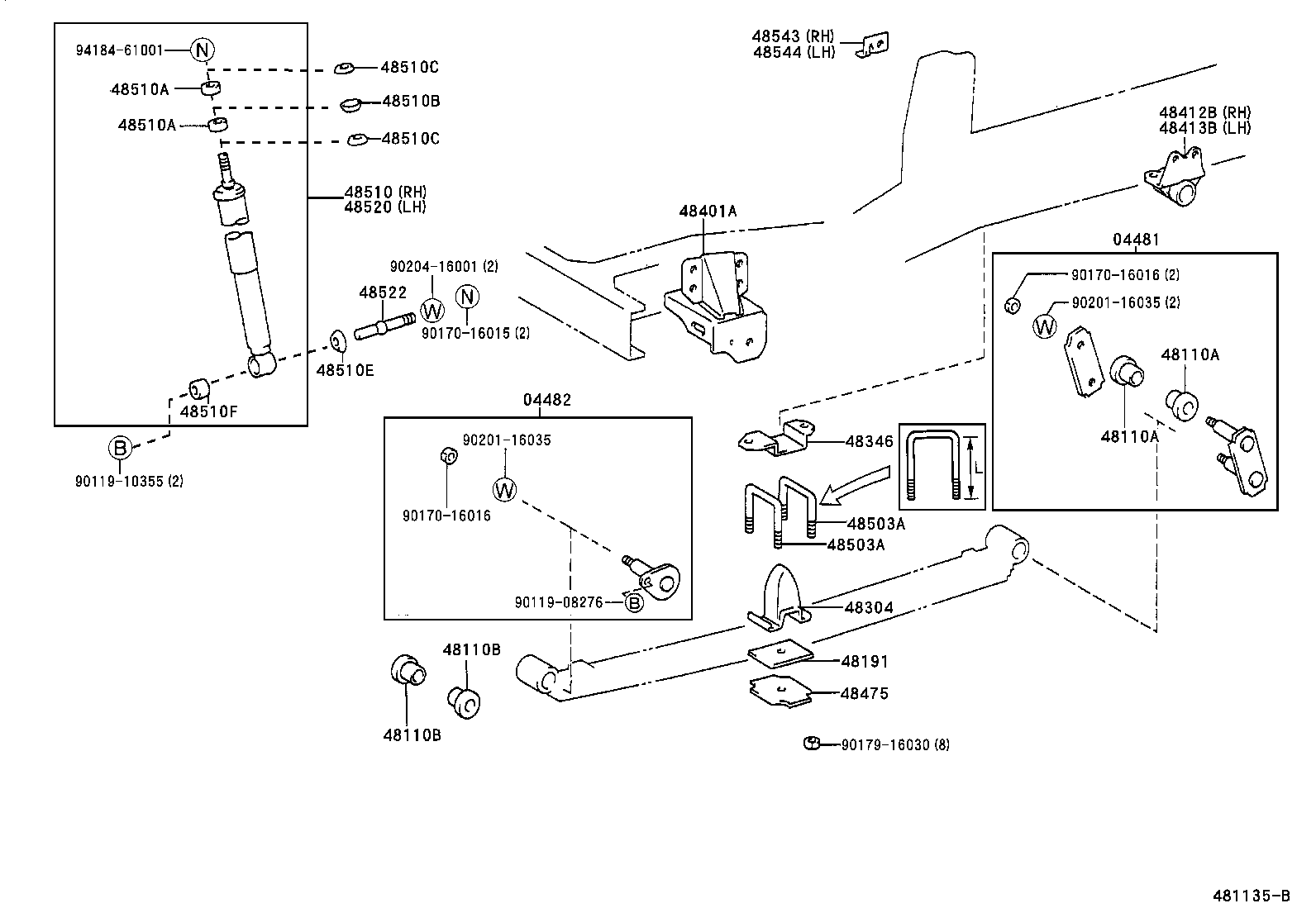

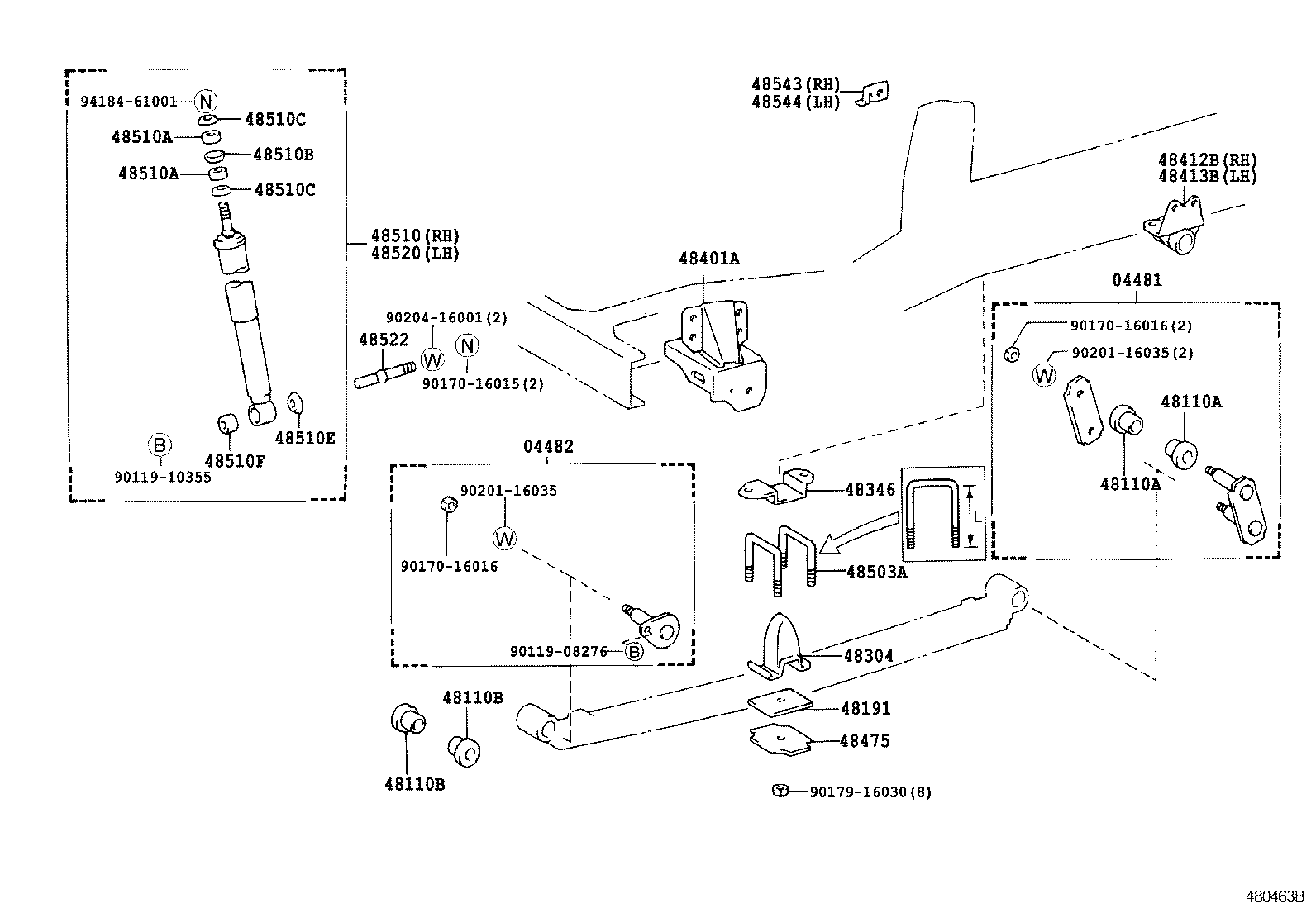

ILLUST NO. 1 OF 2(9505-9703)BU10#,11#,14#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36090 |
BU10#,11#,14#,RZU100 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36030 |
BU10#,11#,14#,RZU100 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
BU102;BU100,101,11#,RZU100..DM1,DM6,DM7,T1,T3,T4,TW2 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36150 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36040 |
BU10#,14#,RZU100 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48412-36120 |
BU10#,14#,RZU100 LH |
1 | ||
| 48411-36120 |
BU10#,14#,RZU100 RH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36050 |
BU10#,14#,RZU100 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36050 |
BU10#,14#,RZU100 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16020 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=95 |
4 | ||
| 90117-16093 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16093 |
BU102..20T;RZU100..RHD;BU100,101,110,111,14#..(DM1,T1,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16020 |
RZU100..RHD;BU10#,110,111,14#..(DM1,T1,T2,T3,T4,TW1,TW2)..(15T,175T,20T,25T) L=95 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80015 |
BU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T |
1 | ||
| 48511-80032 |
BU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T MARK 48511-36150 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80015 |
BU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T |
1 | ||
| 48511-80032 |
BU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T MARK 48511-36150 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-16015 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 90204-16001 | ||||
| 94184-61001 | ||||

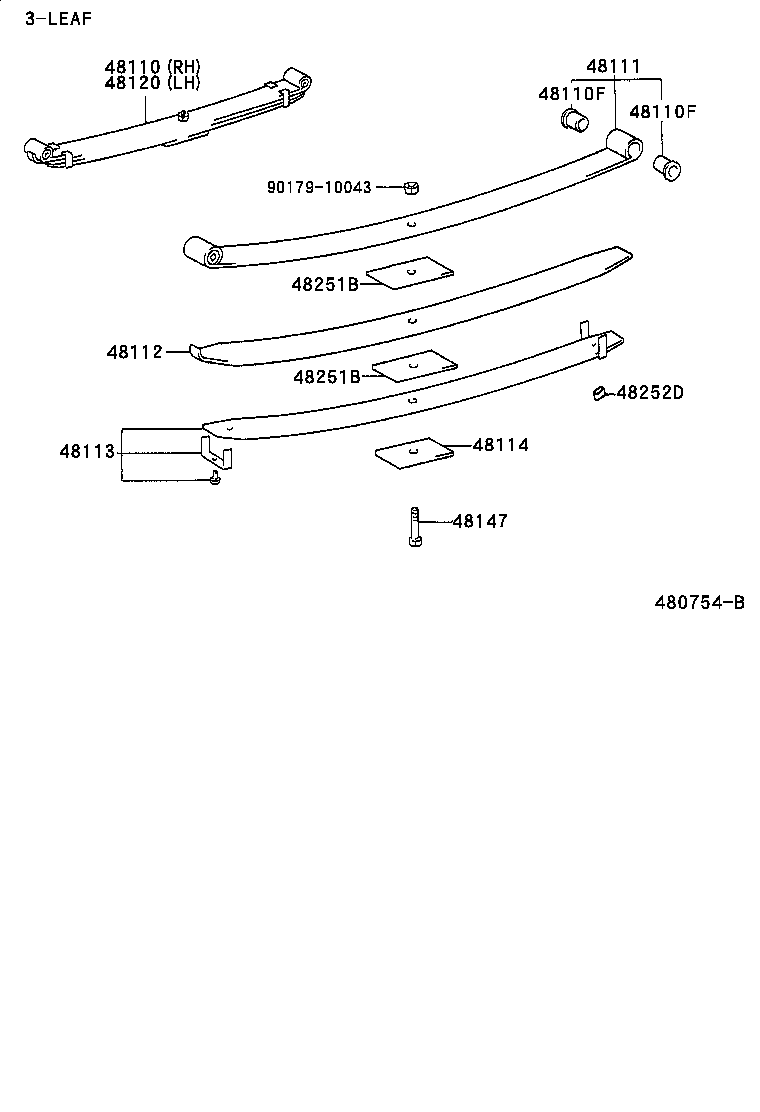

ILLUST NO. 2 OF 2(9505- )BU10#,111,112,14#,RZU100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||

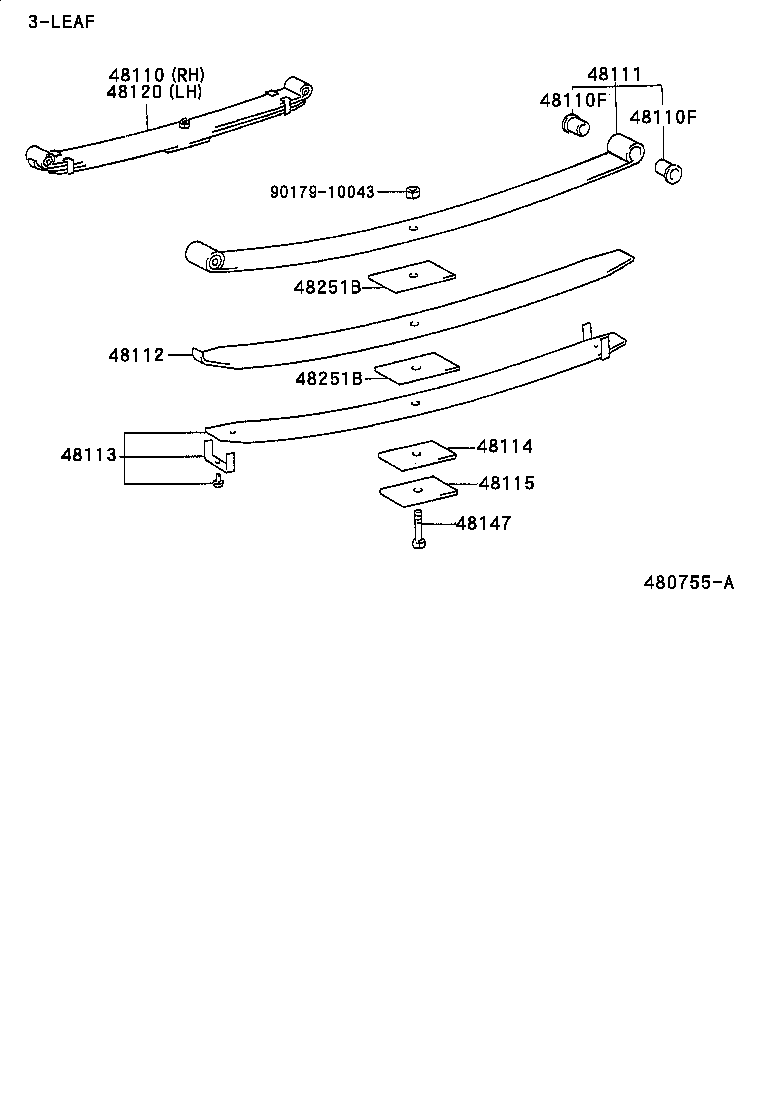

ILLUST NO. 2 OF 2(9505- )BU100,102,111,112,141,RZU100..175T,20T,25T,30T..DSL,EFI..ARL,GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )TD..SA ; (9505- )BU213,223..40T ;(9505- )BU211,221,YU210 ; (9505-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU212..TD..IV3; (9505- )BU222..ARL,GEN,TAIW ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU211,221 ; (9505- )BU213,223..30T; (9505- )BU212..TD..IV3 ; (950
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| Common parts | ||||
| 48284-37130 | ||||
ILLUST NO. 2 OF 2(9505- )BU100,110 ; (9505- )BU101..ARL..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48252D - SILENCER | ||||
| 48252-26070 |
BU100,101,110..ARL..CBU |
8 | ||
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(9505- )BU100,102,111,140,141..DSL..ARL,EUR,GEN,TAIW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| Common parts | ||||
| 90179-10043 | ||||
ILLUST NO. 2 OF 2(9505- )BU101..TB ; (9505- )BU142..ARL,EUR; (9505- )BU101..RHD..GEN,SA ;
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B170 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B171 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48299-36010 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B170 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48101-3B180 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48112-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48113 - LEAF, FRONT SPRING, NO.3 | ||||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B180 |
BU100,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B170 |
BU100,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B171 |
BU100,101,110..ARL..CBU DRIVER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48102-3B181 |
BU100,101,110..ARL..CBU PASSENGER SIDE |
1 | ||
| 48114 - LEAF, FRONT SPRING, NO.4 | ||||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48253-3B122 |
BU100,101,110..ARL..CBU |
2 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B180 |
BU100,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48110-3B181 |
BU100,101,110..ARL..CBU 3-LEAF |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48147-3B130 |
BU10#,110,142..(15T,175T,20T)..DSL |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| 48251-36530 |
BU102,RZU100..15T;BU100,101,110..(DM1,T2,TW2)..ARL |
4 | ||
| Common parts | ||||
| 90179-10043 | ||||

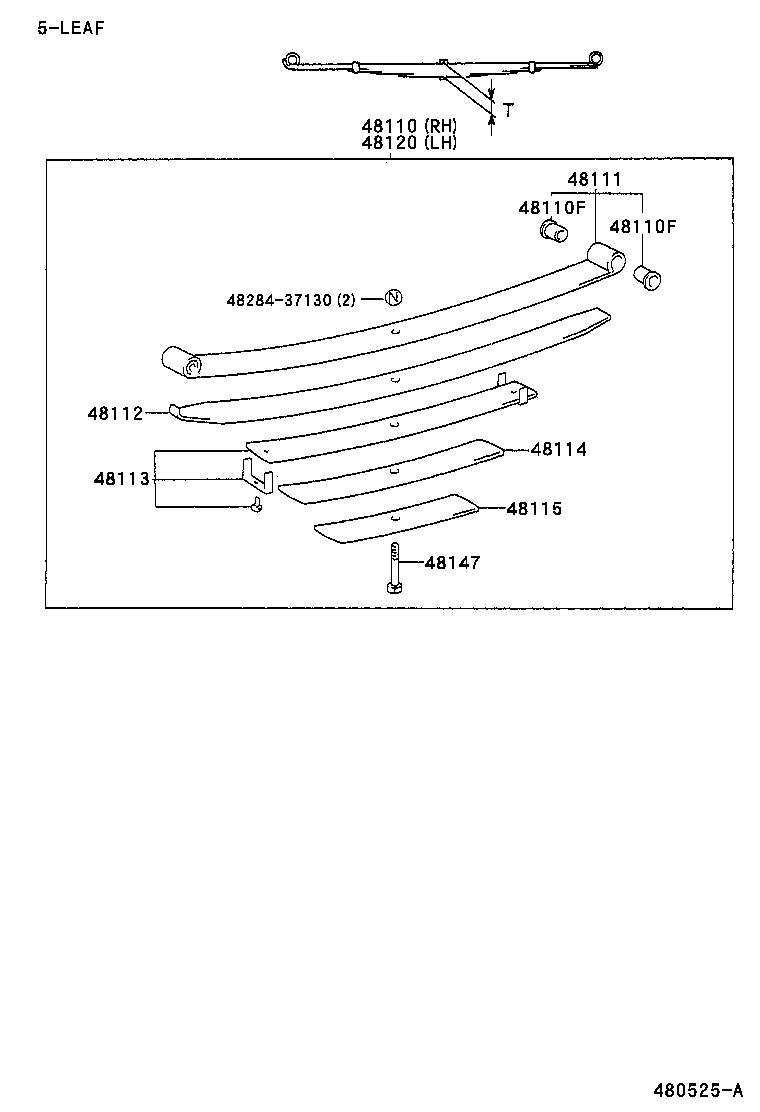

ILLUST NO. 1 OF 2(9703- )BU10#,11#,14#,RZU100..175T,20T,25T,30T
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04481 - SHACKLE KIT, FRONT SPRING | ||||
| 04481-36090 |
BU10#,11#,14#,RZU100 |
2 | ||
| 04482 - PIN KIT, FRONT SPRING | ||||
| 04482-36030 |
BU10#,11#,14#,RZU100 |
2 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110A - BUSH(FOR FRONT SPRING SHACKLE) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
8 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
4 | ||
| 48110B - BUSH(FOR FRONT SPRING PIN) | ||||
| 90385-23037 |
BU10#,11#,14#,RZU100 |
4 | ||
| 48191 - WEDGE, CASTER(FOR FRONT LEAF SPRING) | ||||
| 48191-25010 |
BU102;BU100,101,11#,RZU100..DM1,DM6,DM7,T1,T3,T4,TW2 |
2 | ||
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-36150 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 48346 - STOPPER, BUMPER, FRONT | ||||
| 48346-36040 |
BU10#,14#,RZU100 |
2 | ||
| 48401A - BRACKET SUB-ASSY, SPRING, NO.1 | ||||
| 48412-36120 |
BU10#,14#,RZU100 LH |
1 | ||
| 48411-36120 |
BU10#,14#,RZU100 RH |
1 | ||
| 48412B - BRACKET, SPRING, NO.2 RH | ||||
| 48413-36050 |
BU10#,14#,RZU100 |
1 | ||
| 48413B - BRACKET, SPRING, NO.2 LH | ||||
| 48413-36050 |
BU10#,14#,RZU100 |
1 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-36070 |
BU211..30T..SA;BU10#,11#,14#,213,223,RZU100,YU210;BU211,212,221,222..ARL,EUR,GEN,TAIW |
1 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16020 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=95 |
4 | ||
| 90117-16093 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16093 |
BU102..20T;RZU100..RHD;BU100,101,110,111,14#..(DM1,T1,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16020 |
RZU100..RHD;BU10#,110,111,14#..(DM1,T1,T2,T3,T4,TW1,TW2)..(15T,175T,20T,25T) L=95 |
4 | ||
| 48503A - BOLT, U(FOR FRONT SHOCK ABSORBER BRACKET) | ||||
| 90117-16020 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=95 |
4 | ||
| 90117-16093 |
BU10#,110,111,14#..(DM1,T1,T2,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16093 |
BU102..20T;RZU100..RHD;BU100,101,110,111,14#..(DM1,T1,T3,TW1,TW2)..(175T,20T,25T) L=105 |
1 | ||
| 90117-16020 |
RZU100..RHD;BU10#,110,111,14#..(DM1,T1,T2,T3,T4,TW1,TW2)..(15T,175T,20T,25T) L=95 |
4 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80015 |
BU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T |
1 | ||
| 48511-80032 |
BU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T MARK 48511-36150 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01003 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02007 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02002 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
4 | ||
| 48510E - WASHER, FRONT SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03004 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 48510F - CUSHION, SHOCK ABSORBER | ||||
| 90385-16011 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-80015 |
BU102;BU111..RHD;BU100,101,110,112,14#..175T,20T,25T |
1 | ||
| 48511-80032 |
BU111..RHD;BU102,112,RZU100;BU100,101,110,14#..175T,20T,25T MARK 48511-36150 |
1 | ||
| 48522 - PIN, FRONT SHOCK ABSORBER LOWER PIVOT | ||||
| 48522-25020 |
BU212..RHD;BU212,213,223..LHD..40T;BU10#,11#,14#,211,221,222,RZU100,YU210 |
2 | ||
| Common parts | ||||
| 90119-08276 | ||||
| 90119-10355 | ||||
| 90170-16015 | ||||
| 90170-16016 | ||||
| 90179-16030 | ||||
| 90201-16035 | ||||
| 90204-16001 | ||||
| 94184-61001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
