BU100R-PSMJSQ (1995)

Toyota Dyna200

Production May 1995 - Aug 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

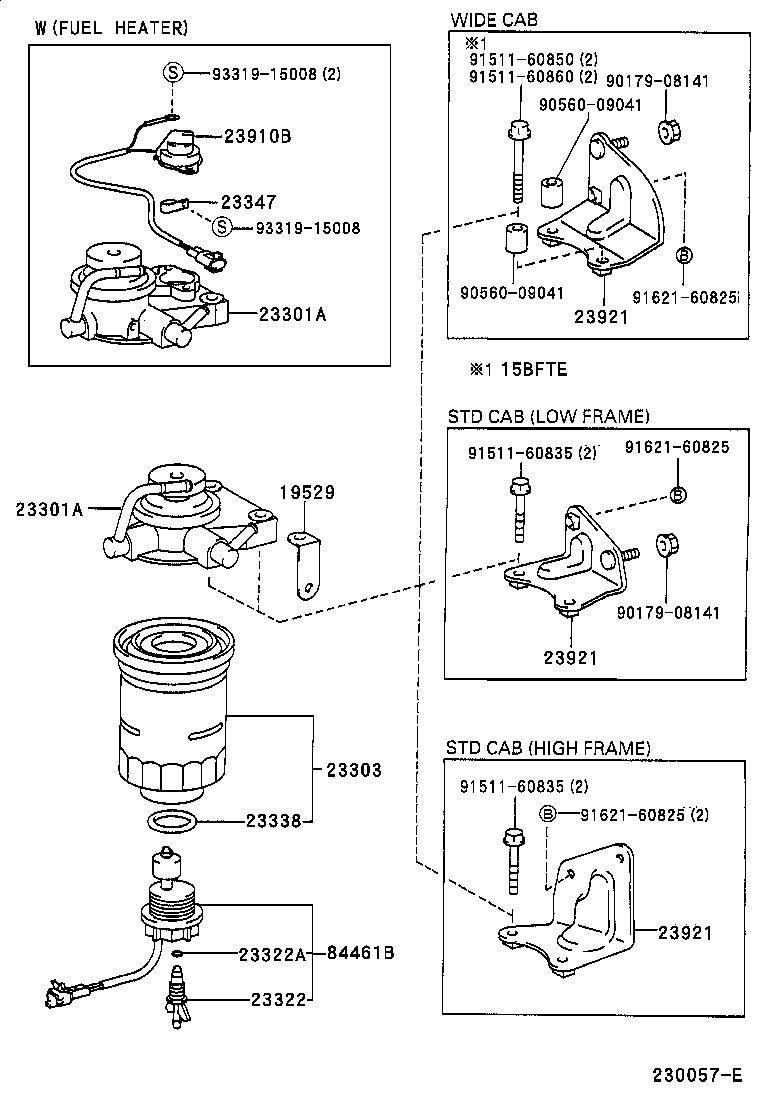

ILLUST NO. 1 OF 2(9505- )15BFT..BU212,222..LHD..GEN ; (9505-)14B,15BF,15BFTE,3B ; (9902- )

Click highlighted areas on diagram

diagram 19529 23301A 23301A 23303 23322 23322A 23338 23347 23910B 23921 23921 23921 84461B 9017908141 9017908141 9056009041 9056009041 9151160835 9151160835 9151160850 9151160860 9162160825 9162160825 9162160825 9331915008 9331915008
Part # Description Qty Price
19529 - CLAMP
19529-56010

14B,15BF,15BFTE,3B..BU10#,11#,14#,213,223

 1
23301A - CAP ASSY, FUEL FILTER
23380-58220

14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14#

 1
23301A - CAP ASSY, FUEL FILTER
23380-58220

14B..BU101..RHD;14B..BU101..LHD..T3;14B,15BF,3B..BU100,102,14#

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-56040

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64020

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,222,223

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

14B,15BF,3B..BU10#,14#

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

14B,15BF,3B..BU10#,14#

 1
23921 - SUPPORT, FUEL FILTER
23921-56011

14B,15BF,3B..BU10#,14#

 1
84461B - SWITCH, LEVEL WARNING
84461-36110

BU211,221..GEN;BU211..30T..SA;BU222..ARL,SA,TAIW;BU212,222..LHD..TD..GEN;BU10#,11#,14#,212,213,223..DSL,TDEFI

 1
Common parts
90179-08141
90560-09041
91511-60835
91511-60850
91511-60860
91621-60825
93319-15008
