BU100R-PSMJSQ (1995)
Toyota Dyna200

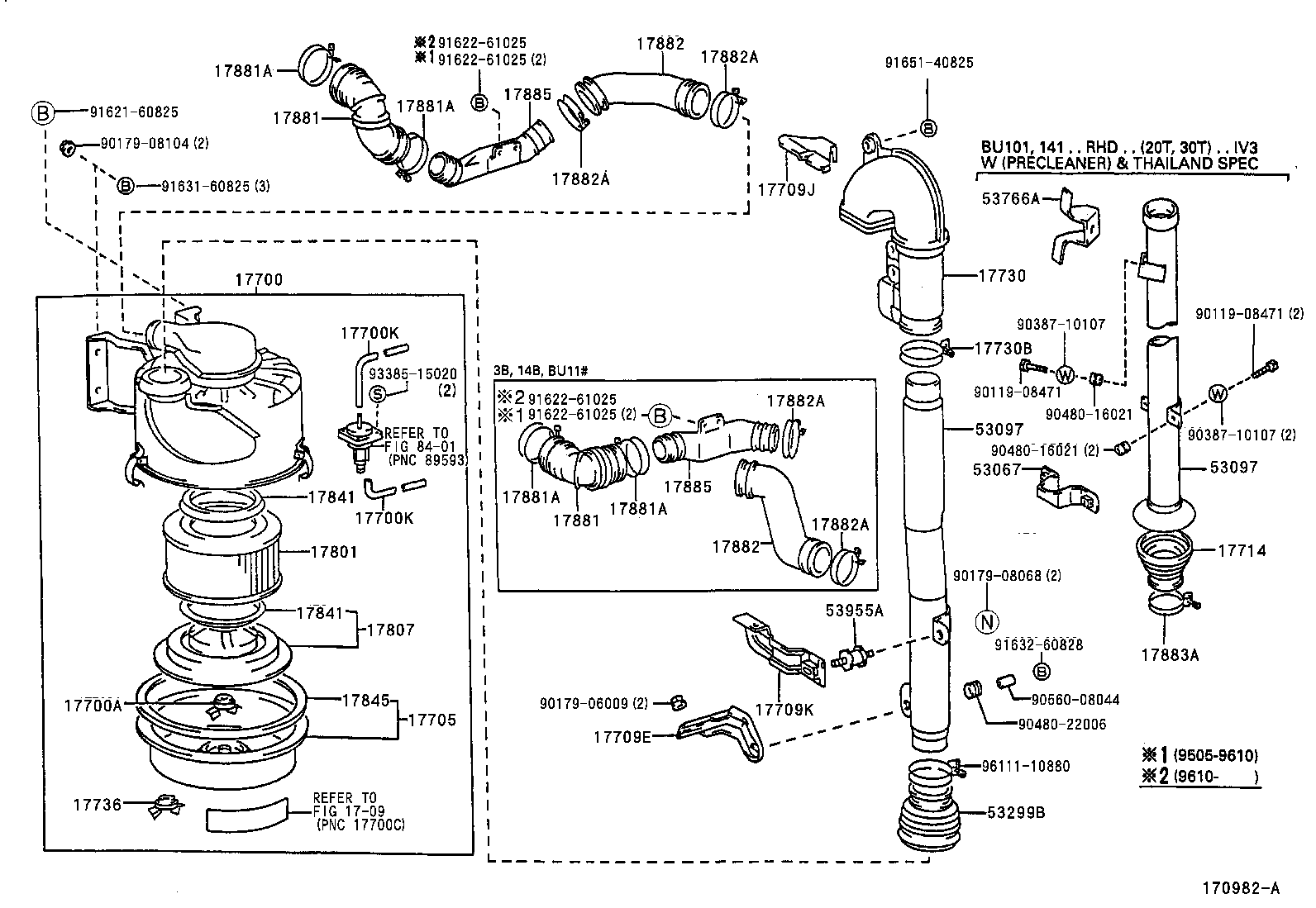

ILLUST NO. 2 OF 2(9505-9908)14B..BU101..20T,30T ; (9505- )14B,15BF,3B..BU100,102,11#,14# ; (9908-
REAR SCHNORKEL TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-58430 |
3B..BU100..ARL..CBU;14B,3B..BU101,140,141..RHD |
1 | ||
| 17700-58431 |
3B..BU100..ARL..CBU;14B,3B..BU101,140,141..RHD |
1 | ||
| 17700-58432 |
3B..BU100..(T2,TW2)..ARL;14B,3B..BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU211..30T..SA;14B..BU101..RHD..GEN;14B,3B..BU100,140,141..RHD..(175T,25T,30T)..(ARL,GEN) *H,L=300,UPPER |
1 | ||
| 90999-92003 |
14B..BU101..RHD..GEN;14B,3B..BU100,140,141..RHD..(175T,25T,30T)..(ARL,GEN) L=600,LOWER |
1 | ||
| 90999-92002 |
14B..BU101..ARL;14B..BU101,141..LHD;15BF,3B..BU100,102,112..DM7,T2,TW2 *H,L=100,MARK=#* |
1 | ||
| 90999-92003 |
15BF..BU102,142..T3,T4;14B..BU101,141..ARL,SA;14B..BU101..T3..ST..TS;14B,15BFT,15BFTE,3B..BU100,102,111,142,213,223..ARL,GEN *H,L=320,MARK=#* |
1 | ||
| 17700K - HOSE, VACUUM(FOR AIR CLEANER WARNING SENSOR) | ||||
| 90999-92002 |
14B..BU211..30T..SA;14B..BU101..RHD..GEN;14B,3B..BU100,140,141..RHD..(175T,25T,30T)..(ARL,GEN) *H,L=300,UPPER |
1 | ||
| 90999-92003 |
14B..BU101..RHD..GEN;14B,3B..BU100,140,141..RHD..(175T,25T,30T)..(ARL,GEN) L=600,LOWER |
1 | ||
| 90999-92002 |
14B..BU101..ARL;14B..BU101,141..LHD;15BF,3B..BU100,102,112..DM7,T2,TW2 *H,L=100,MARK=#* |
1 | ||
| 90999-92003 |
15BF..BU102,142..T3,T4;14B..BU101,141..ARL,SA;14B..BU101..T3..ST..TS;14B,15BFT,15BFTE,3B..BU100,102,111,142,213,223..ARL,GEN *H,L=320,MARK=#* |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-58300 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,212..RHD;14B,15BFT..BU102,111,112,142,21#,22#..(DM1,DM6,T3,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17705-58320 |
3B..BU100..(T2,TW2)..ARL;14B,3B..BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| 17736 - NUT, AIR CLEANER CASE | ||||
| 90175-06003 |
14B..BU211,221..GEN;14B,15B#,3B..BU10#,11#,14#,212,213,222,223 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-58010 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222..ARL,GEN,SA,TAIW |
1 | ||
| 17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET | ||||
| 17807-58030 |
15BF..BU212;3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#,222..RHD;14B,15BF..BU102,111,112,211,212,221,222..(DM1,DM6,T3,T4,TW1)..(GEN,TAIW) |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-44030 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,3B..BU10#,11#,14#,212,222 |
2 | ||
| 17845 - GASKET, AIR CLEANER CAP | ||||
| 17845-58010 |
3B..BU140..EUR;15BF,15BFT..BU212,222;14B,15BF,15BFT,3B..BU10#,110,14#,222..RHD;14B,15B#..BU102,111,112,142,21#,22#..(DM1,DM6,T3,T4,TW1)..(EUR,GEN,TAIW) |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58140 |
3B..BU100..T2,TW2;3B..BU100,140..T3..GEN |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-58140 |
3B..BU100..T2,TW2;3B..BU100,140..T3..GEN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 96111-10690 |
3B..BU100,110,140 ID=69,BROWN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 96111-10690 |
3B..BU100,110,140 ID=69,BROWN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 96111-10690 |
3B..BU100,110,140 ID=69,BROWN |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10690 |
3B..BU100,140 ID=69,BROWN |
1 | ||
| 96111-10850 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..GEN ID=85,BLACK |
1 | ||
| 96111-10690 |
3B..BU100,110,140 ID=69,BROWN |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58170 |
3B..BU100..ARL..CBU;14B,3B..BU101,140,141..RHD |
1 | ||
| 17882-58200 |
3B..BU100..(T2,TW2)..ARL;14B,3B..BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-58170 |
3B..BU100..ARL..CBU;14B,3B..BU101,140,141..RHD |
1 | ||
| 17882-58200 |
3B..BU100..(T2,TW2)..ARL;14B,3B..BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#..RHD;14B,15BF..BU102,111,112..DM1,DM6,T3,T4 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#..RHD;14B,15BF..BU102,111,112..DM1,DM6,T3,T4 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#..RHD;14B,15BF..BU102,111,112..DM1,DM6,T3,T4 |
2 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10750 |
3B..BU140..EUR;14B,15BF,3B..BU100,101,110,14#..RHD;14B,15BF..BU102,111,112..DM1,DM6,T3,T4 |
2 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 96111-10800 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=80,GRAY |
1 | ||
| 96111-10750 |
3B..BU100..20T..GEN;14B,15BF,3B..BU100,102..T2,TW2;14B,15BF,3B..BU101,112,140,141..ARL,GEN ID=75,BLACK |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37090 |
BU100..(T2,TW2)..ARL;BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| 53097 - INLET SUB-ASSY | ||||
| 53097-37090 |
BU100..(T2,TW2)..ARL;BU101,140,141..RHD..(ARL,GEN) |
1 | ||
| Common parts | ||||
| 90119-08471 | ||||
| 90179-06009 | ||||
| 90179-08068 | ||||
| 90179-08104 | ||||
| 90387-10107 | ||||
| 90480-16021 | ||||
| 90480-22006 | ||||
| 90560-08044 | ||||
| 91621-60825 | ||||
| 91622-61025 | ||||
| 91631-60825 | ||||
| 91632-60828 | ||||
| 91651-40825 | ||||
| 93385-15020 | ||||
| 96111-10880 | ||||
| Linked diagrams | ||||
| 1709 | ||||
| 8401 | ||||
