BU100R-PSMJSQ (1995)

Toyota Dyna200

Production May 1995 - Aug 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,15B#,3B

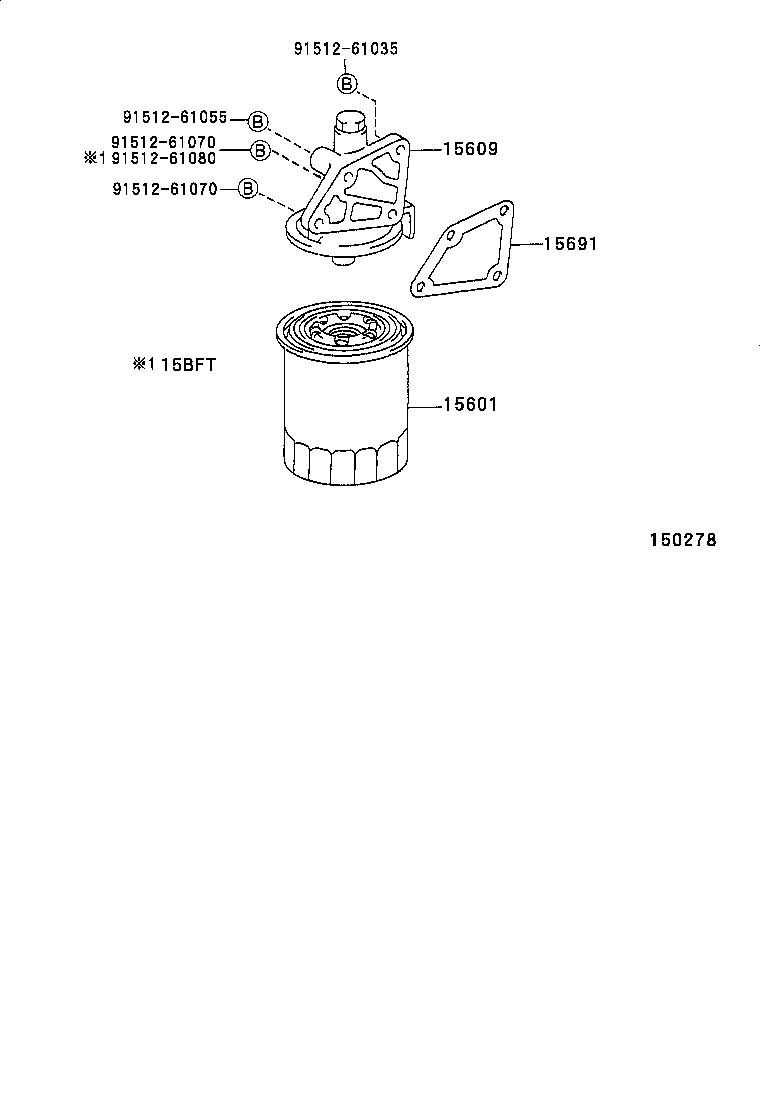

Click highlighted areas on diagram

diagram 15601 15609 15691 9151261035 9151261055 9151261070 9151261070 9151261080
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
15600-41010

15BFT..BU212..LHD..40T;14B,3B..BU10#,11#,140,141,211,212,221,222

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-56070

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
15691 - GASKET, OIL FILTER
15691-56041

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
Common parts
91512-61035
91512-61055
91512-61070
91512-61080
