BU100R-PSMJSQ (1995)

Toyota Dyna200

Production May 1995 - Aug 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )14B,3B

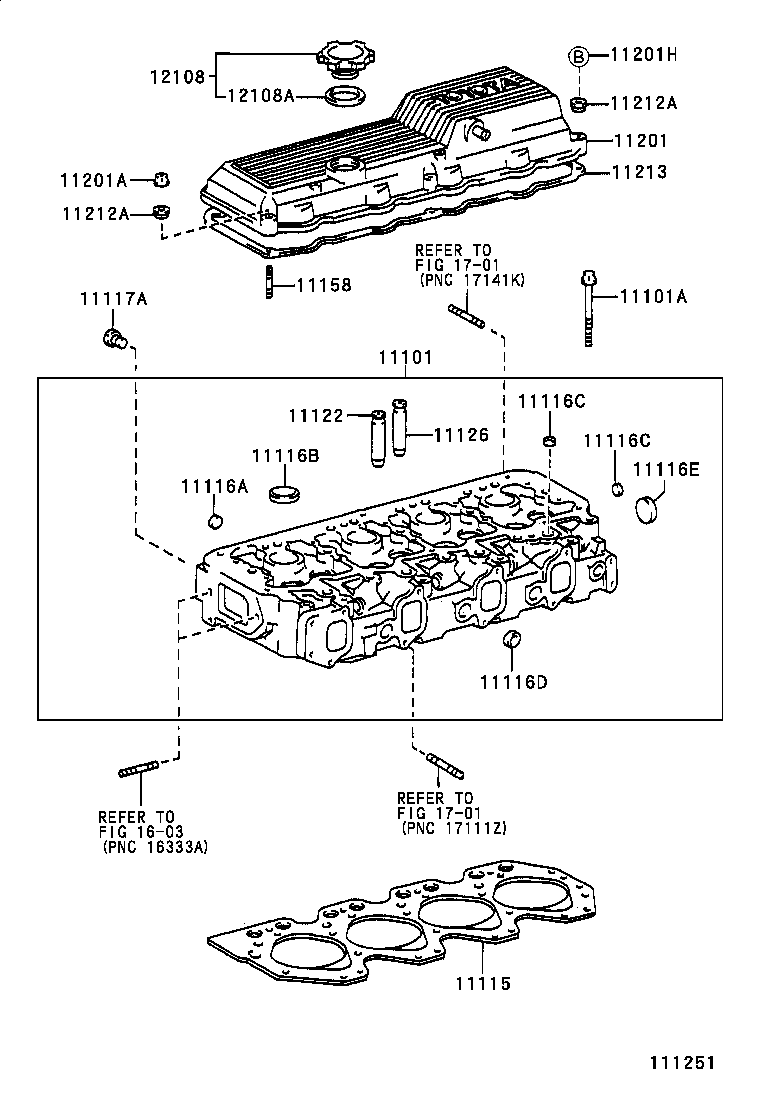

Click highlighted areas on diagram

diagram 11101 11101A 11115 11116A 11116B 11116C 11116C 11116D 11116E 11117A 11122 11126 11158 11201 11201A 11201H 11212A 11212A 11213 12108 12108A 1603 1701 1701
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-58051

3B..BU100,110,140

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02084

14B,15B#,3B..BU10#,11#,14#,21#,22#

 18
11115 - GASKET, CYLINDER HEAD
11115-58080

3B..BU100,110,140

T=1.50

 1
11115-58081

3B..BU100

T=1.50

 1
11116A - PLUG, TIGHT, NO.1
90331-12004

14B,3B..BU10#,11#,140,141,211,212,221,222

 4
11116B - PLUG, TIGHT, NO.2
96411-64000

14B,3B..BU10#,11#,140,141,211,212,221,222

 4
11116C - PLUG, TIGHT, NO.3
96411-62000

3B..BU100,110,140

 5
11116C - PLUG, TIGHT, NO.3
96411-62000

3B..BU100,110,140

 5
11116D - PLUG, TIGHT, NO.4
96411-62800

14B,3B..BU10#,11#,140,141,211,212,221,222

 3
11116E - PLUG, TIGHT, NO.5
96411-64000

14B,15BFTE,3B..BU10#,11#,140,141,21#,22#

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-54005

14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;15BFT..BU142..EUR;14B,15BF,15BFTE,3B..BU10#,11#,14#,212,213,22#

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-56030

14B,3B..BU10#,11#,140,141,211,212,221,222

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11122-56030

14B,3B..BU10#,11#,140,141,211,212,221,222

STD

 4
11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
92112-60850

14B,3B..BU10#,11#,140,141,211,212,221,222

 2
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-58050

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
11201A - NUT, CAP(FOR CYLINDER HEAD COVER)
90179-08025

14B,15B#,3B..BU10#,11#,14#,21#,22#

 2
11201H - BOLT(FOR CYLINDER HEAD COVER)
91511-60850

14B,3B..BU10#,11#,140,141,211,212,221,222

 4
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 6
11212A - CUSHION, CYLINDER HEAD COVER
11228-56010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 6
11213 - GASKET, CYLINDER HEAD COVER
11213-58030

14B,3B..BU10#,11#,140,141,211,212,221,222

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

14B,15B#,3B..BU10#,11#,14#,21#,22#

 1
Linked diagrams
1603
1701
