BU100L-TBMMS3 (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

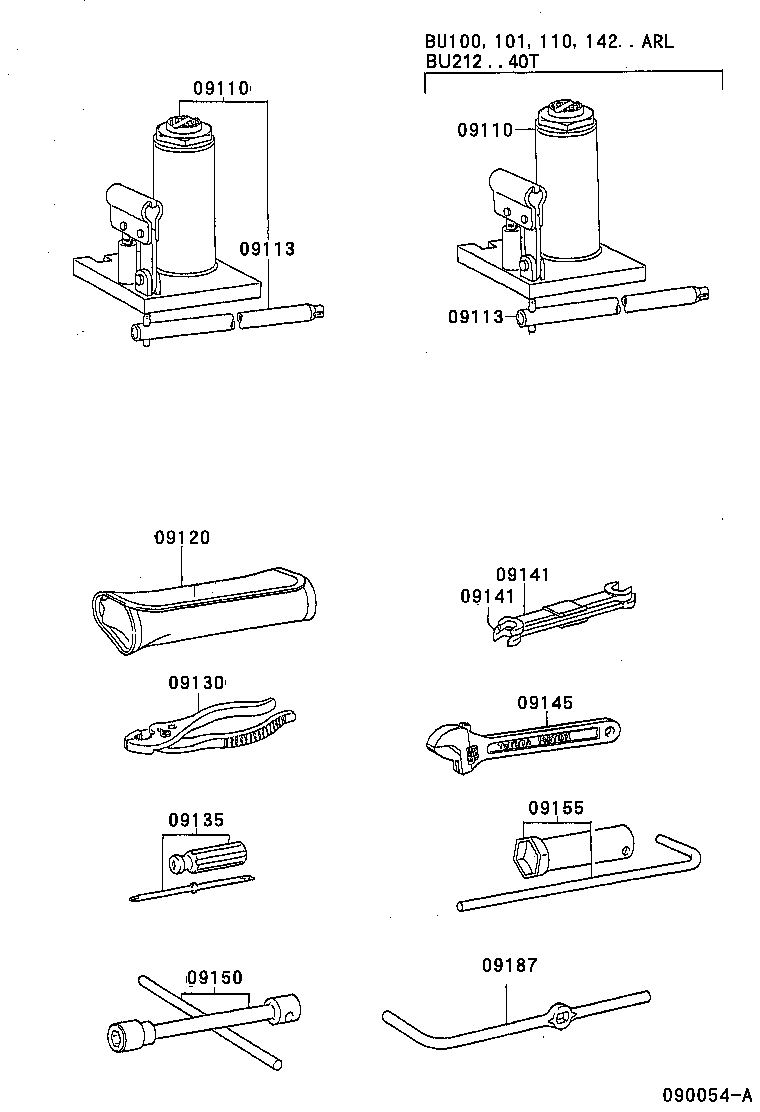

Click highlighted areas on diagram

diagram 09110 09110 09113 09113 09120 09130 09135 09141 09141 09145 09150 09155 09187
Part # Description Qty Price
09110 - JACK ASSY
09110-36041

BU10#..WT..(GEN,SA,TAIW)..TS

 1
09110 - JACK ASSY
09110-36041

BU10#..WT..(GEN,SA,TAIW)..TS

 1
09113 - HANDLE, JACK
09113-36060

BU10#,RZU100..(15T,175T,20T)..(TB,TS)

 1
09113 - HANDLE, JACK
09113-36060

BU10#,RZU100..(15T,175T,20T)..(TB,TS)

 1
09120 - BAG, TOOL
09120-30020

BU10#,11#,14#,RZU100

 1
09130 - PLIERS
99913-11500

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

 1
09135 - DRIVER, SCREW
99915-10700

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

 1
09141 - SPANNER
99914-10810

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

8 X 10

 1
99914-11214

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

12 X 14

 1
09141 - SPANNER
99914-10810

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

8 X 10

 1
99914-11214

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

12 X 14

 1
09145 - WRENCH, MONKEY
99911-11200

RZU100..15T;BU10#,11#,14#,21#,22#,YU210..CBU,IV3

 1
09150 - WRENCH, HUB NUT BOX
09150-36030

BU10#,11#,14#,RZU100..(DM1,DM6,DM7,T3,TW1)..WT

 1
09150-36030

BU102..T3..WT;BU100,101,11#,14#,RZU100..WT

 1
09187 - HANDLE, SPARE WHEEL CARRIER
09187-36070

BU10#,14#,21#,22#,RZU100,YU210..TB,TS

 1
