BU100L-TBMMS (1995)
Toyota Dyna200

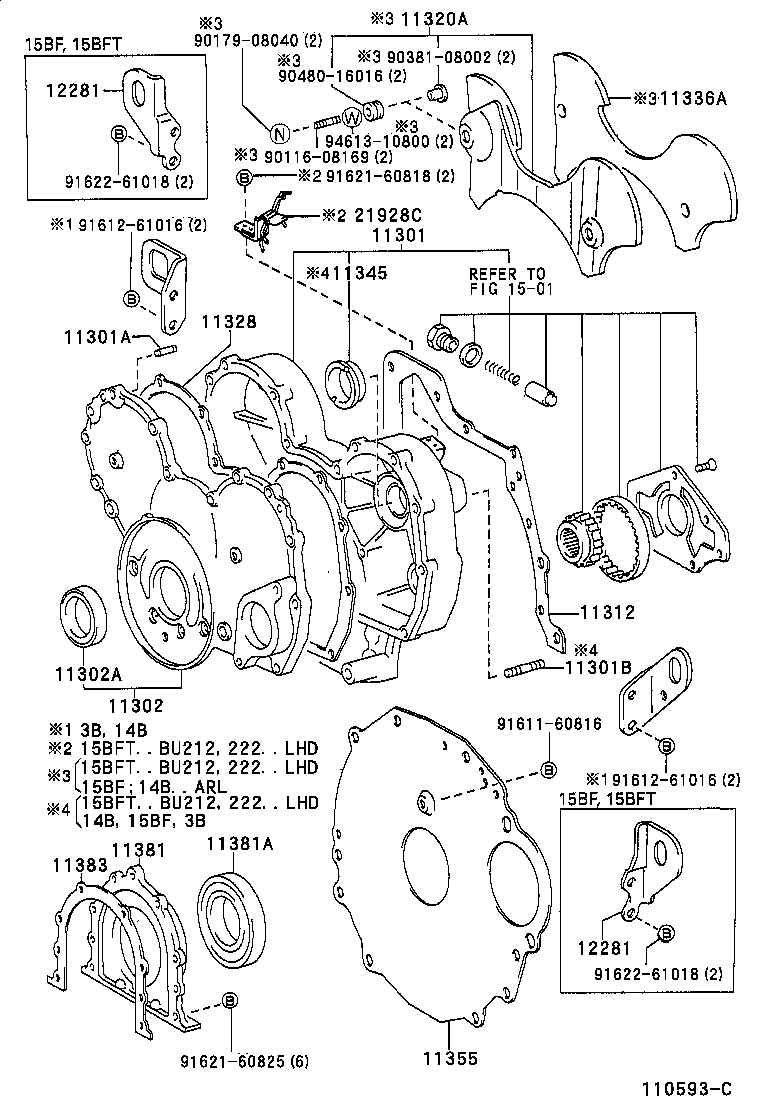

ILLUST NO. 1 OF 2(9505- )14B,15BF,15BFT,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-58020 |
14B,3B..BU10#,11#,140,141,21#,22# |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=18,OD=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-08169 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-58010 |
14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) W(POWER STEERING) |
1 | ||
| 11302-58011 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN)..(CBU,IV3) |
1 | ||
| 11302-58020 |
14B..BU211,221;14B,3B..BU100,101,111,140,141..GEN W/O(POWER STEERING) |
1 | ||
| 11302-58021 |
14B,3B..BU100,101,111,140,141,211,221..GEN,SA W/O(POWER STEERING) |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50013 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-56040 |
14B,15BF,15BFT,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-56050 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-56061 |
15BF..BU102,142..15T,20T;14B,3B..BU10#,11#,140,141,211,212,221,222 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-58010 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95011 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-56040 |
14B,15B#,3B..BU10#,11#,14#,21#,22# |
1 | ||
| Common parts | ||||
| 90116-08169 | ||||
| 90179-08040 | ||||
| 90381-08002 | ||||
| 90480-16016 | ||||
| 91611-60816 | ||||
| 91612-61016 | ||||
| 91621-60818 | ||||
| 91621-60825 | ||||
| 91622-61018 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1501 | ||||

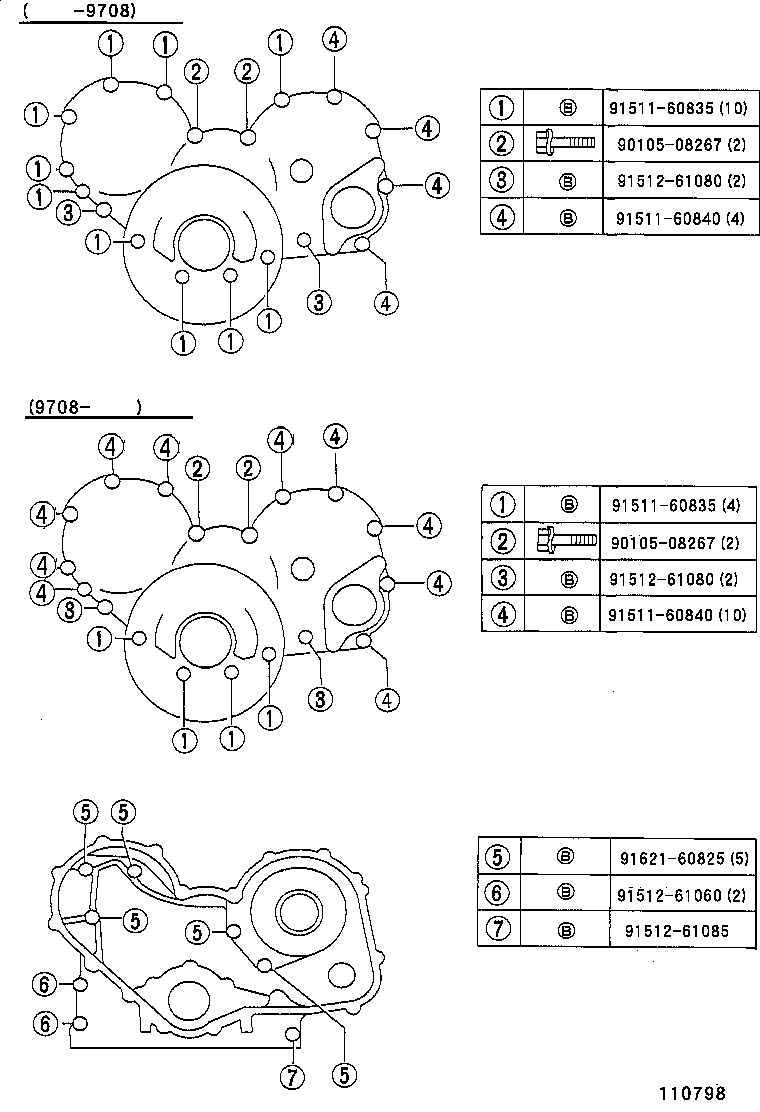

ILLUST NO. 2 OF 2(9505- )14B,15BF,15BFT,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08267 | ||||
| 91511-60835 | ||||
| 91511-60840 | ||||
| 91512-61060 | ||||
| 91512-61080 | ||||
| 91512-61085 | ||||
| 91621-60825 | ||||
