BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

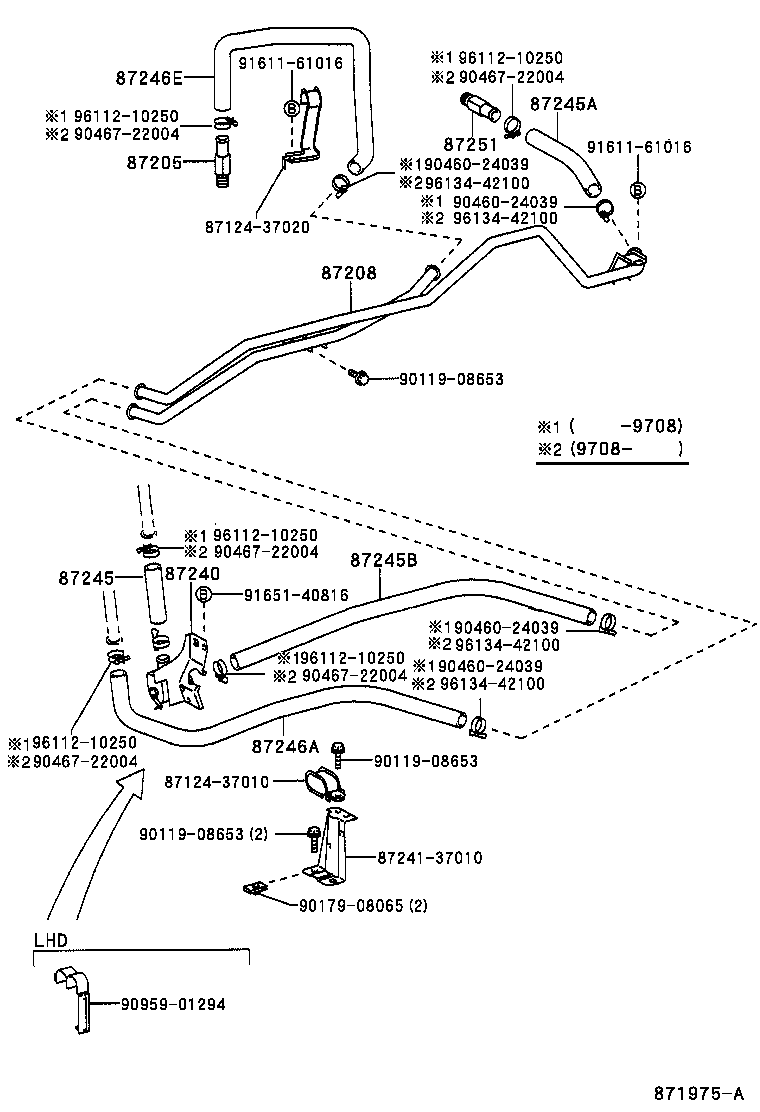

ILLUST NO. 1 OF 2(9505- )BU142..20T,25T ; (9505- )BU10#,11#,140,141..DSL

Click highlighted areas on diagram

FRONT

diagram 8712437010 8712437020 87205 87208 87240 8724137010 87245 87245A 87245B 87246A 87246E 87251 9011908653 9011908653 9011908653 9017908065 9046024039 9046024039 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9046722004 9095901294 9161161016 9161161016 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141,211,212,221,222..DM1,DM6,T1,T2,T3,TW1,TW2

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37170

BU100,101..175T..GEN

W(RR HEATER)

 1
87208-37160

BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

 1
87245 - HOSE, HEATER WATER, INLET
99556-30100

BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=280

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37440

BU102,112..DSL;BU100,101..175T..GEN

 1
99556-31000

BU100..175T..GEN

*H,L=720,W(RR HEATER)

 1
99556-30500

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=320

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37390

BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)

 1
87245-37310

BU100..175T..GEN

W(RR HEATER)

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=250

 1
99556-30300

BU100..175T..GEN

*H,L=260,W(RR HEATER)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU10#,11#,14#,21#,22#

 1
Common parts
87124-37010
87124-37020
87241-37010
90119-08653
90179-08065
90460-24039
90467-22004
90959-01294
91611-61016
91651-40816
96112-10250
96134-42100

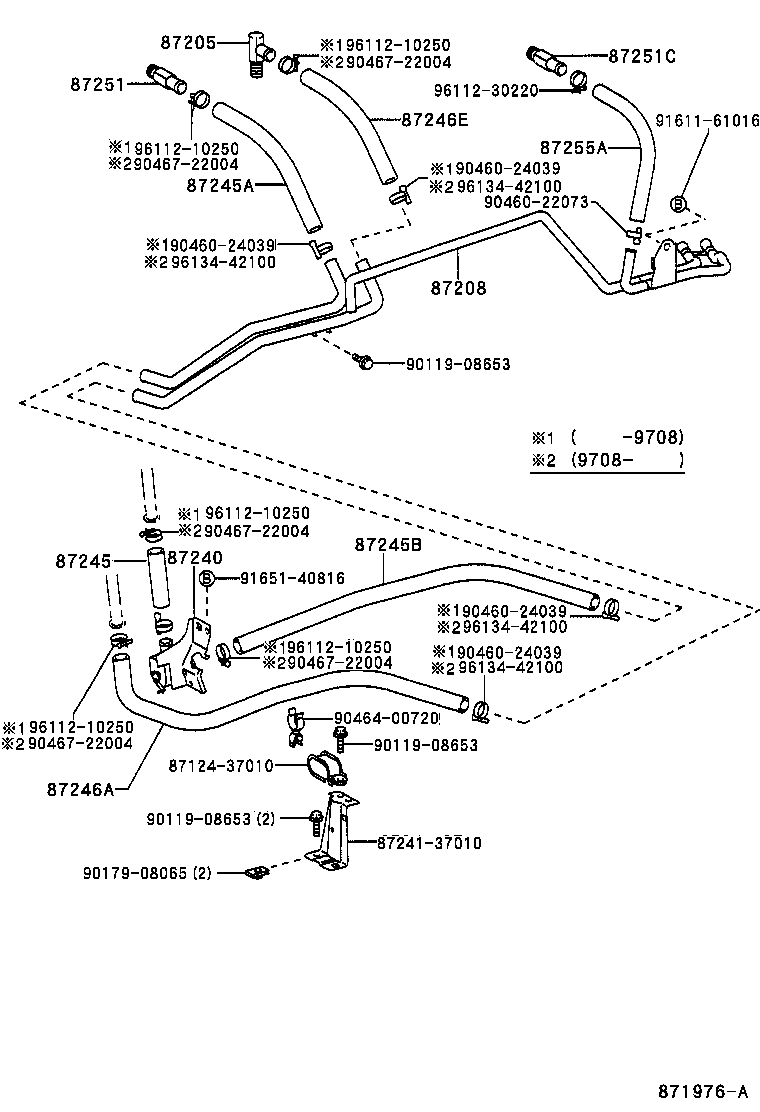

ILLUST NO. 1 OF 2(9505- )175T..GEN

Click highlighted areas on diagram

FRONT

diagram 8712437010 87205 87208 87240 8724137010 87245 87245A 87245B 87246A 87246E 87251 87251C 87255A 9011908653 9011908653 9011908653 9017908065 9046022073 9046024039 9046024039 9046024039 9046024039 9046400720 9046722004 9046722004 9046722004 9046722004 9046722004 9161161016 9165140816 9611210250 9611210250 9611210250 9611210250 9611210250 9611230220 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-95400

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141,211,212,221,222..DM1,DM6,T1,T2,T3,TW1,TW2

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37170

BU100,101..175T..GEN

W(RR HEATER)

 1
87208-37160

BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)

 1
87240 - VALVE ASSY, HEATER WATER
87240-37010

BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

 1
87245 - HOSE, HEATER WATER, INLET
99556-30100

BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

 1
87245A - HOSE, HEATER WATER, INLET A
99556-30300

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=280

 1
87245B - HOSE, HEATER WATER, INLET B
87245-37440

BU102,112..DSL;BU100,101..175T..GEN

 1
99556-31000

BU100..175T..GEN

*H,L=720,W(RR HEATER)

 1
99556-30500

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=320

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37390

BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)

 1
87245-37310

BU100..175T..GEN

W(RR HEATER)

 1
87246E - HOSE, HEATER WATER, OUTLET E
99556-30300

BU102..TAIW;BU142..20T,25T;BU100,101,11#,140,141..DM1,DM6,T1,T2,T3,TW2

*H,L=250

 1
99556-30300

BU100..175T..GEN

*H,L=260,W(RR HEATER)

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30200

BU10#,11#,14#,21#,22#

 1
87251C - JOINT, WATER HOSE THROUGH
87251-29020

BU100,101..175T..GEN

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20300

BU100,101..175T..GEN

L=300

 1
Common parts
87124-37010
87241-37010
90119-08653
90179-08065
90460-22073
90460-24039
90464-00720
90467-22004
91611-61016
91651-40816
96112-10250
96112-30220
96134-42100

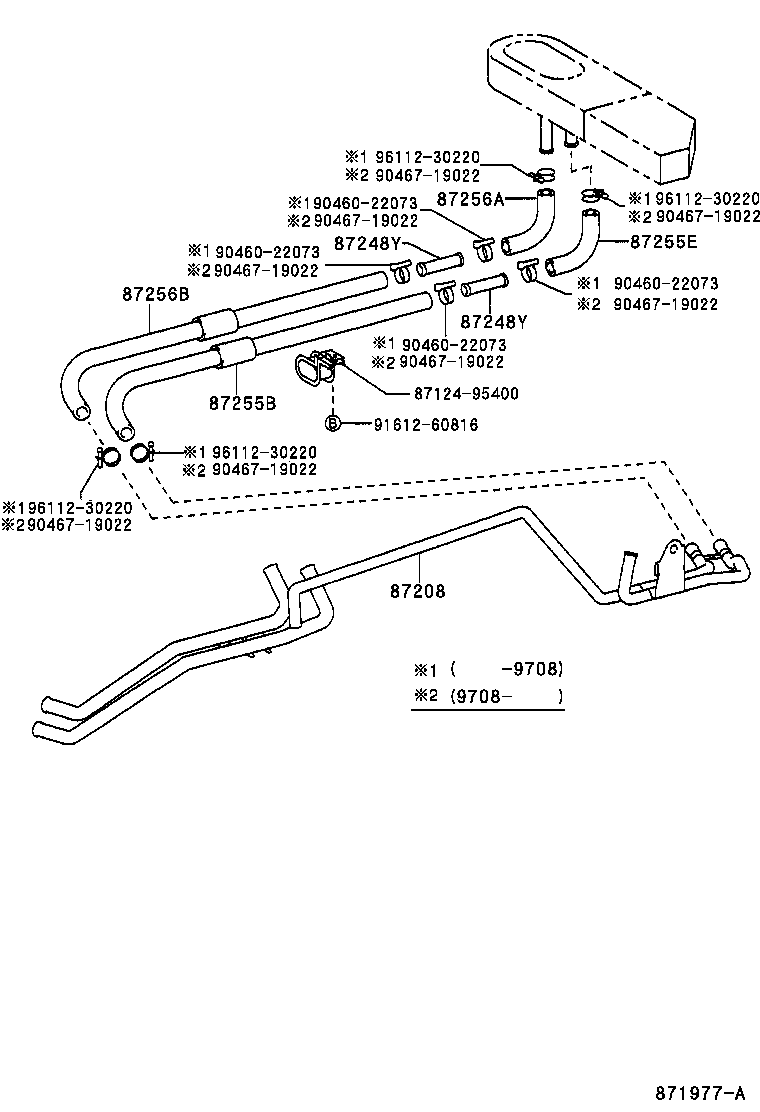

ILLUST NO. 2 OF 2(9505- )175T..GEN

Click highlighted areas on diagram

REAR

diagram 8712495400 87208 87248Y 87248Y 87255B 87255E 87256A 87256B 9046022073 9046022073 9046022073 9046022073 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9161260816 9611230220 9611230220 9611230220 9611230220
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-37170

BU100,101..175T..GEN

W(RR HEATER)

 1
87208-37160

BU102..TAIW;BU100,101,111,112,14#..LHD..(DM1,DM6,T3,TW1,TW2)

 1
87248Y - PIPE, HEATER WATER, NO.2
87248-95401

BU100,101..175T..GEN

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-95401

BU100,101..175T..GEN

 2
87255B - HOSE, REAR HEATER WATER INLET, B
87245-95479

BU100,101..175T..GEN

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-92600

BU100,101..175T..GEN

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-92600

BU100,101..175T..GEN

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-95476

BU100,101..175T..GEN

 1
Common parts
87124-95400
90460-22073
90467-19022
91612-60816
96112-30220
