BU100L-PSMJS (1995)
Toyota Dyna200

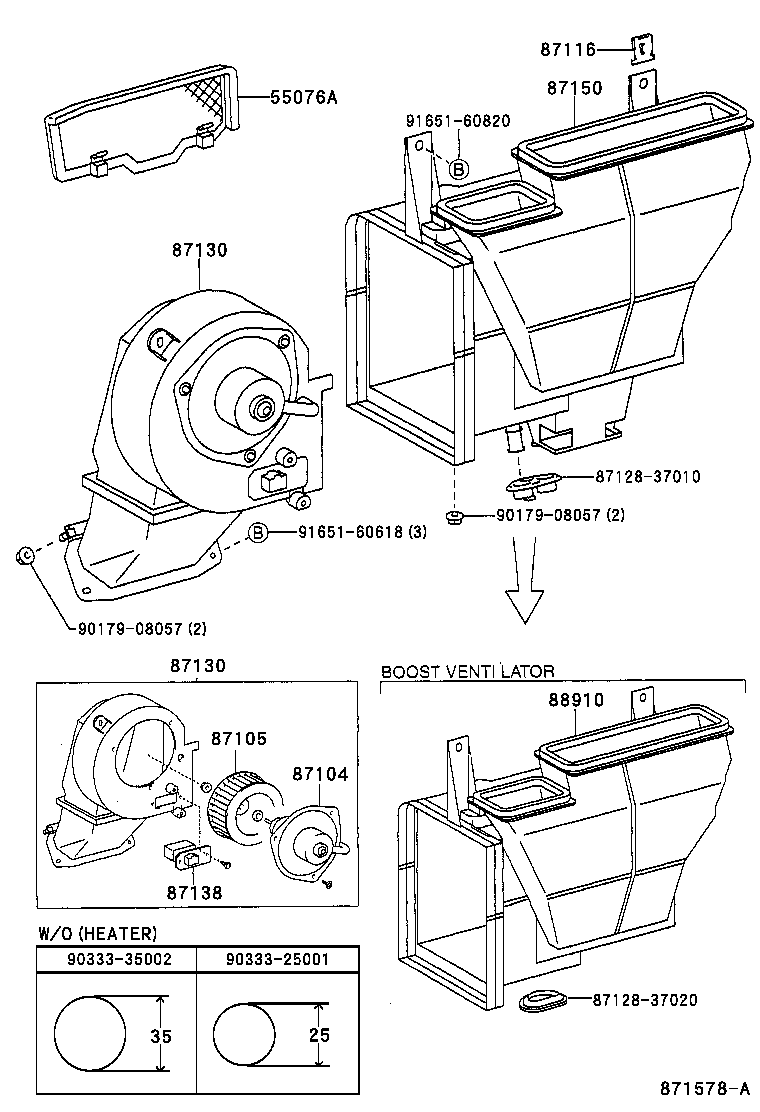

ILLUST NO. 1 OF 2(9505- )
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55076A - NET SUB-ASSY, AIR DUCT | ||||
| 55076-37040 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..GEN |
1 | ||
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-37080 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87104-37070 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(175T,25T,30T)..GEN W(BOOST VENTILATOR) |
1 | ||
| 87104-37080 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..WT..GEN |
1 | ||
| 87104-37070 |
BU102,222..TAIW;BU212..LHD..40T;BU212,RZU100..DSL,EFI;BU100,101,11#,14#,211,221,YU210..DM1,T1,T3,TW1,TW2 |
1 | ||
| 87104-37080 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87104-37070 |
BU212..ARL;BU212..LHD..40T..TD;BU211,221,YU210..CBU,IV3;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN W(BOOST VENTILATOR) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-14020 |
BU10#,111,112,14#,21#,22#,RZU100..LHD |
1 | ||
| 87116 - SPRING, HEATER CASE FASTENING | ||||
| 87116-37010 |
BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..WT..GEN |
1 | ||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87130-37030 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2) W(BOOST VENTILATOR) |
1 | ||
| 87130-37030 |
BU212..LHD..40T;BU102,212,222..TAIW;BU100,101,111,112,14#,211,221..LHD..(DM1,T3,TW1,TW2) |
1 | ||
| 87130-37030 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN W(BOOST VENTILATOR) |
1 | ||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..WT..GEN |
1 | ||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87130-37030 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2) W(BOOST VENTILATOR) |
1 | ||
| 87130-37030 |
BU212..LHD..40T;BU102,212,222..TAIW;BU100,101,111,112,14#,211,221..LHD..(DM1,T3,TW1,TW2) |
1 | ||
| 87130-37030 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN W(BOOST VENTILATOR) |
1 | ||
| 87130-37040 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-37090 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87138-37090 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..WT..GEN |
1 | ||
| 87138-37080 |
BU212..ARL;BU212..LHD..40T..TD;BU211,221,YU210..CBU,IV3;BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN W(BOOST VENTILATOR) |
1 | ||
| 87138-37090 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 87138-37080 |
BU102,222..TAIW;BU212..LHD..40T;BU212,RZU100..DSL,EFI;BU100,101,11#,14#,211,221,YU210..DM1,T1,T3,TW1,TW2 |
1 | ||
| 87138-37080 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(175T,25T,30T)..GEN W(BOOST VENTILATOR) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-37060 |
BU10#,111,112,14#..LHD |
1 | ||
| 87150-37150 |
BU10#,111,112,14#..LHD..GEN |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-37021 |
BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)..GEN |
1 | ||
| 88910-37020 |
BU212..LHD..40T;BU100,101,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN |
1 | ||
| Common parts | ||||
| 87128-37010 | ||||
| 87128-37020 | ||||
| 90179-08057 | ||||
| 90333-25001 | ||||
| 90333-35002 | ||||
| 91651-60618 | ||||
| 91651-60820 | ||||

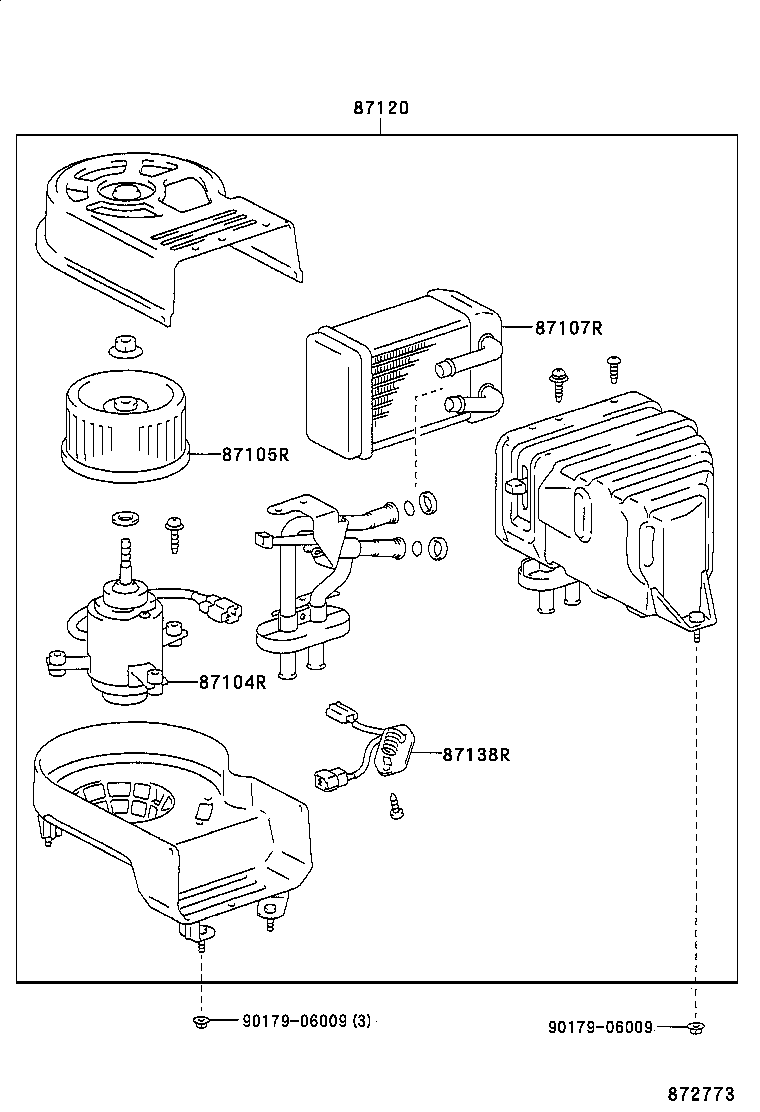

ILLUST NO. 2 OF 2(9505- )175T..GEN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER | ||||
| 87104-90A04 |
BU100..175T..GEN CHINA SPEC |
1 | ||
| 87104-87003 |
BU100,101..175T..GEN |
1 | ||
| 87105R - FAN SUB-ASSY, REAR HEATER BLOWER | ||||
| 87105-87002 |
BU100..175T..GEN |
1 | ||
| 87107R - UNIT SUB-ASSY, REAR HEATER | ||||
| 87107-60100 |
BU100..175T..GEN |
1 | ||
| 87107-60330 |
BU100,101..175T..GEN |
1 | ||
| 87120 - HEATER ASSY, REAR | ||||
| 87110-37040 |
BU100,101..175T..GEN |
1 | ||
| 87110-95448 |
BU100..175T..GEN |
1 | ||
| 87110-95449 |
BU100..175T..GEN CHINA SPEC |
1 | ||
| 87138R - RESISTOR, REAR HEATER BLOWER | ||||
| 87138-95412 |
BU100..175T..GEN CHINA SPEC |
1 | ||
| 87138-95012 |
BU100,101..175T..GEN |
1 | ||
| Common parts | ||||
| 90179-06009 | ||||
