BU100L-PSMJS (1995)
Toyota Dyna200
ILLUST NO. 1 OF 2(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04046 |
BU222..EUR;BU212..LHD..40T..TD;BU212,222..RHD..IV3;BU100,101,110,111,14#,211,221..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-35080 |
BU212,222..ARL,SA;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBR,DSL)..(ARL,GEN,SA)..(CBU,IV3) MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-1A020 |
BU212..ARL;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FUJITSU TEN,ID=12201,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35050 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57100,AM ETR CASSETTE |
1 | ||
| 86120-1A010 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-17280 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57201,AM/FM ETR CASSETTE (AM=9KHZ STEP) |
1 | ||
| 86120-37040 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN MATSUSHITA,ID=52102,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35110 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP) |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-37040 |
BU10#,111,112,14#,21#,22#,RZU100..LHD..(GEN,TAIW) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-37020 |
BU10#,11#,14#,21#,22#,RZU100,YU210..ARL,GEN,SA,TAIW |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
| 90179-05021 | ||||
| 90179-06080 | ||||
| 91651-60614 | ||||

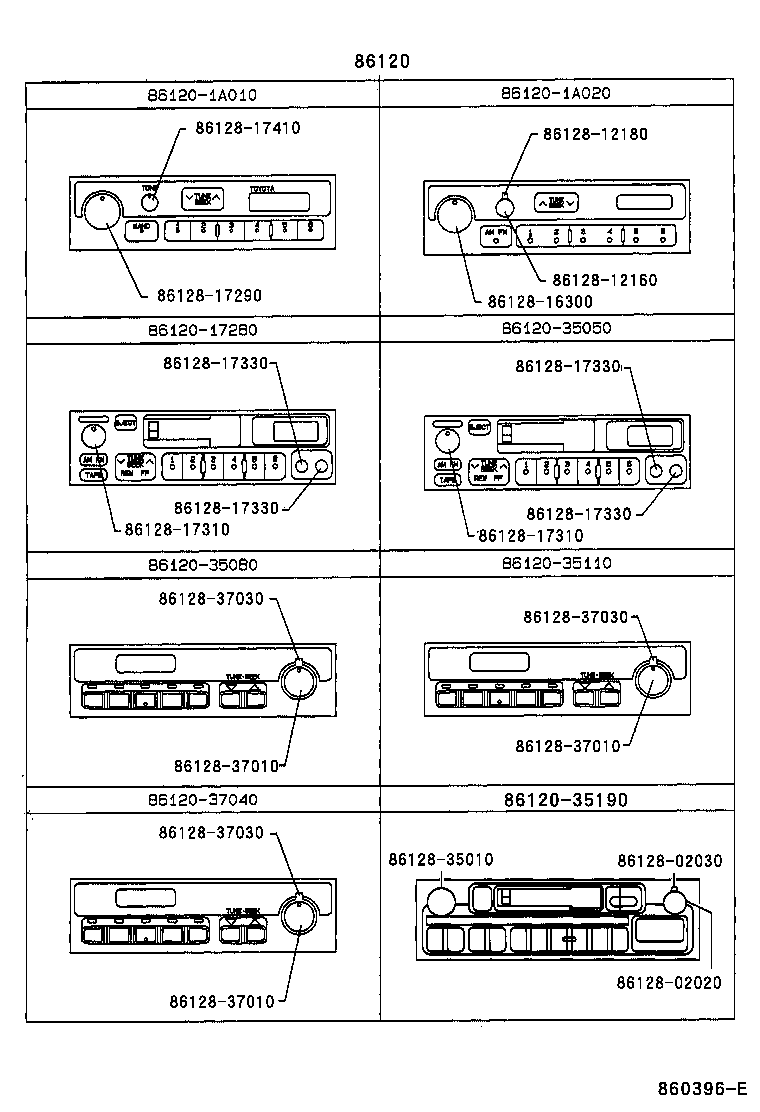

ILLUST NO. 2 OF 2(9505- )
KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-35080 |
BU212,222..ARL,SA;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBR,DSL)..(ARL,GEN,SA)..(CBU,IV3) MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-1A020 |
BU212..ARL;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FUJITSU TEN,ID=12201,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35050 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57100,AM ETR CASSETTE |
1 | ||
| 86120-1A010 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-17280 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57201,AM/FM ETR CASSETTE (AM=9KHZ STEP) |
1 | ||
| 86120-37040 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN MATSUSHITA,ID=52102,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35110 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP) |
1 | ||
| Common parts | ||||
| 86128-02020 | ||||
| 86128-02030 | ||||
| 86128-12160 | ||||
| 86128-12180 | ||||
| 86128-16300 | ||||
| 86128-17290 | ||||
| 86128-17310 | ||||
| 86128-17330 | ||||
| 86128-17410 | ||||
| 86128-35010 | ||||
| 86128-37010 | ||||
| 86128-37030 | ||||

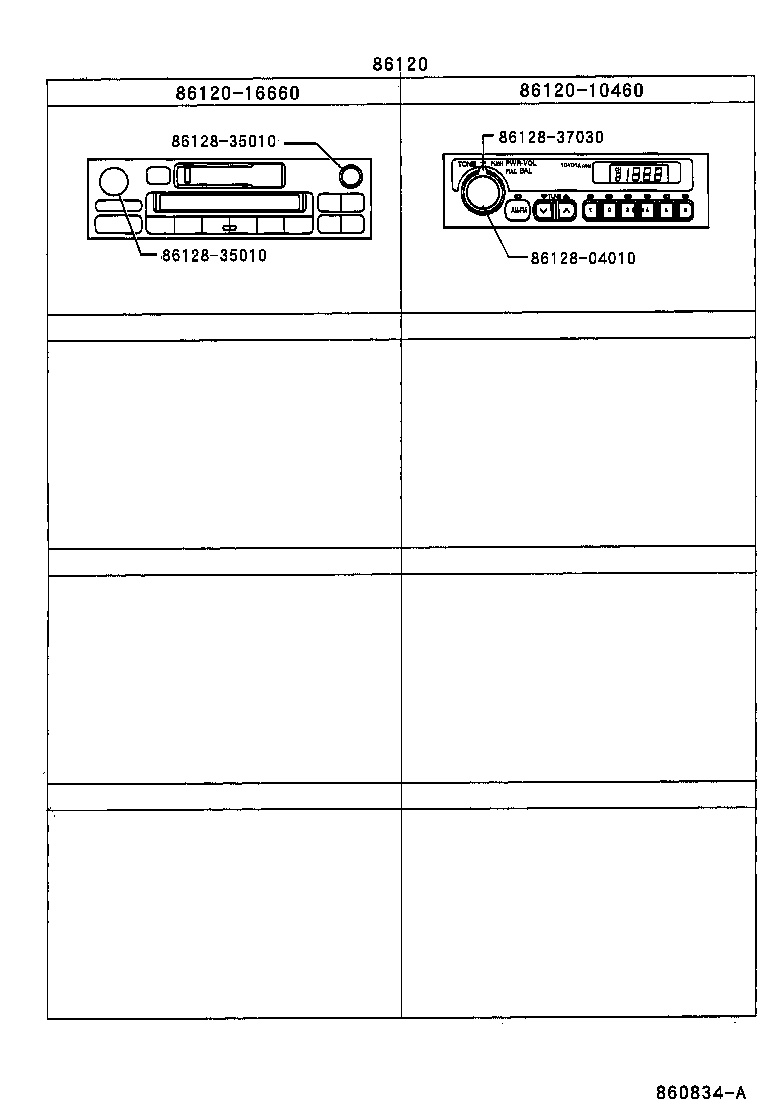

ILLUST NO. 2 OF 2(9505- )
KNOB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-35080 |
BU212,222..ARL,SA;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBR,DSL)..(ARL,GEN,SA)..(CBU,IV3) MATSUSHITA,ID=52100,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-1A020 |
BU212..ARL;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,22#..(DM1,T1,T2,T3,TW1,TW2)..DSL..(ARL,GEN)..(CBU,IV3) FUJITSU TEN,ID=12201,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35050 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57100,AM ETR CASSETTE |
1 | ||
| 86120-1A010 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,AM/FM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-17280 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=57201,AM/FM ETR CASSETTE (AM=9KHZ STEP) |
1 | ||
| 86120-37040 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN MATSUSHITA,ID=52102,AM ETR (AM=9KHZ STEP) |
1 | ||
| 86120-35110 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) MATSUSHITA,ID=52101,AM ETR (AM=5KHZ STEP) |
1 | ||
| Common parts | ||||
| 86128-04010 | ||||
| 86128-35010 | ||||
| 86128-37030 | ||||
