BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,11#,14#,RZU100

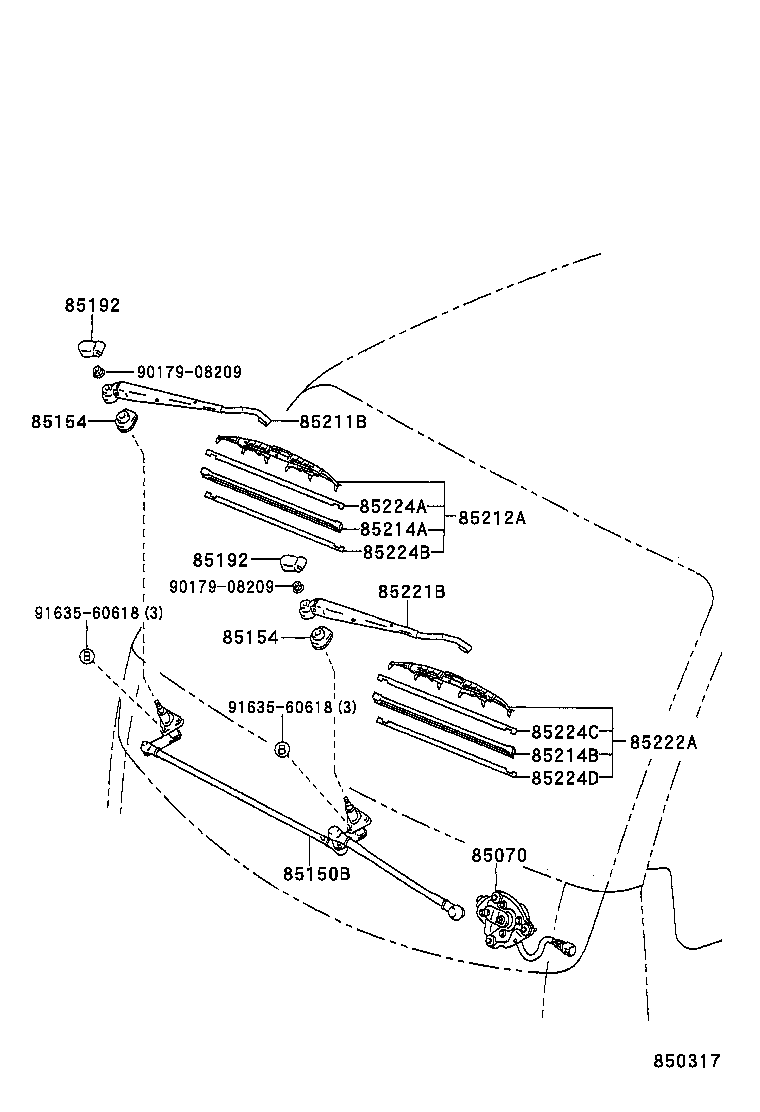

Click highlighted areas on diagram

diagram 85070 85150B 85154 85154 85192 85192 85211B 85212A 85214A 85214B 85221B 85222A 85224A 85224B 85224C 85224D 9017908209 9017908209 9163560618 9163560618
Part # Description Qty Price
85070 - MOTOR & BRACKET ASSY, FRONT WIPER
85070-37050

BU100..175T..GEN;BU100,111,140..LHD..(DM1,T3)..WT..GEN

CHINA SPEC

 1
85070-37040

BU102..TAIW;BU100,101,111,112,14#,RZU100..LHD..(DM1,T3,T4,TW2)..(GEN,TAIW)

12V

 1
85070-37050

BU100..175T..GEN;BU100,140..LHD..WT

CHINA SPEC

 1
85150B - LINK ASSY, WIPER
85150-37060

BU10#,111,112,14#,RZU100..LHD

 1
85150-37020

BU10#,111,112,14#..LHD

 1
85154 - PACKING, FRONT WIPER SHAFT
85154-37010

BU10#,11#,14#,RZU100

 2
85154 - PACKING, FRONT WIPER SHAFT
85154-37010

BU10#,11#,14#,RZU100

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-37010

BU10#,11#,14#

 2
85292-37010

BU10#,11#,14#,RZU100

 2
85192 - COVER, WINDSHIELD WIPER ARM
85292-37010

BU10#,11#,14#

 2
85292-37010

BU10#,11#,14#,RZU100

 2
85211B - ARM, FRONT WIPER, RH
85211-37020

BU10#,111,112,140,141..LHD

 1
85211-37060

BU10#,111,112,14#,RZU100..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-37030

BU10#,111,112,140,141..LHD

 1
85212-37060

BU10#,111,112,14#,RZU100..LHD

 1
85214A - RUBBER, WIPER, RH
85214-35020

BU10#,111,112,140,141..LHD

 1
85214-35050

BU10#,111,112,14#,RZU100..LHD

 1
85214B - RUBBER, WIPER, LH
85214-35020

BU10#,111,112,140,141,21#,22#..LHD

 1
85214-35050

BU10#,111,112,14#,21#,22#,RZU100..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-37020

BU10#,111,112,140,141..LHD..(GEN,TAIW)

 1
85221-37090

BU10#,111,112,14#,RZU100..LHD..(GEN,TAIW)

 1
85222A - BLADE, FR WIPER, LH
85222-37040

BU10#,111,112,140,141,21#,22#..LHD

 1
85222-37090

BU10#,111,112,14#,21#,22#,RZU100..LHD

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-35020

BU10#,111,112,140,141..LHD

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-35020

BU10#,111,112,140,141..LHD

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-35030

BU10#,111,112,140,141,21#,22#..LHD

 1
85224-35060

BU10#,11#,14#,RZU100

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-35030

BU10#,111,112,140,141,21#,22#..LHD

 1
85224-35060

BU10#,11#,14#,RZU100

 1
Common parts
90179-08209
91635-60618
