BU100L-PSMJS (1995)
Toyota Dyna200

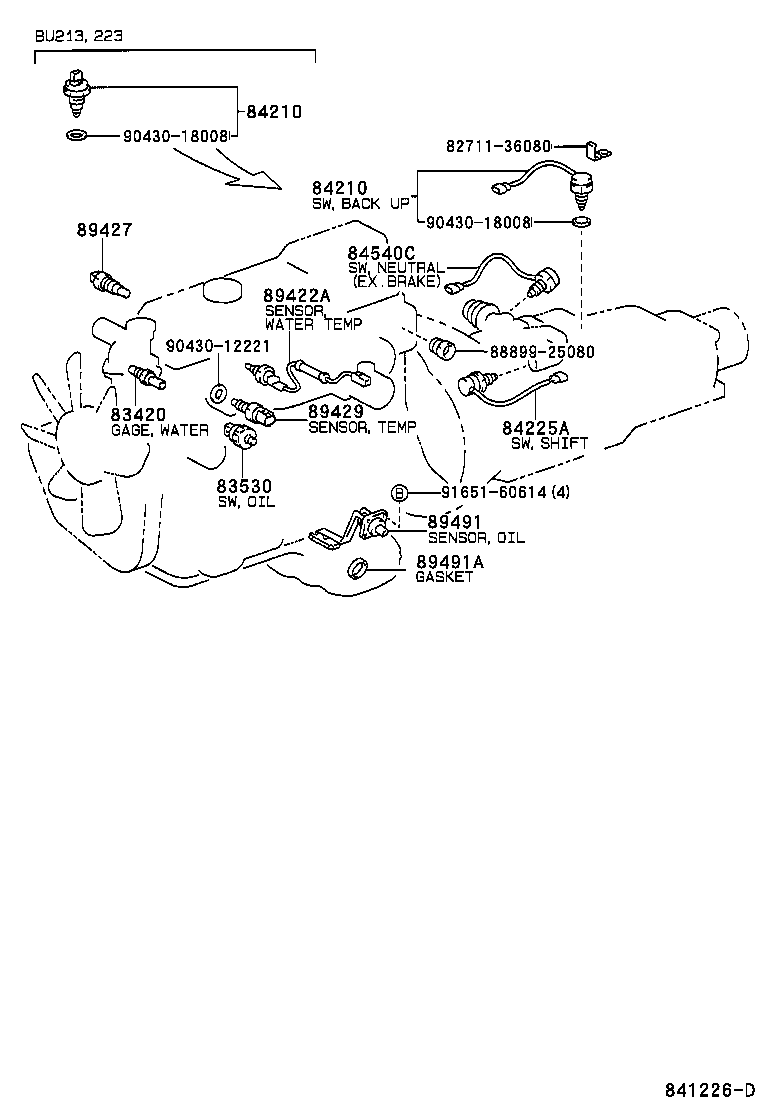

ILLUST NO. 1 OF 7(9505- )BU10#,11#,14#,21#,22#
E/G,T/M,T/F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20030 |
BU10#,11#,14#,21#,22#,YU210 YAZAKI |
1 | ||
| 83420-16040 |
BU10#,11#,14#,21#,22#,YU210 DENSO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30100 |
BU10#,11#,14#,21#,22#,YU210 YAZAKI |
1 | ||
| 83530-14070 |
BU10#,11#,14#,21#,22#,YU210 DENSO |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60030 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-36090 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-36010 |
BU142..EUR;BU100,101,111,140,141,21#,221..GEN |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37020 |
BU10#,11#,14#,211,212,221,222 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BU10#,11#,14#,21#,22# |
1 | ||
| Common parts | ||||
| 82711-36080 | ||||
| 88899-25080 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 91651-60614 | ||||

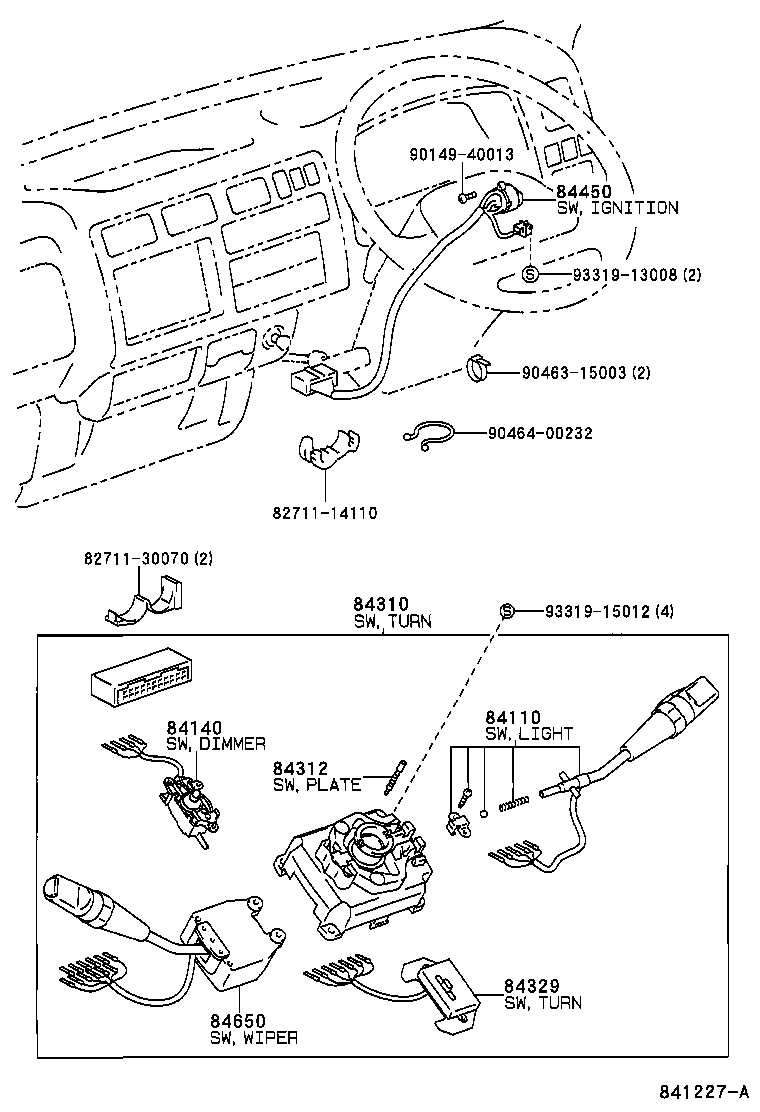

ILLUST NO. 5 OF 7(9505- )
IG. & COMBINATION SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80192 |
BU10#,111,112,140,141,21#,22#..LHD |
1 | ||
| 84112-80192 |
BU140..LHD..GEN;BU10#,111,112,141,142,21#,22#,RZU100..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-37030 |
BU140..LHD..GEN;BU10#,111,112,141,142,21#,22#,RZU100..LHD |
1 | ||
| 84140-37030 |
BU10#,111,112,140,141,21#,22#..LHD |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-37110 |
BU10#,111,112,140,141,21#,22#..LHD..(DM1,T2,T3,TW2) 12V & W(EXHAUST BRAKE) |
1 | ||
| 84310-37100 |
BU142..T3..EUR;BU211..LHD..30T;BU100,101,140,141..LHD..(175T,20T,25T)..GEN |
1 | ||
| 84310-37120 |
BU100,101..175T..GEN;BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)..GEN 24V |
1 | ||
| 84310-37130 |
BU100..175T..GEN;BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)..GEN CHINA SPEC & W(EXHAUST BRAKE) |
1 | ||
| 84310-37110 |
BU142..TW1;BU212..40T..GEN;BU10#,111,112,140,141,21#,22#..LHD..(DM1,T2,T3,TW1,TW2)..DSL..(GEN,TAIW) 12V & W(EXHAUST BRAKE) |
1 | ||
| 84310-37100 |
BU211..LHD..30T;BU100,101,140,141,RZU100..LHD..(15T,175T,20T,25T) 12V |
1 | ||
| 84310-37110 |
BU222..EUR;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2) W(EXHAUST BRAKE),12V |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 84329 - SWITCH, TURN SIGNAL | ||||
| 84329-37030 |
BU10#,111,112,140,141,21#,22#..LHD |
1 | ||
| 84329-37030 |
BU140..LHD..GEN;BU10#,111,112,141,142,21#,22#,RZU100..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84510-37040 |
BU100,140..GEN W(STEERING COLUMN) |
1 | ||
| 84510-37030 |
BU100,140..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-37130 |
BU100..175T..GEN;BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)..GEN CHINA SEPC & W(EXHAUST BRAKE) |
1 | ||
| 84652-37110 |
BU10#,111,112,140,141,21#,22#..LHD..(DM1,T2,T3,TW2) 12V & W(EXHAUST BRAKE) |
1 | ||
| 84652-37120 |
BU100,101..175T..GEN;BU100,140,141,211..LHD..T3..WT..(20T,25T,30T)..GEN 24V |
1 | ||
| 84652-37110 |
BU222..EUR;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2) W(EXHAUST BRAKE),12V |
1 | ||
| 84652-37110 |
BU142..TW1;BU212..40T..GEN;BU10#,111,112,140,141,21#,22#..LHD..(DM1,T2,T3,TW1,TW2)..DSL..(GEN,TAIW) 12V & W(EXHAUST BRAKE) |
1 | ||
| 84652-37100 |
BU142..T3..EUR;BU211..LHD..30T;BU100,101,140,141..LHD..(175T,20T,25T)..GEN |
1 | ||
| 84652-37100 |
BU211..LHD..30T;BU100,101,140,141,RZU100..LHD..(15T,175T,20T,25T) 12V |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 82711-30070 | ||||
| 90149-40013 | ||||
| 90463-15003 | ||||
| 90464-00232 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||

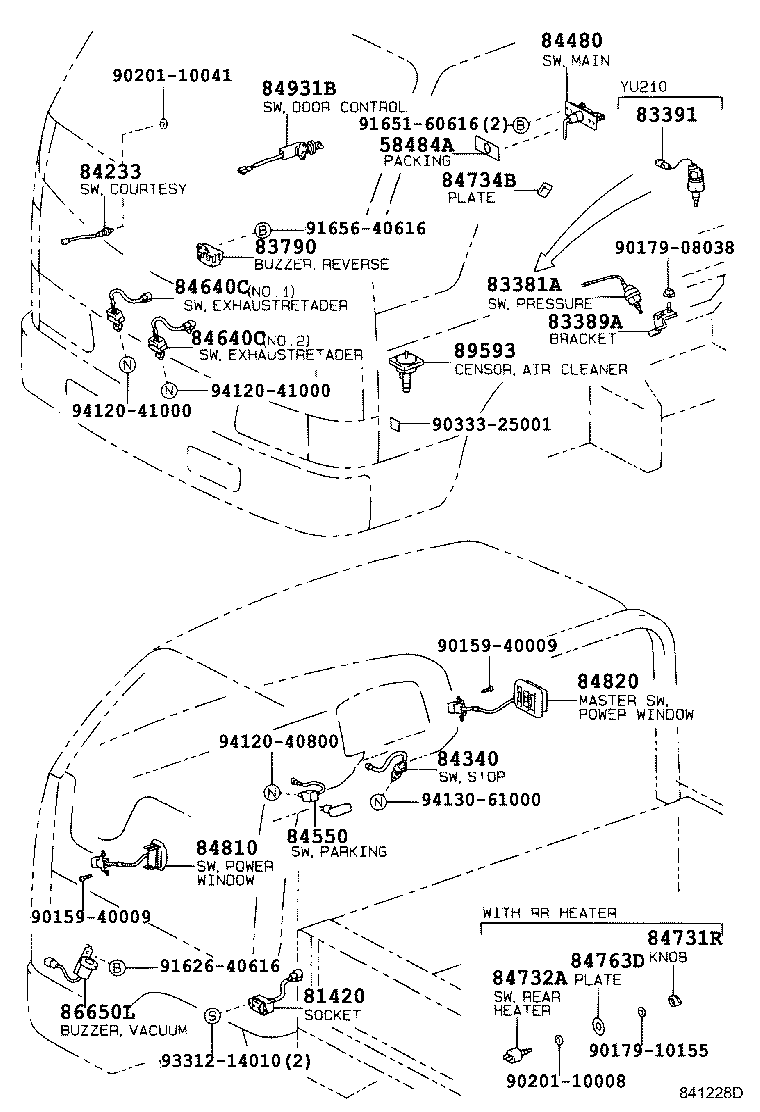

ILLUST NO. 6 OF 7(9505- )
DOOR,ROOF,FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-28020 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-36070 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-37010 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37040 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW NO.2 |
1 | ||
| 84640-36060 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW NO.1 |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37040 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW NO.2 |
1 | ||
| 84640-36060 |
BU141,211,212,221,222;BU10#,11#,140,142,213,223..ARL,EUR,GEN,TAIW NO.1 |
1 | ||
| 84731R - KNOB, REAR HEATER BLOWER SWITCH | ||||
| 84731-12010 |
BU100,101..175T..GEN |
1 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84732-87001 |
BU100,101..175T..GEN |
1 | ||
| 84763D - PLATE, SWITCH | ||||
| 84763-95010 |
BU100,101..175T..GEN |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37010 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 86650-37020 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
BU10#,11#,14#,21#,22#,YU210..ARL,GEN,SA,TAIW |
1 | ||
| 89593-26010 |
BU142;BU10#,11#,140,141,21#,22#,YU210..ARL,GEN,SA,TAIW |
1 | ||
| Common parts | ||||
| 90159-40009 | ||||
| 90179-08038 | ||||
| 90179-10155 | ||||
| 90201-10008 | ||||
| 90201-10041 | ||||
| 90333-25001 | ||||
| 91626-40616 | ||||
| 91651-60616 | ||||
| 91656-40616 | ||||
| 93312-14010 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94130-61000 | ||||

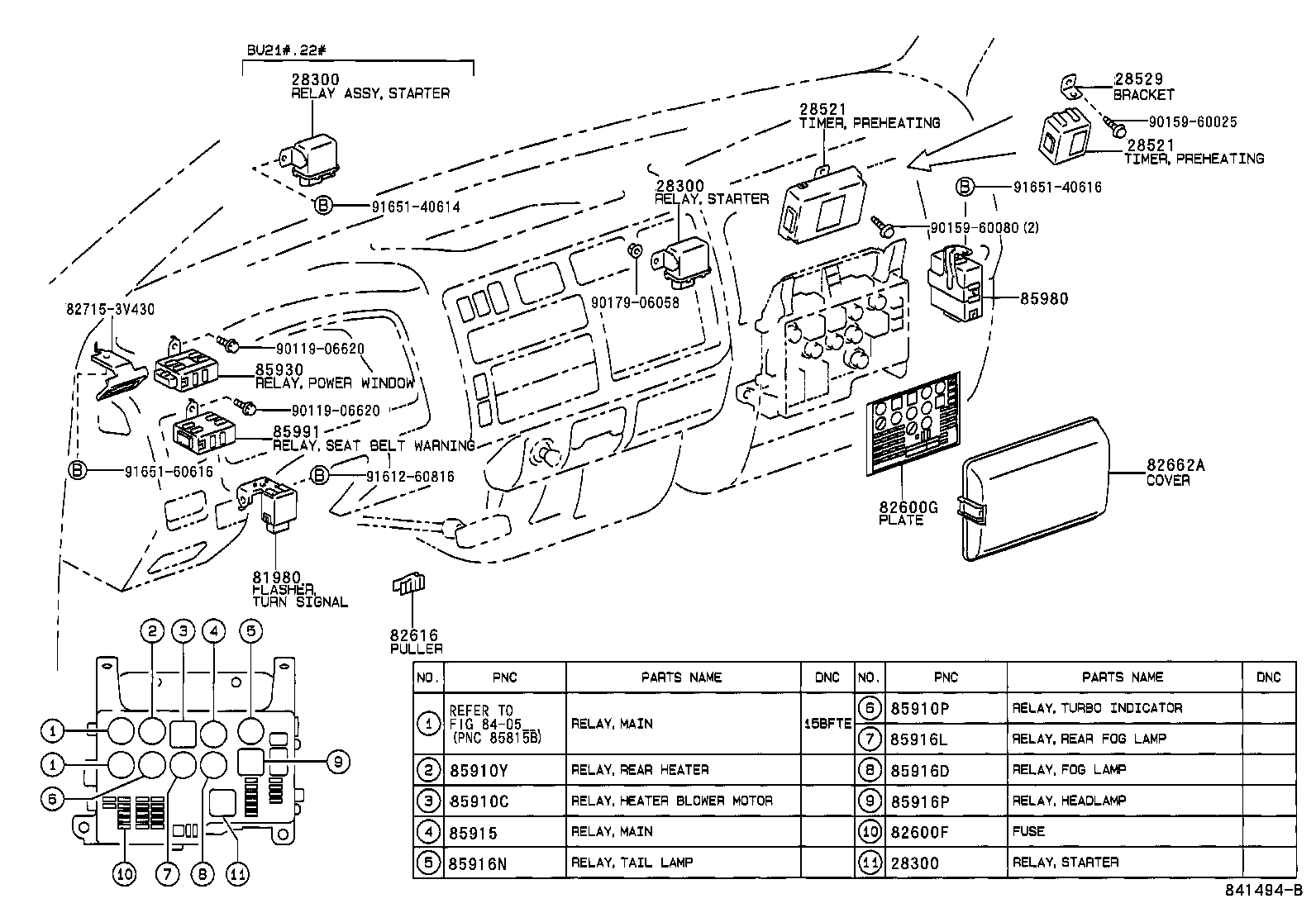

ILLUST NO. 3 OF 7(9505- )LHD
INPANE & COWL RELAY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 28300-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,140,211..LHD..T3..WT CHINA SPEC |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 28300-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,140,211..LHD..T3..WT CHINA SPEC |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 28300-58020 |
14B,15B#,3B..BU10#,11#,14#,21#,22#..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 28300-58010 |
3B..BU100..175T..GEN;14B,3B..BU100,140,211..LHD..T3..WT CHINA SPEC |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-58140 |
3B..BU100,110,140 12V |
1 | ||
| 28521-58150 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC,24V |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-58140 |
3B..BU100,110,140 12V |
1 | ||
| 28521-58150 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC,24V |
1 | ||
| 28529 - BRACKET, PREHEATING TIMER, NO.1 | ||||
| 28529-56030 |
3B..BU100,110,140 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 28529-56040 |
3B..BU100,140..GEN TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-37011 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 81980-37041 |
BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU212,RZU100..RHD..(20T,25T,30T)..GEN;BU100,101,11#,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
BU212..TD..CBU;BU212..LHD..30T;BU101,141,222..EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU10#,111,112,14#,211,221..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 10A,MINI FUSE,RED |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37040 |
BU212,222..DSL;BU212..40T..GEN;BU10#,11#,14#,211,221,YU210..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 82683-37030 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..WT..GEN ALGERIA SPEC OR CHINA SPEC |
1 | ||
| 82683-37031 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT ALGERIA SPEC OR CHINA SPEC |
1 | ||
| 82683-37041 |
BU212,222..RHD..DSL;BU212..LHD..40T..TD;BU100,101,110,111,14#,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 82683-37031 |
BU100..175T..GEN;BU100,140,141,211..LHD..T3..WT ALGERIA SPEC OR CHINA SPEC |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37010B0 |
BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW BLUISH GRAY,TRIM1# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 85913-90K00 |
BU100..175T..GEN;BU100,212..LHD..WT..(20T,30T)..GEN;BU102,111,112,140,141,211,222..LHD..(DM1,DM6,DM7,T2,T3)..GEN CHINA SPEC |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-02005 |
BU100..175T..GEN CHINA SPEC |
1 | ||
| 90987-02004 |
BU100,101..175T..GEN |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02005 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC & W(FR FOG LAMP) |
1 | ||
| 90987-02004 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT W(FR FOG LAMP) |
1 | ||
| 90987-02004 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN W(FR FOG LAMP) |
1 | ||
| 90987-02004 |
RZU100;BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) 12V |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02005 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 90987-02004 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02007 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 90987-02006 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-37010 |
BU101..LHD..TS;BU100,111,140,141,211,221..LHD..(DM1,T3,TW1,TW2)..GEN |
1 | ||
| Common parts | ||||
| 82715-3V430 | ||||
| 90119-06620 | ||||
| 90159-60025 | ||||
| 90159-60080 | ||||
| 90179-06058 | ||||
| 91612-60816 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60616 | ||||
| Linked diagrams | ||||
| 8405 | ||||

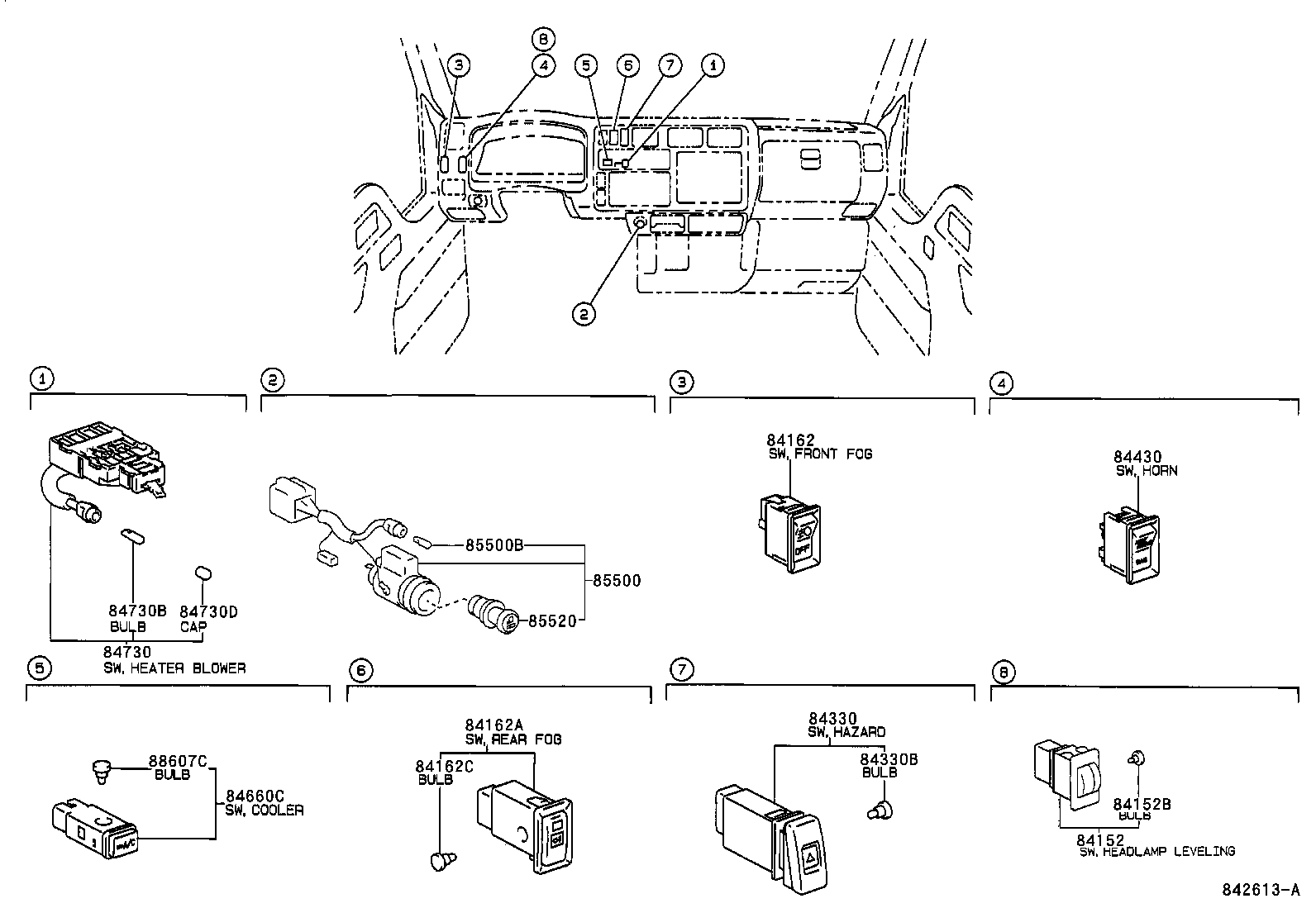

ILLUST NO. 4 OF 7(9505- )LHD
INPANE SW.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
BU212,222,RZU100..(GEN,TAIW)..IV3;BU10#,111,112,140,141,211,213,221,223..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(DSL,TDEFI)..(GEN,TAIW) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37040 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 84332-37050 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10610 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN 28V 0.84W,CHINA SPEC |
1 | ||
| 84999-10320 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) 14V 0.84W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37010 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 84660-37020 |
BU102,212..ARL,TAIW;BU212..LHD..40T..TD;BU101,222,RZU100..(175T,20T,30T,40T)..(DSL,EFI)..(GEN,TAIW);BU100,11#,14#,211,221..(DM1,T3,TW1,TW2)..DSL..(ARL,GEN,TAIW)..(CBU,IV3) DEALER OPTION,12V |
1 | ||
| 84660-37010 |
BU100..WT..GEN;BU211..40T..GEN..IV3;BU100,211..LHD..(175T,40T)..CBU;BU102,112,140,141,211..LHD..(DM7,T2,T3)..(20T,25T,30T) 24V |
1 | ||
| 84660-35010 |
BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..(EUR,GEN)..(CBU,IV3) 12V |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37020 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 84732-37020 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 84732-42020 |
BU212..LHD..40T..TD;BU102,212,222..EUR,TAIW;BU100,101,111,112,14#,211,221,RZU100..LHD..(DM1,T3,T4,TW1,TW2) 12V |
1 | ||
| 84732-37020 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-16020 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN 24V 1.8W |
1 | ||
| 90981-16020 |
BU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T);BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3) 24V 1.8W |
1 | ||
| 84730D - CAP, HEATER BLOWER SWITCH BULB | ||||
| 84998-10050 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN |
1 | ||
| 84998-10050 |
BU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T);BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37030 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN 24V |
1 | ||
| 85500-37040 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) 12V |
1 | ||
| 85500-37030 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT 24V |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-16020 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN 24V 1.8W |
1 | ||
| 90981-16020 |
BU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T);BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3) 24V 1.8W |
1 | ||
| 90981-11014 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) 14V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
BU100,222..WT..GEN;BU212..RHD..GEN..IV3;BU100,212..LHD..(175T,30T);BU102,111,112,140,141,211..LHD..(DM1,DM6,DM7,T2,T3) 24V |
1 | ||
| 85520-95400 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111,222..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,21#..LHD..(T3,TW2)..(175T,25T,30T)..GEN 24V |
1 | ||
| 85520-17020 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) 12V |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-37010 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(175T,25T,30T)..GEN 28V 0.87W,NO.1 |
1 | ||
| 88607-37010 |
BU100..175T..GEN;BU100,111,140,211..LHD..(DM1,T3)..WT..GEN 28V 0.87W,CHINA SPEC |
1 | ||
| 88607-16010 |
BU211..40T..GEN..IV3;BU211..LHD..40T..CBU;BU100,111..(DM1,T3)..WT..GEN;BU101,221..RHD..WT..GEN..IV3;BU100,140,141,211..LHD..(T3,TW2)..(175T,25T,30T)..GEN 14V 0.065A,NO.2 |
1 | ||
| 88607-37010 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN 28V 0.87W |
1 | ||
| 88607-16010 |
RZU100;BU212..LHD..40T..TD;BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) 14V 0.065A,NO.2 |
1 | ||

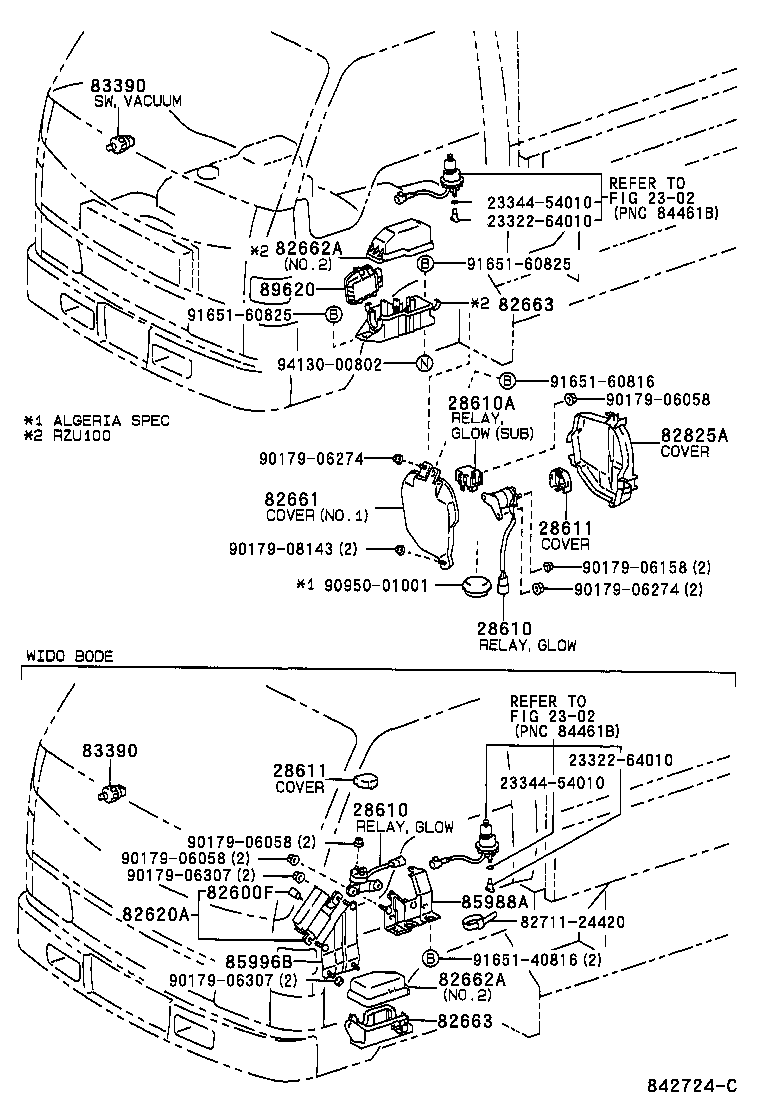

ILLUST NO. 2 OF 7(9505- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610A - RELAY ASSY, GLOW PLUG(SUB) | ||||
| 28610-58180 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC |
1 | ||
| 28610-58190 |
3B..BU100,110,140 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
BU212..TD..CBU;BU212..LHD..30T;BU101,141,222..EUR,SA,TAIW;BU212,222..LHD..40T..TD..GEN;BU10#,111,112,14#,211,221..LHD 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09009 |
BU212..TD..CBU;BU222..LHD..GEN;BU101,141,222..EUR,SA,TAIW;BU10#,111,112,14#,21#,221..LHD 10A,MINI FUSE,RED |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37010 |
BU10#,11#,14#,RZU100 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37010B0 |
BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW BLUISH GRAY,TRIM1# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37010B0 |
BU212..TD..CBU;BU212..(GEN,TAIW)..IV3;BU10#,111,112,14#,211,22#,YU210..EUR,GEN,SA,TAIW BLUISH GRAY,TRIM1# |
1 | ||
| 82825A - COVER, RELAY | ||||
| 82825-37010 |
BU10#,11#,14#,RZU100 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-12340 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 82711-24420 | ||||
| 90179-06058 | ||||
| 90179-06158 | ||||
| 90179-06274 | ||||
| 90179-06307 | ||||
| 90179-08143 | ||||
| 90950-01001 | ||||
| 91651-40816 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 94130-00802 | ||||
| Linked diagrams | ||||
| 2302 | ||||

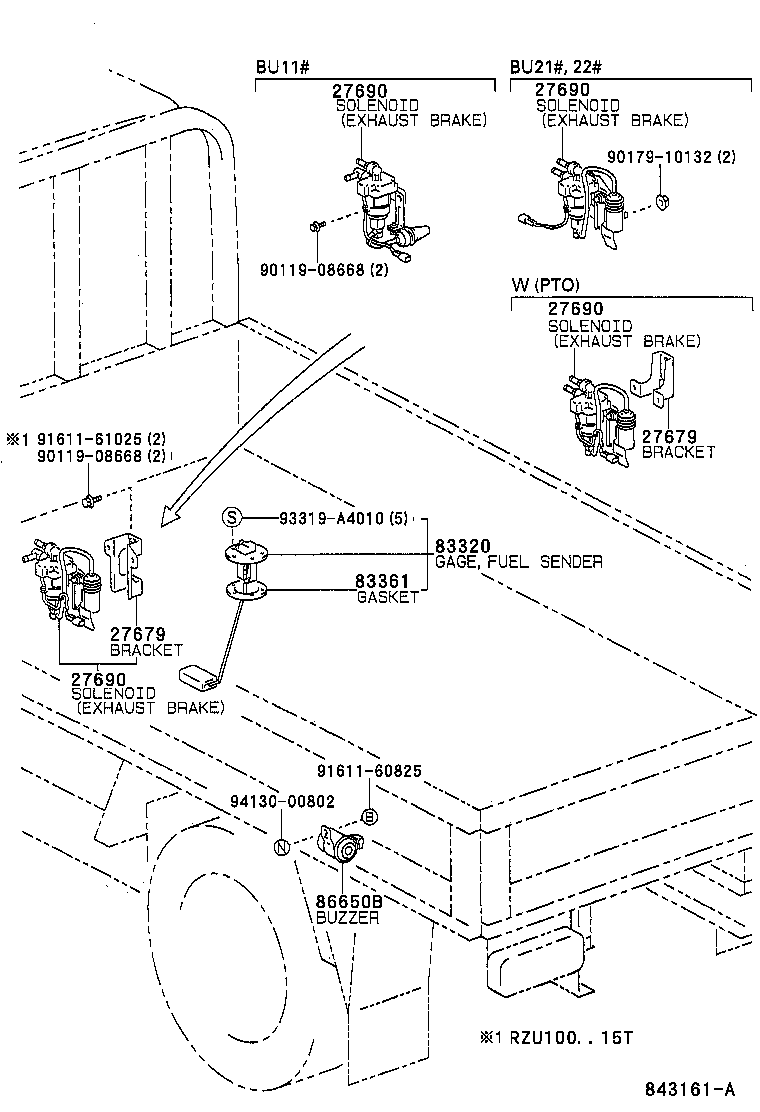

ILLUST NO. 7 OF 7(9505- )
REAR BODY
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID) | ||||
| 27679-56010 |
14B..BU101..CBU;14B..BU101..ST..IV3;14B..BU101..LHD..WT..IV3;14B,15B#,3B..BU100,102,14# W(EXHAUST BRAKE) |
1 | ||
| 27679 - BRACKET, EXHAUST BRAKE(FOR SOLENOID) | ||||
| 27679-56010 |
14B..BU101..CBU;14B..BU101..ST..IV3;14B..BU101..LHD..WT..IV3;14B,15B#,3B..BU100,102,14# W(EXHAUST BRAKE) |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
3B..BU100..175T..GEN CHINA SPEC |
1 | ||
| 27690-56082 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;15BF,15BFT..BU142,212..ARL,EUR;14B,15BFT..BU101,212..LHD..(20T,40T)..TB;15BF,3RZFE..BU222,RZU100..(20T,40T)..(ARL,GEN);14B,3B..BU100,102,140,141,211,221..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(PTO);PART NUMBER LABEL=27690-56082 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
3B..BU100..175T..GEN CHINA SPEC |
1 | ||
| 27690-56082 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;15BF,15BFT..BU142,212..ARL,EUR;14B,15BFT..BU101,212..LHD..(20T,40T)..TB;15BF,3RZFE..BU222,RZU100..(20T,40T)..(ARL,GEN);14B,3B..BU100,102,140,141,211,221..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(PTO);PART NUMBER LABEL=27690-56082 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
3B..BU100..175T..GEN CHINA SPEC |
1 | ||
| 27690-56082 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;15BF,15BFT..BU142,212..ARL,EUR;14B,15BFT..BU101,212..LHD..(20T,40T)..TB;15BF,3RZFE..BU222,RZU100..(20T,40T)..(ARL,GEN);14B,3B..BU100,102,140,141,211,221..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(PTO);PART NUMBER LABEL=27690-56082 |
1 | ||
| 27690 - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-56062 |
3B..BU100..175T..GEN CHINA SPEC |
1 | ||
| 27690-56082 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;15BF,15BFT..BU142,212..ARL,EUR;14B,15BFT..BU101,212..LHD..(20T,40T)..TB;15BF,3RZFE..BU222,RZU100..(20T,40T)..(ARL,GEN);14B,3B..BU100,102,140,141,211,221..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(PTO);PART NUMBER LABEL=27690-56082 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80316 |
BU10#..T1,T2,T4,TW2 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 86650B - BUZZER ASSY, REVERSE WARNING | ||||
| 86650-95417 |
BU100..175T..GEN;BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 86650-95418 |
RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90119-08668 | ||||
| 90179-10132 | ||||
| 91611-60825 | ||||
| 91611-61025 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
