BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )

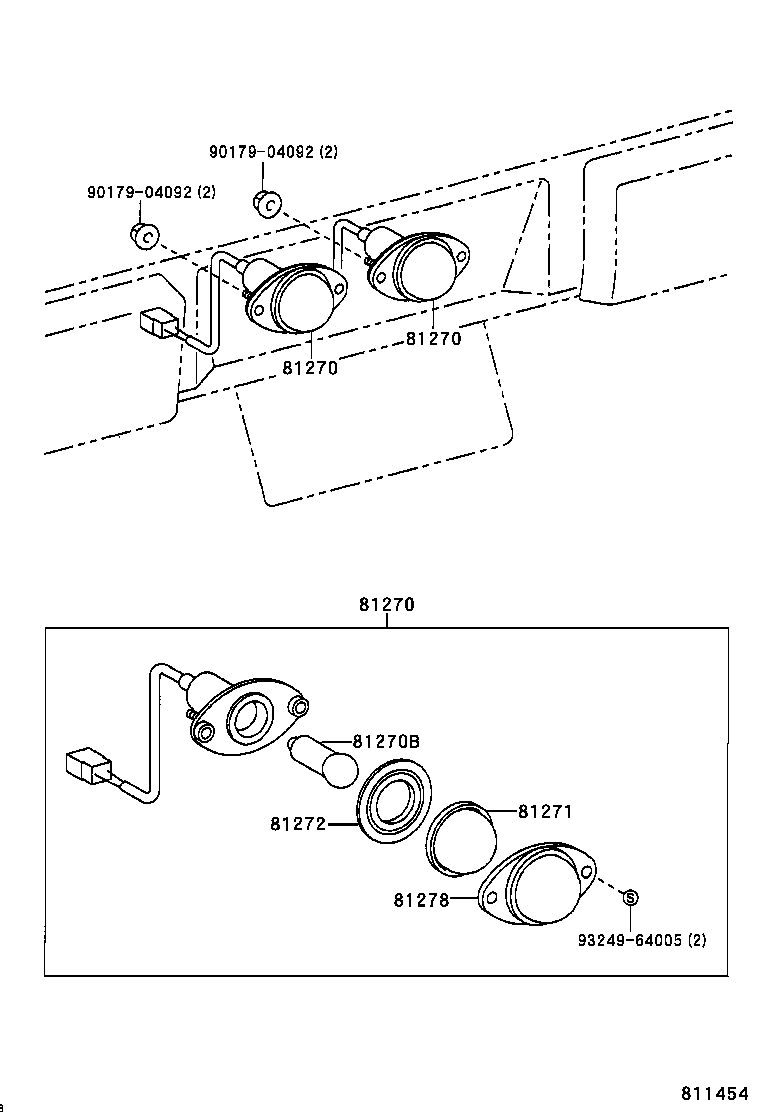

Click highlighted areas on diagram

diagram 81270 81270 81270 81270B 81271 81272 81278 9017904092 9017904092 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,110,140,141,211,221,RZU100,YU210..CBU,IV3

 2
81270-37010

BU102,222..GEN;BU141..LHD..IV3;BU212..RHD..GEN..IV3;BU100,140,211..LHD..T3..WT..GEN;BU100,212..LHD..(175T,30T)..GEN

CHINA SPEC

 2
81270-37010

BU211..LHD..40T..CBU;BU212..RHD..GEN..IV3;BU102..(20T,30T)..DSL;BU100,222..(175T,40T)..GEN;BU211..40T..GEN..(IV2,IV3);BU100,140,211,212..LHD..T3..WT..(20T,25T,30T)

CHINA SPEC

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,110,140,141,211,221,RZU100,YU210..CBU,IV3

 2
81270-37010

BU102,222..GEN;BU141..LHD..IV3;BU212..RHD..GEN..IV3;BU100,140,211..LHD..T3..WT..GEN;BU100,212..LHD..(175T,30T)..GEN

CHINA SPEC

 2
81270-37010

BU211..LHD..40T..CBU;BU212..RHD..GEN..IV3;BU102..(20T,30T)..DSL;BU100,222..(175T,40T)..GEN;BU211..40T..GEN..(IV2,IV3);BU100,140,211,212..LHD..T3..WT..(20T,25T,30T)

CHINA SPEC

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-37030

BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,110,140,141,211,221,RZU100,YU210..CBU,IV3

 2
81270-37010

BU102,222..GEN;BU141..LHD..IV3;BU212..RHD..GEN..IV3;BU100,140,211..LHD..T3..WT..GEN;BU100,212..LHD..(175T,30T)..GEN

CHINA SPEC

 2
81270-37010

BU211..LHD..40T..CBU;BU212..RHD..GEN..IV3;BU102..(20T,30T)..DSL;BU100,222..(175T,40T)..GEN;BU211..40T..GEN..(IV2,IV3);BU100,140,211,212..LHD..T3..WT..(20T,25T,30T)

CHINA SPEC

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
99134-11120

BU211..40T..GEN..IV3;BU141,211..LHD..T3..CBU;BU101,221..RHD..WT..GEN..IV3;BU100,111,222..(DM1,T3)..WT..GEN;BU100,140,212..LHD..(175T,25T,30T)..GEN

24V 12W

 2
99134-11120

BU100,222..WT..GEN;BU211..LHD..40T..IV3;BU212..RHD..GEN..IV3;BU100,141,211..LHD..(T3,TW2)..(175T,25T,30T,40T)..CBU;BU102,111,112,140,212..LHD..(DM1,DM7,T2,T3)..(20T,25T,30T)

24V 12W

 2
90981-12013

RZU100;BU212..CBU;BU142..20T,25T;BU212..LHD..40T..TD;BU102,212,222..ARL,EUR,SA,TAIW;BU100,101,11#,140,141,211,221,YU210..(DM1,T1,T2,T3,TW1,TW2)..(CBU,IV3)

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-37020

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
81278 - COVER, LICENSE PLATE LAMP
81276-95016

BU10#,110,14#,21#,22#,RZU100,YU210

 2
Common parts
90179-04092
93249-64005
