BU100L-PSMJS (1995)
Toyota Dyna200

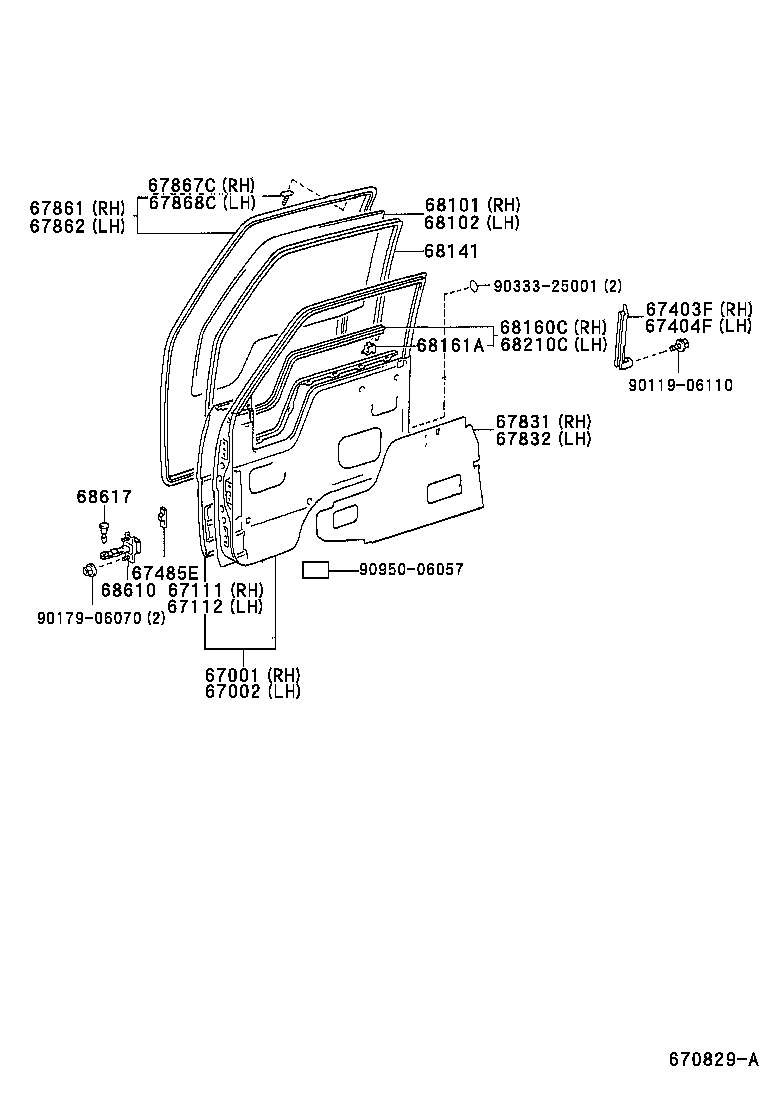

ILLUST NO. 2 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-37050 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37060 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-37040 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-37050 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-95400 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-95400 |
BU10#,11#,14#,21#,22#,YU210 |
1 | ||
| 67485E - SEAL, FRONT DOOR BRACKET | ||||
| 67485-95701 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-95408 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-95409 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
28 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
28 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-37030 |
BU10#,11#,14#,21#,22#,RZU100..ARL,GEN,TAIW *TT,T=4.0 |
1 | ||
| 68111-37050 |
BU211,212,221,222..ARL,GEN;BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,213,223,RZU100..DSL,EFI,TDEFI *TT,T=4.0,GREEN |
1 | ||
| 68111-95407 |
BU10#,11#,14#,21#,22#,YU210 *TEM,T=4.0 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-37050 |
BU10#,11#,14#,21#,22#,RZU100..ARL,GEN,TAIW *TT,T=4.0,GREEN |
1 | ||
| 68112-37070 |
BU211,212,221,222..ARL,GEN;BU142..(20T,25T)..(ARL,GEN);BU10#,11#,140,141,213,223,RZU100..DSL,EFI,TDEFI *TT,T=4.0,GREEN |
1 | ||
| 68112-95407 |
BU10#,11#,14#,21#,22#,YU210 *TEM,T=4.0 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-95408 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-95403 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 68161A - CLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP) | ||||
| 68211-12080 |
BU10#,11#,14#,21#,22#,RZU100,YU210 WHITE |
8 | ||
| 68211-95402 |
BU10#,11#,14#,21#,22#,RZU100,YU210 RH,ORANGE |
2 | ||
| 68212-95400 |
BU10#,11#,14#,21#,22#,RZU100,YU210 LH,ORANGE |
2 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-95402 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-95401 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90179-06070 | ||||
| 90333-25001 | ||||
| 90950-06057 | ||||

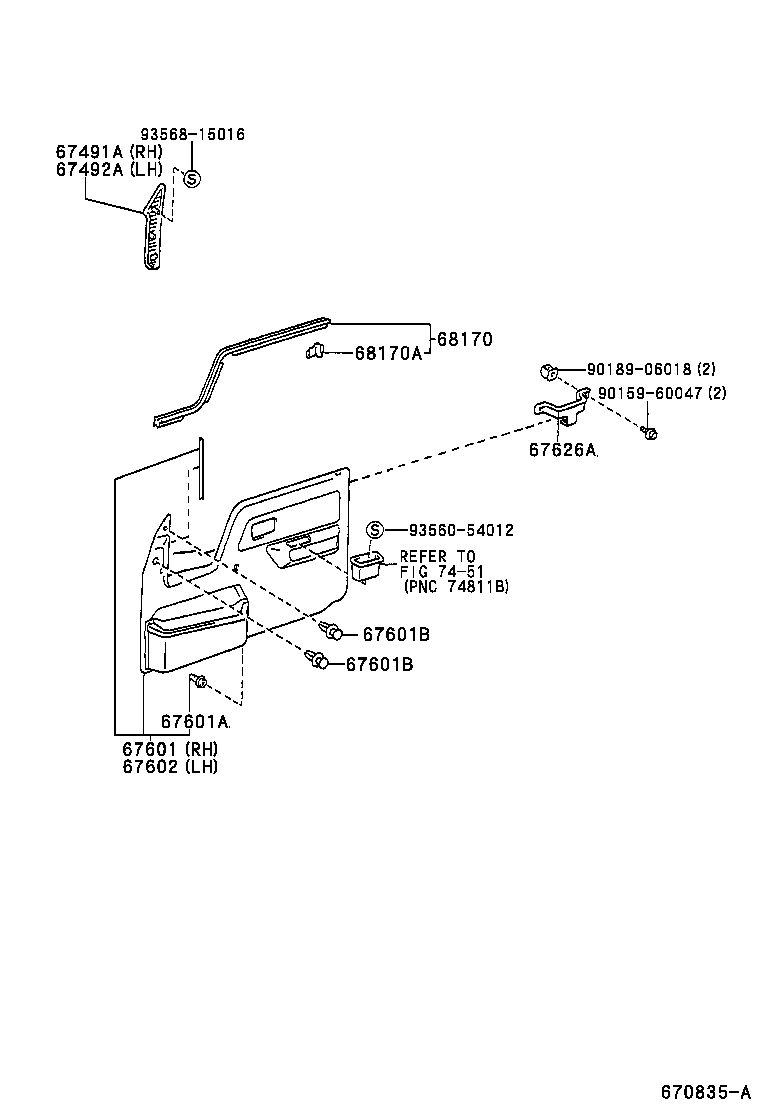

ILLUST NO. 1 OF 3(9505- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-37010 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-95416B0 |
BU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T GRAY,TRIM1# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-30060 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
20 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06017B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 GRAY,TRIM1# |
4 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-06017B0 |
BU10#,11#,14#,21#,22#,RZU100,YU210 GRAY,TRIM1# |
4 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-95422B0 |
BU222..EUR;BU212..LHD..40T..TD;BU102,212,222..RHD..IV3;BU100,101,110,111,14#,211,221,RZU100,YU210..175T,20T,25T,30T,40T GRAY,TRIM1# |
1 | ||
| 67626A - BRACKET, DOOR TRIM, NO.2 | ||||
| 67626-95400 |
BU10#,11#,14#,21#,22#,RZU100,YU210 |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-95406 |
BU10#,11#,14#,21#,22#,RZU100,YU210 LH |
1 | ||
| 68171-95409 |
BU10#,11#,14#,21#,22#,RZU100,YU210 RH |
1 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68212-95400 |
BU10#,11#,14#,21#,22#,RZU100,YU210 RH,ORANGE |
1 | ||
| 68211-12080 |
BU10#,11#,14#,21#,22#,RZU100,YU210 WHITE |
10 | ||
| 68211-95402 |
BU10#,11#,14#,21#,22#,RZU100,YU210 LH,ORANGE |
1 | ||
| 68211-95401 |
BU10#,11#,14#,21#,22#,RZU100,YU210 YELLOW |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| 93560-54012 | ||||
| 93568-15016 | ||||
| Linked diagrams | ||||
| 7451 | ||||
ILLUST NO. 3 OF 3(9505- )
| Part # | Description | Qty | Price |
|---|
