BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )TW1,TW2

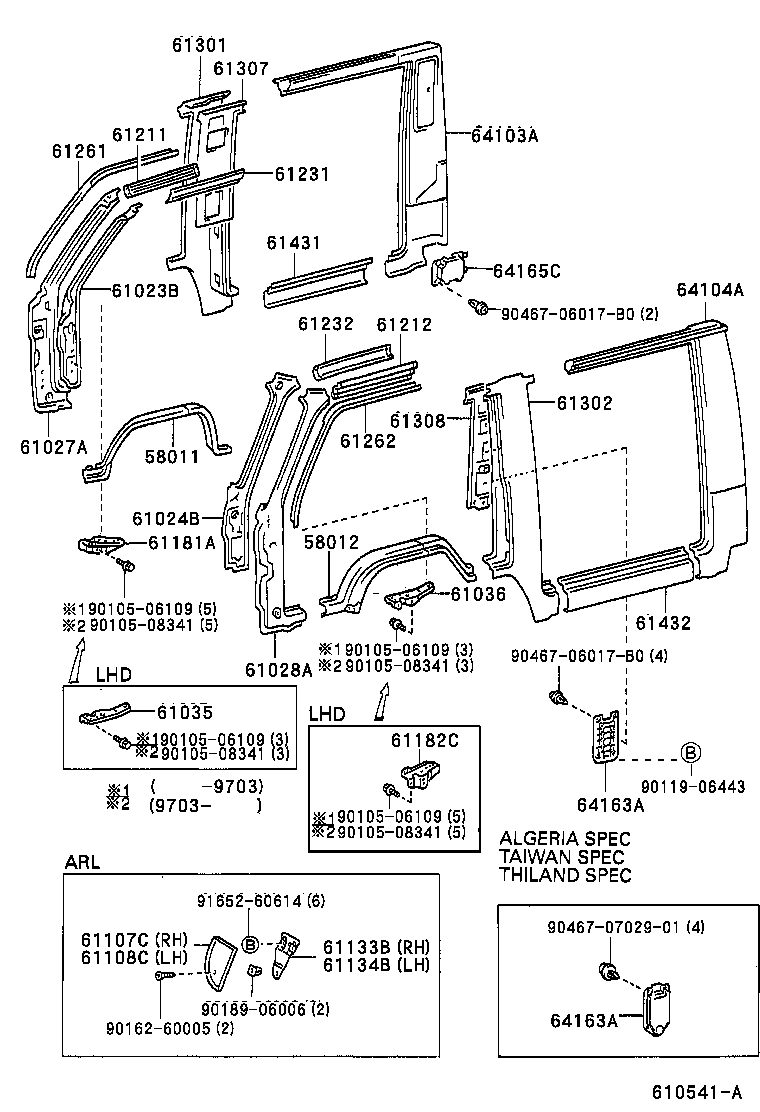

Click highlighted areas on diagram

diagram 58011 58012 61023B 61024B 61027A 61028A 61035 61036 61107C 61108C 61133B 61134B 61181A 61182C 61211 61212 61231 61232 61261 61262 61301 61302 61307 61308 61431 61432 64103A 64104A 64163A 64163A 64165C 9010506109 9010506109 9010506109 9010506109 9010508341 9010508341 9010508341 9010508341 9011906443 9016260005 9018906006 9046706017B0 9046706017B0 904670702901 9165260614
Part # Description Qty Price
58011 - PANEL SUB-ASSY, FRONT FLOOR SIDE, RH
58011-37030

BU100,101,142,211,212..TW1,TW2

 1
58012 - PANEL SUB-ASSY, FRONT FLOOR SIDE, LH
58012-37040

BU100,101,142,211,212..TW1,TW2

 1
61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH
61023-37030

BU10#,111,112,14#,21#,22#..LHD

 1
61023-37031

BU10#,111,112,14#,211,212,221,222..LHD

 1
61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH
61024-37050

BU10#,111,112,14#,21#,22#..LHD

 1
61024-37051

BU10#,111,112,14#,211,212,221,222..LHD

 1
61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH
61027-37021

BU212;BU142,222..20T,25T,40T;BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

 1
61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH
61028-37031

RZU100..RHD;BU10#,11#,14#,21#,22#,YU210..ARL,GEN,SA,TAIW

 1
61028-37041

BU222..EUR;BU212..LHD..40T..TD;BU100,101,111,14#,211,221..LHD..(DM1,T3,TW1,TW2)

W(RADIO ANTENNA)

 1
61035 - BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
61035-37011

BU10#,111,112,14#,RZU100..LHD

 1
61035-37010

BU10#,111,112,14#..LHD

 1
61182C - BRACKET, INSTRUMENT SIDE, LH
61182-37021

BU10#,111,112,14#,21#,22#,RZU100..LHD

 1
61182-37020

BU10#,111,112,14#,21#,22#..LHD

 1
61211 - RAIL, ROOF SIDE, OUTER RH
61211-95404

BU100,101,142,211,212..TW1,TW2

 1
61212 - RAIL, ROOF SIDE, OUTER LH
61212-95404

BU100,101,142,211,212..TW1,TW2

 1
61231 - RAIL, ROOF SIDE, INNER RH
61203-95400

BU100,101,142,211..LHD..(TW1,TW2)

 1
61232 - RAIL, ROOF SIDE, INNER LH
61204-95401

BU100,101,142,211..LHD..(TW1,TW2)

 1
61261 - CHANNEL, ROOF DRIP, RH
61261-37020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
61262 - CHANNEL, ROOF DRIP, LH
61262-37020

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
61301 - PILLAR SUB-ASSY, CENTER BODY, RH
61301-95A08

BU100,101,142..TW1,TW2

 1
61302 - PILLAR SUB-ASSY, CENTER BODY, LH
61302-95A12

BU100,101,142..TW1,TW2

 1
61302-95401

BU100,101..175T..GEN

SAUDI ARABIA & GULF SPEC

 1
61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH
61307-37020

BU100,101,142..TW1,TW2

 1
61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH
61308-37030

BU100,101..175T..GEN

W(REAR HEATOR)

 1
61308-37020

BU100,101,142..TW1,TW2

 1
61431 - PANEL, ROCKER, OUTER REAR RH
61431-95401

BU100,101,142,211,212..TW1,TW2

 1
61432 - PANEL, ROCKER, OUTER REAR LH
61431-95401

BU100,101,142,211,212..TW1,TW2

 1
64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH
64103-37031

BU100,101..175T..GEN

 1
64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH
64104-37031

BU100,101..175T..GEN

 1
64163A - COVER, BACK CORNER, INNER
64163-37020B0

BU100,111,140,141..LHD..(DM1,T3,TW2)..GEN

SAUDI ARABIA & GULF SPEC,BLUISH GRAY,TRIM1#

 2
64163-37020B0

BU142..TW1;BU222..EUR;BU101..LHD..ST..TS;BU212,222,RZU100..RHD..GEN..IV3;BU100,102,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2)

SAUDI ARABIA & GULF SPEC,BLUISH GRAY,TRIM1#

 2
64163-37010B0

BU212,222..SA;BU142,212..LHD..(25T,40T)..TD..GEN;BU100,101,111,140,141,211,221,YU210..(DM1,T1,T3,TW1,TW2)..(GEN,SA)

BLUISH GRAY,TRIM1#

 2
64163-37010B0

BU212..GEN;BU10#,111,112,140,141,211,221,YU210..(DM1,T1,T2,T3,TW2)..(GEN,SA,TAIW)

BLUISH GRAY,TRIM1#

 2
64163A - COVER, BACK CORNER, INNER
64163-37020B0

BU100,111,140,141..LHD..(DM1,T3,TW2)..GEN

SAUDI ARABIA & GULF SPEC,BLUISH GRAY,TRIM1#

 2
64163-37020B0

BU142..TW1;BU222..EUR;BU101..LHD..ST..TS;BU212,222,RZU100..RHD..GEN..IV3;BU100,102,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2)

SAUDI ARABIA & GULF SPEC,BLUISH GRAY,TRIM1#

 2
64163-37010B0

BU212,222..SA;BU142,212..LHD..(25T,40T)..TD..GEN;BU100,101,111,140,141,211,221,YU210..(DM1,T1,T3,TW1,TW2)..(GEN,SA)

BLUISH GRAY,TRIM1#

 2
64163-37010B0

BU212..GEN;BU10#,111,112,140,141,211,221,YU210..(DM1,T1,T2,T3,TW2)..(GEN,SA,TAIW)

BLUISH GRAY,TRIM1#

 2
Common parts
90105-06109
90105-08341
90119-06443
90162-60005
90189-06006
90467-06017B0
90467-0702901
91652-60614
