BU100L-PSMJS (1995)
Toyota Dyna200
Production
May 1995
-
May 1999
Engine
3B
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9505- )

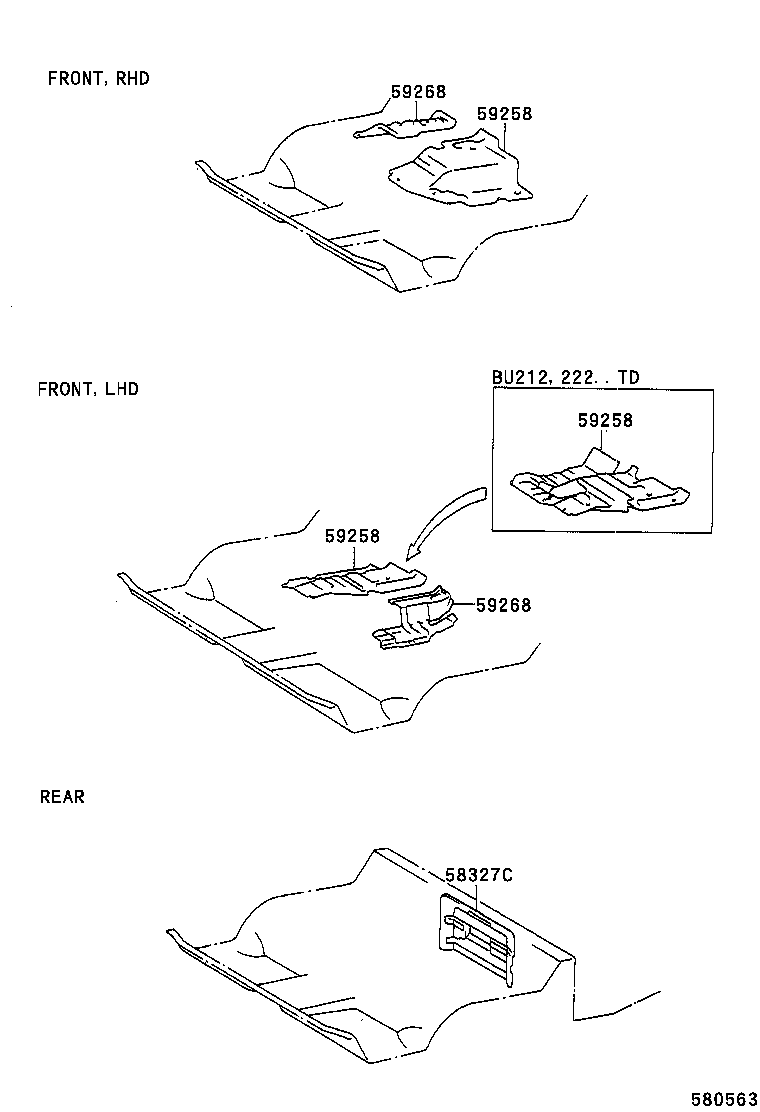

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58327C - INSULATOR, TRANSMISSION SERVICE HOLE COVER | ||||
| 58327-37020 |
BU100..175T |
1 | ||
| 58327-37021 |
BU100,101,142..TW1,TW2 |
1 | ||
| 59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN | ||||
| 59258-37070 |
BU212,222..TAIW;BU10#,111,112,14#,211,221..LHD |
1 | ||
| 59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN | ||||
| 59258-37070 |
BU212,222..TAIW;BU10#,111,112,14#,211,221..LHD |
1 | ||
| 59258 - INSULATOR, ENGINE SERVICE HOLE COVER MAIN | ||||
| 59258-37070 |
BU212,222..TAIW;BU10#,111,112,14#,211,221..LHD |
1 | ||
| 59268 - INSULATOR, ENGINE SUB COVER | ||||
| 59268-37040 |
BU10#,111,112,140,141,21#,22#..LHD |
1 | ||
| 59268-37041 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
| 59268-37042 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
| 59268 - INSULATOR, ENGINE SUB COVER | ||||
| 59268-37040 |
BU10#,111,112,140,141,21#,22#..LHD |
1 | ||
| 59268-37041 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
| 59268-37042 |
BU10#,111,112,14#,21#,22#..LHD |
1 | ||
