BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )TW1,TW2

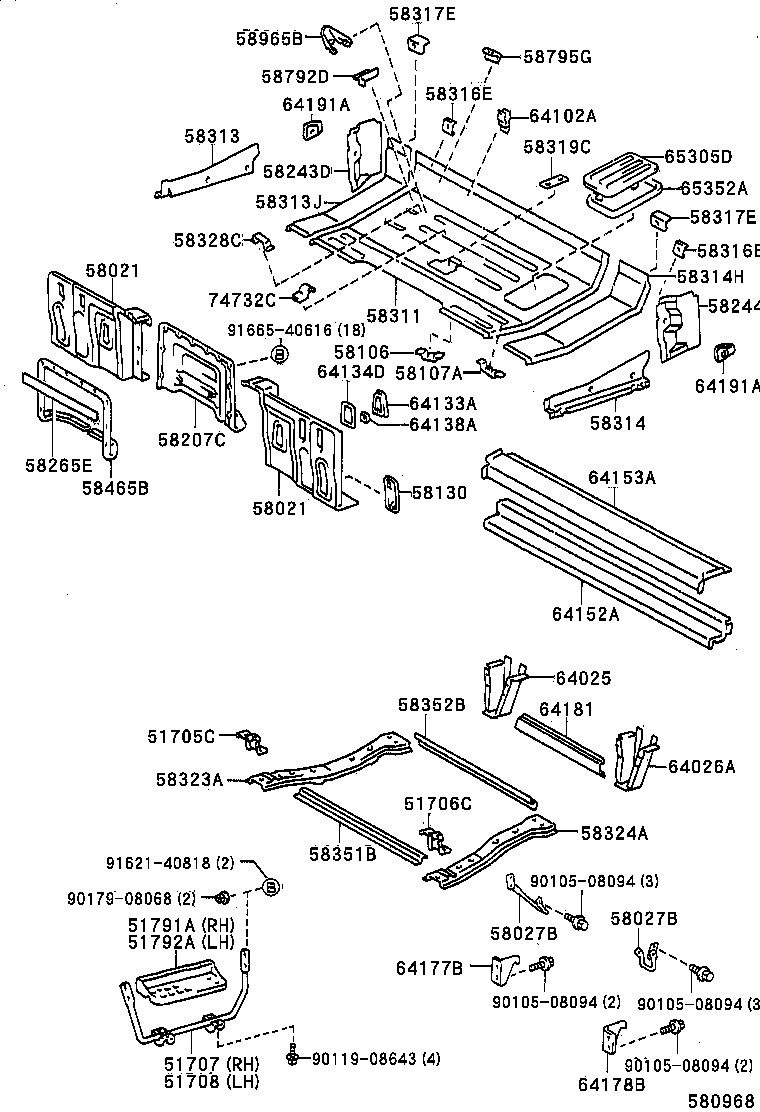

Click highlighted areas on diagram

diagram 51705C 51706C 51707 51708 51791A 51792A 58021 58021 58027B 58027B 58106 58107A 58130 58207C 58243D 58244D 58265E 58311 58313 58313J 58314 58314H 58316E 58316E 58317E 58317E 58319C 58323A 58324A 58328C 58351B 58352B 58465B 58792D 58795G 58965B 64025 64026A 64102A 64133A 64134D 64138A 64152A 64153A 64177B 64178B 64181 64191A 64191A 65305D 65352A 74732C 9010508094 9010508094 9010508094 9010508094 9011908643 9017908068 9162140818 9166540616
Part # Description Qty Price
51705C - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51705-95400

BU100,101,142,211,212..TW1,TW2

 1
51706C - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51706-95400

BU100,101,142,211,212..TW1,TW2

 1
51707 - STEP SUB-ASSY, RH
58307-95403

BU100,101,142,211,212..TW1,TW2

 1
51708 - STEP SUB-ASSY, LH
58308-95400

BU100,101,142,211,212..TW1,TW2

 1
51791A - PANEL, STEP, REAR RH
51791-95A00

BU100,101,142,211,212..TW1,TW2

 1
51792A - PANEL, STEP, REAR LH
51791-95A00

BU100,101,142,211,212..TW1,TW2

 1
58021 - PANEL SUB-ASSY, HEADER
58022-37010

BU100,101,142..TW1,TW2

LH

 1
58021-37010

BU100,101,142..TW1,TW2

RH

 1
58021 - PANEL SUB-ASSY, HEADER
58022-37010

BU100,101,142..TW1,TW2

LH

 1
58021-37010

BU100,101,142..TW1,TW2

RH

 1
58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58106-95A00

BU100,101,142..TW1,TW2

 1
58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1
58107-95A00

BU100,101,142..TW1,TW2

 1
58130 - COVER ASSY, RESERVE TANK SERVICE HOLE
58130-92600

BU100,101,142,211,212..TW1,TW2

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-37020

BU100..175T

 1
58207-37021

BU100,101,142..TW1,TW2

 1
58243D - PANEL, FLOOR SIDE, REAR RH
58043-37010

BU100,101,142..TW1,TW2

 1
58244D - PANEL, FLOOR SIDE, REAR LH
58044-37010

BU100,101,142..TW1,TW2

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

BU100,101,142..TW1,TW2

 1
58311 - PAN, REAR FLOOR
58311-95417

BU100,101,142..TW1,TW2

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-95402

BU100,101,142,211,212..TW1,TW2

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-95403

BU100,101,142,211,212..TW1,TW2

 1
58316E - RETAINER, REAR SEAT SET
58316-95402

BU100,101,142,211,212..TW1,TW2

 2
58316E - RETAINER, REAR SEAT SET
58316-95402

BU100,101,142,211,212..TW1,TW2

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

BU100,101,142,211,212..TW1,TW2

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

BU100,101,142,211,212..TW1,TW2

 2
58319C - ANCHOR, REAR SEAT
58319-95400

BU100,101,142..TW1,TW2

 1
58323A - BRACE, CENTER TO REAR MOUNTING, RH
58323-95403

BU100,101,142..TW1,TW2

 1
58324A - BRACE, CENTER TO REAR MOUNTING, LH
58324-95403

BU100,101,142..TW1,TW2

 1
58351B - REINFORCEMENT, REAR FLOOR PANEL, RH
58351-95406

BU100,101,142..TW1,TW2

 1
58352B - REINFORCEMENT, REAR FLOOR PANEL, LH
58352-95402

BU100,101,142..TW1,TW2

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

BU100,101,142..TW1,TW2

 1
58792D - SUPPORT, JACK
58792-95401

BU100,101,142..TW1,TW2

 1
58795G - PLATE, JACK CLAMP
58795-95500

BU100,101,142,211,212..TW1,TW2

 1
58965B - HOLDER, JACK
58965-95400

BU100,101,142,211,212..TW1,TW2

 1
64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH
64025-95401

BU100,101,142..TW1,TW2

 1
64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH
64025-95401

BU100,101,142..TW1,TW2

 1
64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT
64102-95403

BU100,101,142..TW1,TW2

 2
64133A - COVER, HEADER PANEL
64133-95400

BU100,101,142,211,212..TW1,TW2

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

BU100,101,142,211,212..TW1,TW2

 2
64138A - SEAL, HEADER PANEL COVER
64138-95400

BU100,101,142..TW1,TW2

 4
64152A - FRAME, BACK, LOWER
64152-95402

BU100,101,142..TW1,TW2

 1
64153A - REINFORCEMENT, BACK FRAME
64153-95403

BU100,101,142..TW1,TW2

 1
64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
64181-95401

BU100,101,142..TW1,TW2

 1
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU100,101,142,211,212..TW1,TW2

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

BU100,101,142,211,212..TW1,TW2

 1
74732C - BRACKET, TOOL BAG SET BAND
74732-95600

BU100,101,142,211,212..TW1,TW2

 2
Common parts
90105-08094
90119-08643
90179-08068
91621-40818
91665-40616

(9505- )BU100..175T

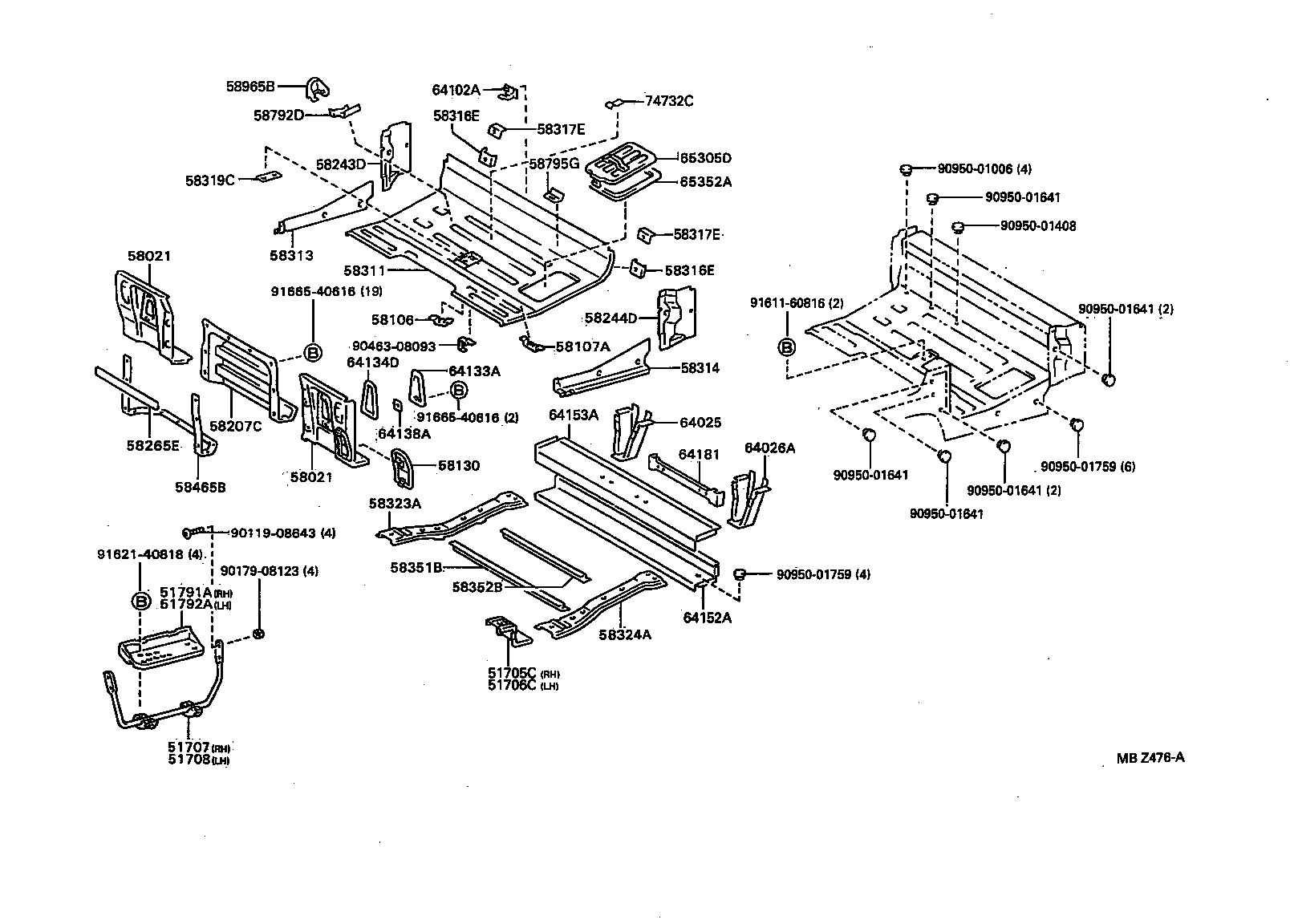

Click highlighted areas on diagram

diagram 51705C 51706C 51707 51708 51791A 51792A 58021 58021 58106 58107A 58130 58207C 58243D 58244D 58265E 58311 58313 58314 58316E 58316E 58317E 58317E 58319C 58323A 58324A 58351B 58352B 58465B 58792D 58795G 58965B 64025 64026A 64102A 64133A 64134D 64138A 64152A 64153A 64181 65305D 65352A 74732C 9011908643 9017908123 9046308093 9095001006 9095001408 9095001641 9095001641 9095001641 9095001641 9095001641 9095001759 9095001759 9161160816 9162140818 9166540616 9166540616
Part # Description Qty Price
51705C - BRACKET SUB-ASSY, CAB REAR MOUNTING, RH
51705-95400

BU100,101,142,211,212..TW1,TW2

 1
51706C - BRACKET SUB-ASSY, CAB REAR MOUNTING, LH
51706-95400

BU100,101,142,211,212..TW1,TW2

 1
51707 - STEP SUB-ASSY, RH
58307-95403

BU100,101,142,211,212..TW1,TW2

 1
51708 - STEP SUB-ASSY, LH
58308-95400

BU100,101,142,211,212..TW1,TW2

 1
51791A - PANEL, STEP, REAR RH
51791-95A00

BU100,101,142,211,212..TW1,TW2

 1
51792A - PANEL, STEP, REAR LH
51791-95A00

BU100,101,142,211,212..TW1,TW2

 1
58021 - PANEL SUB-ASSY, HEADER
58022-37010

BU100,101,142..TW1,TW2

LH

 1
58021-37010

BU100,101,142..TW1,TW2

RH

 1
58021 - PANEL SUB-ASSY, HEADER
58022-37010

BU100,101,142..TW1,TW2

LH

 1
58021-37010

BU100,101,142..TW1,TW2

RH

 1
58106 - BRACKET SUB-ASSY, BRAKE TUBE CONNECTOR, NO.2
58106-95A00

BU100,101,142..TW1,TW2

 1
58107A - BRACKET SUB-ASSY, CLAMP SET, NO.1
58107-95A00

BU100,101,142..TW1,TW2

 1
58130 - COVER ASSY, RESERVE TANK SERVICE HOLE
58130-92600

BU100,101,142,211,212..TW1,TW2

 1
58207C - COVER SUB-ASSY, TRANSMISSION SERVICE HOLE
58207-37020

BU100..175T

 1
58207-37021

BU100,101,142..TW1,TW2

 1
58243D - PANEL, FLOOR SIDE, REAR RH
58043-37010

BU100,101,142..TW1,TW2

 1
58244D - PANEL, FLOOR SIDE, REAR LH
58044-37010

BU100,101,142..TW1,TW2

 1
58265E - PACKING, TRANSMISSION COVER, C
58265-95400

BU100,101,142..TW1,TW2

 1
58311 - PAN, REAR FLOOR
58311-95417

BU100,101,142..TW1,TW2

 1
58313 - PANEL, REAR FLOOR SIDE, RH
58313-95402

BU100,101,142,211,212..TW1,TW2

 1
58314 - PANEL, REAR FLOOR SIDE, LH
58314-95403

BU100,101,142,211,212..TW1,TW2

 1
58316E - RETAINER, REAR SEAT SET
58316-95402

BU100,101,142,211,212..TW1,TW2

 2
58316E - RETAINER, REAR SEAT SET
58316-95402

BU100,101,142,211,212..TW1,TW2

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

BU100,101,142,211,212..TW1,TW2

 2
58317E - RETAINER, REAR SEAT, NO.2
58317-95402

BU100,101,142,211,212..TW1,TW2

 2
58319C - ANCHOR, REAR SEAT
58319-95400

BU100,101,142..TW1,TW2

 1
58323A - BRACE, CENTER TO REAR MOUNTING, RH
58323-95403

BU100,101,142..TW1,TW2

 1
58324A - BRACE, CENTER TO REAR MOUNTING, LH
58324-95403

BU100,101,142..TW1,TW2

 1
58351B - REINFORCEMENT, REAR FLOOR PANEL, RH
58351-95406

BU100,101,142..TW1,TW2

 1
58352B - REINFORCEMENT, REAR FLOOR PANEL, LH
58352-95402

BU100,101,142..TW1,TW2

 1
58465B - PACKING, TRANSMISSION SERVICE HOLE COVER
58465-92601

BU100,101,142..TW1,TW2

 1
58792D - SUPPORT, JACK
58792-95401

BU100,101,142..TW1,TW2

 1
58795G - PLATE, JACK CLAMP
58795-95500

BU100,101,142,211,212..TW1,TW2

 1
58965B - HOLDER, JACK
58965-95400

BU100,101,142,211,212..TW1,TW2

 1
64025 - BRACKET SUB-ASSY, REAR MOUNTING, RH
64025-95401

BU100,101,142..TW1,TW2

 1
64026A - BRACKET SUB-ASSY, REAR MOUNTING, LH
64025-95401

BU100,101,142..TW1,TW2

 1
64102A - BRACKET SUB-ASSY, JACK HANDLE SUPPORT
64102-95403

BU100,101,142..TW1,TW2

 2
64133A - COVER, HEADER PANEL
64133-95400

BU100,101,142,211,212..TW1,TW2

 2
64134D - PACKING, HEADER PANEL COVER
64134-95400

BU100,101,142,211,212..TW1,TW2

 2
64138A - SEAL, HEADER PANEL COVER
64138-95400

BU100,101,142..TW1,TW2

 4
64152A - FRAME, BACK, LOWER
64152-95402

BU100,101,142..TW1,TW2

 1
64153A - REINFORCEMENT, BACK FRAME
64153-95403

BU100,101,142..TW1,TW2

 1
64181 - REINFORCEMENT SUB-ASSY, REAR SEAT BELT ANCHOR
64181-95401

BU100,101,142..TW1,TW2

 1
65305D - COVER SUB-ASSY, BATTERY HOLE
65305-95A03

BU100,101,142,211,212..TW1,TW2

 1
65352A - PACKING, BATTERY HOLE COVER, NO.2
65352-95A02

BU100,101,142,211,212..TW1,TW2

 1
74732C - BRACKET, TOOL BAG SET BAND
74732-95600

BU100,101,142,211,212..TW1,TW2

 2
Common parts
90119-08643
90179-08123
90463-08093
90950-01006
90950-01408
90950-01641
90950-01759
91611-60816
91621-40818
91665-40616
