Toyota Dyna200 BU100 RADIATOR GRILLE

BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999

Engine 3B

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(9505- )BU212 ; (9505- )BU142,222..20T,25T,40T ; (9505- )BU10#,11#,140,141

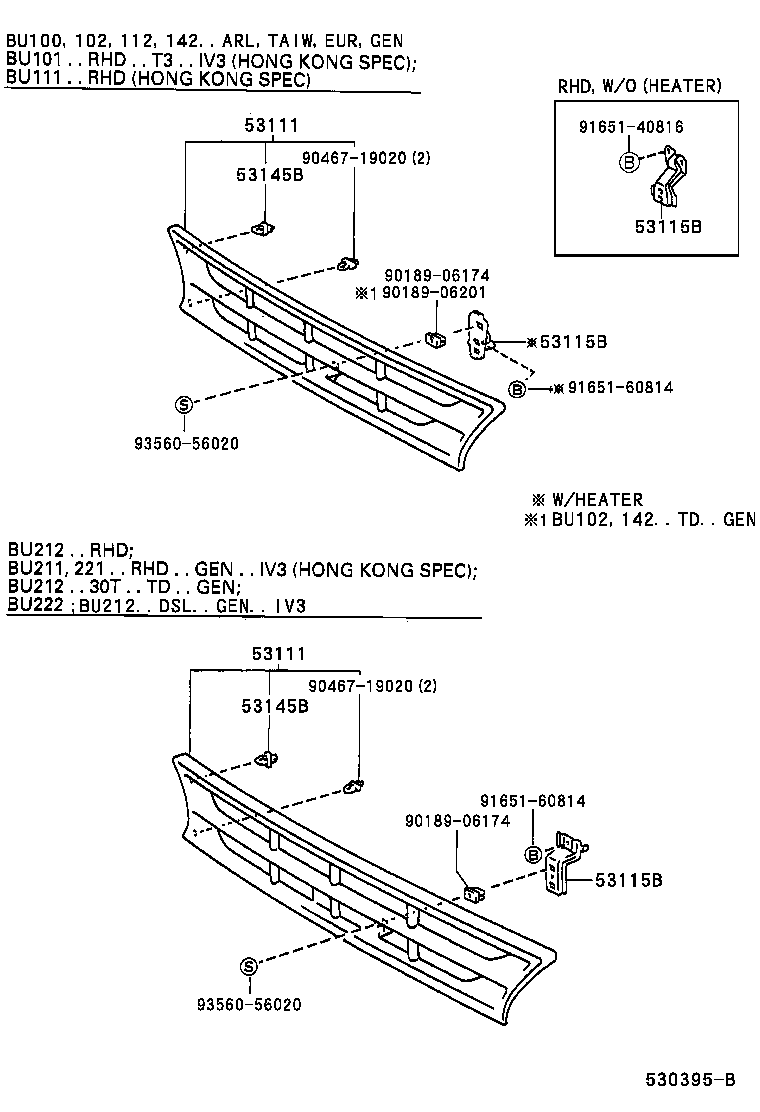

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53111 - GRILLE, RADIATOR
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
Common parts
67921-32010
90109-06083
90159-60354
90189-06174
90189-06201
90467-13011
91651-40816
91651-60814
93560-56020

(9505- )TD..SA ; (9505- )BU212,222..ARL,EUR,GEN,TAIW ; (9505- )BU10#,11#,1

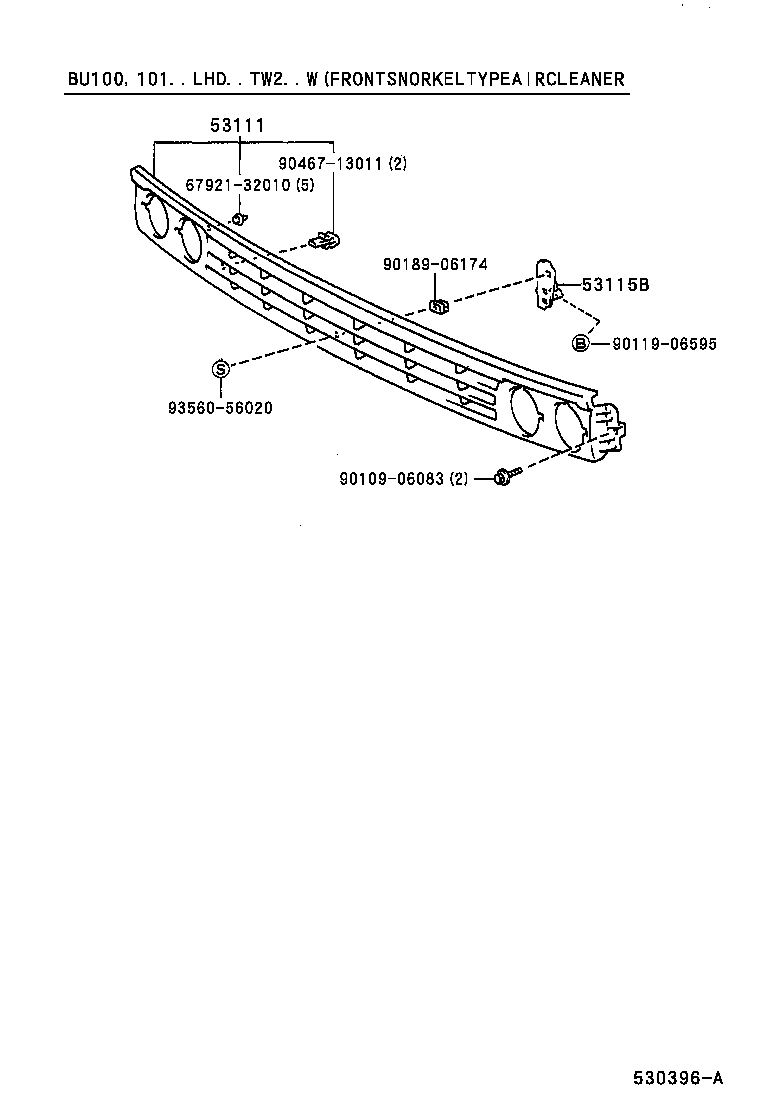

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53111 - GRILLE, RADIATOR
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
Common parts
90189-06174
90189-06201
90467-19020
91651-40816
91651-60814
93560-56020

(9505- )BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI

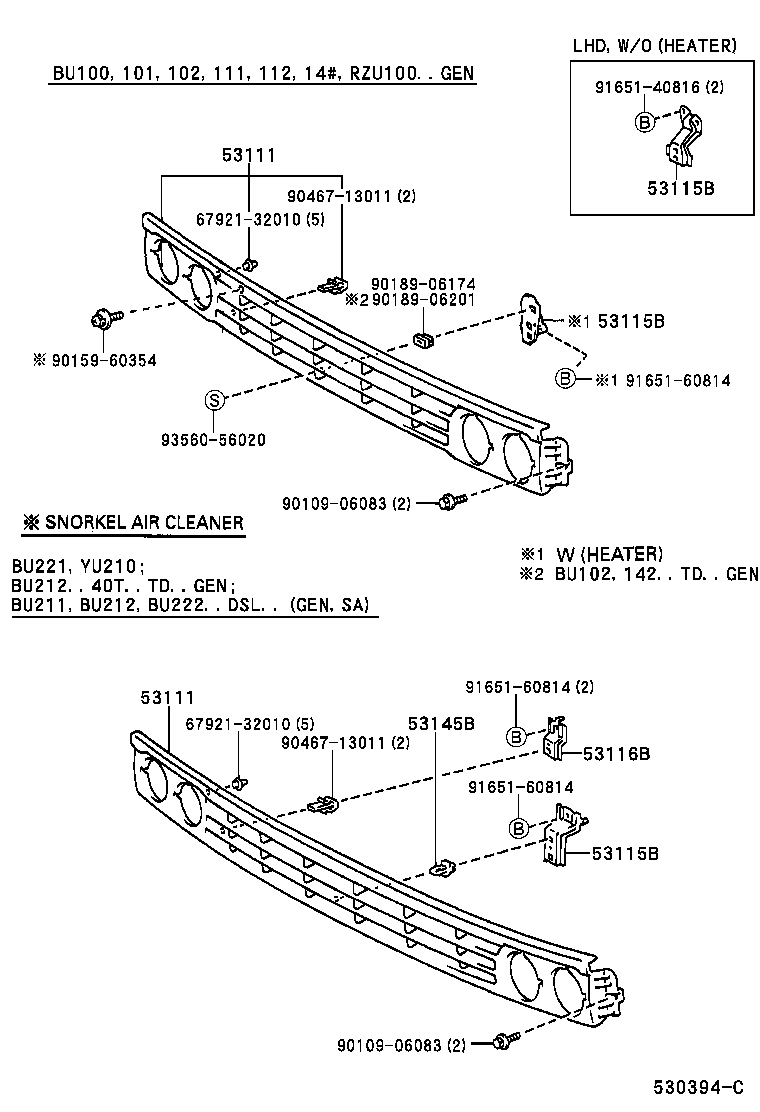

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37150B0	BU100..175T..GEN W(FRONT *STAC),LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53101-37070B0	BU100,101,111,14#..GEN,SA LT. GRAY,048 ,8E5	05/1995 - 05/1999	1
53115B - BRACKET, RADIATOR GRILLE
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37030	BU101..RHD..GEN;BU101..20T..GEN..TB;BU101,142..LHD..WT..GEN;BU100,111,140,141..(DM1,T3,TW2)..GEN W(BOOSTVENTILATOR)	05/1995 - 12/2999	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU10#,11#,14#,RZU100 W(FRONT HEATER)	05/1995 - 08/1997	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37020	BU101..SA;RZU100..RHD;BU101..WT..CBU;BU101..GEN..TB;BU100,102,11#,140..DSL;BU101..LHD..WT..IV3..TS;BU141,142..(20T,25T)..(ARL,EUR,GEN) W(FRONT HEATER)	08/1997 - 12/2999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
53115-37030	BU100..175T..GEN W(FR *STAC & BOOSTVENTILATOR)	05/1995 - 05/1999	1
Common parts
67921-32010
90109-06083
90119-06595
90189-06174
90467-13011
93560-56020

BU100L-PSMJS (1995)

(9505- )BU212 ; (9505- )BU142,222..20T,25T,40T ; (9505- )BU10#,11#,140,141

(9505- )TD..SA ; (9505- )BU212,222..ARL,EUR,GEN,TAIW ; (9505- )BU10#,11#,1

(9505- )BU10#,11#,140,141,211,213,221,223,RZU100,YU210..CBR,DSL,EFI,TDEFI
