BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,11#,14#,RZU100

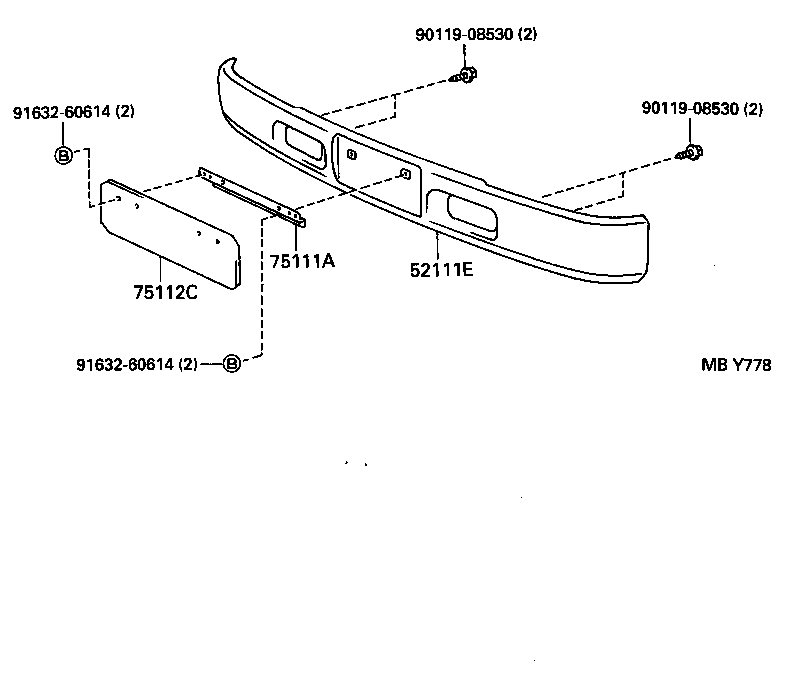

Click highlighted areas on diagram

diagram 52111E 75111A 75112C 9011908530 9011908530 9163260614 9163260614
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-37903

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

W(FRONT *STAC)

 1
52101-37900

BU10#,11#,14#

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
Common parts
90119-08530
91632-60614

(9505- )BU101..GEN,SA ; (9505- )BU142..20T,25T ; (9505- )BU100,102,11#,140

Click highlighted areas on diagram

FRONT SNORKEL TYPE AIR CLEANER

diagram 52111C 52111C 52111C 52111E 52141A 52142A 52711A 75111A 9011908530 9011908530 9017910125 9017910125 9017910125 9163260614
Part # Description Qty Price
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 8
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 8
52111C - BOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)
90112-10019

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 8
52111E - BAR, FRONT BUMPER
52111-37903

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

W(FRONT *STAC)

 1
52101-37900

BU10#,11#,14#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52081-37010

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52082-37010

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 1
52711A - GARNISH, FRONT BUMPER
52711-37010

BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN

 1
75111A - BRACKET, FRONT LICENSE PLATE
75111-37010

BU10#,11#,14#,21#,22#,RZU100,YU210

 1
Common parts
90119-08530
90179-10125
91632-60614
