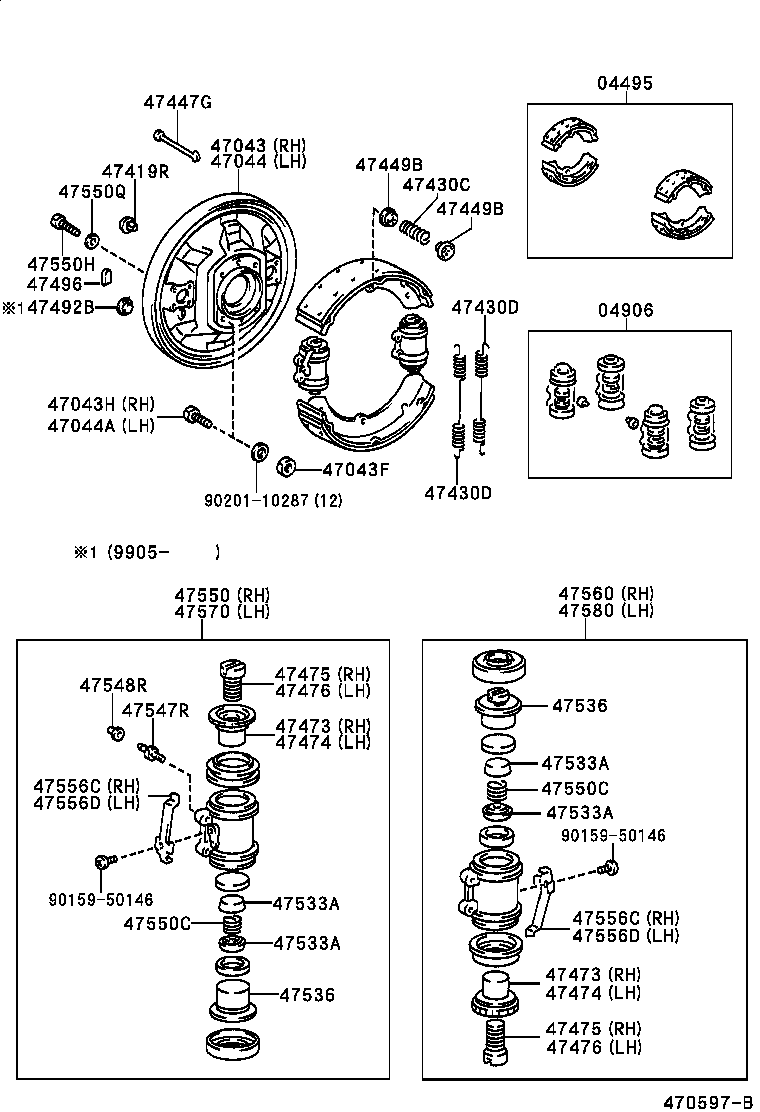

BU100L-PSMJS (1995)
Toyota Dyna200
(9505- )ST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04494-36160 |
BU10#..ST MARK AK LA514 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-36080 |
BU10#..ST |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-36090 |
BU10#..ST |
1 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94130-01002 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
12 | ||
| 90170-10178 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
12 | ||
| 47043H - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-36090 |
BU10#..ST |
1 | ||
| 47044A - BOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH) | ||||
| 90114-10019 |
BU10#,11#,14#,21#,RZU100,YU210..(DM1,DM6,DM7,T1,T3,TW1,TW2)..(15T,175T,20T,25T,30T) |
6 | ||
| 47419R - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47419-35011 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU10#..ST |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-29006 |
BU10#..ST |
4 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-36020 |
BU10#..ST |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
8 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
BU10#..ST |
2 | ||
| 47473 - NUT, REAR WHEEL CYLINDER ADJUSTING, RH(FOR REAR BRAKE) | ||||
| 47551-36150 |
BU10#..ST |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
BU10#..ST |
2 | ||
| 47474 - NUT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47552-36150 |
BU10#..ST |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
2 | ||
| 47475 - BOLT, REAR WHEEL CYLINDER ADJUSTING, RH (FOR REAR BRAKE | ||||
| 47553-36050 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
2 | ||
| 47476 - BOLT, REAR WHEEL CYLINDER ADJUSTING, LH(FOR REAR BRAKE) | ||||
| 47554-36050 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
2 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-36010 |
BU211,YU210..30T;BU10#,11#,14#,212,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
4 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU10#..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU10#..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU10#..ST |
8 | ||
| 47533A - SEAT, WHEEL CYLINDER PISTON SPRING(FOR REAR BRAKE) | ||||
| 47533-40013 |
BU10#..ST |
8 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU10#..ST |
4 | ||
| 47536 - PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE) | ||||
| 47536-36020 |
BU10#..ST |
4 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-12010 |
BU10#,11#,14#,21#,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-36100 |
BU10#..ST |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU10#..ST |
4 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09735 |
BU10#..ST |
4 | ||
| 47550H - BOLT(FOR REAR WHEEL CYLINDER) | ||||
| 90101-08081 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
16 | ||
| 47550Q - WASHER(FOR REAR WHEEL CYLINDER) | ||||
| 90201-08002 |
BU100..T2,TW2;BU100,101..ST..20T;BU102..(15T,20T)..TB |
16 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556C - SPRING, ADJUSTER LOCK, RH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47556D - SPRING, ADJUSTER LOCK, LH(FOR REAR BRAKE) | ||||
| 47555-36051 |
BU211,YU210..30T;BU10#,11#,14#,212,213,223,RZU100..(15T,175T,20T,25T,30T)..(ARL,GEN,TAIW) |
2 | ||
| 47560 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER) | ||||
| 47560-36100 |
BU10#..ST |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-36100 |
BU10#..ST |
1 | ||
| 47580 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, REAR OR LOWER) | ||||
| 47580-36100 |
BU10#..ST |
1 | ||
| Common parts | ||||
| 90159-50146 | ||||
| 90201-10287 | ||||
