BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,111,112,14#..LHD

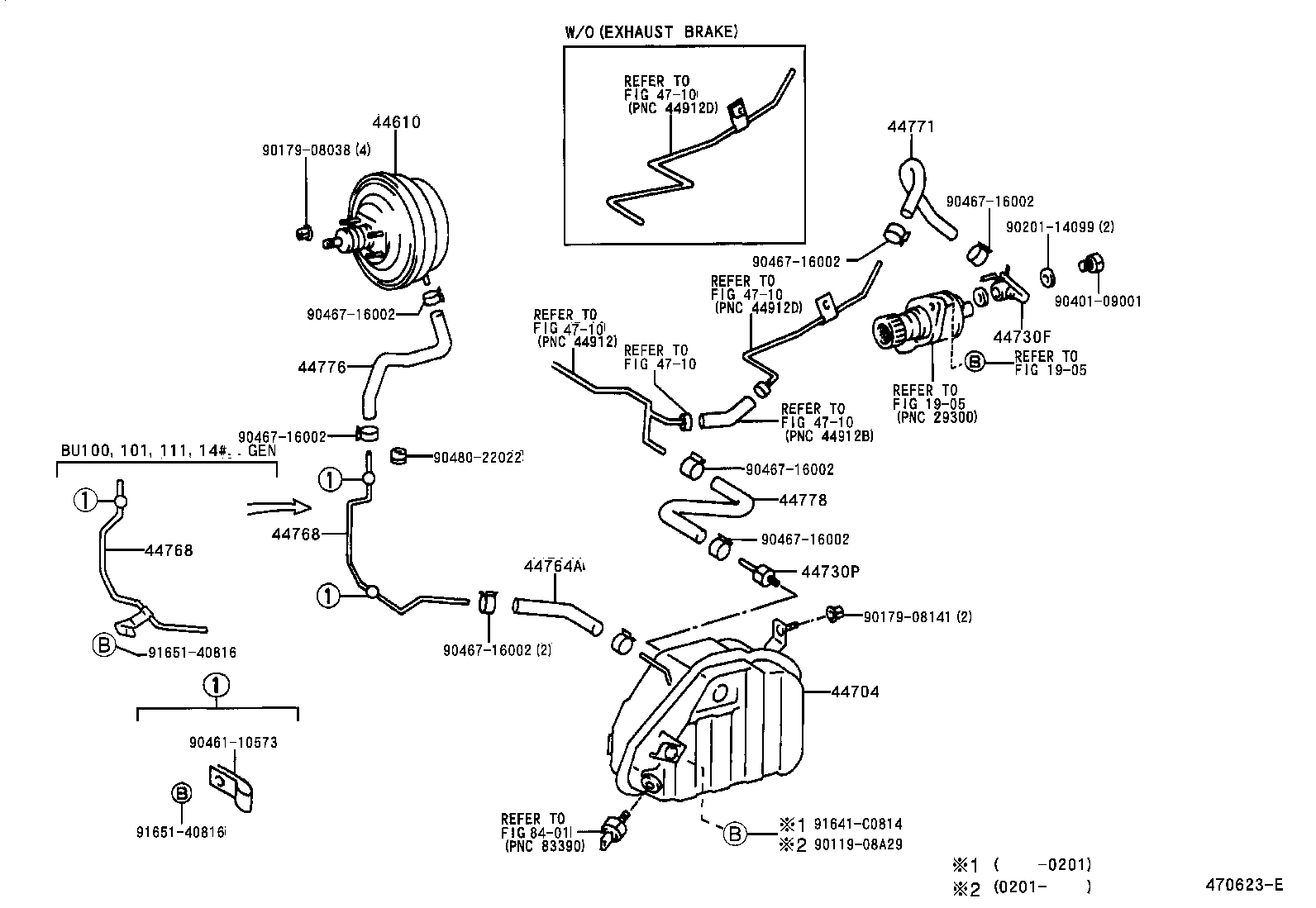

Click highlighted areas on diagram

diagram 1905 1905 44610 44704 44730F 44730P 44764A 44768 44768 44771 44776 44778 4710 4710 4710 4710 4710 8401 9011908A29 9017908038 9017908141 9020114099 9040109001 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9048022022 91641C0814 9165140816 9165140816
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37110

BU100,101..(T1,T3,TW2)..(175T,20T)..(ARL,GEN)

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37040

BU10#,111,112,14#,21#,22#..LHD

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90405-09178

BU102,212,222..TAIW;BU100,101,11#,140,141,211,221..DM1,DM6,T1,T2,T3,TW1,TW2

 1
90405-09164

BU101..GEN;BU212..30T..DSL;BU212..40T..ARL;BU212,222..LHD..TD..GEN;BU100,102,11#,14#,211,221,222..(DM1,DM7,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..DSL..(ARL,EUR,GEN,TAIW)..(CBU,IV3)

W(AIR CONDITIONER)

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

BU10#,11#,14#,21#,22#

 1
44764A - HOSE, BOOSTER VACUUM
90445-17141

BU10#,11#,14#,21#,22#

 1
44768 - TUBE, BOOSTER VACUUM
44768-37080

BU100,101,111,14#..LHD..GEN

 1
44768 - TUBE, BOOSTER VACUUM
44768-37080

BU100,101,111,14#..LHD..GEN

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44774-37010

BU10#,11#,14#..DSL

 1
44776 - HOSE, BRAKE BOOSTER
44776-37010

BU10#,111,112,14#,211,221,RZU100..LHD

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37050

BU10#,111,112,14#..LHD

 1
Common parts
90119-08A29
90179-08038
90179-08141
90201-14099
90401-09001
90461-10573
90467-16002
90480-22022
91641-C0814
91651-40816
Linked diagrams
1905
4710
8401
