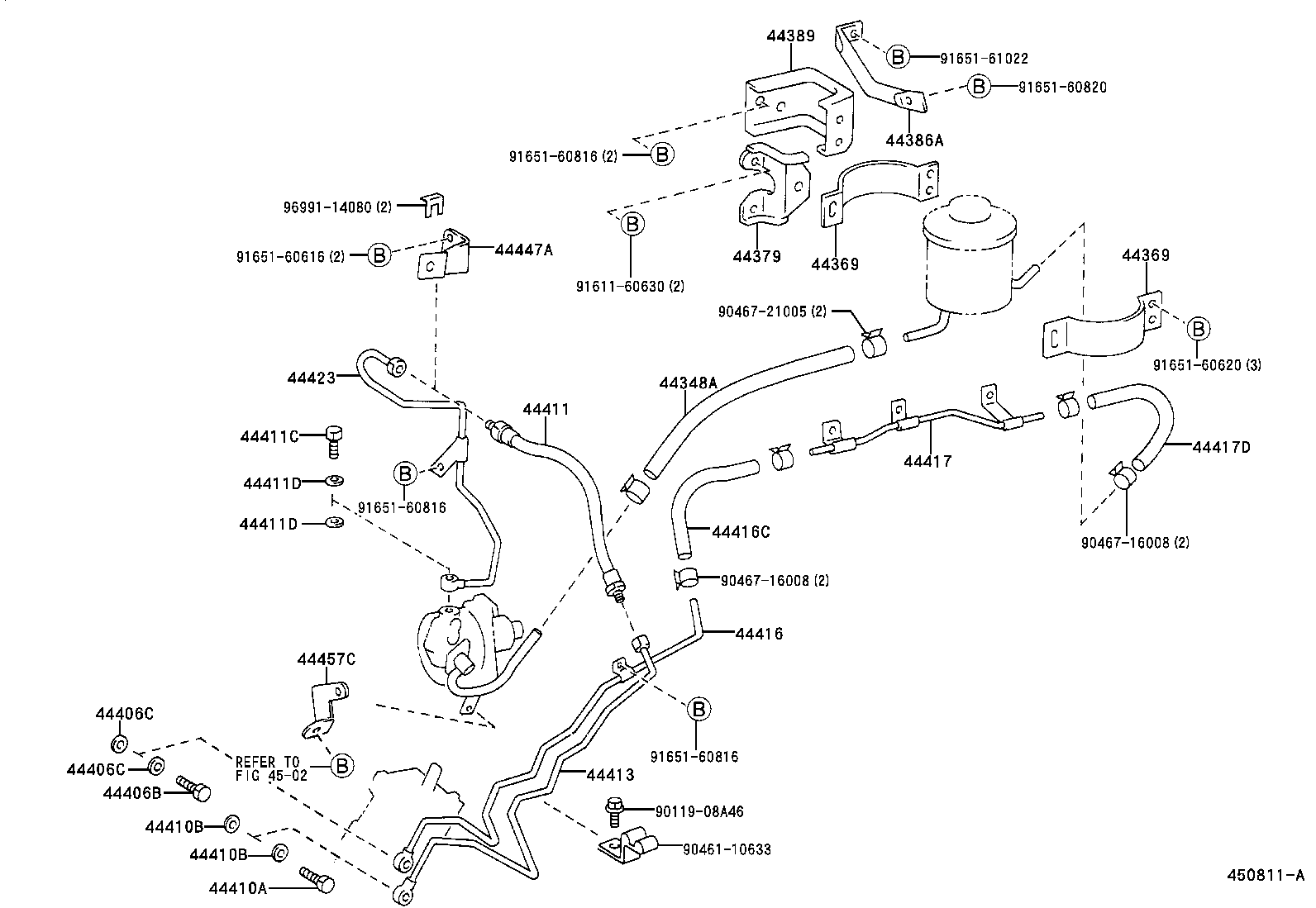

BU100L-PSMJS (1995)
Toyota Dyna200
(9505- )BU100,140..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-36210 |
BU211..CBU;BU212,221..LHD..DSL;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL |
1 | ||
| 44348-36210 |
BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,221..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU100,110,140,213,223 |
2 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-36020 |
BU100,110,140,213,223 |
2 | ||
| 44379 - BRACKET, OIL RESERVOIR, NO.2 | ||||
| 44379-37020 |
BU100,110,140 |
1 | ||
| 44386A - SUPPORT, OIL RESERVOIR | ||||
| 44386-36100 |
BU100,110,140 |
1 | ||
| 44389 - BRACKET, OIL RESERVOIR, NO.3 | ||||
| 44389-36060 |
BU100,110,140 |
1 | ||
| 44406B - BOLT, UNION(FOR RETURN TUBE) | ||||
| 90401-14003 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90401-14003 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN) |
1 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44406C - GASKET(FOR RETURN TUBE) | ||||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-14003 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,TW1,TW2)..(175T,20T,25T,30T,40T)..(ARL,GEN) |
1 | ||
| 90401-14003 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-14235 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 90430-14235 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-37030 |
BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 90401-16027 |
BU142,222..EUR;BU212..RHD..TD;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211,222..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,221..(DM1,T1,T2,T3,TW2)..(ARL,GEN) |
1 | ||
| 90401-16027 |
BU221..LHD;BU211..CBU;BU142,212..EUR,TAIW;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,222..(DM1,T1,T2,T3,TW2)..DSL |
1 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 90430-16168 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 44411D - GASKET(FOR PRESSURE FEED HOSE) | ||||
| 90430-16168 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,14#,212,222..DM1,T1,T2,T3,TW1,TW2 |
2 | ||
| 90430-16168 |
BU222,RZU100;BU142..ARL,EUR;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU10#,11#,140,141,212,221..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,GEN) |
2 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-37050 |
BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) |
1 | ||
| 44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET) | ||||
| 44416-37040 |
BU10#,111,112,140,141..LHD..(DM1,DM7,T2,T3,T4,TW2) |
1 | ||
| 44416C - HOSE(FOR RETURN TUBE TO RESERVIOR) | ||||
| 90445-18132 |
BU221..LHD;BU211..CBU;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212,222..DM1,T1,T2,T3,TW1,TW2 |
1 | ||
| 90445-18132 |
BU222;BU211..LHD..CBU;BU211..LHD..40T..IV3;BU211..RHD..GEN..(CBU,IV3);BU100,101,110,111,140,141,212,221..(DM1,T1,T2,T3,TW1,TW2)..(ARL,GEN) |
1 | ||
| 44417 - TUBE, RETURN, NO.2 | ||||
| 44417-37030 |
BU102..TAIW;BU100,101,11#,140,141..(DM1,T1,T2,T3,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44417D - HOSE(FOR RETURN TUBE TO RESERVOIR) | ||||
| 90445-18139 |
BU100,110,140 |
1 | ||
| 44423 - TUBE, OIL PUMP TO GEAR BOX | ||||
| 44423-37040 |
BU10#,11#,14#..DM1,T1,T2,T3,TW2 |
1 | ||
| 44423-37041 |
BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44447A - BRACKET, HOSE SUPPORT, NO.1 | ||||
| 44447-37030 |
BU142..ARL,EUR;BU10#,11#,140,141..(DM1,DM7,T1,T2,T3,T4,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 44457C - BRACKET, POWER STEERING TUBE SUPPORT, NO.1 | ||||
| 44457-36040 |
BU222;BU221..LHD;BU211..CBU;BU142..ARL,EUR;BU211..LHD..40T..IV3;BU211..RHD..30T..GEN..IV3;BU10#,11#,140,141,212..(DM1,DM7,T1,T2,T3,T4,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| Common parts | ||||
| 90119-08A46 | ||||
| 90461-10633 | ||||
| 90467-16008 | ||||
| 90467-21005 | ||||
| 91611-60630 | ||||
| 91651-60616 | ||||
| 91651-60620 | ||||
| 91651-60816 | ||||
| 91651-60820 | ||||
| 91651-61022 | ||||
| 96991-14080 | ||||
| Linked diagrams | ||||
| 4502 | ||||
