BU100L-PSMJS (1995)
Toyota Dyna200
(9505- )BU100,101..T3..ST ; (9505- )BU100,101..T1,T2,TW2 ; (9505- )BU102..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

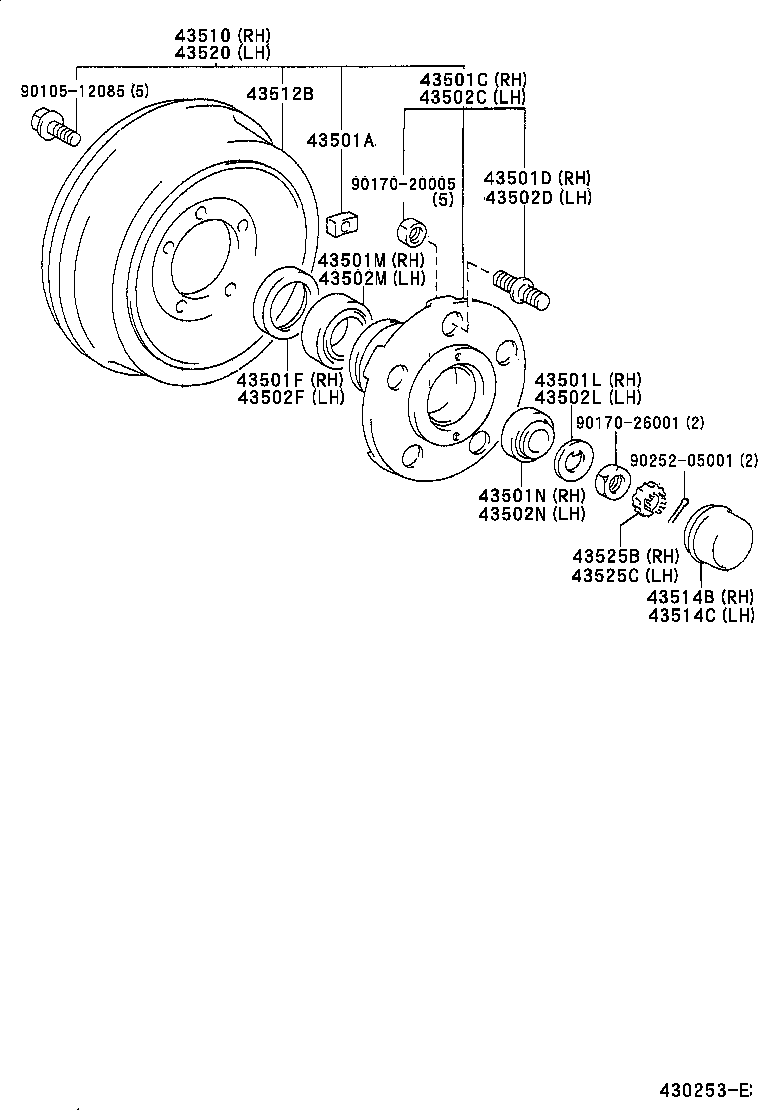

| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
2 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02024 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-42045 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90368-28001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02025 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-27001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90368-28001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36110 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
1 | ||
| 43510F - RING, SHAFT SNAP (FOR FRONT AXLE HUB) | ||||
| 90520-99065 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB T=1.60 |
2 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36060 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36030 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-36030 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36110 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-36010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| Common parts | ||||
| 90170-26001 | ||||
| 90252-05001 | ||||
(9505- )BU211,YU210..30T ; (9505- )BU10#,11#,14#,212,213,223,RZU100..DM1,DM6,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

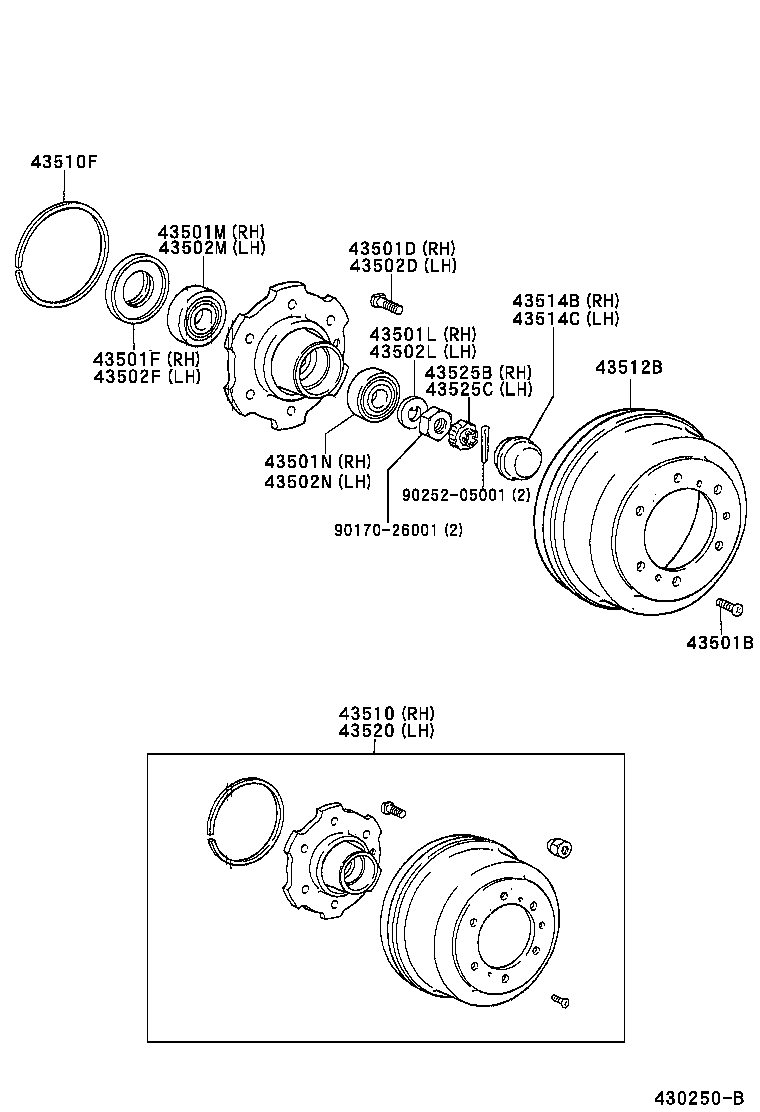

| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02024 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90311-68001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501L - WASHER, CLAW (FOR FRONT AXLE HUB RH) | ||||
| 90214-27001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501M - BEARING (FOR FRONT AXLE HUB INNER RH) | ||||
| 90368-42045 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43501N - BEARING (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90368-28001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02025 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90311-68001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502L - WASHER, CLAW (FOR FRONT AXLE HUB LH) | ||||
| 90214-27001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502M - BEARING (FOR FRONT AXLE HUB INNER LH) | ||||
| 90368-42045 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43502N - BEARING (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90368-28001 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-36110 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
1 | ||
| 43512B - DRUM, BRAKE | ||||
| 43512-36060 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
2 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-36030 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-36030 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43520-36110 |
BU100,101..T3..ST;BU100,101..T1,T2,TW2;BU102..(T2,T3)..(15T,20T)..TB |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-36010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-36010 |
BU10#,11#,14#,21#,223,RZU100,YU210..15T,175T,20T,25T,30T |
1 | ||
| Common parts | ||||
| 90105-12085 | ||||
| 90170-20005 | ||||
| 90170-26001 | ||||
| 90252-05001 | ||||
