BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

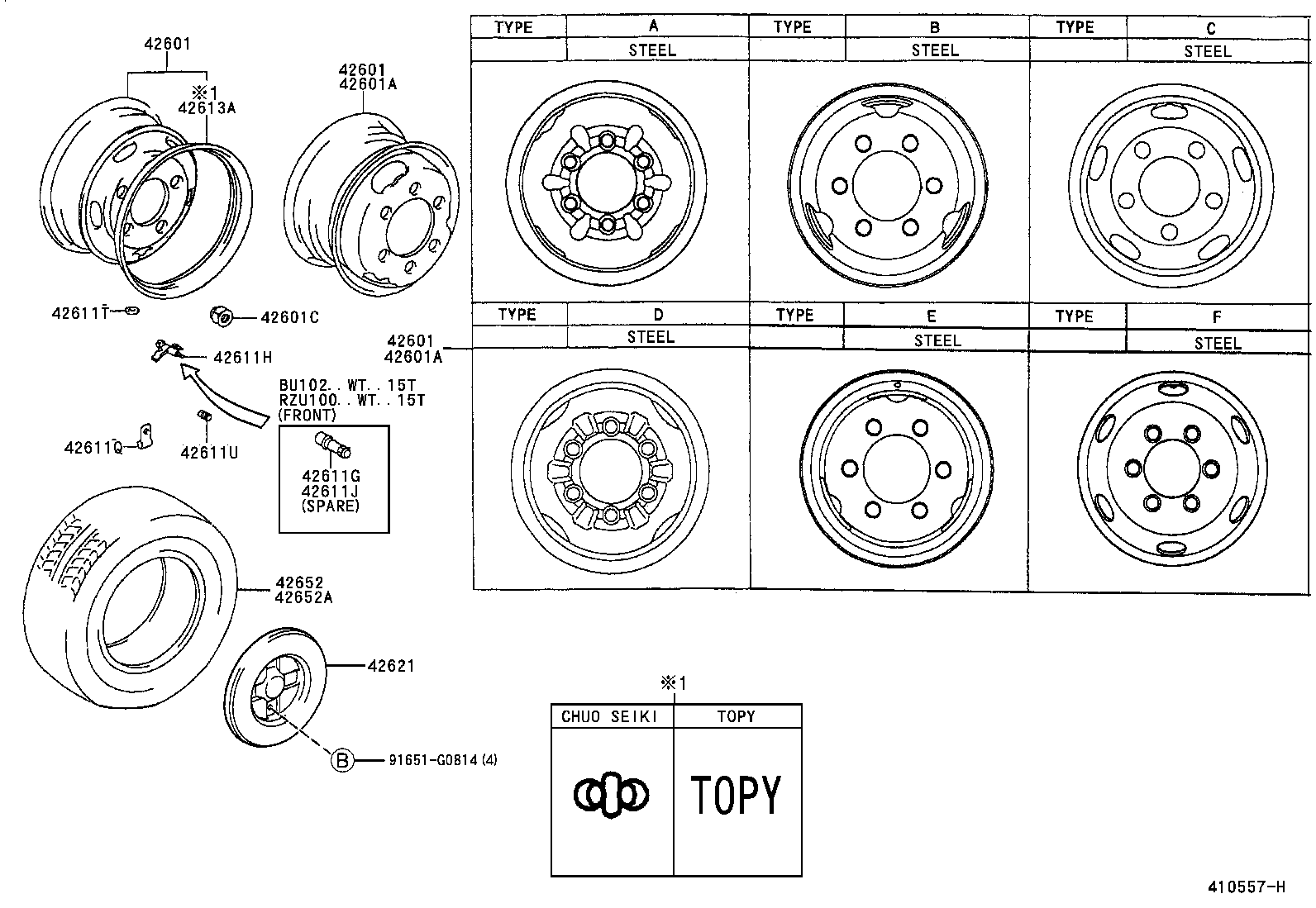

ILLUST NO. 1 OF 2(9505- )

Click highlighted areas on diagram

diagram 42601 42601 42601 42601A 42601A 42601C 42611G 42611H 42611J 42611Q 42611T 42611U 42613A 42621 42652 42652A 91651G0814
Part # Description Qty Price
42601 - WHEEL, DISC
42610-3635003

BU100,101..ST..GEN

5.50F-16,TYPE A:REFER TO ILLUSTRATION,GRAY

 5
42610-2502003

BU10#..ST

5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 2
42610-3629003

BU101..ST..GEN;BU100,102..ST..(175T,20T)

6.00GS-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 3
42601 - WHEEL, DISC
42610-3635003

BU100,101..ST..GEN

5.50F-16,TYPE A:REFER TO ILLUSTRATION,GRAY

 5
42610-2502003

BU10#..ST

5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 2
42610-3629003

BU101..ST..GEN;BU100,102..ST..(175T,20T)

6.00GS-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 3
42601 - WHEEL, DISC
42610-3635003

BU100,101..ST..GEN

5.50F-16,TYPE A:REFER TO ILLUSTRATION,GRAY

 5
42610-2502003

BU10#..ST

5.50F-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 2
42610-3629003

BU101..ST..GEN;BU100,102..ST..(175T,20T)

6.00GS-15,TYPE D:REFER TO ILLUSTRATION,GRAY

 3
42601C - NUT, HUB (FOR AXLE)
90942-01012

BU100,102..ST;BU101..ST..GEN

REAR RH

 6
90942-01013

BU100,102..ST;BU101..ST..GEN

REAR LH

 6
42613A - RING, DISC WHEEL SIDE
42613-35010

BU100..ST;BU101..T1;BU101..20T..GEN..TB

W(5.50F-15 WHEEL), TOPY

 7
42613-35020

BU100..ST;BU101..T1;BU101..20T..GEN..TB

W(6.00GS-15 WHEEL), T0PY

 3
42613-36080

BU110;BU100,101..ST..GEN

W(5.00F-16 WHEEL),TOPY

 5
42613-35010

BU10#..ST

FRONT

 2
42613-36070

BU100..ST;BU101..T1;BU101..20T..GEN..TB

W(6.00GS-15 WHEEL),CHUO SEIKI

 3
42652 - TIRE
42605-25120

BU10#..ST

7.00R15-8,RIB

 2
42605-25030

BU100..175T..GEN

7.50-15-12,LUG

 3
42605-25120

BU10#..ST..(175T,20T)..(GEN,TAIW)

7.00R15-8,RIB

 2
42605-36080

BU100..175T..GEN

7.00-15-8,LUG

 2
42605-36450

BU10#..ST..(175T,20T)

7.00R15-12,RIB

 3
98661-70154

BU100,101..ST

7.00-15-8,RIB

 2
98061-75157

BU100,101..ST..GEN

7.50-15-14,RIB

 3
98061-70166

BU100,101..ST..GEN

7.00-16-12,RIB

 5
98061-75156

BU100,101..ST

7.50-15-12,RIB

 3
42605-37160

BU100,101..LHD..ST..TS

7.00R15-8,RIB,SAUDI ARABIA,GULF SPEC

 2
42605-37200

BU100,101..LHD..ST..TS

7.00-16-12,RIB,SAUDI ARABIA,GULF SPEC

 5
42605-37150

BU100,101..LHD..ST..TS

7.00-15-8,RIB,SAUDI ARABIA,GULF SPEC

 2
42605-37280

BU100,101..LHD..ST..TS

7.50-15-14,RIB,SAUDI ARABIA,GULF SPEC

 3
42605-37270

BU100,101..LHD..ST..TS

7.00R15-12,RIB,SAUDI ARABIA,GULF SPEC

 3
42605-37260

BU100,101..LHD..ST..TS

7.50-15-12,RIB,SAUDI ARABIA,GULF SPEC

 3
Common parts
91651-G0814

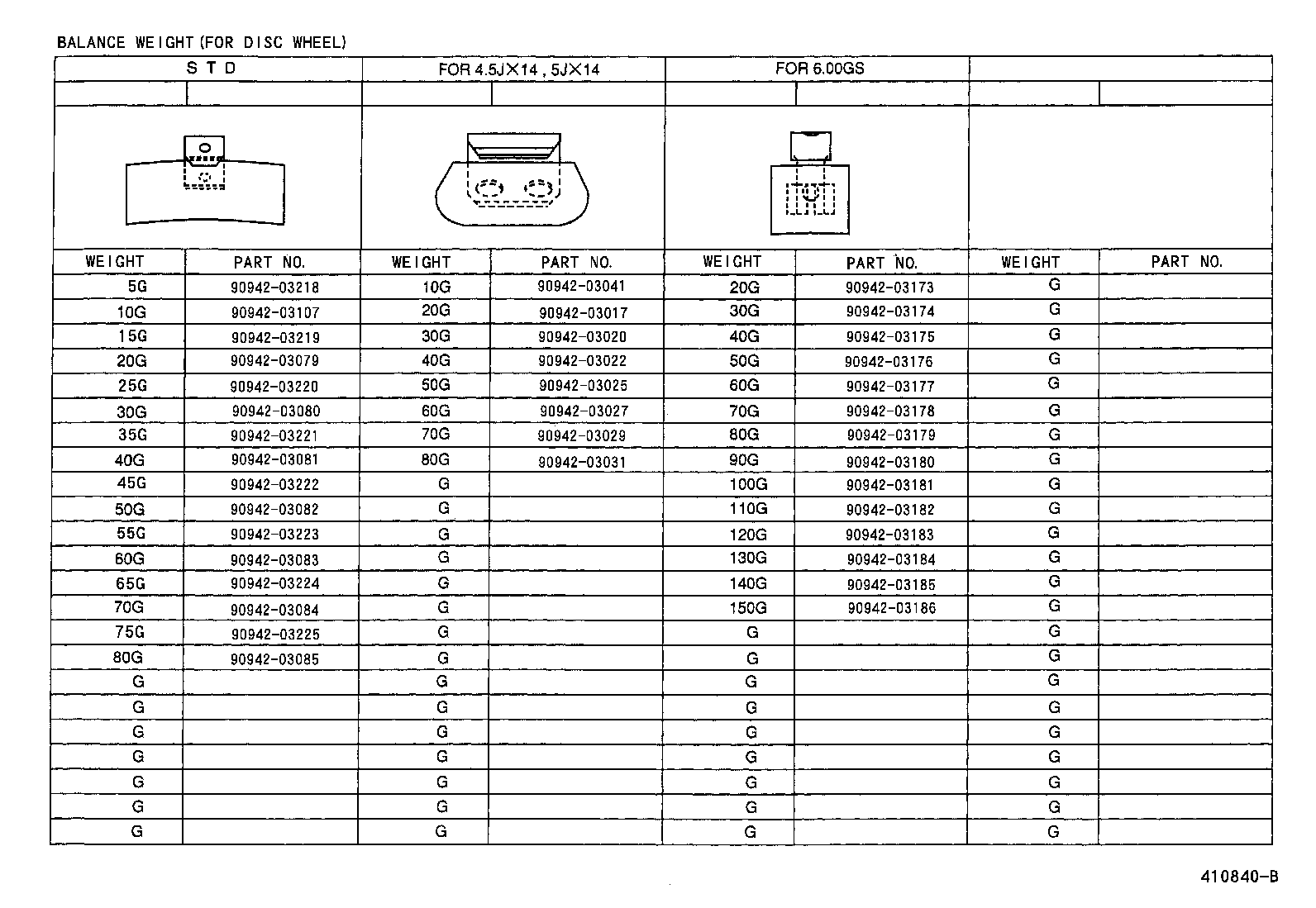

ILLUST NO. 2 OF 2(9505- )

Click highlighted areas on diagram

diagram 9094203017 9094203020 9094203022 9094203025 9094203027 9094203029 9094203031 9094203041 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203173 9094203174 9094203175 9094203176 9094203177 9094203178 9094203179 9094203180 9094203181 9094203182 9094203183 9094203184 9094203185 9094203186 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03017
90942-03020
90942-03022
90942-03025
90942-03027
90942-03029
90942-03031
90942-03041
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03173
90942-03174
90942-03175
90942-03176
90942-03177
90942-03178
90942-03179
90942-03180
90942-03181
90942-03182
90942-03183
90942-03184
90942-03185
90942-03186
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
