BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )BU10#,11#,140,142,RZU100

Click highlighted areas on diagram

TURN OVER CLUTCH

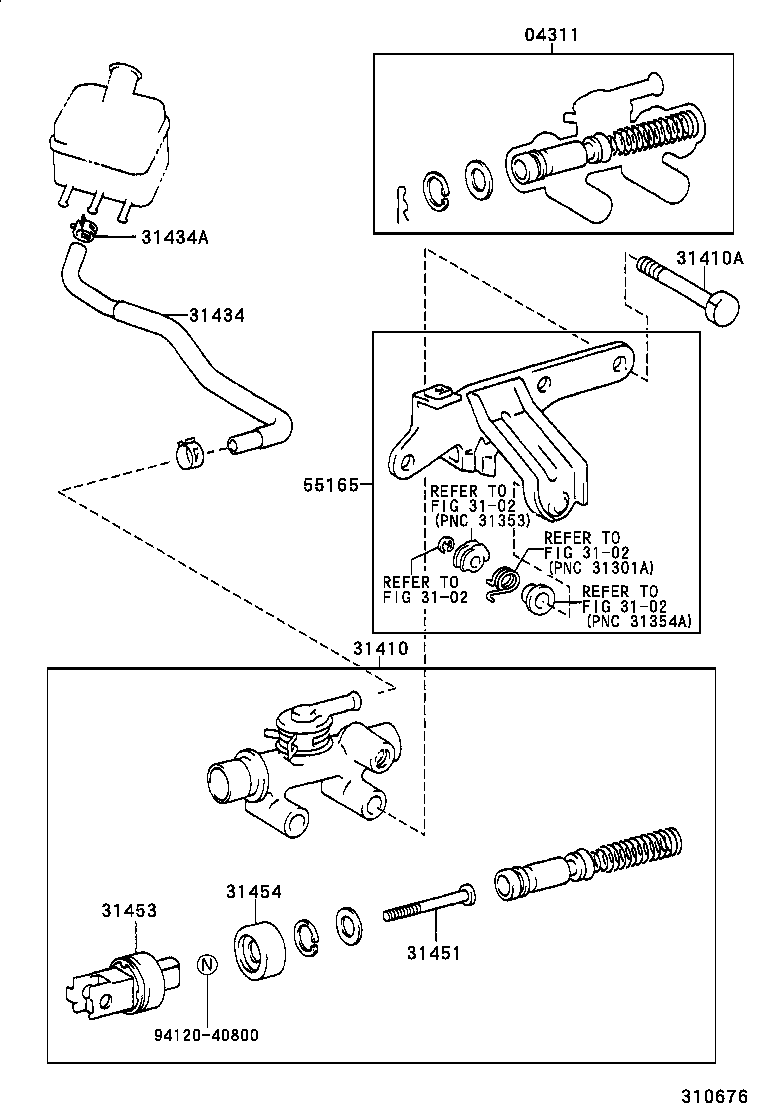

diagram 04311 3102 3102 3102 3102 31410 31410A 31434 31434A 31451 31453 31454 55165 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-37040

BU142..TD;BU10#,11#,140,141,211,221

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-37060

BU10#,111,112,14#,RZU100..LHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-36040

BU142..TD;BU10#,11#,140,141,211,221

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

BU10#,11#,14#,21#,22#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-37050

BU141,211,221;BU100,101,111,140..GEN

W(EXHAUST BRAKE)

 1
55165-37020

BU211..30T..GEN;BU101..(175T,20T)..(GEN,SA);BU100,140,141,YU210..GEN,SA

 1
Common parts
94120-40800
Linked diagrams
3102

(9505- )BU100,101,111,140,141,211,221,YU210

Click highlighted areas on diagram

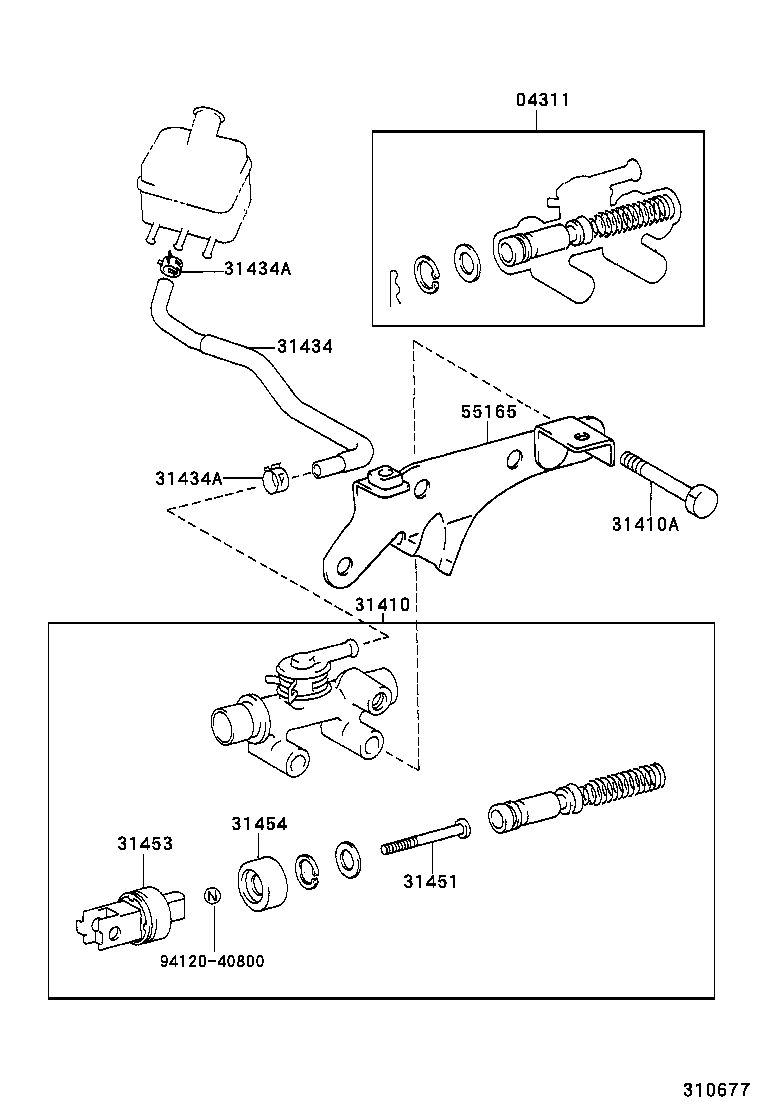

diagram 04311 31410 31410A 31434 31434A 31434A 31451 31453 31454 55165 9412040800
Part # Description Qty Price
04311 - CYLINDER KIT, CLUTCH MASTER
04311-12110

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 1
31410 - CYLINDER ASSY, CLUTCH MASTER
31420-37040

BU142..TD;BU10#,11#,140,141,211,221

 1
31410A - BOLT(FOR CLUTCH MASTER CYLINDER SETTING)
91611-60865

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 2
31434 - TUBE, CLUTCH RESERVOIR
31434-37060

BU10#,111,112,14#,RZU100..LHD

 1
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
31434A - CLIP(FOR CLUTCH RESERVOIR TUBE)
96133-41300

BU10#,11#,14#,21#,22#,RZU100,YU210

 2
31451 - ROD, CLUTCH MASTER CYLINDER PUSH
31451-36040

BU142..TD;BU10#,11#,140,141,211,221

 1
31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD
31404-28020

BU10#,11#,14#,21#,22#

 1
31454 - BOOT, CLUTCH MASTER CYLINDER
31454-14010

BU142..TD;BU10#,11#,140,141,211,221,RZU100,YU210

 1
55165 - SUPPORT, CLUTCH MASTER CYLINDER
55165-37050

BU141,211,221;BU100,101,111,140..GEN

W(EXHAUST BRAKE)

 1
55165-37020

BU211..30T..GEN;BU101..(175T,20T)..(GEN,SA);BU100,140,141,YU210..GEN,SA

 1
Common parts
94120-40800
