BU100L-PSMJS (1995)

Toyota Dyna200

Production May 1995 - May 1999
Engine 3B
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9505- )3B

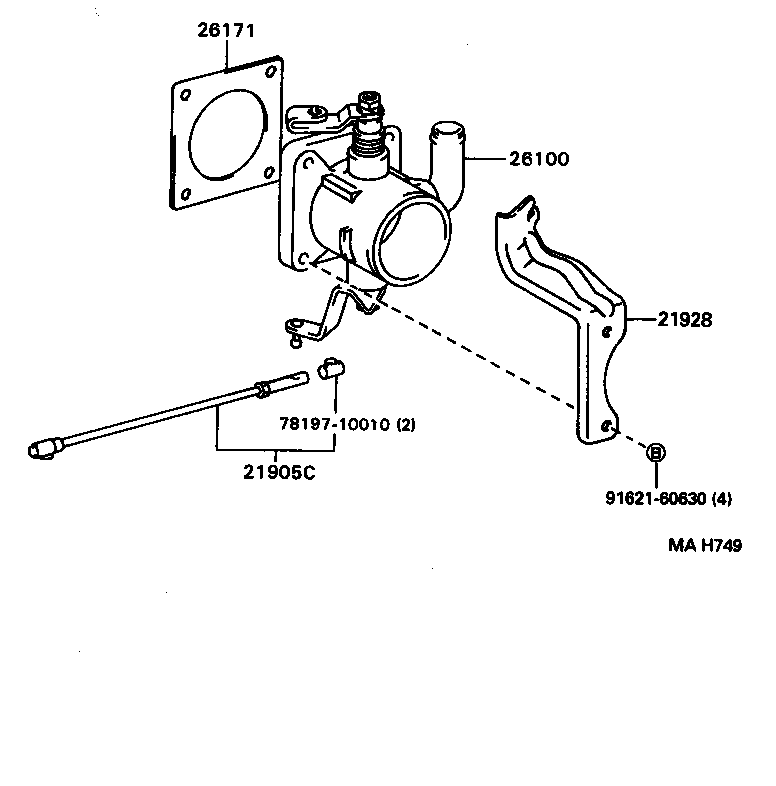

Click highlighted areas on diagram

diagram 21905C 21928 26100 26171 7819710010 9162160630
Part # Description Qty Price
21905C - ROD, ACCELERATOR CONNECTING(FOR VENTURI)
21905-58080

3B..BU100,110,140

 1
21928 - SUPPORT, THROTTLE WIRE
21928-58120

3B..BU100,110,140

 1
26100 - VENTURI ASSY
26100-58071

3B..BU100,110,140

 1
26171 - GASKET, VENTURI
26171-56050

3B..BU100,110,140

 1
Common parts
78197-10010
91621-60630
