BU100L-PSMJS (1995)
Toyota Dyna200

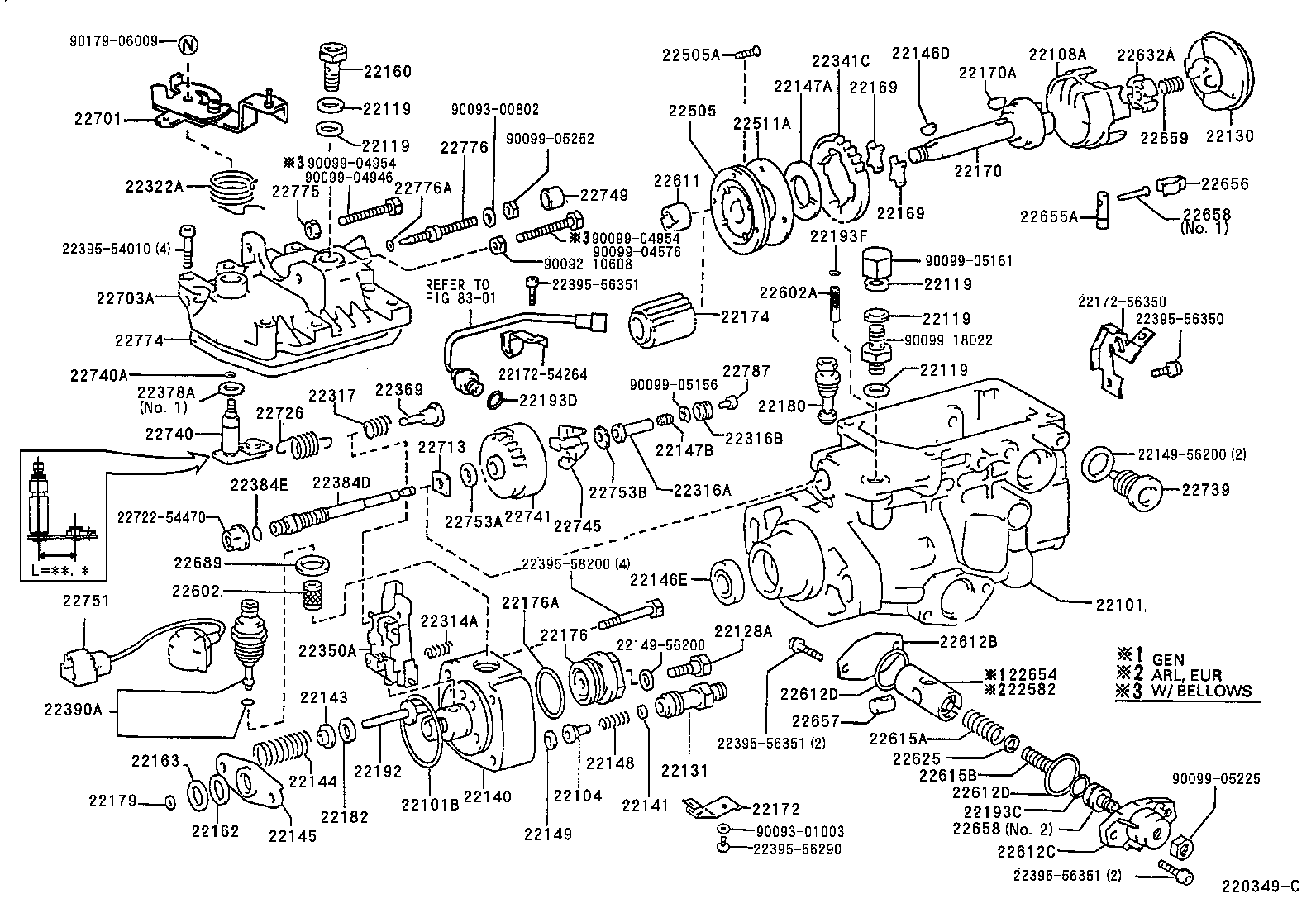

ILLUST NO. 1 OF 2(9505- )3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54770 |
14B,3B..BU100,101,111,140,141,211,221..GEN..(CBU,IV3) |
1 | ||
| 22101-54250 |
14B..BU211,221;14B,3B..BU100,101,111,140,141..(DM1,T1,T3,TW2)..GEN *HAC |
1 | ||
| 22101-64250 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,102,11#,140,141,211,212,221,222..(DM1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(TACHO METER) |
1 | ||
| 22101-54200 |
14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..GEN..(CBU,IV3) *HAC & W(TACHO METER) |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-17010 |
3B..BU100,110,140 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54010 |
3B..BU100,110,140 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
3B..BU100,110,140 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-58200 |
3B..BU100,140..GEN |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22131-54730 |
3B..BU100,110,140 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-58690 |
3B..BU100,140..GEN |
1 | ||
| 22141 - SEAT, DELIVERY VALVE SPRING | ||||
| 22141-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;15BF,3B..BU100,102,110,112,140,142,212,222 |
4 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
3B..BU100,110,140 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54180 |
3B..BU100,140..GEN |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
3B..BU100,110,140 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
3B..BU100,110,140 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-56351 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# |
4 | ||
| 22149-56351 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
3B..BU100,110,140 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
3B..BU100,110,140 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22172 - CLIP, CONNECTOR SUPPORT, SOLENOID | ||||
| 22172-56291 |
14B,3B..BU10#,11#,140,141,21#,22# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 22172-56291 |
14B..BU111,221..LHD;14B..BU101,211..CBU;14B..BU101..ST..IV3;14B..BU211..30T..IV3;14B..BU211,221..40T..SA;14B..BU101..LHD..WT..IV3;14B..BU211..LHD..40T..IV3;14B,3B..BU100,102,110,112,140,141,212,222 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 22172-56291 |
3B..BU100,110,140;14B..BU141,211..LHD..T3 TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 22174 - SHAFT, SPLINE | ||||
| 22174-58201 |
3B..BU100,110,140 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
15BFT..BU222..SA;14B,15BFT..BU212,222..LHD..(GEN,TAIW);14B,15BF,3B..BU10#,11#,140,141,211,221;14B,15BF..BU212,222..(GEN,SA,TAIW)..IV3 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
15BFT..BU212;14B,15BF,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 22193-54772 |
3B..BU100..ST..GEN;3B..BU140..LHD..GEN CHINA SPEC & *HAC |
1 | ||
| 22193-54772 |
14B..BU211..RHD;14B..BU211..TW1;15BFT..BU212,222;14B,15BF,3B..BU100,101,110,111,14#,212,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54772 |
14B,3B..BU100,111,141,211..RHD;14B,3B..BU100,211..(TW1,TW2)..GEN;14B,15BF,3B..BU101,102,110,112,140,142,212,221;14B,15BFT,3B..BU100,111,212,222..LHD..(DM6,T3)..WT |
1 | ||
| 90099-14052 |
3B..BU100..ST..GEN;14B..BU111,221..RHD..GEN;14B,3B..BU140,141..LHD..GEN;14B..BU211..RHD..40T..GEN..IV3 CHINA SPEC |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54020 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=2.9 |
1 | ||
| 22179-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.9 |
1 | ||
| 22179-54012 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.1 |
1 | ||
| 22179-54015 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.4 |
1 | ||
| 22179-54011 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.0 |
1 | ||
| 22179-54017 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.6 |
1 | ||
| 22179-54016 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.5 |
1 | ||
| 22179-54013 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.2 |
1 | ||
| 22179-54018 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.7 |
1 | ||
| 22179-54014 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.3 |
1 | ||
| 22179-54019 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-58200 |
3B..BU100,110,140 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22182-54010 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22# T=0.5 |
2 | ||
| 22183-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=0.8 |
2 | ||
| 22184-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.0 |
2 | ||
| 22186-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.5 |
2 | ||
| 22188-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=2.0 |
2 | ||
| 22185-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.2 |
2 | ||
| 22187-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222..CBU,IV3 T=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
3B..BU100,110,140 |
2 | ||
| 22193C - RING, O(FOR TIMER COVER STOPPER) | ||||
| 22193-64750 |
3B..BU100,140..GEN |
1 | ||
| 22193D - RING, O(FOR REVOLUTION DETECTOR) | ||||
| 22193-64750 |
15BF..BU212,222;15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,221..ARL,GEN |
1 | ||
| 22193-64750 |
15BFT..BU212,222..LHD;14B,15BF,3B..BU10#,11#,14#,21#,22#..(DM1,DM7,T1,T2,T3,TW1,TW2)..(ARL,EUR,GEN,TAIW) |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-64640 |
3B..BU100,110,140 MARK 23 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22317 - SPRING, GOVERNOR DOMPER | ||||
| 22317-54010 |
3B..BU100,110,140 K=0.2,L=6.5 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54450 |
3B..BU100,110,140 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-58200 |
3B..BU100,110,140 |
1 | ||
| 22369 - SEAT, GOVERNOR SPRING | ||||
| 22369-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22378-64010 |
14B..BU211..RHD..GEN;3B..BU100,140..LHD..WT..GEN;14B,3B..BU100,211..(TW1,TW2)..GEN;14B..BU101,111,141,221..(DM1,T1,T3)..GEN *HAC,NO.1 |
1 | ||
| 22378-64010 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22149-6D450 |
14B..BU141..SA;3B..BU100,140..GEN NO.2 |
2 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22384-54010 |
15BF..BU212..RHD;15BFT..BU222..SA;15BFT..BU212..LHD..40T;14B,15BF,3B..BU100,101,110,111,14#,211,221,222..ARL,EUR,GEN,SA |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22390A - SOLENOID ASSY, FUEL CUT | ||||
| 22390-6A510 |
15BFT..BU212..40T;14B,15BF,3B..BU10#,11#,14#,21#,22# 12V |
1 | ||
| 22390-56291 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT CHINA SPEC |
1 | ||
| 22390-6A511 |
15BFT..BU212..LHD..40T;14B,15BF..BU111,141,142,21#,221..RHD;14B,3B..BU100,101,111,140..(DM6,T1,T3,TW2)..GEN |
1 | ||
| 22390-56290 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,211..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-58650 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF..BU101,142,212,222;14B,15BF,3B..BU100,102,111,112,140,141,211,212,221,222..GEN,SA,TAIW |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22611 - NUT, TIMER ROUND | ||||
| 22611-58200 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-56350 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
3B..BU100,140..GEN |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF..BU212..RHD;14B,15BFT..BU212,222..LHD..(GEN,TAIW);14B,15BF,3B..BU10#,11#,14#,211,221,222 |
2 | ||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 22193-17840 |
15BF..BU212..RHD;14B,15BFT..BU212,222..LHD..(GEN,TAIW);14B,15BF,3B..BU10#,11#,14#,211,221,222 |
2 | ||
| 22193-17840 |
14B,15B#,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-54291 |
3B..BU100,140..GEN K=2.50,L=35.6 |
1 | ||
| 22615-54290 |
3B..BU100,140..GEN K=2.30,L=37.9 |
1 | ||
| 22615-58200 |
3B..BU100,140..GEN K=2.10 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
3B..BU100,110,140 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-58200 |
3B..BU100,140..GEN |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
14B,3B..BU10#,11#,140,141,21#,22# |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-17840 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC OR *HAC OR W(TACHO METER),T=0.3 |
1 | ||
| 22656-54010 |
3B..BU100,140..GEN |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-54450 |
14B,3B..BU100,102,112,140,212,222..GEN,TAIW NO.2 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-17840 |
15BFT..BU212;15BF,3B..BU100,110,140,142,212 HEAD=ROUND TYPE,NO.1 |
1 | ||
| 22658-54450 |
14B,3B..BU100,102,112,140,212,222..GEN,TAIW NO.2 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
3B..BU100,110,140 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-58203 |
3B..BU100,110,140 TYPE B=ANGLE OF 29.5 |
1 | ||
| 22701-58202 |
3B..BU100,110,140 TYPE A=ANGLE OF 22 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
3B..BU100,110,140 |
1 | ||
| 22703-54351 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.25 |
1 | ||
| 22717-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.85 |
1 | ||
| 22715-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.45 |
1 | ||
| 22713-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.05 |
1 | ||
| 22716-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 T=1.65 |
1 | ||
| 22726 - SPRING, SPEED CONTROL | ||||
| 22726-58200 |
3B..BU100,110,140 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
2 | ||
| 22740 - SHAFT SUB-ASSY, GOVERNOR ADJUSTING | ||||
| 22740-58210 |
3B..BU100,110,140 L=20 |
1 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 22193-54770 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
3B..BU100,110,140 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-56350 |
3B..BU100,110,140 |
1 | ||
| 22749-56350 |
14B..BU111,141..LHD..(DM1,T3);14B,3B..BU100,102,110,112,140,212,222 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-5C020 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140..LHD..(DM1,T3)..WT..GEN CHINA SPEC |
1 | ||
| 22751-58890 |
3B..BU100,140..GEN W/O(TACHOMETER) |
1 | ||
| 22751-5C020 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC |
1 | ||
| 22751-58880 |
14B,15B#,3B..BU100,102,110,112,140,142,212,222 W(TACHOMETER) |
1 | ||
| 22751-58890 |
14B,3B..BU100,101,111,140,141,211,221..GEN,SA W/O(TACHOMETER) |
1 | ||
| 22751-58880 |
14B,3B..BU100,212;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;15BF..BU212..RHD..(ARL,GEN);14B,15BFT..BU101,212,222..LHD..WT..GEN;14B,15BF,3B..BU102,11#,14#,211,221,222..(DM1,DM7,T2,T3,TW1)..(20T,25T,30T,40T)..(ARL,EUR,GEN,TAIW)..(CBU,IV3) W(TACHOMETER) |
1 | ||
| 22751-5C020 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT CHINA SPEC |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54020 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54270 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22775 - NUT, LOCK(FOR INJECTION PUMP) | ||||
| 22775-77121 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
3B..BU100,110,140 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
15BFT..BU212;14B,15BF,3B..BU100,101,110,111,14#,21#,221..ARL,EUR,GEN,SA |
1 | ||
| 22193-54771 |
15BFT..BU212..LHD..40T;14B,15BF,3B..BU10#,11#,14#,21#,22#..ARL,EUR,GEN,SA |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54027 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.4 |
1 | ||
| 22787-54026 |
14B,15B#,3B..BU10#,11#,14#,21#,22# L=3.3 |
1 | ||
| 22787-54027 |
14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF,3B..BU100,102,110,112,140,142,212,222 L=3.4 |
1 | ||
| 22787-54026 |
14B..BU111,221..RHD..GEN;14B..BU101..RHD..WT..IV3;14B..BU211..LHD..T3..30T;14B..BU211..LHD..40T..CBU;14B,15BFT..BU21#..40T..GEN..IV3;14B,15BF,3B..BU100,102,110,112,140,142,212,222 L=3.3 |
1 | ||
| 22787-54027 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54026 |
14B..BU211..LHD..T3;15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.4 |
1 | ||
| 22787-54026 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212 L=3.3 |
1 | ||
| 22787-54027 |
15BFT..BU212..LHD..40T;15BF,3B..BU100,110,140,142,212;14B..BU111,141,211,221..LHD..(DM1,T3,TW1) L=3.4 |
1 | ||
| 22787-64662 |
3B..BU100,110,140 L=2.4 |
1 | ||
| 22787-64664 |
3B..BU100,110,140 L=2.6 |
1 | ||
| 22787-64660 |
3B..BU100,110,140 L=2.2 |
1 | ||
| 22787-64665 |
3B..BU100,110,140 L=2.7 |
1 | ||
| 22787-64663 |
3B..BU100,110,140 L=2.5 |
1 | ||
| 22787-64661 |
3B..BU100,110,140 L=2.3 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54264 | ||||
| 22172-56350 | ||||
| 22395-54010 | ||||
| 22395-56290 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-58200 | ||||
| 22722-54470 | ||||
| 90092-10608 | ||||
| 90093-00802 | ||||
| 90093-01003 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-04954 | ||||
| 90099-05156 | ||||
| 90099-05161 | ||||
| 90099-05225 | ||||
| 90099-05252 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| Linked diagrams | ||||
| 8301 | ||||
ILLUST NO. 2 OF 2(9505- )14B,3B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 22149-54800 |
15BFT..BU222..LHD;15BFT,3B..BU100,140,212..(175T,20T,25T,30T)..GEN |
1 | ||
| 90201-12109 |
15BFT..BU212..30T;15BFT..BU222..LHD;15BF,3B..BU100,102,110,112,140 T=1.6 |
5 | ||
| 90201-12109 |
15BFT..BU222..SA;15BFT..BU222..LHD..GEN;14B,15BFT..BU111,212..(20T,30T)..IV3;15BF,3B..BU100,102,110,112,140,142,212,222 T=1.6 |
5 | ||
| 22129 - PLUG, SCREW | ||||
| 22129-55110 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-55031 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22301 - ROD SUB-ASSY, PUSH | ||||
| 22301-56310 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-17570 |
14B,3B..BU100,101,111,140,141,211,221..(DM1,T1,T3,TW1,TW2)..(GEN,SA) |
1 | ||
| 22308-54140 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-64400 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.2 |
1 | ||
| 22327-54120 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.1 |
1 | ||
| 22327A - SPRING(FOR BELLOWS) | ||||
| 22327-64400 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.2 |
1 | ||
| 22327-54120 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.1 |
1 | ||
| 22338A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-64400 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC & W(TACHO METER) |
1 | ||
| 22348-64400 |
15BF..BU212..SA;14B..BU211..TW1;14B..BU111,141,211..RHD;14B,15BF,3B..BU100,101,140,221,222..GEN,SA |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22378-64010 |
14B..BU211..RHD..GEN;3B..BU100,140..LHD..WT..GEN;14B,3B..BU100,211..(TW1,TW2)..GEN;14B..BU101,111,141,221..(DM1,T1,T3)..GEN *HAC,NO.1 |
1 | ||
| 22378-64010 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22149-6D450 |
14B..BU141..SA;3B..BU100,140..GEN NO.2 |
2 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
3B..BU100..175T..GEN;15BFT,3B..BU100,140,212,222..LHD..WT..GEN;14B,15BF..BU101,102,111,112,141,142,21#,22# NO.1 |
1 | ||
| 22378-64010 |
14B..BU211..RHD..GEN;3B..BU100,140..LHD..WT..GEN;14B,3B..BU100,211..(TW1,TW2)..GEN;14B..BU101,111,141,221..(DM1,T1,T3)..GEN *HAC,NO.1 |
1 | ||
| 22378-64010 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22149-6D450 |
14B..BU141..SA;3B..BU100,140..GEN NO.2 |
2 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22621A - WASHER, TIMER ADJUSTING | ||||
| 22625-54272 |
3B..BU100,140..GEN T=0.5 |
1 | ||
| 22622-54010 |
14B..BU101..LHD..WT;14B..BU101..20T..GEN..TB;14B..BU101..RHD..(GEN,SA);14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=1.0,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54803 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.7,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54010 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.2,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54800 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.6,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54805 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.9,*HAC,BELLOWS COMPONENT |
1 | ||
| 22621-54010 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.5,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54806 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.3,*HAC,BELLOWS COMPONENT |
1 | ||
| 22624-54804 |
14B..BU101..LHD..WT;14B..BU101..RHD..GEN;14B..BU101..20T..GEN..TB;14B,3B..BU100,111,140,141,211,221..(DM1,T3,TW1,TW2)..GEN..(CBU,IV3) T=0.8,*HAC,BELLOWS COMPONENT |
1 | ||
| 22680D - BELLOWS ASSY, PNEUMATIC | ||||
| 22680-56310 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN *HAC |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22681 - BELLOWS SUB-ASSY, PNEUMATIC | ||||
| 22681-54460 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22686A - COVER, PNEUMATIC BELLOWS | ||||
| 22682-54351 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22686B - RING, O(FOR BELLOWS COVER) | ||||
| 90099-14057 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54132 |
3B..BU100,110,140 |
1 | ||
| 22703-54351 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22722 - NUT, GOVERNOR SHAFT ROCK | ||||
| 22722-54120 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
3B..BU100..175T..GEN;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC |
2 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-64410 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.2 |
1 | ||
| 22777-54120 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.1 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-64410 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.2 |
1 | ||
| 22777-54120 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.1 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-64410 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.2 |
1 | ||
| 22777-54120 |
3B..BU100..175T..GEN;14B..BU101..LHD..ST..TS;14B,3B..BU100,111,140,141,211..LHD..(DM1,T3)..WT..GEN *HAC,NO.1 |
1 | ||
| Common parts | ||||
| 22395-54263 | ||||
| 90099-05156 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
