BU100L-PSMJS (1995)
Toyota Dyna200
(9505- )3B

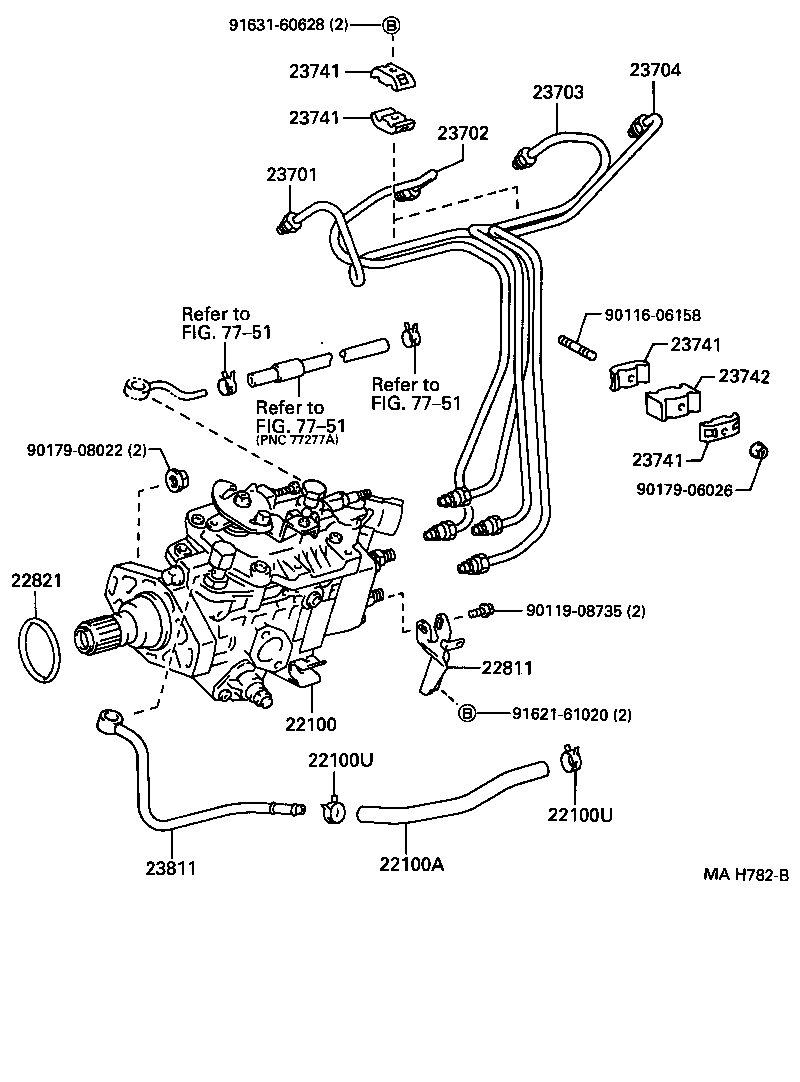

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-5C170 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC |
1 | ||
| 22100-5C190 |
3B..BU100,140..GEN |
1 | ||
| 22100-5C180 |
3B..BU100..175T..GEN;3B..BU100,140..LHD..WT..GEN CHINA SPEC & *HAC |
1 | ||
| 22100-5C210 |
3B..BU100,140..GEN *HAC |
1 | ||
| 22100-5C220 |
3B..BU100,140..GEN *HAC & W(TACHO METER) |
1 | ||
| 22100-5C200 |
3B..BU100,140..GEN W(TACHO METER) |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-58030 |
15BFT..BU222..SA;14B..BU211..30T..SA;14B..BU211,221..GEN;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,212,222 |
1 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22100U - CLIP, HOSE FUEL(FOR INJECTION PUMP) | ||||
| 96132-41500 |
14B..BU211,221..GEN;14B..BU211..30T..SA;14B,15BF,15BFT,3B..BU10#,11#,14#,212,222 |
2 | ||
| 22811 - STAY, INJECTION PUMP, NO.1 | ||||
| 22811-58030 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| 22821 - GASKET, INJECTION PUMP | ||||
| 90301-49003 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,15BFTE,3B..BU10#,11#,14#,21#,22# |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-58011 |
3B..BU100,110,140 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-58011 |
3B..BU100,110,140 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-58011 |
3B..BU100,110,140 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-58011 |
3B..BU100,110,140 |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-58010 |
14B,3B..BU10#,11#,140,141,211,212,221,222 |
6 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23741-56020 |
3B..BU100,110,140 |
1 | ||
| 23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP) | ||||
| 23811-58010 |
15BFT..BU222..SA;15BFT..BU212,222..LHD..GEN;14B,15BF,3B..BU10#,11#,14#,211,212,221,222 |
1 | ||
| Common parts | ||||
| 90116-06158 | ||||
| 90119-08735 | ||||
| 90179-06026 | ||||
| 90179-08022 | ||||
| 91621-61020 | ||||
| 91631-60628 | ||||
| Linked diagrams | ||||
| 7751 | ||||
